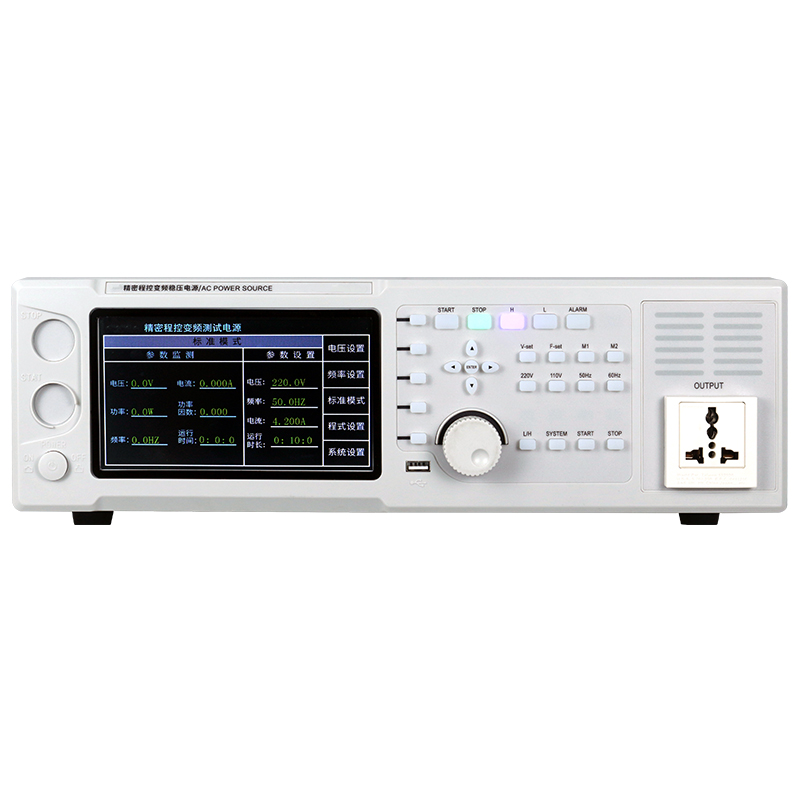

MYAMI 300V 500VA 1KVA 2KVA 3KVA 45Hz 400Hz Single Phase Touch Screen Programmable Variable Frequency Constant Power Supply
MYAMI 300V 500VA 1KVA 2KVA 3KVA 45Hz 400Hz Single Phase Touch Screen Programmable Variable Frequency Constant Power Supply
MYAMI 300V 500VA 1KVA 2KVA 3KVA 45Hz 400Hz Single Phase Touch Screen Programmable Variable Frequency Constant Power Supply
MYAMI 300V 500VA 1KVA 2KVA 3KVA 45Hz 400Hz Single Phase Touch Screen Programmable Variable Frequency Constant Power Supply
MYAMI 300V 500VA 1KVA 2KVA 3KVA 45Hz 400Hz Single Phase Touch Screen Programmable Variable Frequency Constant Power Supply
1 / 5
MYAMI 300V 500VA 1KVA 2KVA 3KVA 45Hz 400Hz Single Phase Touch Screen Programmable Variable Frequency Constant Power Supply
MYAMI 300V 500VA 1KVA 2KVA 3KVA 45Hz 400Hz Single Phase Touch Screen Programmable Variable Frequency Constant Power Supply
MYAMI 300V 500VA 1KVA 2KVA 3KVA 45Hz 400Hz Single Phase Touch Screen Programmable Variable Frequency Constant Power Supply
MYAMI 300V 500VA 1KVA 2KVA 3KVA 45Hz 400Hz Single Phase Touch Screen Programmable Variable Frequency Constant Power Supply
MYAMI 300V 500VA 1KVA 2KVA 3KVA 45Hz 400Hz Single Phase Touch Screen Programmable Variable Frequency Constant Power Supply

MYAMI 300V 500VA 1KVA 2KVA 3KVA 45Hz 400Hz Single Phase Touch Screen Programmable Variable Frequency Constant Power Supply

Send Inquiry

Product Description

Features

High Performance

Precision variable frequency test power supply is a kind of high power, low distortion, high stability, its output frequency and voltage can be adjusted in a certain range. Especially suitable for lighting industry, household appliances, electric motors, electronic manufacturing, IT industry and other fields.

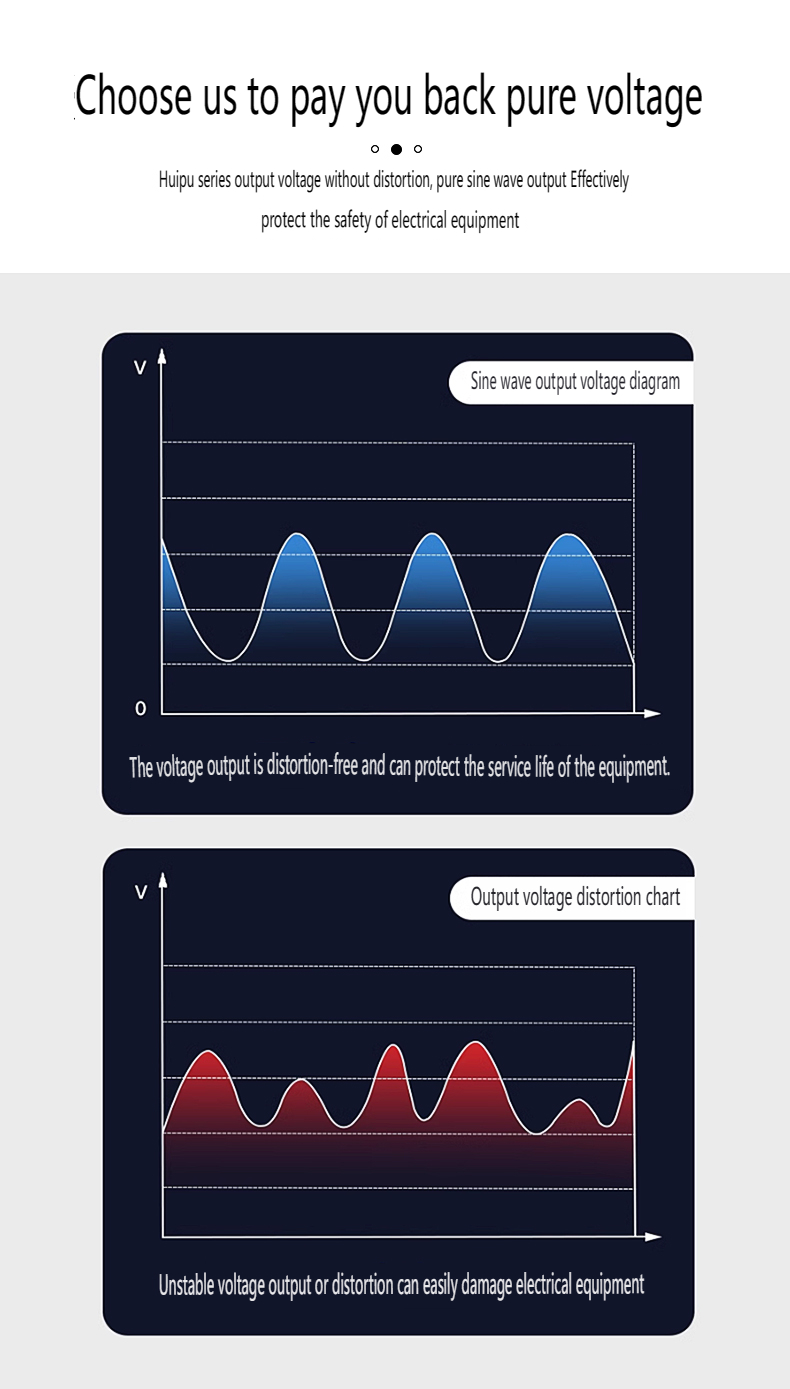

Pure Sine Wave

The voltage waveform is pure sine wave (without distortion). Advanced electronic technology and control algorithms are used to ensure high accuracy and stability of output voltage and frequency.

Safety Protection

The safety protection function can effectively prevent overcurrent and overvoltage faults from damaging the power supply device, ensuring the safety and reliability of the power supply device.

Product Details

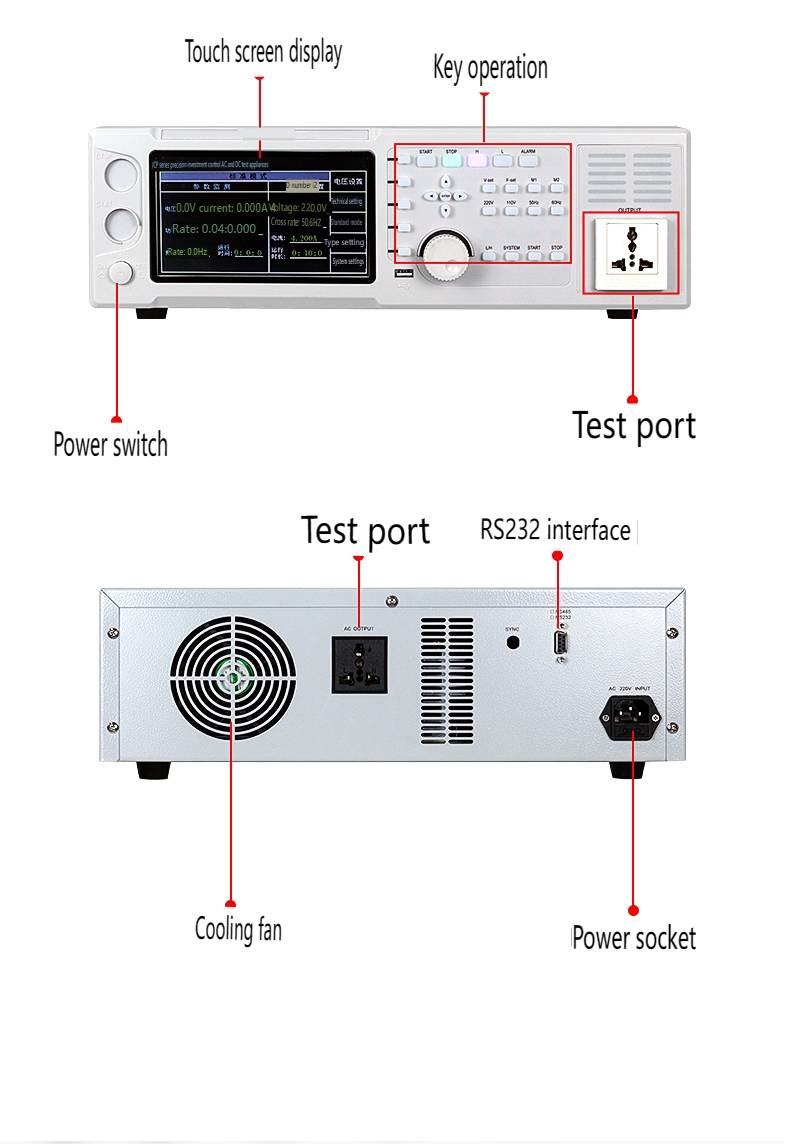

Product Detail Map
Product Feature 1 Product Feature 2 Product Feature 3 Product Feature 4 Product Feature 5 Product Feature 6 Product Feature 7
300V 350VA Bench Single Phase Programmable Variable Frequency AC Power Supply for Experimental Test
  • As long as you purchase our product, we will provide you with lifelong service!
  • The product warranty period is 1 year!
  • If the product unfortunately encounters problems, please contact us as soon as possible. We will provide free remote support testing and provide corresponding components for replacement (Free components provided if within 1 year warranty).
  • Lifelong maintenance, free components provided, you only need to pay a small amount of shipping costs!
Specifications
Model Capacity Rated Current (120V) Rated Current (240V) AC Input (Phases) AC Output (Phases)
MY-60D03 350VA 3A 1.5A Single-phase two-lines + PE Single phase two lines
MY-60D05 500VA 4.2A 2.1A Single-phase two-lines + PE Single phase two lines
MY-60D10 1KVA 8.4A 4.2A Single-phase two-lines + PE Single phase two lines
MY-60D20 2KVA 16.66A 8.3A Single-phase two-lines + PE Single phase two lines
MY-60D30 3KVA 25A 12.5A Single-phase two-lines + PE Single phase two lines
MY-60D50 5KVA 41.66A 20.83A Single-phase two-lines + PE Single phase two lines
MY-60D100 10KVA 83.33A 41.6A Single-phase two-lines + PE Single phase two lines
MY-60TD150 15KVA 125A 62.5A Single-phase two-lines + PE Single phase two lines
MY-60TD200 20KVA 166.66A 83.33A Single-phase two-lines + PE Single phase two lines
MY-70TD150 15KVA 125A 62.5A Three-phase, four-wire + PE Single phase two lines
MY-70TD200 20KVA 166.66A 83.33A Three-phase, four-wire + PE Single phase two lines
MY-70TD300 30KVA 250A 125A Three-phase, four-wire + PE Single phase two lines
MY-70TD450 45KVA 375A 187.5A Three-phase, four-wire + PE Single phase two lines
MY-70TD600 60KVA 500A 250A Three-phase, four-wire + PE Single phase two lines
MY-70TD750 75KVA 625A 312.5A Three-phase, four-wire + PE Single phase two lines
MY-70TD900 90KVA 750A 375A Three-phase, four-wire + PE Single phase two lines
MY-70TD1000 100KVA 833.33A 416.6A Three-phase, four-wire + PE Single phase two lines
MY-70TD1200 120KVA 1000A 500A Three-phase, four-wire + PE Single phase two lines
MY-70TD1500 150KVA 250A 625A Three-phase, four-wire + PE Single phase two lines
MY-70TT60 6KVA 16.6A 8.3A Three-phase, four-wire + PE Three phase four line
MY-70TT100 10KVA 25A 12.5A Three-phase, four-wire + PE Three phase four line
MY-70TT150 15KVA 41.6A 20.8A Three-phase, four-wire + PE Three phase four line
MY-70TT200 20KVA 55.5A 27.7A Three-phase, four-wire + PE Three phase four line
MY-70TT300 30KVA 83.3A 41.6A Three-phase, four-wire + PE Three phase four line
MY-70TT450 45KVA 125A 62.5A Three-phase, four-wire + PE Three phase four line
MY-70TT600 60KVA 166A 83A Three-phase, four-wire + PE Three phase four line
MY-70TT750 75KVA 208A 104A Three-phase, four-wire + PE Three phase four line
MY-70TT1000 100KVA 275A 138A Three-phase, four-wire + PE Three phase four line
MY-70TT1200 120KVA 333.3A 166A Three-phase, four-wire + PE Three phase four line
MY-70TT1500 150KVA 416A 208A Three-phase, four-wire + PE Three phase four line
Technical Parameters
Input 10 KVA and below: single-phase 220V ± 10%; 50Hz ± 5Hz
Above 10 KVA: three-phase 380V ± 10%, three-phase / four-wire + ground wire; 50Hz ± 5Hz
Output Voltage Range Low-end: 0.1~150.0V, Upscale: 150.1~300.0V
Output Frequency 45-400Hz adjustable, adjusted stride of 0.1Hz, shortcut key: 50Hz; 60Hz
Frequency Stability ≤0.1%
Voltage Stability ≤1%
Degree of Distortion ≤2% (THD)
Wave Peak Coefficient 1.41 ± 0.10
Source Voltage Effect ≤1%
Load Effect ≤1%
Efficiency (Productiveness) 90% (80% capacity for 3 kVA and below)
Frequency Display 0.1% readings, with a resolution of 0.1Hz
Voltage Display ± (1% reading + 0.1% range), resolution of 0.1V
Current Display ± (1% reading + 0.1% range), resolution 0.001A/0.1A
Power Display ± (1% reading + 0.1% range), with 0.1W/0.1kW resolution
Power Factor Shown ± 0.1 with a resolution of 0.001
Preparatory Function Output voltage, output frequency, output current upper limit
Quick Function Common voltage and frequency conversion
Alarm Function The alarm (sound and light) signal after the protection device displays the fault code
Overload Capacity 1.0 Ie continuous; 1.1 Ie to 1.2 Ie output, delay 5s to cut off output
Overheat Protection The power device temperature is greater than 85℃ ± 5℃
Communication Interface (CI) RS-232C / RS-485 (Optional option)
Case Protection Grade IP20
Case Structure Desktop (below 3 KVA), cabinet (vertical) with casters (5 KVA and above)
Work Environment Temperature: -10℃ to 40℃, Humidity: 10%~90% (25℃, no condensation)
Altitude: ≤2000m
Certificates
Product Quality Certificate
Packaging & Transportation
Packaging and Transportation Details
FAQ
FAQ Reference Image
Q1: What Is A Variable DC Power Supply?
Re: It is a power source with an output voltage that the user can vary. Variable DC power supplies allow you to change the voltage and the current to the DUT.
Q2: Why Is A DC Power Source Needed?
Re: A DC power source provides a constant biasing voltage or current to electrical devices, components, or circuits and ensures that the DUT operates as expected.
Q3: How Do You Use A DC Power Source?
Re: A DC power source connects to a DUT via leads that connect to the DC power supply panel. Engineers can set voltages or current levels to power the device for testing purposes.
Q4: How Does A DC Power Source Work?
Re: A DC power source converts alternating current (AC) power into DC power using either a linear or switching methodology. A switching power supply has higher efficiency, reduced weight, and smaller size. Linear power supplies can achieve lower noise, but modern switching supplies have minimized or eliminated this advantage.
Q5: What Is A Bench DC Power Supply?
Re: A bench DC power supply is designed to sit on an engineer’s bench. It will typically have a large, legible display and a user interface so engineers can easily control all aspects of the power supply from the front panel. Users can also control modern bench power supplies via software. In addition, the output terminals are easily accessible from the front. Bench power supplies are handy tools for testing circuits, as they allow you to adjust the voltage on the fly. If you have a project that needs a specific voltage or haven’t designed the power section yet, a bench power supply can be a lifesaver.
Q6: What kind of warranty and maintenance services are provided?
Re: We provide a 1-year product warranty period alongside lifelong service support. Within the first year, if any issues occur, we provide free remote testing and replacement components. For lifelong maintenance after the warranty, we continue to provide free components, requiring only a small shipping fee.
