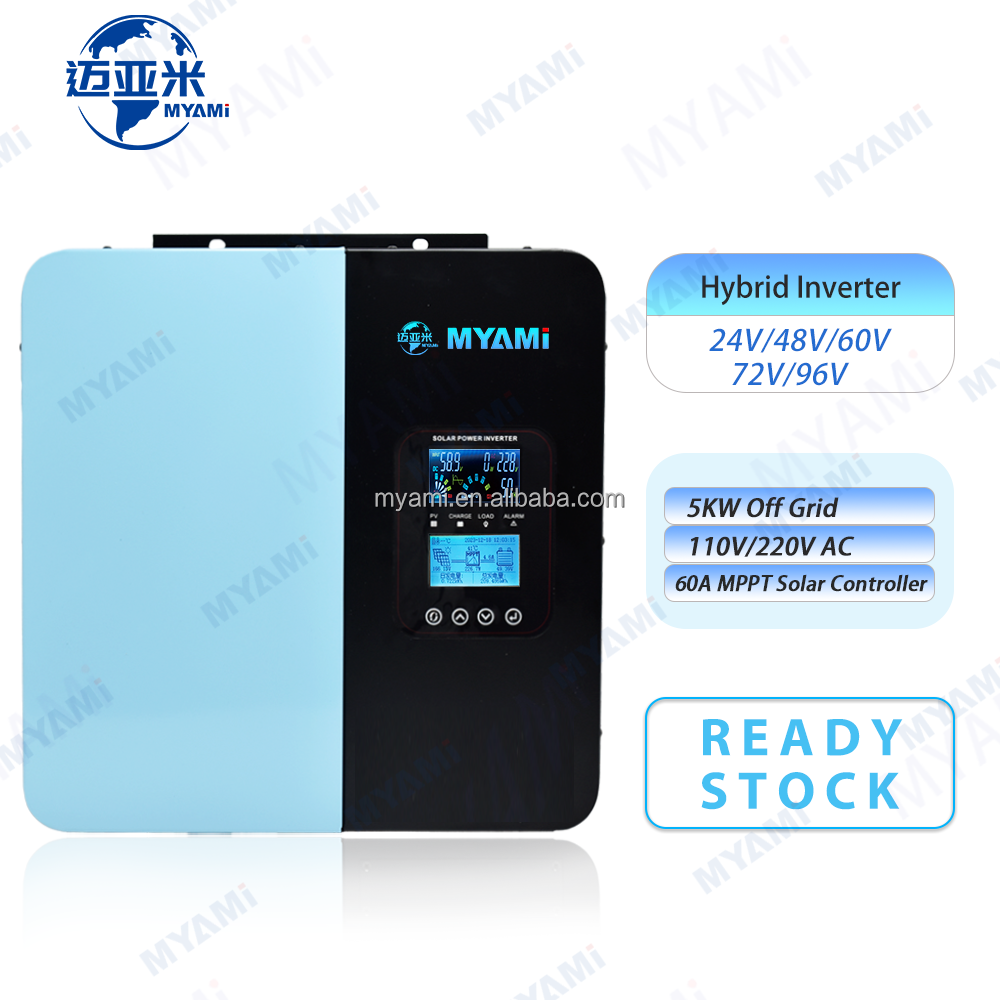

MYAMi 5KW 24-96V Pure Sine Wave Hybrid Solar Inverters with 60A MPPT Solar Charge Controller All-in-One Machine for Solar System
MYAMi 5KW 24-96V Pure Sine Wave Hybrid Solar Inverters with 60A MPPT Solar Charge Controller All-in-One Machine for Solar System
MYAMi 5KW 24-96V Pure Sine Wave Hybrid Solar Inverters with 60A MPPT Solar Charge Controller All-in-One Machine for Solar System
MYAMi 5KW 24-96V Pure Sine Wave Hybrid Solar Inverters with 60A MPPT Solar Charge Controller All-in-One Machine for Solar System
MYAMi 5KW 24-96V Pure Sine Wave Hybrid Solar Inverters with 60A MPPT Solar Charge Controller All-in-One Machine for Solar System
1 / 5
MYAMi 5KW 24-96V Pure Sine Wave Hybrid Solar Inverters with 60A MPPT Solar Charge Controller All-in-One Machine for Solar System
MYAMi 5KW 24-96V Pure Sine Wave Hybrid Solar Inverters with 60A MPPT Solar Charge Controller All-in-One Machine for Solar System
MYAMi 5KW 24-96V Pure Sine Wave Hybrid Solar Inverters with 60A MPPT Solar Charge Controller All-in-One Machine for Solar System
MYAMi 5KW 24-96V Pure Sine Wave Hybrid Solar Inverters with 60A MPPT Solar Charge Controller All-in-One Machine for Solar System
MYAMi 5KW 24-96V Pure Sine Wave Hybrid Solar Inverters with 60A MPPT Solar Charge Controller All-in-One Machine for Solar System

MYAMi 5KW 24-96V Pure Sine Wave Hybrid Solar Inverters with 60A MPPT Solar Charge Controller All-in-One Machine for Solar System

Send Inquiry

Product Description

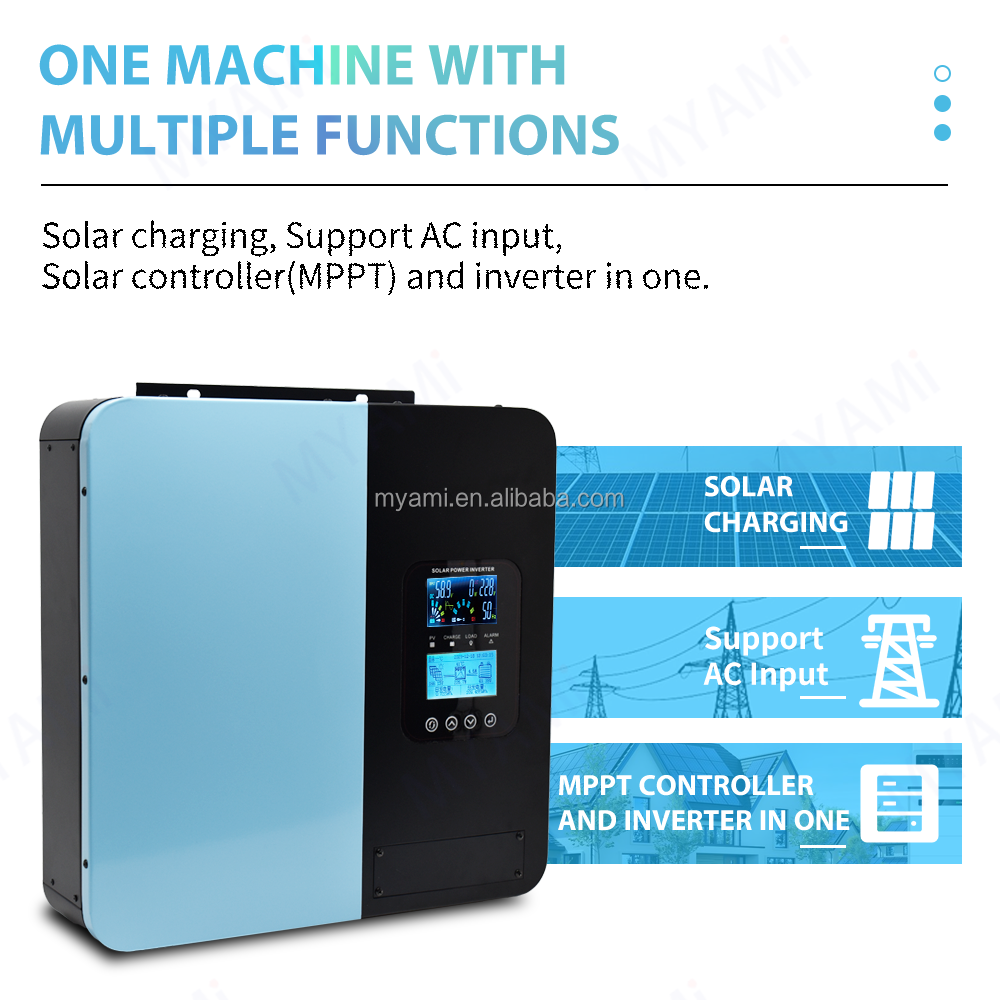

Solar Hybrid Inverter & Power Inverter & MPPT
In Stock Solar Hybrid Inverter & Power Inverter & MPPT
  • 1High quality products
  • 2Inverter efficiency 90%
  • 3MPPT efficiency 95-99%
  • 4Pure Sine Wave output
  • 5Factory direct sales
  • 6In stock, fast delivery
Product Parameters
Model ES3000BS ES5000B

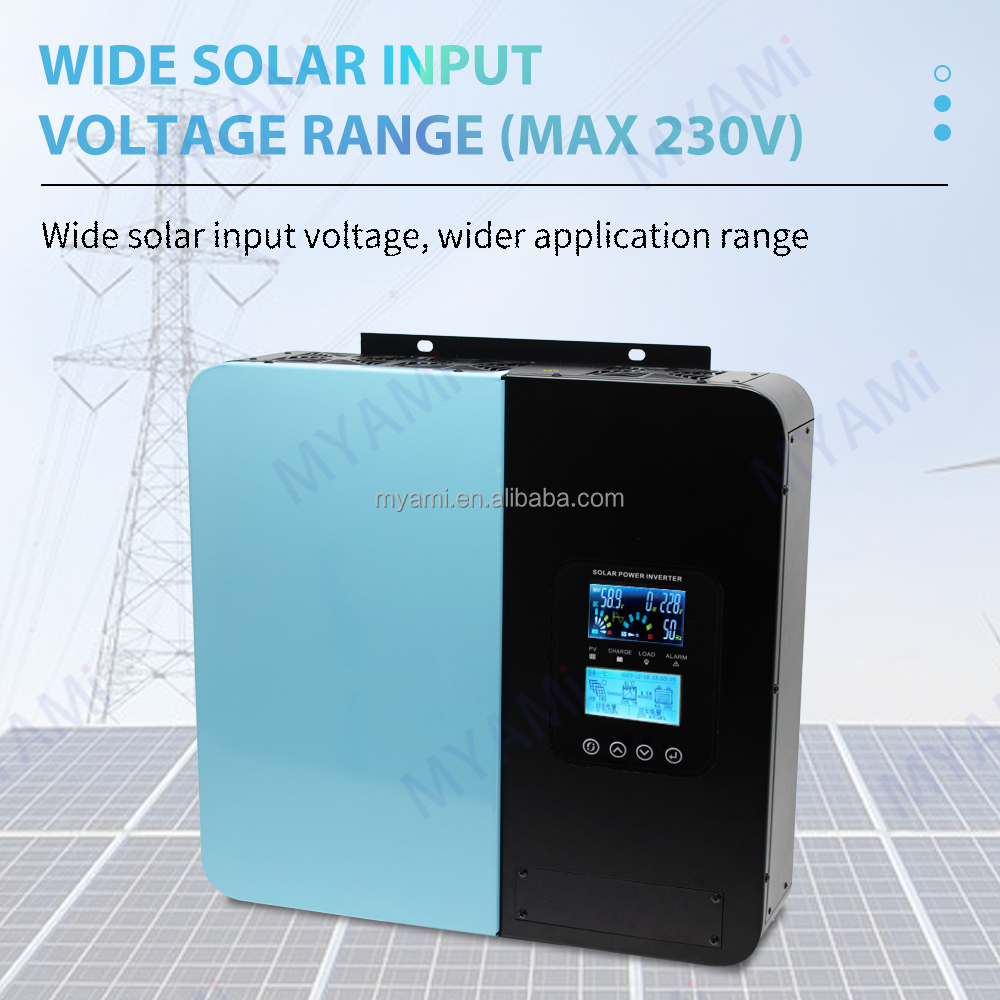

PV Input DC voltage range MAX 230VDC
Input AC voltage Single phase, Option: 110VAC or 220VAC
Output AC voltage Single phase, Option: 110VAC or 220VAC
Battery voltage DC 12V/24V/48V/60V/72V/96V DC 24V/48V/60V/72V/96V
MPPT Current 60A 60A
Start Charging Photovoltaic voltage is greater than battery voltage 3V (can charge with low current on cloudy and rainy days)
Rated Power 3000W 5000W
PV panel type Monocrystalline silicon or polycrystalline silicon
Battery type Supports lead-acid batteries, colloidal batteries, and lithium batteries
Working efficiency 90%
Working temperature range 0℃ to +40℃
Working humidity range 20% ~ 90%
Storage temperature range -30℃ to +70℃
Cooling method Intelligent temperature controlled air cooling
Display LCD display
Product size L39.3*W10.5*H33cm L39.3*W10.5*H39cm
Net weight 7.5kg 9.5kg
Package size 47*18*44cm 47*18*51cm
Package weight 10kg 11kg
PCS/box 1pc/Box 1pc/Box

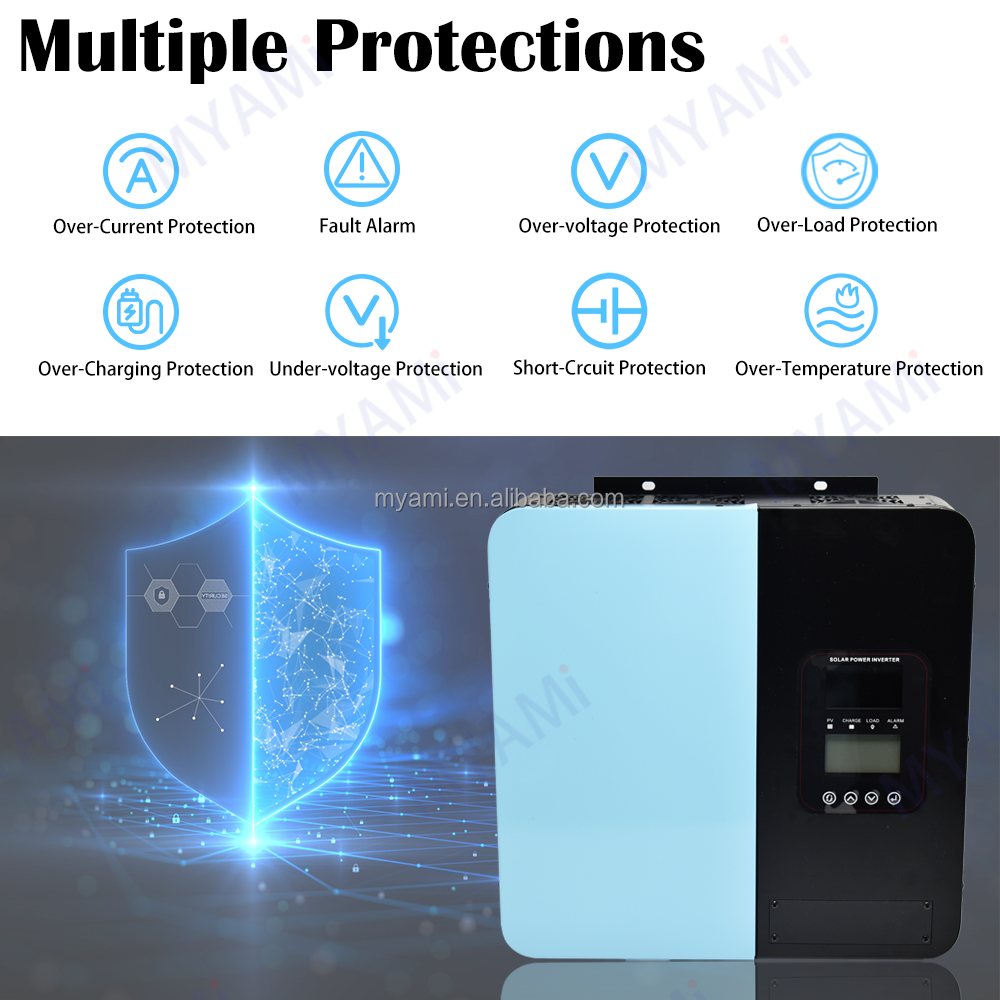

Protection function Overload protection, high and low voltage protection, over temperature protection, short circuit protection
3KW 5KW In Stock Pure Sine Wave Single Phase Off Grid Solar Hybrid Inverter With 60A MPPT Solar Charge Controller
Peak Power 6000W / 10000W
Product Showcase
Solar Hybrid Inverter Detail 1 Solar Hybrid Inverter Detail 2 Solar Hybrid Inverter Detail 3 Solar Hybrid Inverter Detail 4 Solar Hybrid Inverter Detail 5 Solar Hybrid Inverter Detail 6 Solar Hybrid Inverter Detail 7 Solar Hybrid Inverter Detail 8 Solar Hybrid Inverter Detail 9
Detailed Specifications & Diagrams

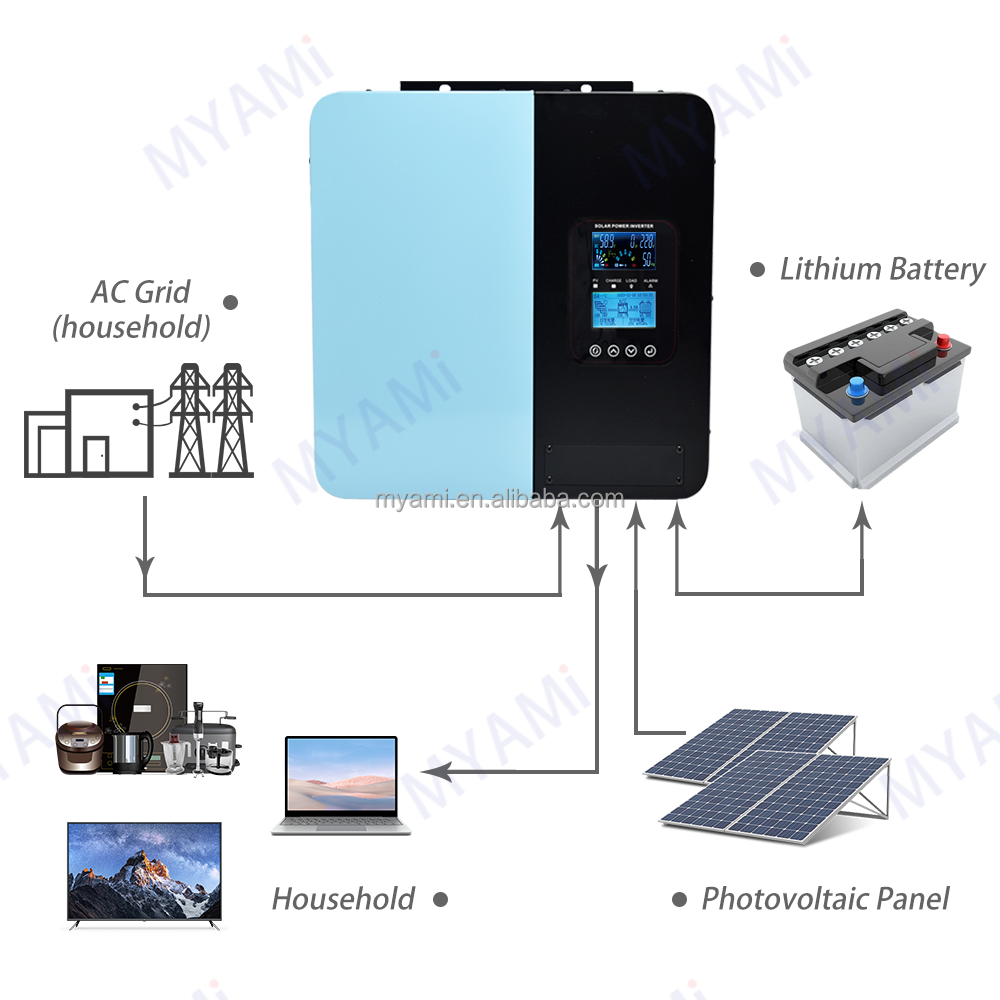

System Diagram 1 System Diagram 2 System Diagram 3 System Diagram 4 System Diagram 5 System Diagram 6
Production Center
Production Facility
Our Certificate
Product Certificate
Customer Photos
Customer Application 1 Customer Application 2 Customer Application 3 Customer Application 4 Customer Application 5 Customer Application 6 Customer Application 7 Customer Application 8 Customer Application 9 Customer Application 10 Customer Application 11 Customer Application 12 Customer Application 13
Frequently Asked Questions
? What battery types are supported by this solar hybrid inverter?
The inverter supports lead-acid batteries, colloidal batteries, and lithium batteries.
? What is the working and MPPT efficiency of the system?
The working inverter efficiency is 90% and the MPPT charge controller efficiency ranges from 95% to 99%.
? Does the solar controller charge the battery on cloudy and rainy days?
Yes, it can charge with low current on cloudy and rainy days as long as the photovoltaic voltage is 3V greater than the battery voltage.
? What protection functions are built into these inverters?
They feature overload protection, high and low voltage protection, over temperature protection, and short circuit protection.
? What cooling method does the system use?
The system utilizes intelligent temperature-controlled air cooling to regulate working temperature.
? What display type is integrated into the unit?
The solar hybrid inverter is equipped with an LCD display to show system parameters.
