| Model | MY-ES3000B | MY-ES3000BS | MY-ES5000B |
| PV Input DC voltage range | MAX 230VDC | ||
| Input AC voltage | Single phase, Option: 110VAC or 220VAC | ||
| Output AC voltage | Single phase, Option: 110VAC or 220VAC | ||
| Output DC voltage | 12V/24V/48V/60V/72V/96V | 24V/48V/60V/72V/96V | |
| MPPT Current | 30A | 60A | 60A |
| Start Charging | Photovoltaic voltage is greater than battery voltage 3V (can charge with low current on cloudy and rainy days) | ||
| Rated Power | 3000W | 3000W | 5000W |
| PV panel type | Monocrystalline silicon or polycrystalline silicon | ||
| Battery type | Supports lead-acid batteries, colloidal batteries, and lithium batteries | ||
| Working efficiency | 90% | ||
| Working temperature range | 0℃ to +40℃ | ||
| Working humidity range | 20% ~ 90% | ||
| Storage temperature range | -30℃ to +70℃ | ||
| Cooling method | Intelligent temperature controlled air cooling | ||
| Display | LCD display | ||

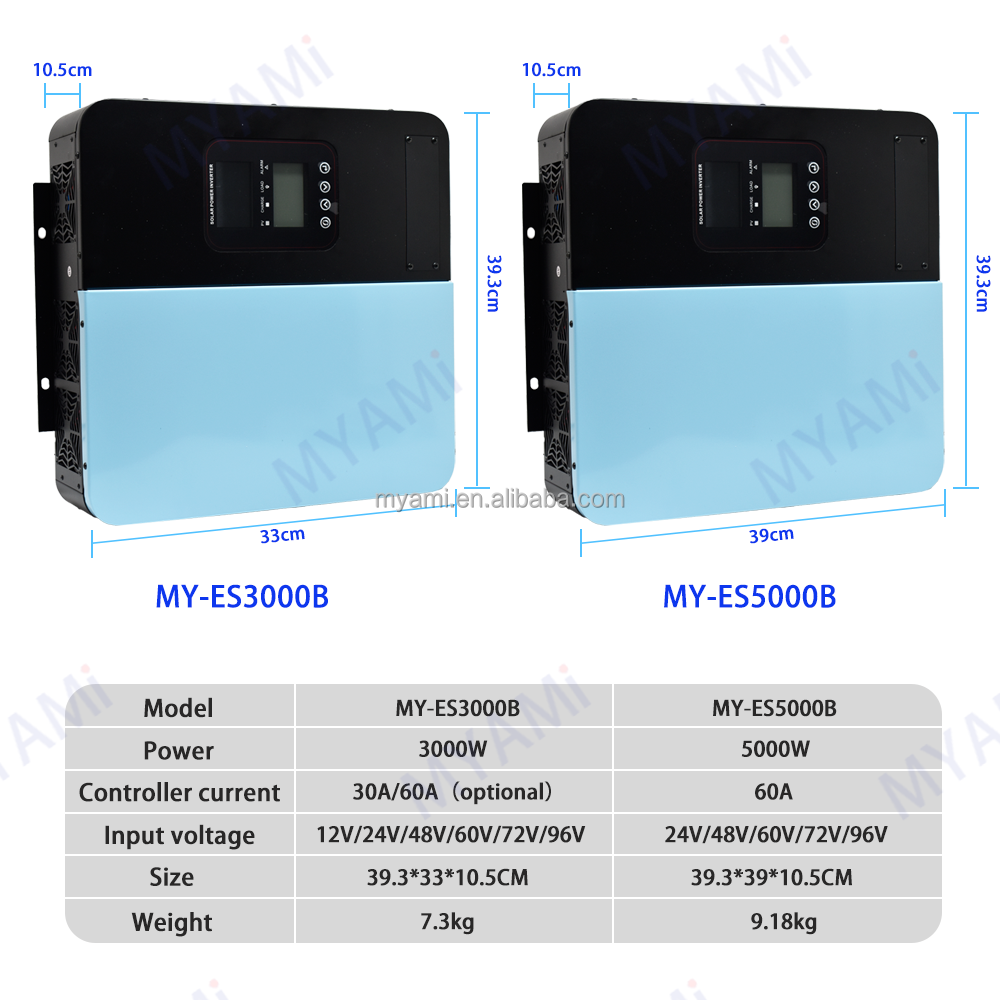

| Product size | L39.3*W10.5*H33cm | L39.3*W10.5*H33cm | L39.3*W10.5*H39cm |
| Net weight | 7.5kg | 7.5kg | 9.5kg |
| Package size | 47*18*44cm | 47*18*44cm | 47*18*51cm |
| Package weight | 10kg | 10kg | 11kg |
| PCS/box | 1pc/Box | 1pc/Box | 1pc/Box |
| Protection function | Overload protection, high and low voltage protection, over temperature protection, short circuit protection | ||
