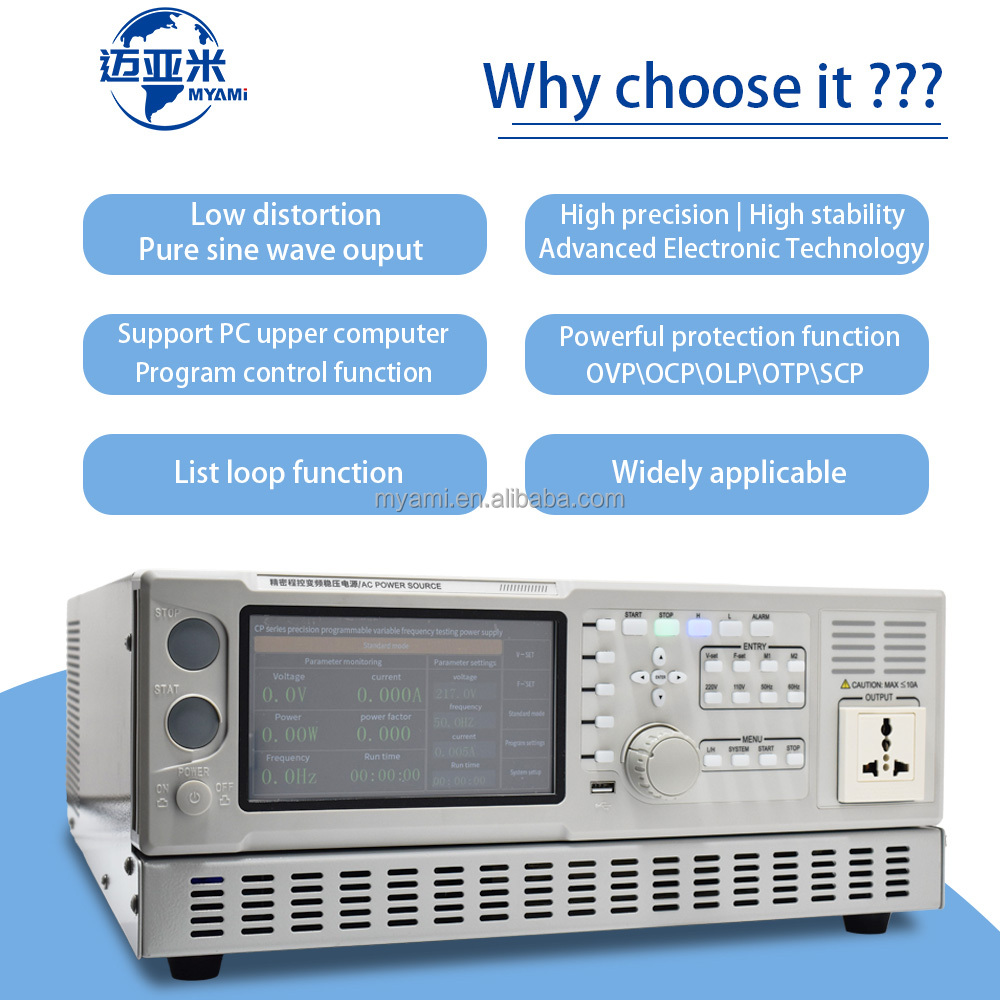

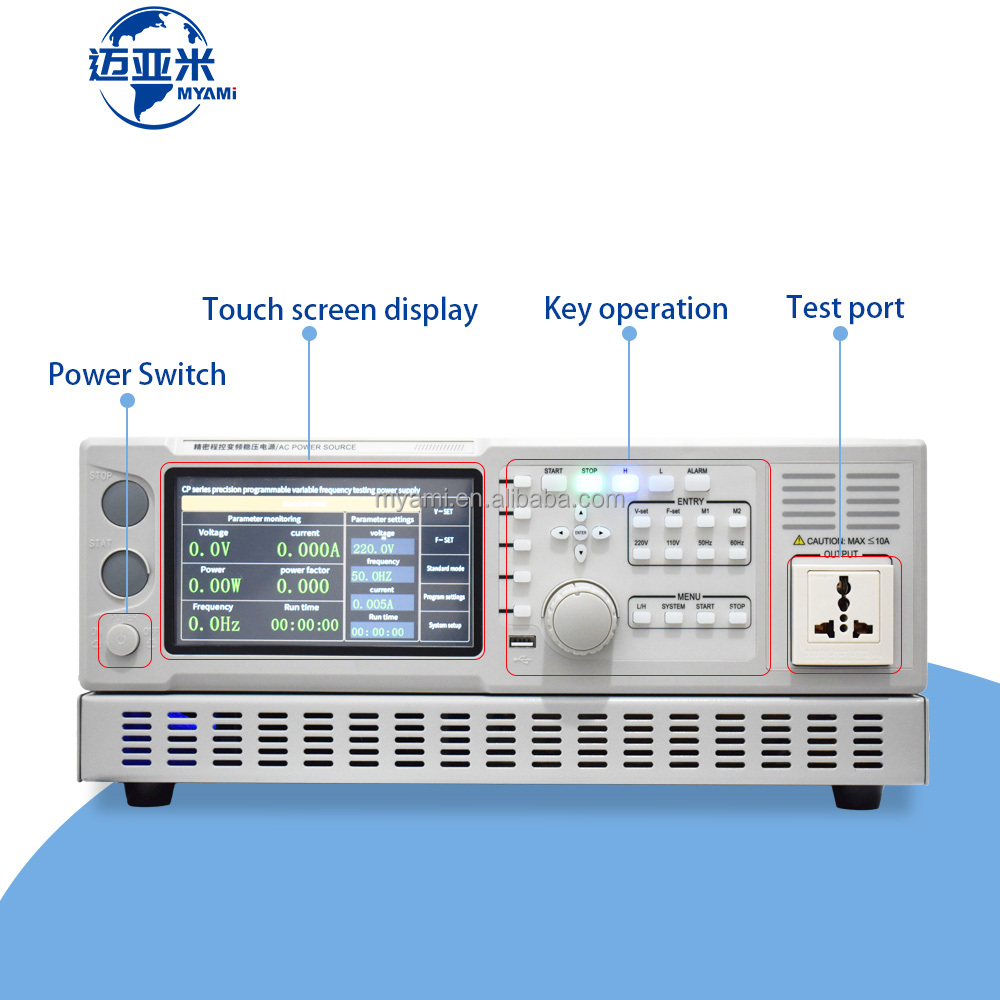

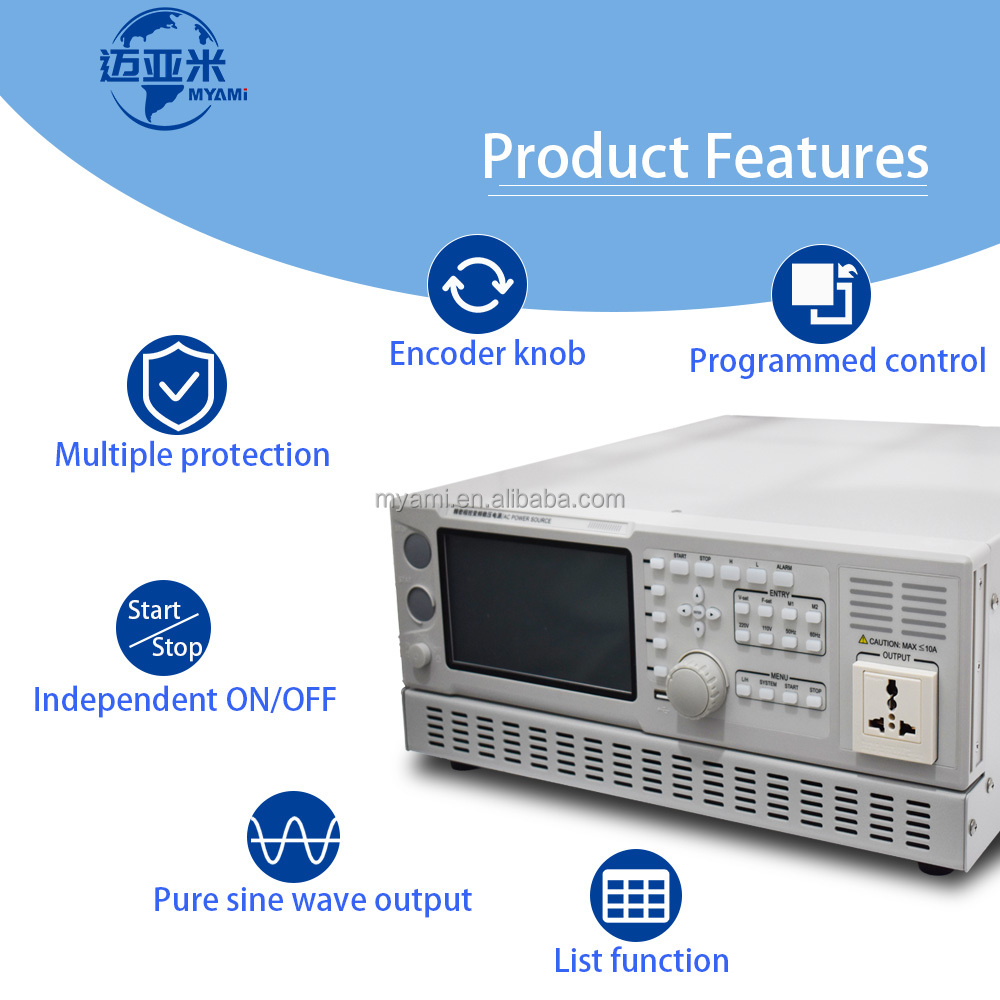

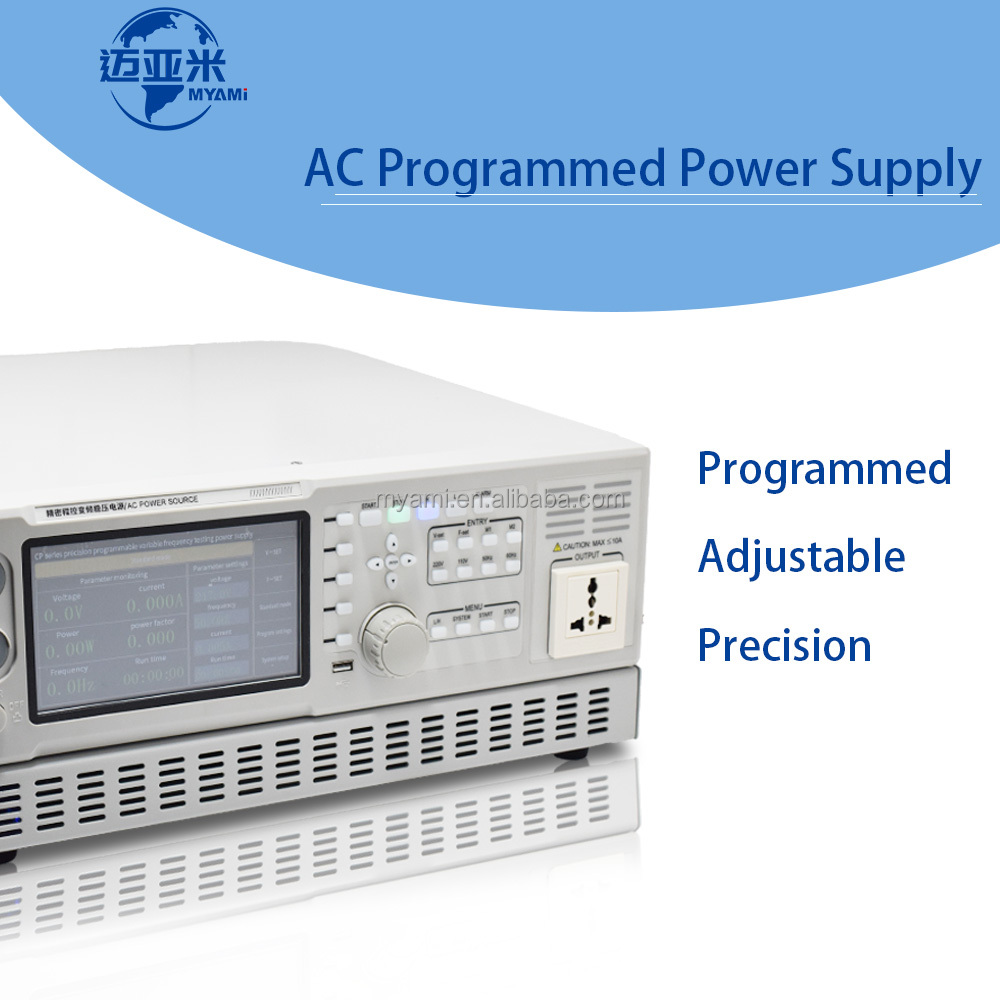

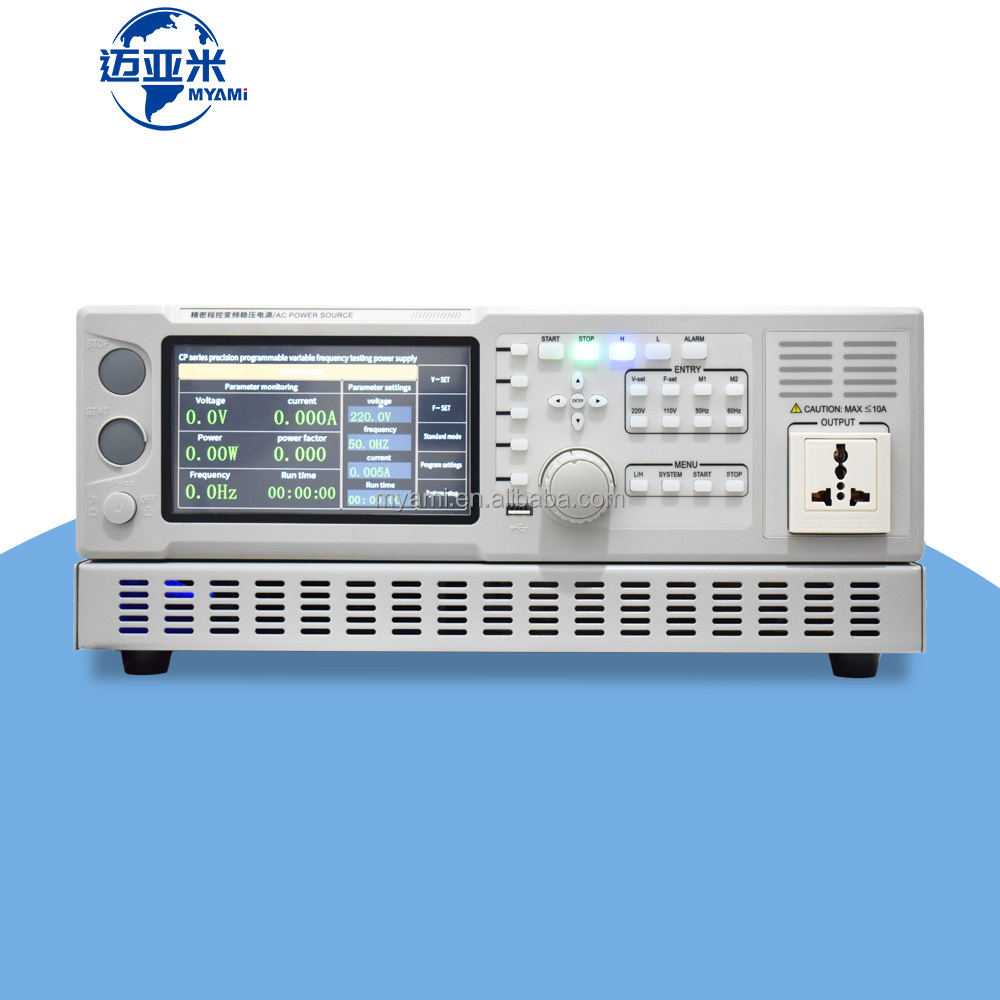

Precision variable frequency test power supply is a kind of high power, low distortion, high stability, its output frequency and voltage can be adjusted in a certain range. Especially suitable for lighting industry, household appliances, electric motors, electronic manufacturing, IT industry and other fields.
The voltage waveform is pure sine wave (without distortion). Advanced electronic technology and control algorithms are used to ensure high accuracy and stability of output voltage and frequency.
The safety protection function can effectively prevent overcurrent and overvoltage faults from damaging the power supply device, ensuring the safety and reliability of the power supply device.
| Model | Display | Capacity | Rated current | Number of phases | ||
|---|---|---|---|---|---|---|
| 120V | 240V | Input Phase | Output Phase | |||
| MY-60D03 | Digital | 350VA | 3A | 1.5A | Single | Single |
| MY-60D05 | 500VA | 4.2A | 2.1A | Single | Single | |
| MY-60D10 | 1KVA | 8.4A | 4.2A | Single | Single | |
| MY-60D20 | 2KVA | 16.66A | 8.3A | Single | Single | |
| MY-60D30 | 3KVA | 25A | 12.5A | Single | Single | |
| MY-60D50 | 5KVA | 41.66A | 20.83A | Single | Single | |
| MY-60D100 | 10KVA | 83.33A | 41.6A | Single | Single | |
| MY-60TD150 | 15KVA | 125A | 62.5A | Single/Three | Single | |
| MY-60TD200 | 20KVA | 166.66A | 83.33A | Single/Three | Single | |
| MY-70D05 | LCD screen | 500VA | 4.2A | 2.1A | Single | Single |
| MY-70D10 | 1KVA | 8.4A | 4.2A | Single | Single | |
| MY-70D20 | 2KVA | 16.66A | 8.3A | Single | Single | |
| MY-70D30 | 3KVA | 25A | 12.5A | Single | Single | |
| MY-70D50 | 5KVA | 41.66A | 20.83A | Single | Single | |
| MY-70D100 | 10KVA | 83.33A | 41.6A | Single | Single | |
| MY-70TD150 | 15KVA | 125A | 62.5A | Single/Three | Single | |
| MY-70TD200 | 20KVA | 166.66A | 83.33A | Single/Three | Single | |
| MY-70TD300 | 30KVA | 250A | 125A | Three | Single | |
| MY-70TD450 | 45KVA | 375A | 187.5A | Three | Single | |
| MY-70TD600 | 60KVA | 500A | 250A | Three | Single | |
| MY-70TD750 | 75KVA | 625A | 312.5A | Three | Single | |
| MY-70TD900 | 90KVA | 750A | 375A | Three | Single | |
| MY-70TD1000 | 100KVA | 833.33A | 416.6A | Three | Single | |
| MY-70TD1200 | 120KVA | 1000A | 500A | Three | Single | |
| MY-70TD1500 | 150KVA | 250A | 625A | Three | Single | |
| MY-70TT60 | 6KVA | 16.6A | 8.3A | Three | Three | |
| MY-70TT100 | 10KVA | 25A | 12.5A | Three | Three | |
| MY-70TT150 | 15KVA | 41.6A | 20.8A | Three | Three | |
| MY-70TT200 | 20KVA | 55.5A | 27.7A | Three | Three | |
| MY-70TT300 | 30KVA | 83.3A | 41.6A | Three | Three | |
| MY-70TT450 | 45KVA | 125A | 62.5A | Three | Three | |
| MY-70TT600 | 60KVA | 166A | 83A | Three | Three | |
| MY-70TT750 | 75KVA | 208A | 104 A | Three | Three | |
| MY-70TT1000 | 100KVA | 275A | 138A | Three | Three | |
| MY-70TT1200 | 120KVA | 333.3A | 166A | Three | Three | |
| MY-70TT1500 | 150KVA | 416A | 208A | Three | Three | |
Re: It is a power source with an output voltage that the user can vary. Variable DC power supplies allow you to change the voltage and the current to the DUT.
Re: A DC power source provides a constant biasing voltage or current to electrical devices, components, or circuits and ensures that the DUT operates as expected.
Re: A DC power source connects to a DUT via leads that connect to the DC power supply panel. Engineers can set voltages or current levels to power the device for testing purposes.
Re: A DC power source converts alternating current (AC) power into DC power using either a linear or switching methodology. A switching power supply has higher efficiency, reduced weight, and smaller size. Linear power supplies can achieve lower noise, but modern switching supplies have minimized or eliminated this advantage.
Re: A bench DC power supply is designed to sit on an engineer's bench. It will typically have a large, legible display and a user interface so engineers can easily control all aspects of the power supply from the front panel. Users can also control modern bench power supplies via software. In addition, the output terminals are easily accessible from the front. Bench power supplies are handy tools for testing circuits, as they allow you to adjust the voltage on the fly. If you have a project that needs a specific voltage or haven't designed the power section yet, a bench power supply can be a lifesaver.
Re: The safety protection function can effectively prevent overcurrent and overvoltage faults from damaging the power supply device, ensuring the safety and reliability of the power supply device.
