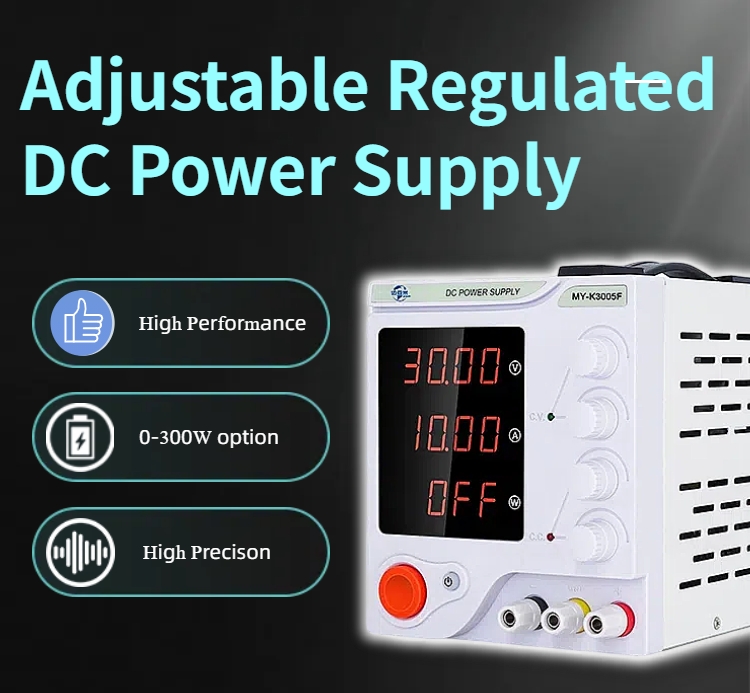

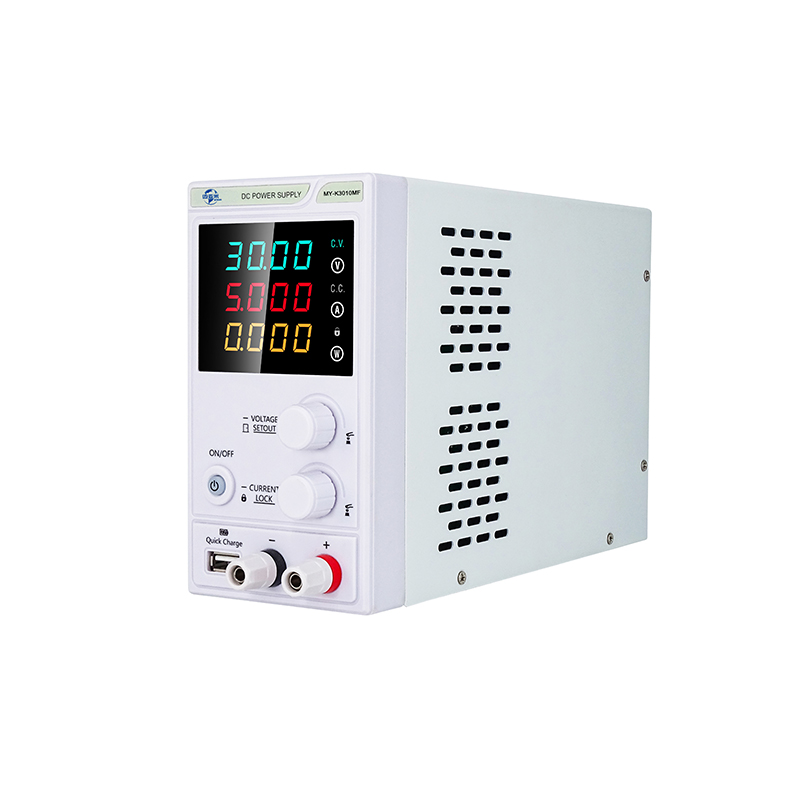

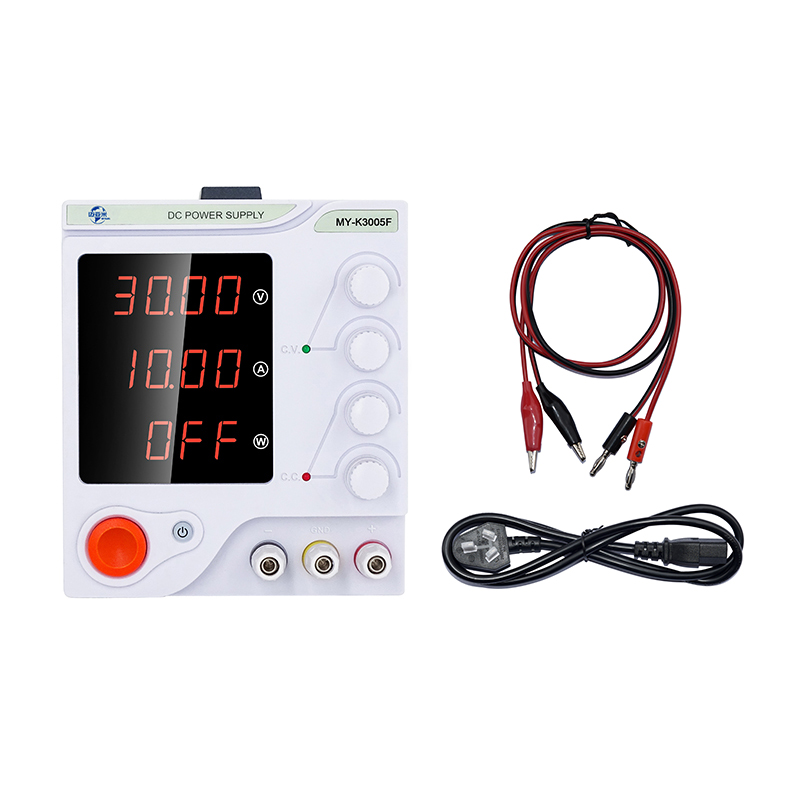

MYAMi 15v 2a Regulated Power Supply Adjustable 10v 12v Adjustable Bench Led Display Digital Power Supply for Mobile Repair

Features

(1) Low noise and low ripple;

(2) Power display;

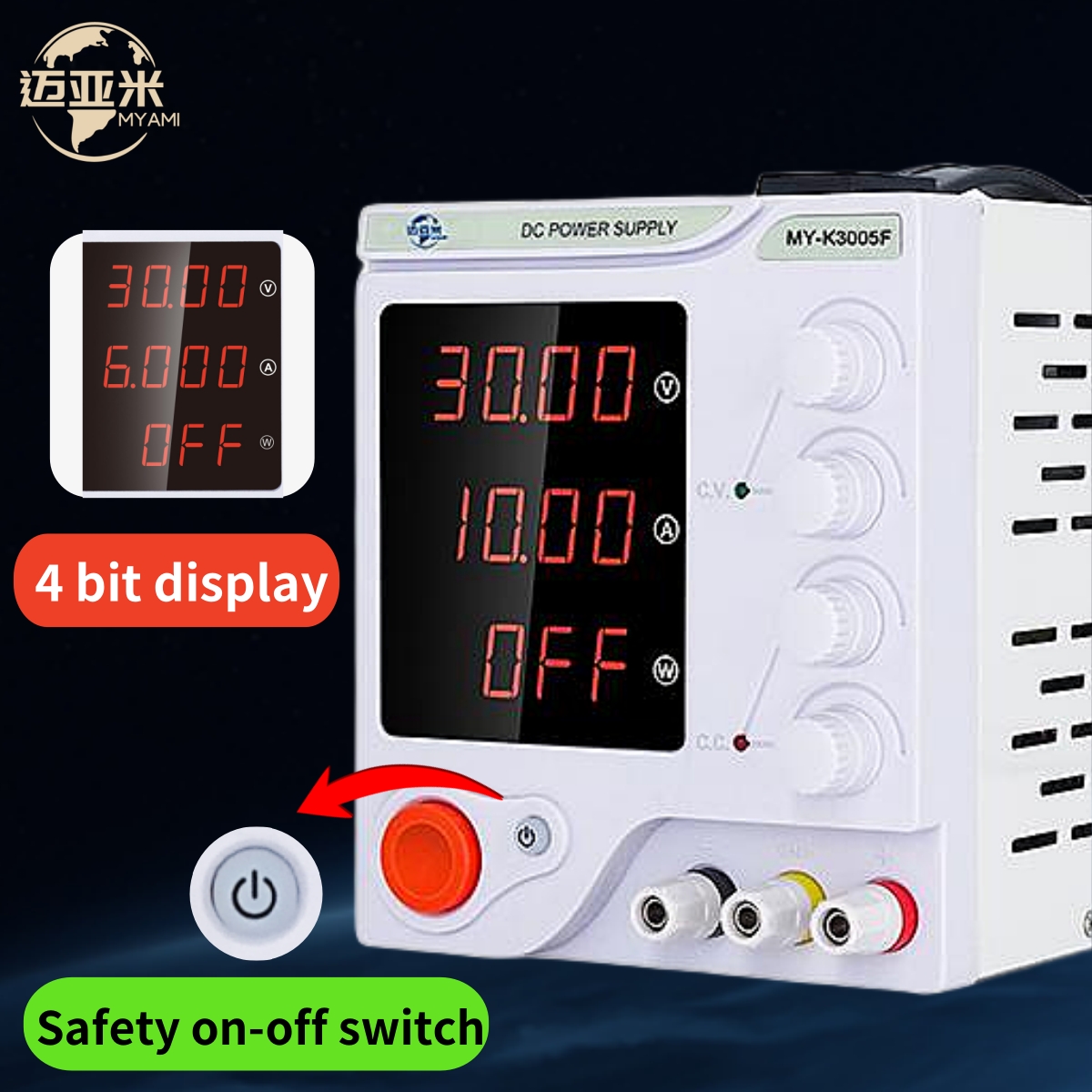

(3) ON/OFF unique switch;

(4) Automatic carry of the decimal point;

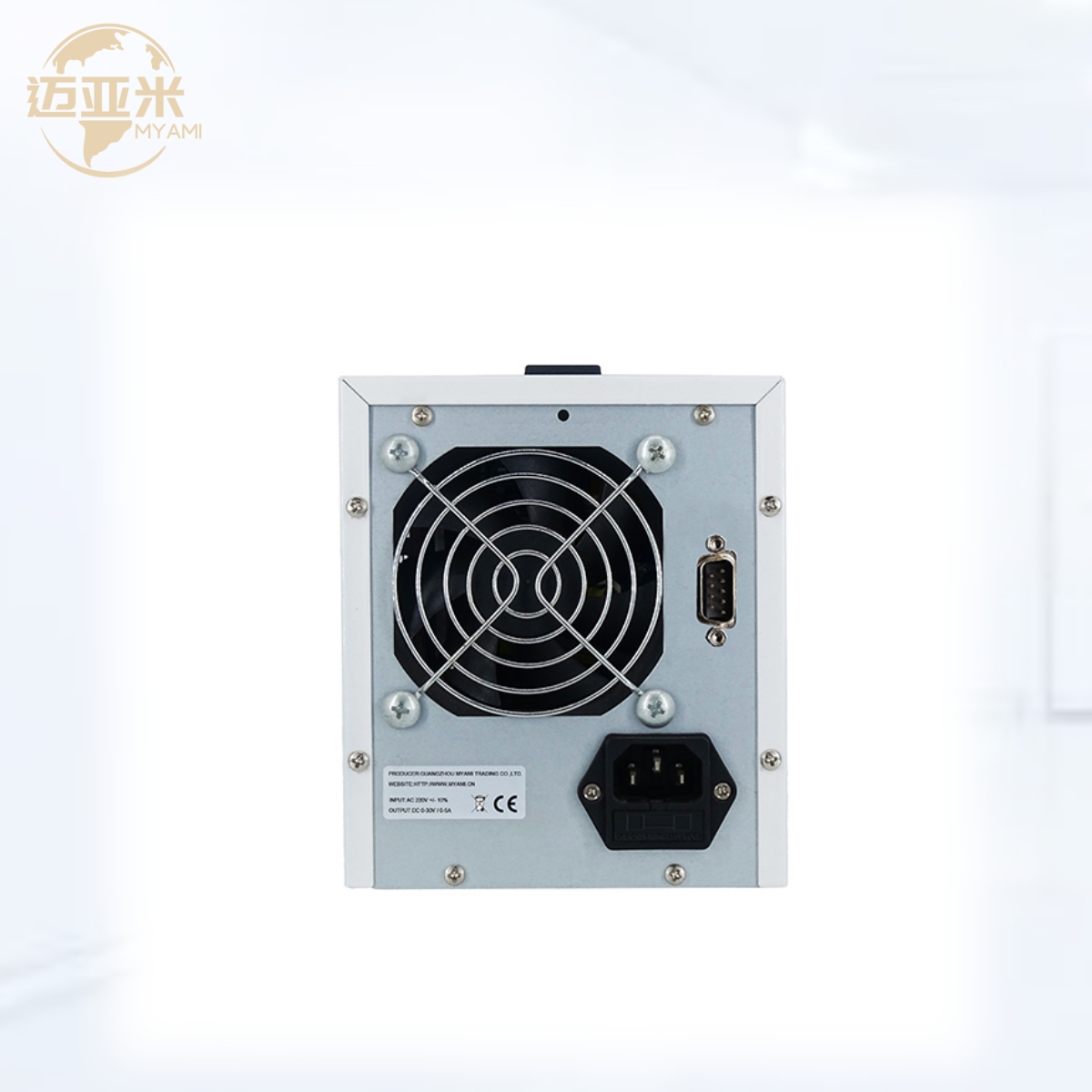

(5) Rear RS232/485/USB, upper computer software control (optional);

(6) Voltage, current and maximum power can be preset;

(7) Over voltage, over current, over power, over temperature, short circuit five powerful protection functions;

(8) Long-term full load, short circuit ignition arc drawing machine;

(9) Dual frequency technology, energy saving and environmental protection (switching power supply);

(10) Intelligent temperature control fan.

bench power supply lab bench power supply power supply 30v 5a

Specification

Parameter Details
Product Name	Switching Power Supply
Output Type	Single
Output Voltage	0-15V
Output Current	0-2A
Input Voltage	AC110V/220V±10%, 50/60Hz
Voltage Regulation
Voltage Display Accuracy	10mV
Load Regulation	≤0.1%+5mV
Line Regulation	≤0.1%+5mV
Ripple & Noise(P-P)	≤20mVrms
Current Regulation
Current Display Accuracy	10mA
Load Regulation	≤0.01%+10mA
Line Regulation	≤0.01%+3mA
Ripple & Noise(P-P)	≤10mArms
Other Specs
Display	LED Digit Display
Operating Ambient	-10℃ ~ 40℃ / <=80% RH

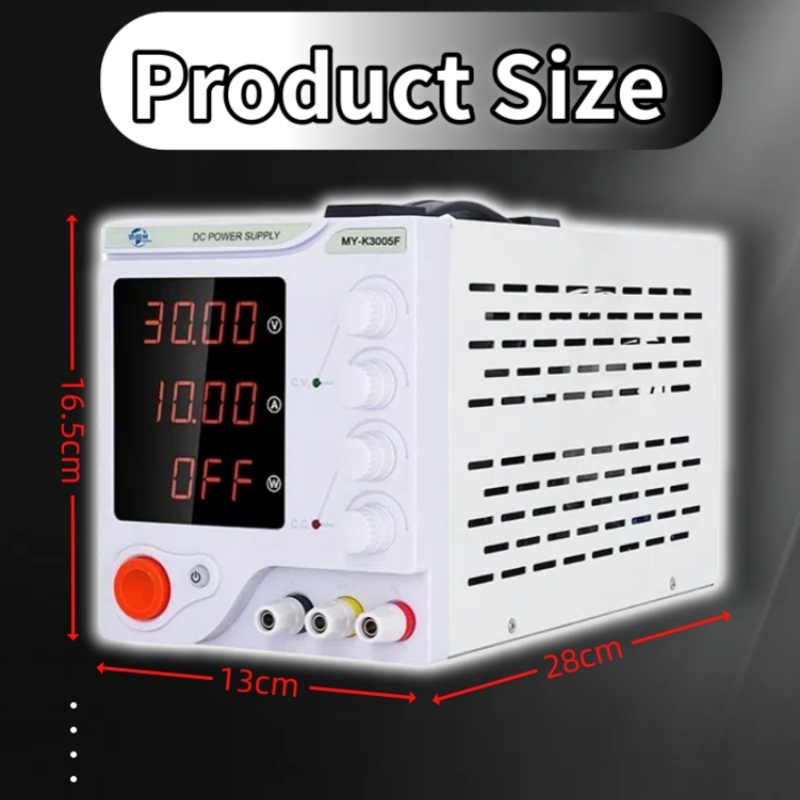

Dimension	280(D)×130(W)×165(H)mm
Weight	2kg

Model Selection Table

Voltage Class	Model	Voltage Range	Current Range	Power	Display Type	Accuracy
15V	MY-K1502F	0-15V	0-2A	30W	4LED	≤0.1%Umax+5mV
	MY-K1503F	0-15V	0-3A	45W	4LED	≤0.1%Umax+5mV
	MY-K1505F	0-15V	0-5A	75W	4LED	≤0.1%Umax+5mV
	MY-K1510F	0-15V	0-10A	150W	4LED	≤0.1%Umax+5mV
	MY-K1520F	0-15V	0-20A	300W	4LED	≤0.1%Umax+5mV
30V	MY-K3003F	0-30V	0-3A	90W	4LED	≤0.1%Umax+5mV
	MY-K3005F	0-30V	0-5A	150W	4LED	≤0.1%Umax+5mV
	MY-K3006F	0-30V	0-6A	180W	4LED	≤0.1%Umax+5mV
	MY-K3010F	0-30V	0-10A	300W	4LED	≤0.1%Umax+5mV
36V	MY-K3605F	0-36V	0-5A	180W	4LED	≤0.1%Umax+5mV
36V	MY-K3610F	0-36V	0-10A	360W	4LED	≤0.1%Umax+5mV
60V	MY-K6002F	0-60V	0-2A	120W	4LED	≤0.1%Umax+5mV
	MY-K6003F	0-60V	0-3A	180W	4LED	≤0.1%Umax+5mV
	MY-K6005F	0-60V	0-5A	300W	4LED	≤0.1%Umax+5mV
	MY-K6006F	0-60V	0-6A	360W	4LED	≤0.1%Umax+5mV
80V	MY-K8003F	0-80V	0-3A	240W	4LED	≤0.1%Umax+5mV
80V	MY-K8005F	0-80V	0-5A	400W	4LED	≤0.1%Umax+5mV
100V	MY-K10001F	0-100V	0-1A	100W	4LED	≤0.1%Umax+5mV
	MY-K10002F	0-100V	0-2A	200W	4LED	≤0.1%Umax+5mV
	MY-K10003F	0-100V	0-3A	300W	4LED	≤0.1%Umax+5mV
120V	MY-K12001F	0-120V	0-1A	120W	4LED	≤0.1%Umax+5mV
	MY-K12002F	0-120V	0-2A	240W	4LED	≤0.1%Umax+5mV
	MY-K12003F	0-120V	0-3A	360W	4LED	≤0.1%Umax+5mV
150V	MY-K15001F	0-150V	0-1A	150W	4LED	≤0.1%Umax+5mV
150V	MY-K15002F	0-150V	0-2A	300W	4LED	≤0.1%Umax+5mV
200V	MY-K20001F	0-200V	0-1A	200W	4LED	≤0.1%Umax+5mV
200V	MY-K20002F	0-200V	0-2A	400W	4LED	≤0.1%Umax+5mV
300V	MY-K30001F	0-300V	0-1A	300W	4LED	≤0.1%Umax+5mV

Product Details

Recommend Products

Product Classification

Our Certificates

Exhibitions & Facilities

Packaging & Transportation

Frequently Asked Questions

Q1 What Is A Variable DC Power Supply?

Re: It is a power source with an output voltage that the user can vary. Variable DC power supplies allow you to change the voltage and the current to the DUT (Device Under Test).

Q2 Why Is A DC Power Source Needed?

Re: A DC power source provides a constant biasing voltage or current to electrical devices, components, or circuits and ensures that the DUT operates as expected.

Q3 How Do You Use A DC Power Source?

Re: A DC power source connects to a DUT via leads that connect to the DC power supply panel. Engineers can set voltages or current levels to power the device for testing purposes.

Q4 How Does A DC Power Source Work?

Re: A DC power source converts alternating current (AC) power into DC power using either a linear or switching methodology. A switching power supply has higher efficiency, reduced weight, and smaller size. Linear power supplies can achieve lower noise, but modern switching supplies have minimized or eliminated this advantage.

Q5 What Is A Bench DC Power Supply?

Re: A bench DC power supply is designed to sit on an engineer’s bench. It will typically have a large, legible display and a user interface so engineers can easily control all aspects of the power supply from the front panel. Users can also control modern bench power supplies via software. In addition, the output terminals are easily accessible from the front. Bench power supplies are handy tools for testing circuits, as they allow you to adjust the voltage on the fly.

Q6 What voltage and current output ranges are available?

Re: Standard models cover output voltages from 0-15V up to 0-300V, and output currents from 0-1A up to 0-20A depending on the model chosen, satisfying different voltage and current requirements.

Product Detail

MYAMi 15v 2a Regulated Power Supply Adjustable 10v 12v Adjustable Bench Led Display Digital Power Supply for Mobile Repair

Product Description

Related Products

Product Detail

MYAMi 15v 2a Regulated Power Supply Adjustable 10v 12v Adjustable Bench Led Display Digital Power Supply for Mobile Repair

Product Description

Related Products

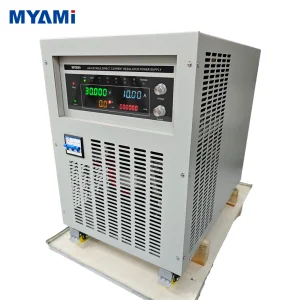

MYAMi 10V2000A 15V1500A 20V1000A 50V500A 100V200A 200V100A 500V50A 800V30A 20Kw 25Kw High Power Cabinet Variable DC Power Supply

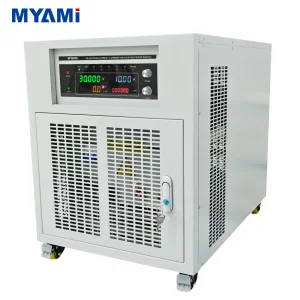

MYAMi 400V 1200V 1500V High Voltage High Power Cabinet DC Power Supply Adjustable 20A 30A 80A 100A Programmable High Precision

MYAMi 300V 400V 1200V 2000V 10A 20A 60A 80A High Power DC Power Supply Adjustable 1.2Kv 2Kv 24KW 20KW Electroplating Rectifier

MYAMi 10V1000A 15V1000A 400V50A 500V40A 6000V2A 20KW 15KW 12KW 10KW High Power Cabinet DC Power Supply Adjustable for Lab/ATE

MYAMi 5Kv 4Kv 1500W 800V 600V 500V 300V 250V High Voltage High Power Lab DC Power Supply Adjustable 0-60A High Precision for ATE

MYAMi 6V 10V 15V 20V 450A 500A 600A 700A 800A High Current High Power Rack Mounted DC Power Supply Adjustable 5 Digital Display

Manufactory MYAMi 30V 10A 300W Adjustable Voltage DC Lab Power Supply OCP OVP Short Circuit Protection 12V Battery Charger

MYAMi 30V 60V 100V 300V 400V 600V 800V 200A 100A 60A 20A 10A 6A 6Kw 4.8Kw 4Kw High Power High Voltage Adjustable DC Power Supply

MYAMi 600V 10A 60V 100A 30V 200A 6000W High Power High Voltage Bench Programmable Adjustable Lab DC Power Supply Battery Charge

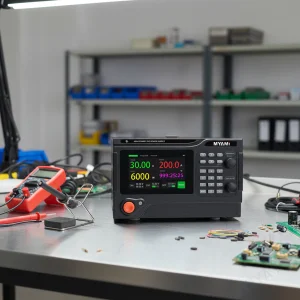

Limited Time Promotion MYAMi 6kW High-power Programmable Lab Adjustable Bench Regulated DC Power Supply 30V200A 60V100A 600V10A
