Product Description

New Arrival MY-MPPT200A-450V MPPT Solar Charge Controller Max 450V 87A PV Input Adjustable 24V/36V/48V/60V/72/84V/96V/108V/120V/132V/144V/156V/168V/180V/192V lead-acid/Gel/lithium batteries for Home/RV/Car Solar System Charge
Product Selling Points:
  • MPPT core technology can track the energy of solar panels at the maximum power point, improve the energy utilization efficiency of solar energy systems, with a tracking efficiency of up to 99% and a conversion rate of up to 97%.
  • Wide battery compatibility, suitable for 24V/36V/48V/60V/72/84V/96V/108V/120V/132V/144V/156V/168V/180V/192V lead-acid batteries, gel batteries, phosphate batteries, ternary lithium batteries, and user-defined battery voltage.
  • Comes with lithium battery activation function.
  • Supports 450V ultra wide voltage access, with a maximum 87A PV current input.
  • Quickly scan the entire area- V-curve, efficient tracking of maximum power point.

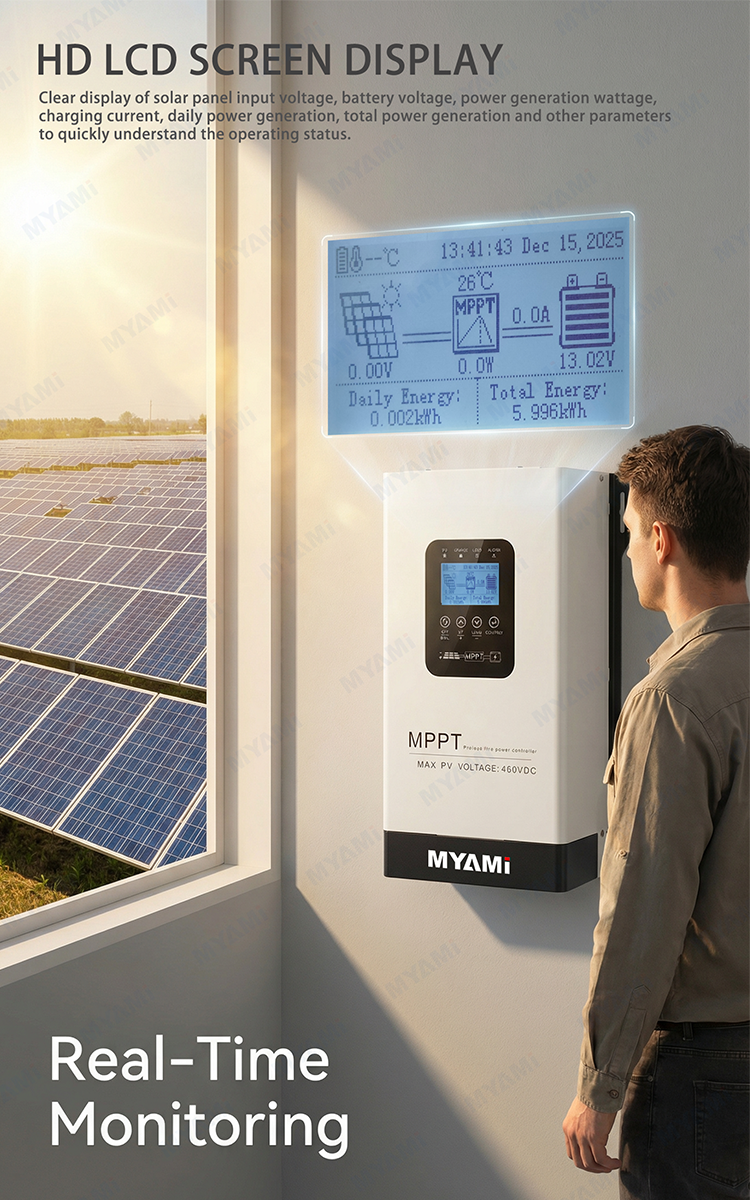

  • The high-definition LCD screen clearly displays parameters such as the input voltage of the solar panel, battery voltage, power generation wattage of the charging controller, charging current of the charging controller, daily power generation, and total power generation of the charging controller, allowing for quick understanding of the working status.
  • Built in 8 intelligent core protection functions including overcharge protection, overdischarge protection, overload protection, short circuit protection, overvoltage protection, overcurrent protection, over temperature protection, and fault alarm, ensuring safety and stability.
  • The charging current can be adjusted appropriately according to the battery capacity, and the maximum charging current can reach 200A.
  • Configure a temperature compensation interface that can automatically compensate for charging voltage and current based on battery temperature, extending battery life.

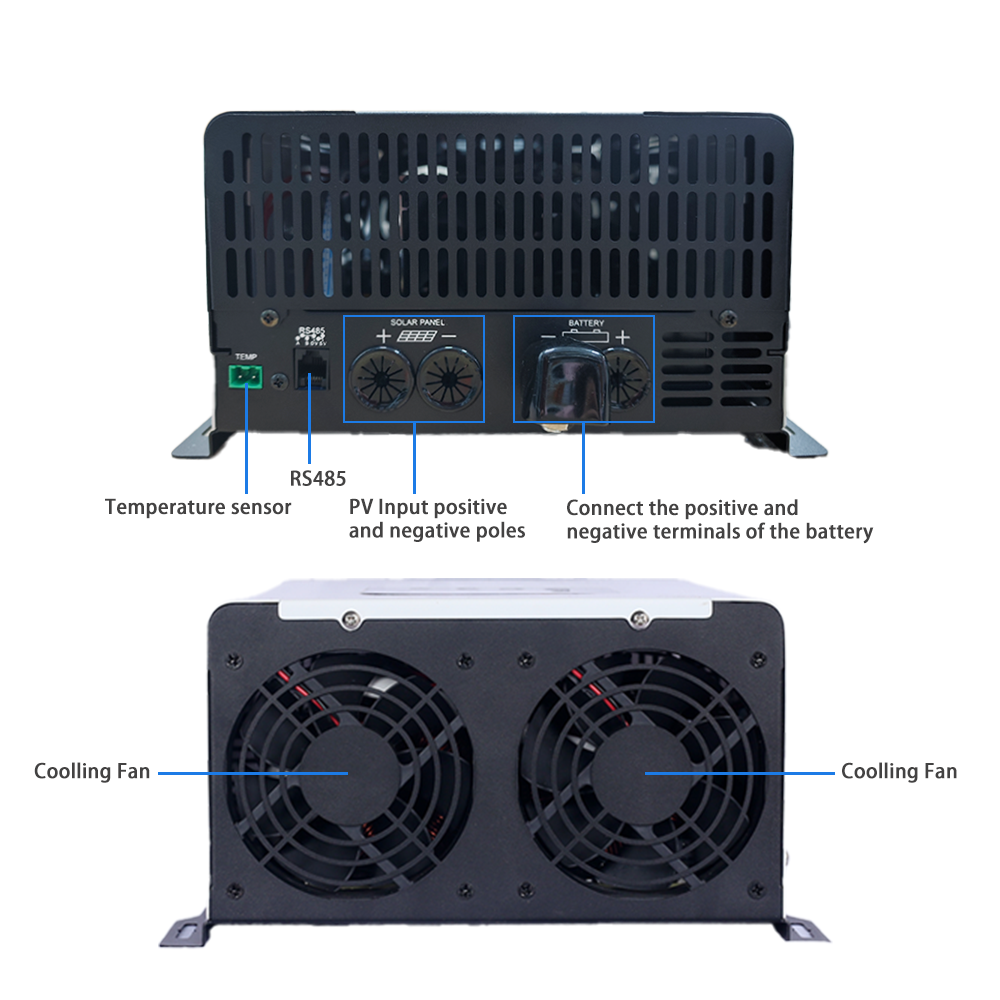

  • Configure RS485 communication interface for multi machine communication to view the operating parameters of the solar charging controller.

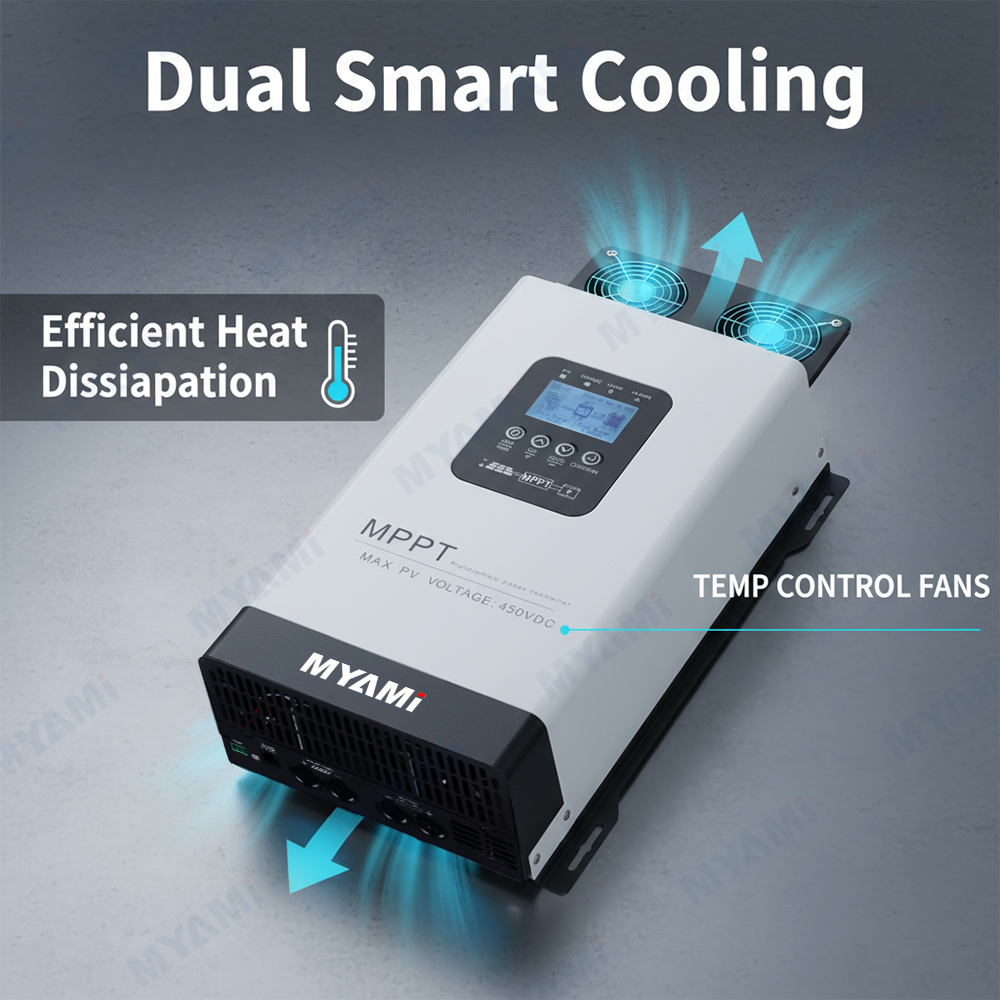

  • Dual intelligent temperature control cooling fan, effectively and quickly cooling down, protecting the charging controller, and extending its service life.

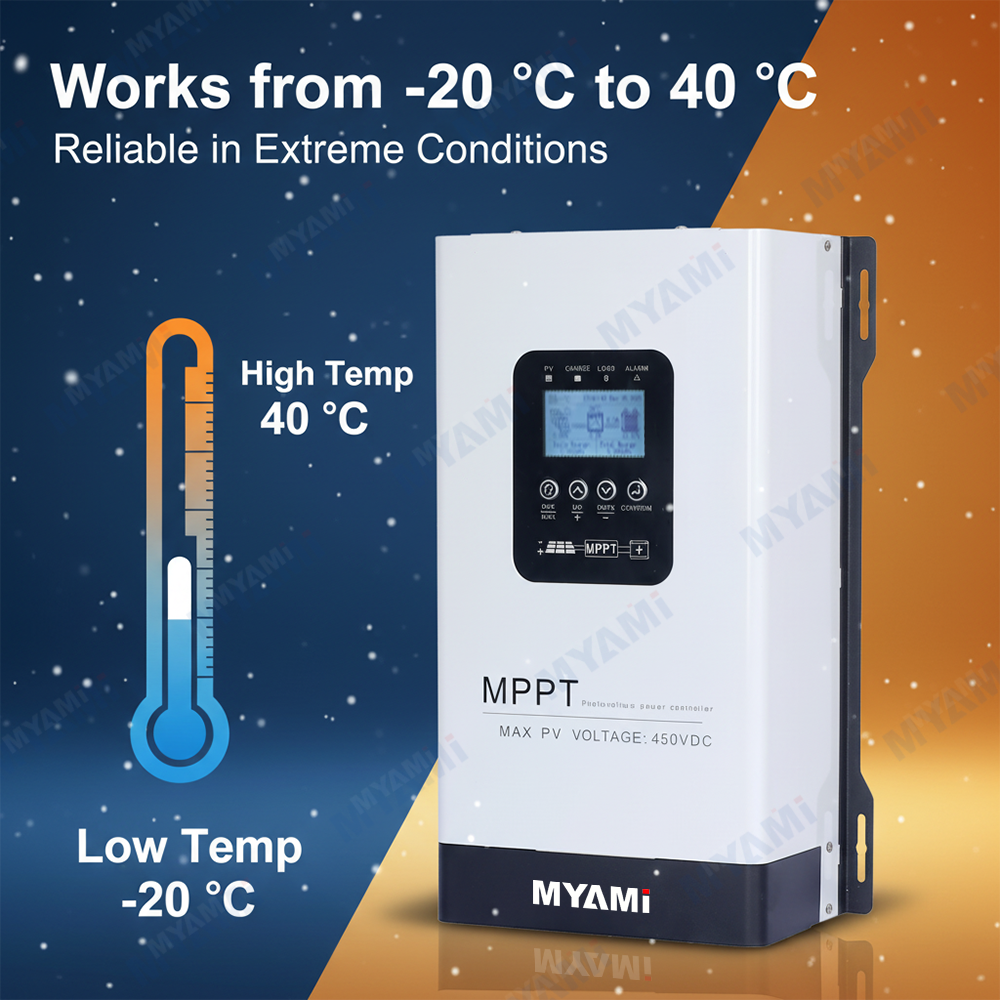

  • The MPPT Solar charge controller can work stably in an environment of -20°C to 40°C.
Specifications
Model MY-MPPT200A-450V
PV Input VOC Max 450V, MAX 87A, MAX 46KW
Output DC voltage Adjustable for 24V/36V/48V/60V/72/84V/96V/108V/120V/132V/144V/156V/168V/180V/192V
Custom charging voltage 9-240V
Charging Current (Adjustable) 0-200A
Start Charging Photovoltaic voltage is 3V higher than battery voltage (can charge with low current on cloudy and rainy days)
Power when 24V 3212 W
Power when 36V 7008 W
Power when 48V 10804 W
Power when 60V 14600 W
Power when 72V 17520 W
Power when 84V 20440 W
Power when 96V 23360 W
Power when 108V 26280 W
Power when 120V 29200 W
Power when 132V 32120 W
Power when 144V 35040 W
Power when 156V 37960 W
Power when 168V 40880 W
Power when 180V 43800 W
Power when 192V 46720 W
PV panel type Monocrystalline silicon or polycrystalline silicon
Battery type - lead-acid batteries Auto recognition for 24V/36V/48V; Manual setting for 24V/36V/48V/60V/72/84V/96V/108V/120V/132V/144V/156V/168V/180V/192V
Battery type - lithium batteries Manual setting for 24V/36V/48V/60V/72/84V/96V/108V/120V/132V/144V/156V/168V/180V/192V
Communication One option from RS485 / WIFI
Working environment Temperature range: -20°C to 40°C, Humidity: 20% to 90%
Cooling method Intelligent temperature controlled air cooling
Display LCD display

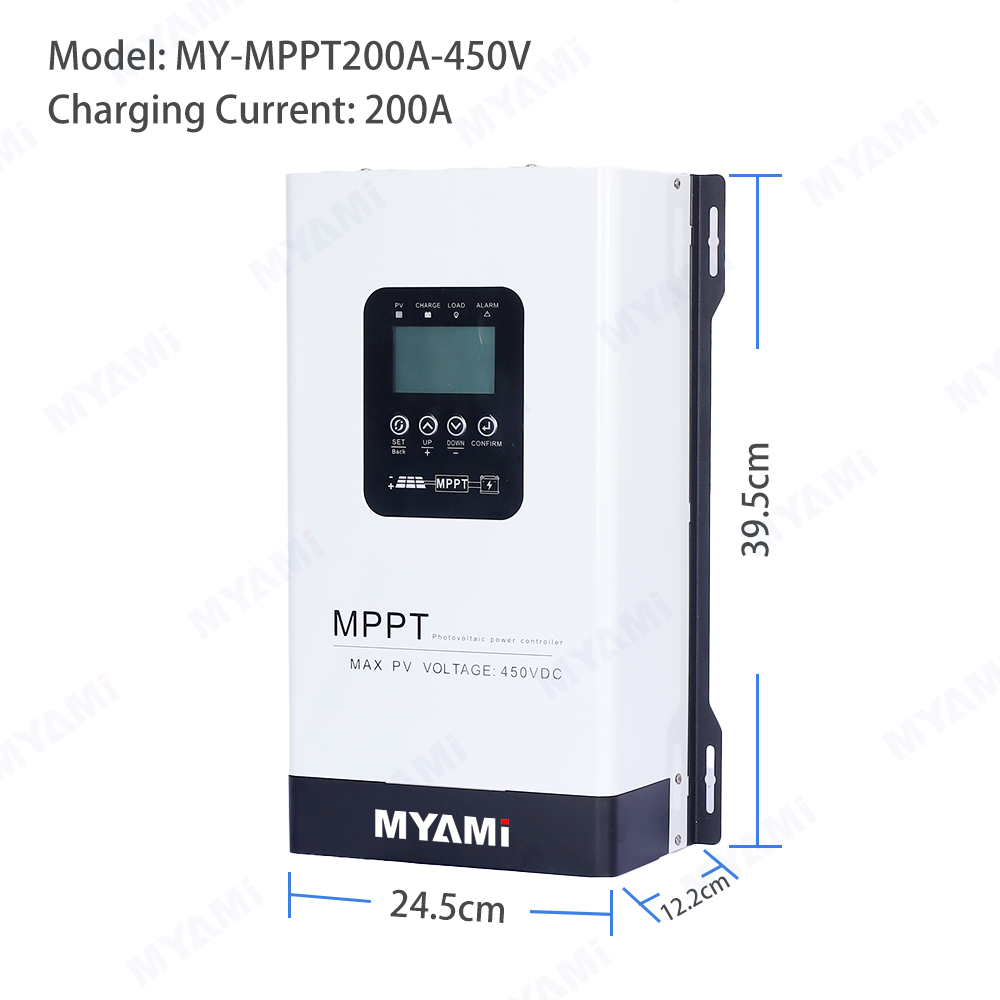

Product size (mm) W245xD122xH395mm
Net weight (kg) 7kg
Package size (mm) 520x320x200 mm
Package weight (kg) 8kg
PCS/box 1pc/Box
Protection function Overload protection, high and low voltage protection, over temperature protection, short circuit protection
Why Choose MPPT controller?
This controller is used in solar off grid power generation systems to automatically regulate battery charging and discharging. It has advanced tracking algorithms to obtain the maximum power of solar cell modules for charging the battery; Meanwhile, its low voltage disconnect (LVD) function can prevent damage caused by excessive discharge of the battery. The battery charging process of MPPT controller is optimized to extend battery life and improve system performance. Its comprehensive self-test function and electronic protection function can prevent damage caused by installation errors and system failures. Although the controller is easy to operate and use, in order to enable you to better utilize all the functions of the controller and improve your photovoltaic system, please carefully read the instructions and instructions in this manual.
Product Description

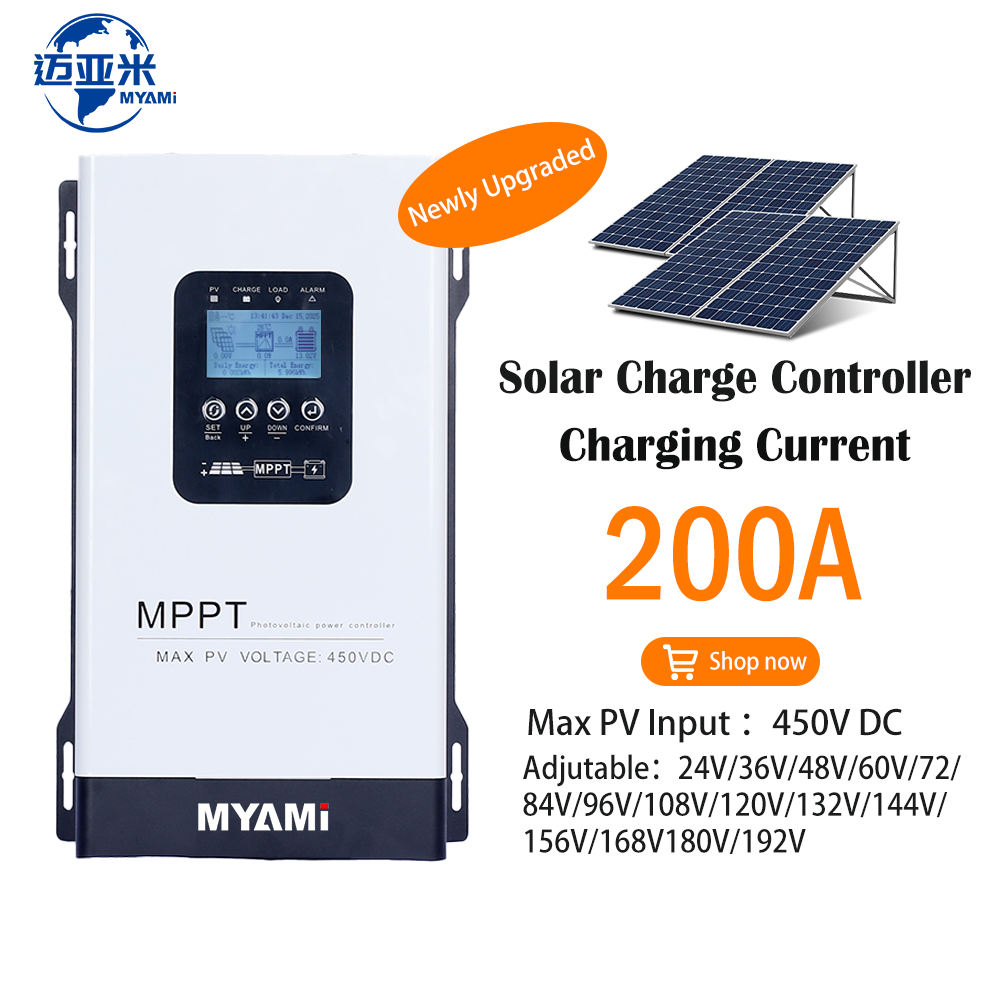

Solar Charge Controller Specification Visual 1
Solar Charge Controller Specification Visual 2
Solar Charge Controller Detail 3
Solar Charge Controller Feature 4
Solar Charge Controller Connection 5
Solar Charge Controller Interface 6
Solar Charge Controller Wiring 7
Solar Charge Controller Display Details 8
Solar Charge Controller Parameters 9
Solar Charge Controller Performance 10
Packing & Delivery

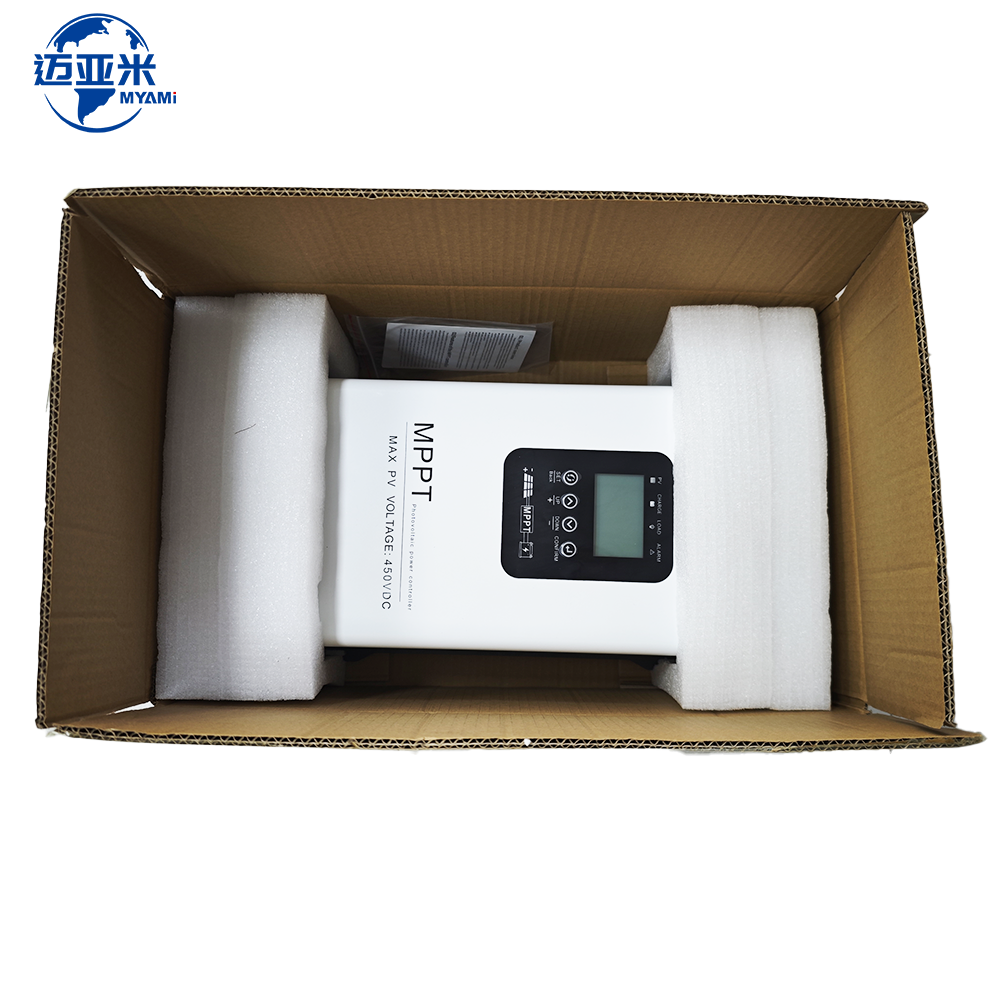

Packing and Delivery Overview
Production Facility Area 1
Testing Laboratory 2
Manufacturing Assembly Line 3
Product Quality Inspection 4
Warehouse Storage 5
Frequently Asked Questions (FAQ)
What is the maximum PV input voltage supported by this controller?
This solar charge controller supports an ultra-wide voltage access with a maximum PV input Open Circuit Voltage (VOC) of up to 450V.
Which battery types are compatible with this MPPT controller?
It features wide compatibility supporting 24V/36V/48V/60V/72V/84V/96V/108V/120V/132V/144V/156V/168V/180V/192V lead-acid batteries, gel batteries, phosphate batteries, ternary lithium batteries, as well as user-defined battery voltage settings.
Does the controller have a lithium battery activation function?
Yes, this MPPT solar charge controller comes equipped with a built-in lithium battery activation function.
Can the charging current be manually adjusted?
Yes, the charging current can be manually adjusted from 0A up to 200A to suit your specific battery capacity requirements.
What kind of monitoring communication options are available?
The controller configures a communication interface supporting either RS485 or WIFI options for multi-machine communication to monitor the operating parameters.
What safety protections are integrated into the device?
It features 8 built-in core protections including overcharge protection, overdischarge protection, overload protection, short circuit protection, overvoltage protection, overcurrent protection, over temperature protection, and a fault alarm.
