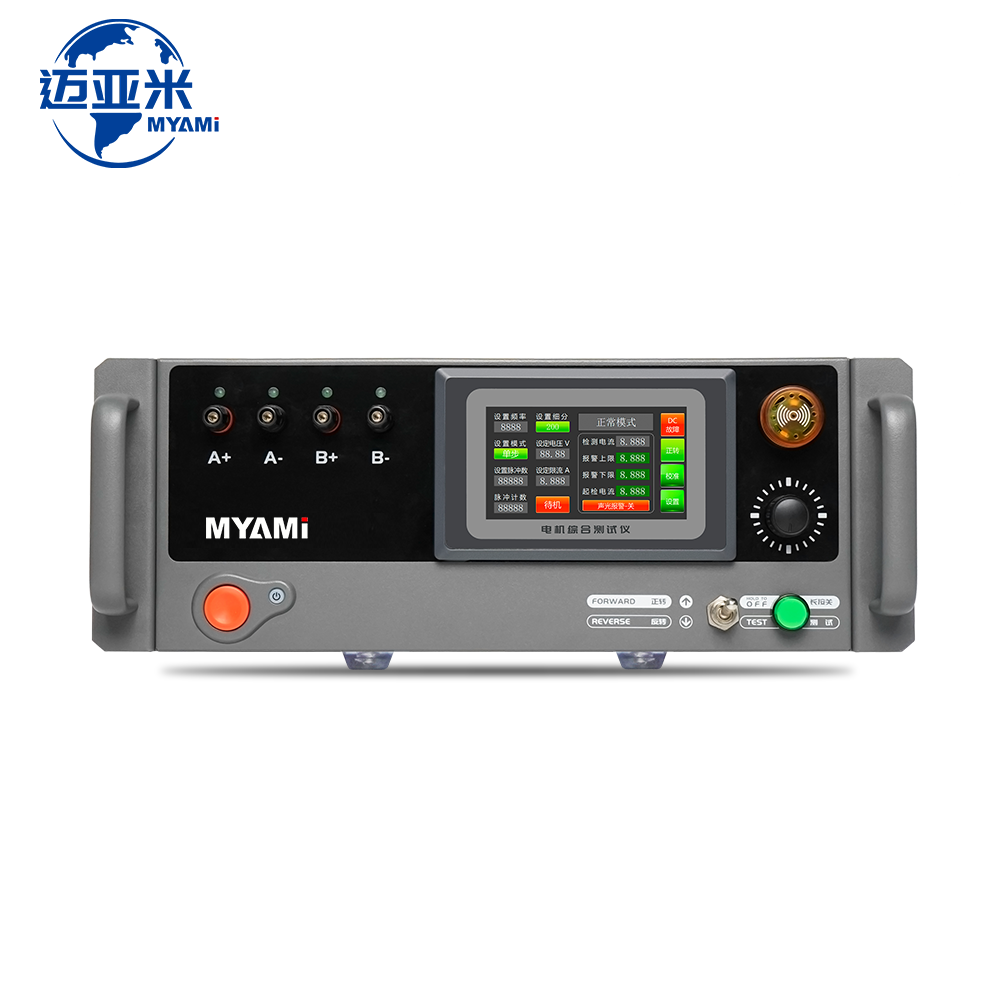

New Arrival Bipolarity Stepper Motor Drive Power Supply Adjustable DC Power Supply Programmable Adjustable 30V 10A 5A with USB RS485 RS232
💡About this item highlight:
-
3 types to choose from:
- 4-channel stepper motor drive power supply
- 8-channel stepper motor drive power supply
- Bipolar stepper motor drive power supply
-
There are two models to choose from:
- 60V5A DC output
- 30V 10A DC output
-
Adjustable output frequency:
- 4-channel/8-channel adjustable range: 30~9999 Hz
- Bipolar adjustable range: 1~9999 Hz
- Clutter <1%
- Counting pulse setting: range 0~65000 times
- Voltage range setting: range: 0~maximum rated voltage
-
Output Voltage/Current can be set:
- Voltage: 0-60V/0-30A adjustable
- Current: 0-5A/0-10A adjustable
- Fault alarm function
-
Equipped with 5 major protection functions:
- Overvoltage, overcurrent, overpower, overtemperature, and short-circuit protection, making the use process safer

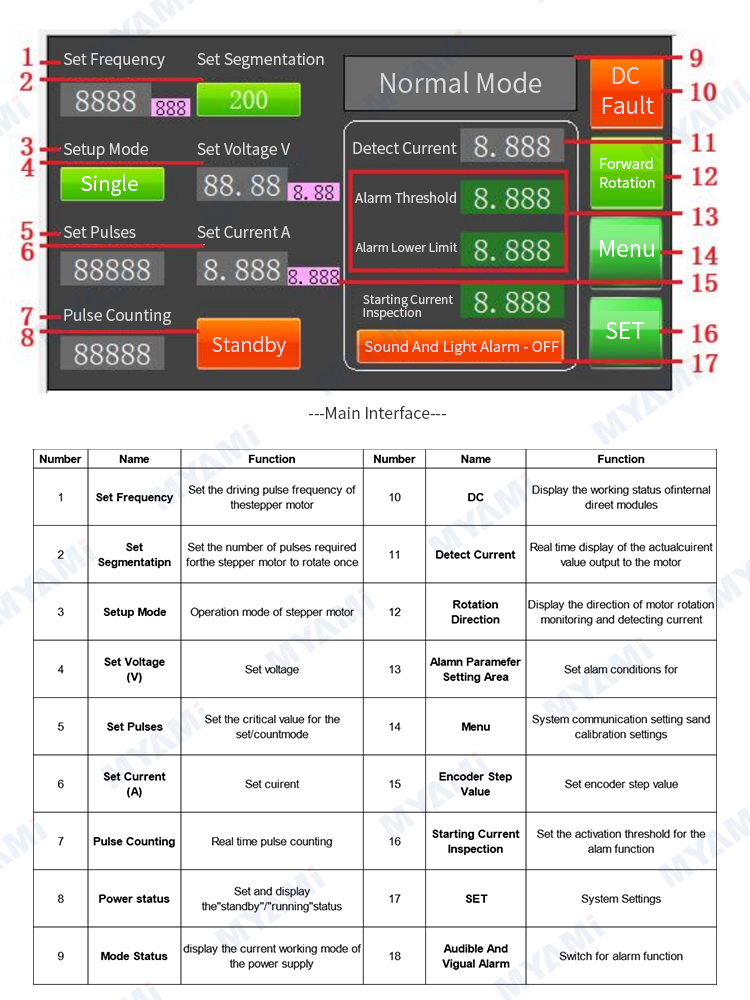

- Touch screen operation display
- Can directly test the voltage and current of the motor
- Can set upper and lower limits of current for easy automation detection and judgment
- Supports Modbus protocol and also supports customized protocols

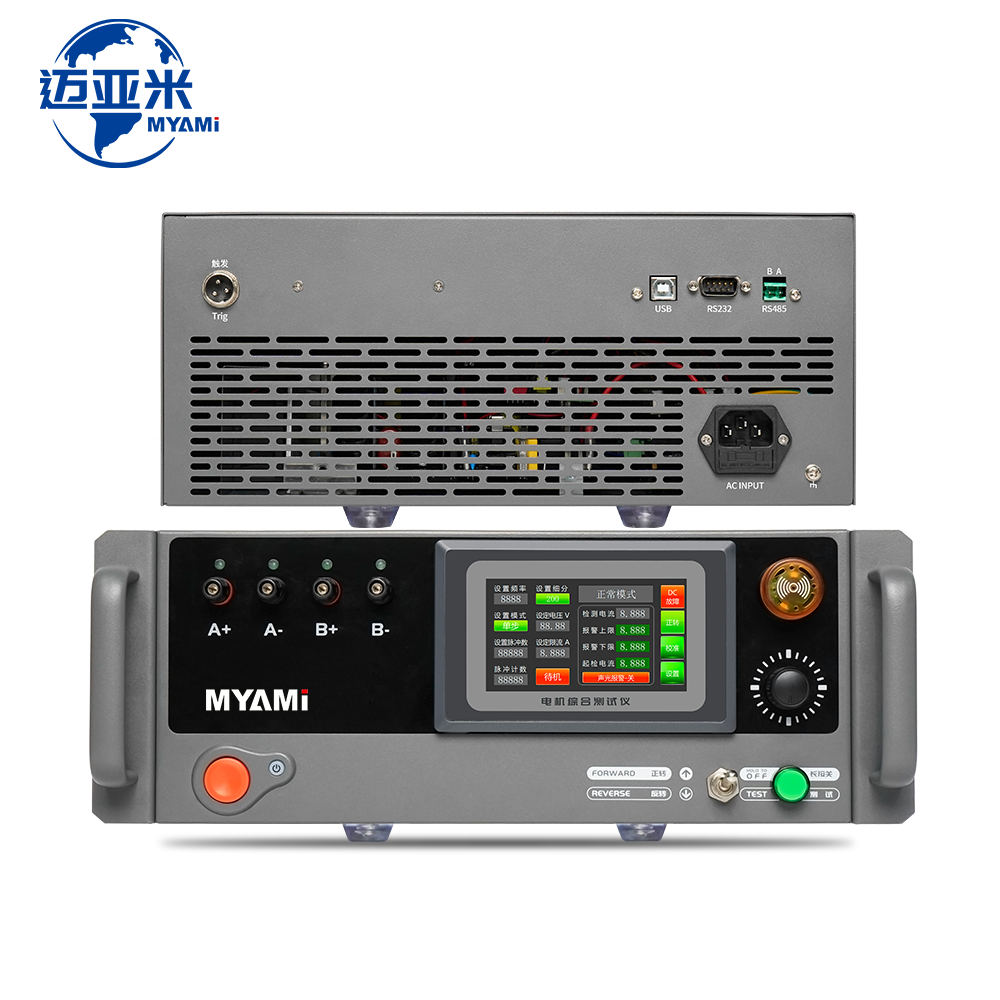

- Multiple communication interfaces, standard USB & RS485 & RS232
-
Widely applicable scenarios:
- CNC machine tools/engraving machines
- Mechanical arm/handling robot
- 3D printer
- Automated warehouse sorting system
- Medical equipment
- Research laboratory
Provide pure power for every step of movement.
Programmable Bipolarity bench Stepper Motor Drive DC Power Supply Adjustable 30V10A 60V5A for Automation Equipment & CNC machine tools
| Model |
Channels |
Voltage |
Current |
| MY-MT6005-4CH |
4-Channel |
0~60V |
0~5A |
| MY-MT3010-4CH |
4-Channel |
0~60V |
0~5A |
| MY-MT6005-8CH |
8-Channel |
0~60V |
0~5A |
| MY-MT3010-8CH |
8-Channel |
0~60V |
0~5A |
| MY-BMT6005 |
Bipolarity |
0~60V |
0~5A |
| MY-BMT3010 |
Bipolarity |
0~60V |
0~5A |
Product Details
Product Parameters
Bipolar stepper motor drive power supply
Who We Are
Certifications
Our Factory
Frequently Asked Questions
QWhat Is A Variable DC Power Supply?
Re: It is a power source with an output voltage that the user can vary. These variable DC power supplies allow you to change the voltage and the current to the DUT (Device Under Test).
QWhy Is A DC Power Source Needed?
Re: A DC power source provides a constant biasing voltage or current to electrical devices, components, or circuits and ensures that the DUT operates as expected.
QHow Do You Use A DC Power Source?
Re: A DC power source connects to a DUT via leads that connect to the DC power supply panel. Engineers can set voltages or current levels to power the device for testing purposes.
QHow Does A DC Power Source Work?
Re: A DC power source converts alternating current (AC) power into DC power using either a linear or switching methodology. A switching power supply has higher efficiency, reduced weight, and smaller size. Linear power supplies can achieve lower noise, but modern switching supplies have minimized or eliminated this advantage.
QWhat Is A Bench DC Power Supply?
Re: A bench DC power supply is designed to sit on an engineer's bench. It will typically have a large, legible display and a user interface so engineers can easily control all aspects of the power supply from the front panel. Users can also control modern bench power supplies via software. In addition, the output terminals are easily accessible from the front. Bench power supplies are handy tools for testing circuits, as they allow you to adjust the voltage on the fly.
QWhat are the safety protection mechanisms of this stepper motor power supply?
Re: This power supply is designed with safety in mind and features five major protections, including overvoltage protection (OVP), overcurrent protection (OCP), overpower protection (OPP), overtemperature protection (OTP), and short-circuit protection (SCP).
