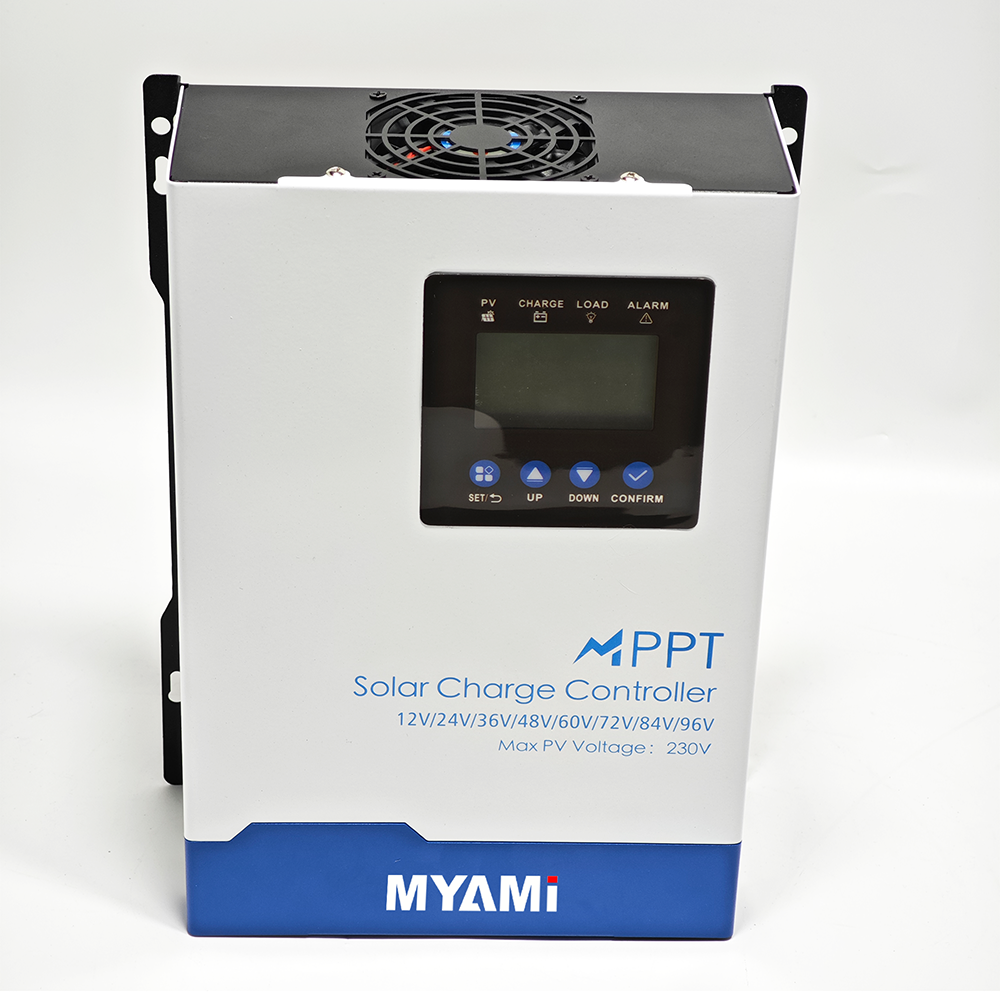

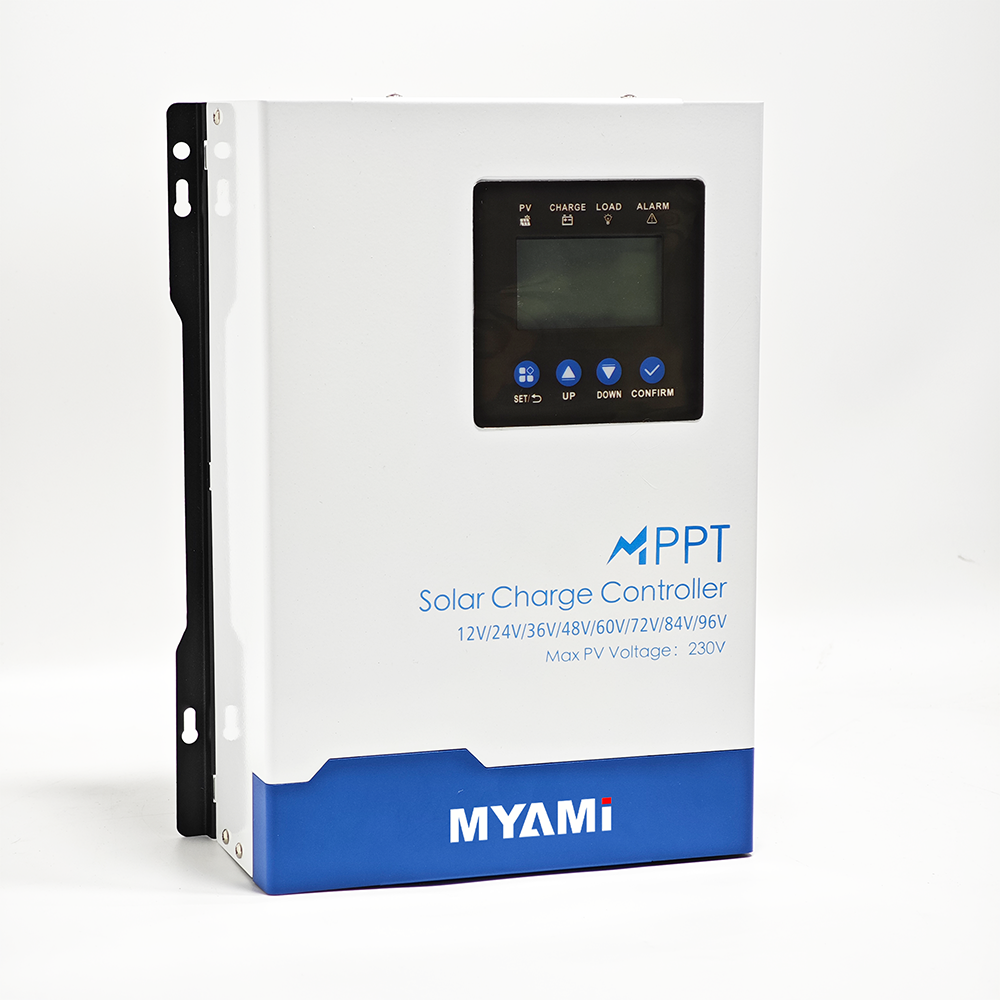

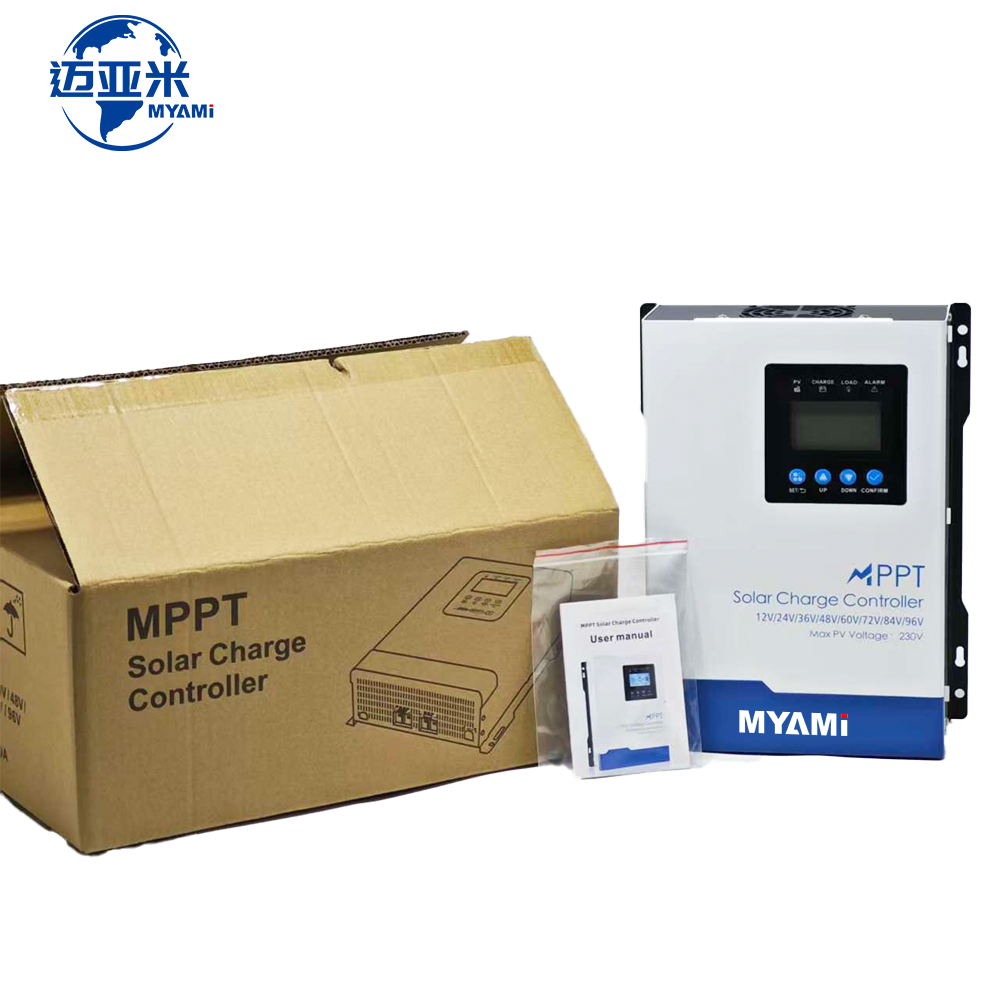

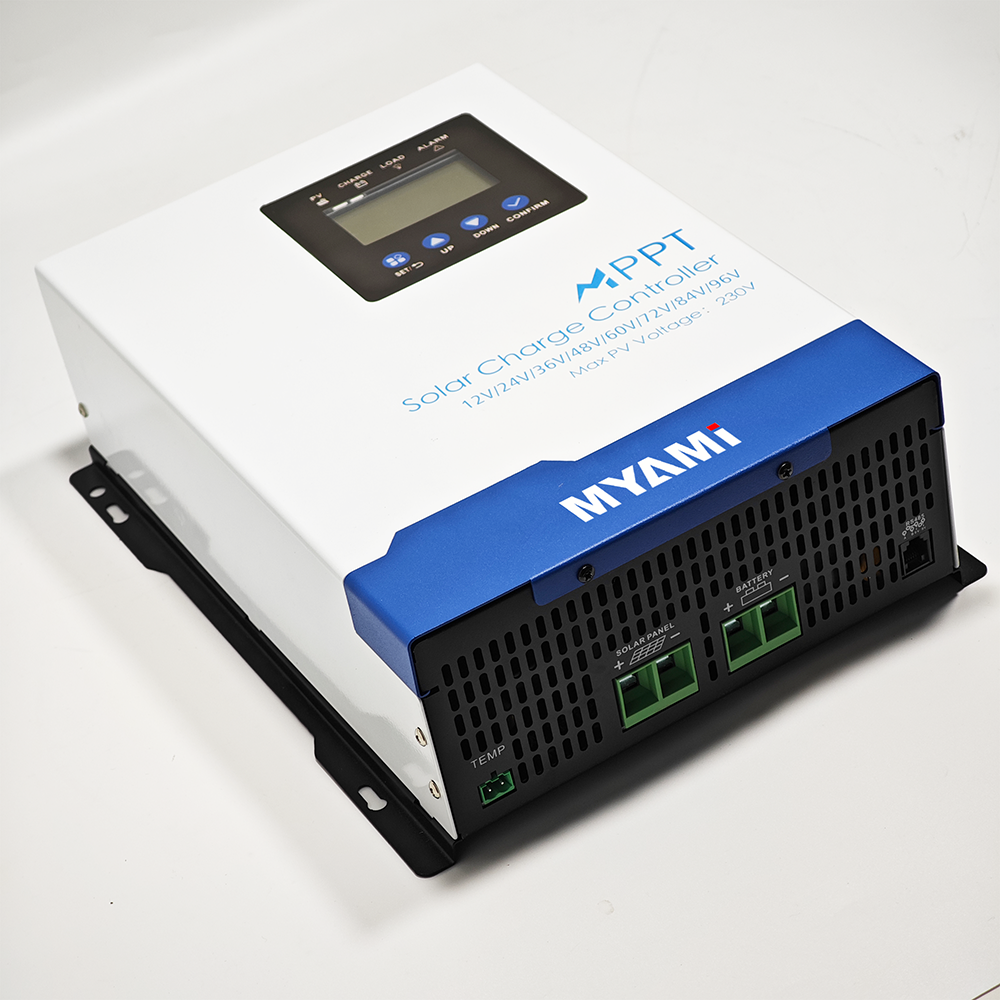

MYAMi Controlador De Carga Mppt 100a 120a 60a 30a MPPT Solar Charge Controller 12V-96V Max 230V PV Input for Home Use
MYAMi Controlador De Carga Mppt 100a 120a 60a 30a MPPT Solar Charge Controller 12V-96V Max 230V PV Input for Home Use
MYAMi Controlador De Carga Mppt 100a 120a 60a 30a MPPT Solar Charge Controller 12V-96V Max 230V PV Input for Home Use
MYAMi Controlador De Carga Mppt 100a 120a 60a 30a MPPT Solar Charge Controller 12V-96V Max 230V PV Input for Home Use
MYAMi Controlador De Carga Mppt 100a 120a 60a 30a MPPT Solar Charge Controller 12V-96V Max 230V PV Input for Home Use
1 / 5
MYAMi Controlador De Carga Mppt 100a 120a 60a 30a MPPT Solar Charge Controller 12V-96V Max 230V PV Input for Home Use
MYAMi Controlador De Carga Mppt 100a 120a 60a 30a MPPT Solar Charge Controller 12V-96V Max 230V PV Input for Home Use
MYAMi Controlador De Carga Mppt 100a 120a 60a 30a MPPT Solar Charge Controller 12V-96V Max 230V PV Input for Home Use
MYAMi Controlador De Carga Mppt 100a 120a 60a 30a MPPT Solar Charge Controller 12V-96V Max 230V PV Input for Home Use
MYAMi Controlador De Carga Mppt 100a 120a 60a 30a MPPT Solar Charge Controller 12V-96V Max 230V PV Input for Home Use

MYAMi Controlador De Carga Mppt 100a 120a 60a 30a MPPT Solar Charge Controller 12V-96V Max 230V PV Input for Home Use

Send Inquiry

Product Description

Brand-new Design MPPT Solar Charge Controller 120A 60A 30A for Home/RV Solar System Battery Charge 12-96V

Product Highlights:

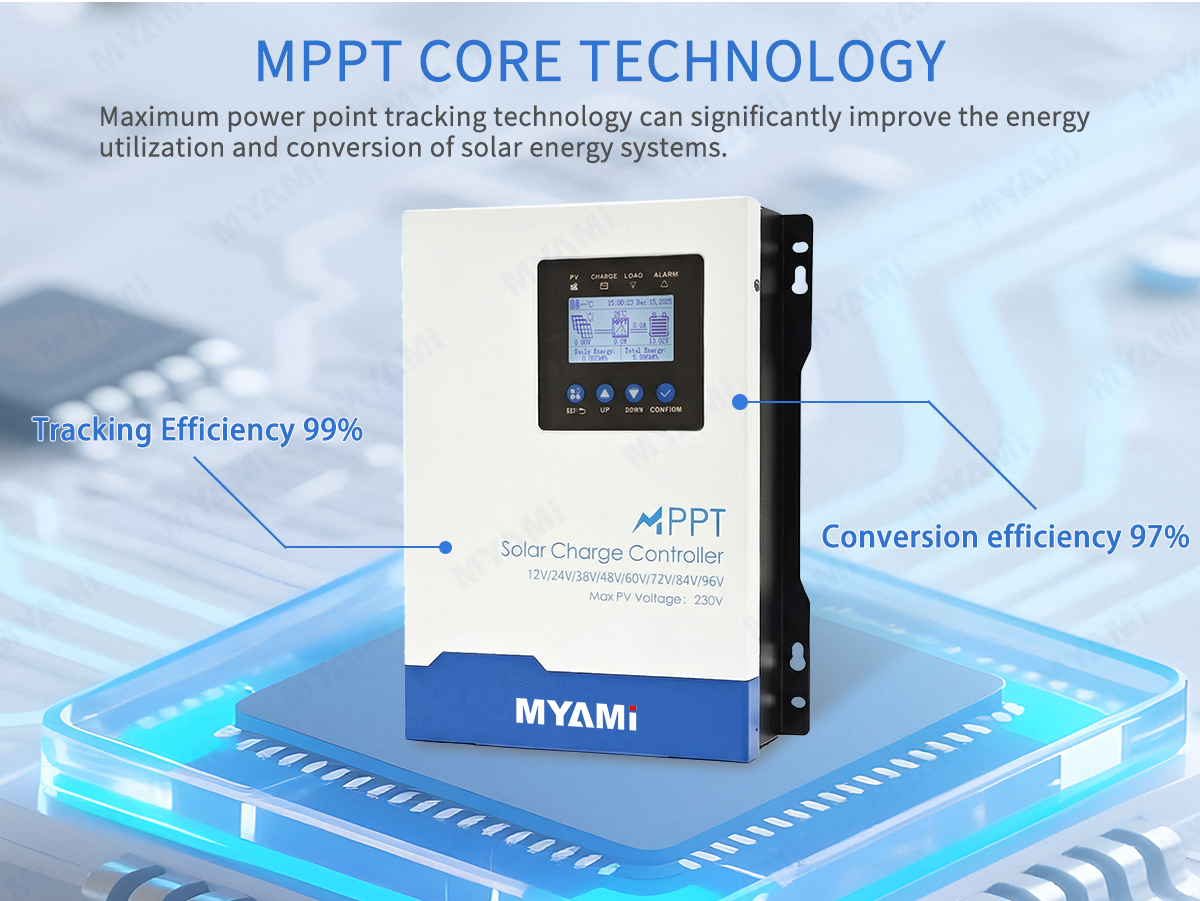

  • Advanced MPPT Core Control: Innovative maximum power tracking technology significantly improves system energy utilization efficiency. Features a tracking rate of up to 99% and a conversion rate of up to 97%.
  • Efficient V-curve Scanning: Quickly scans the entire area V-curve for efficient tracking of the maximum power point.

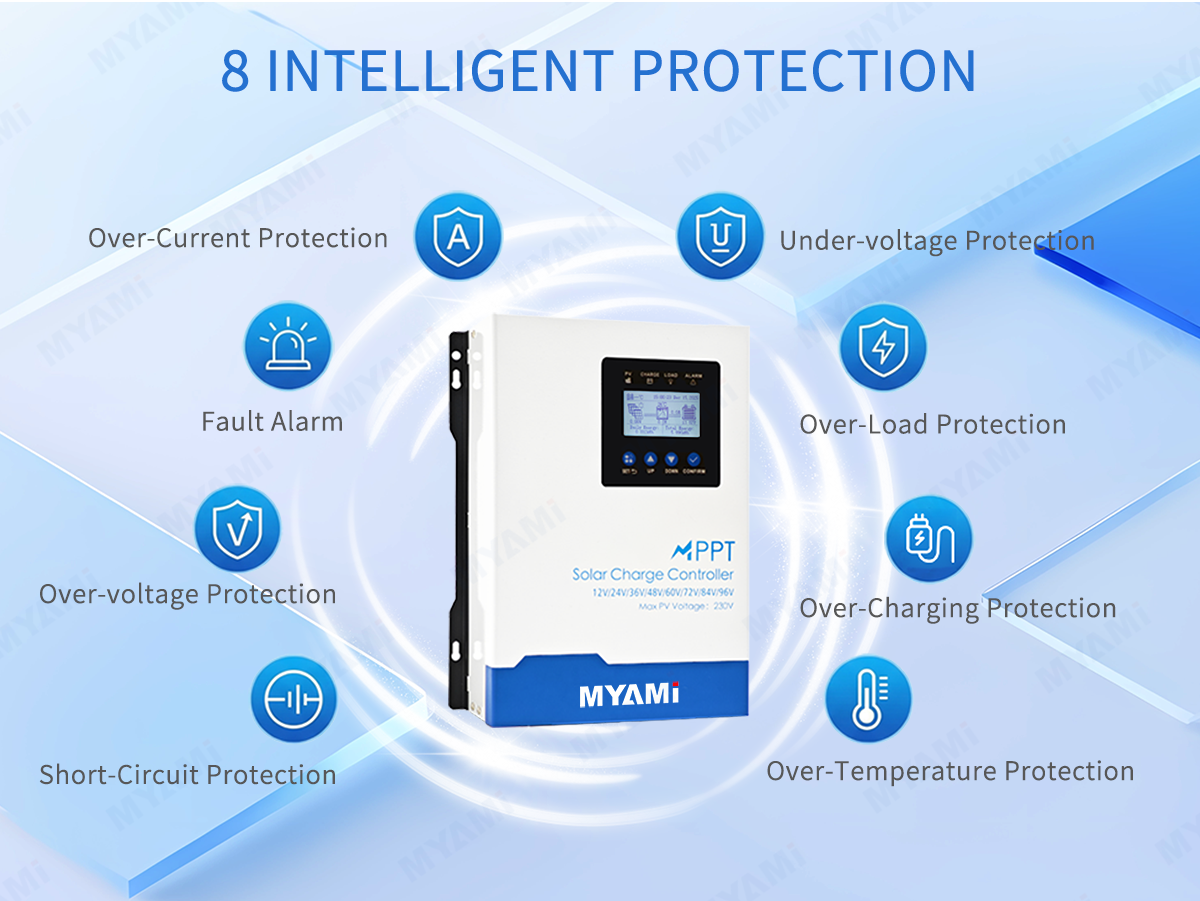

  • 8 Intelligent Protection Functions: Includes overcharge, overdischarge, overload, over temperature, over-voltage, over-current, low voltage, and short circuit protections.
  • RS485 Communication: RS485 communication interface supports multi-machine communication, making it convenient to monitor operating parameters.
  • HD LCD Display: High-definition display screen shows clear working status details.
  • Touch-Sensitive Controls: Sensitive function buttons for easy and convenient operation.

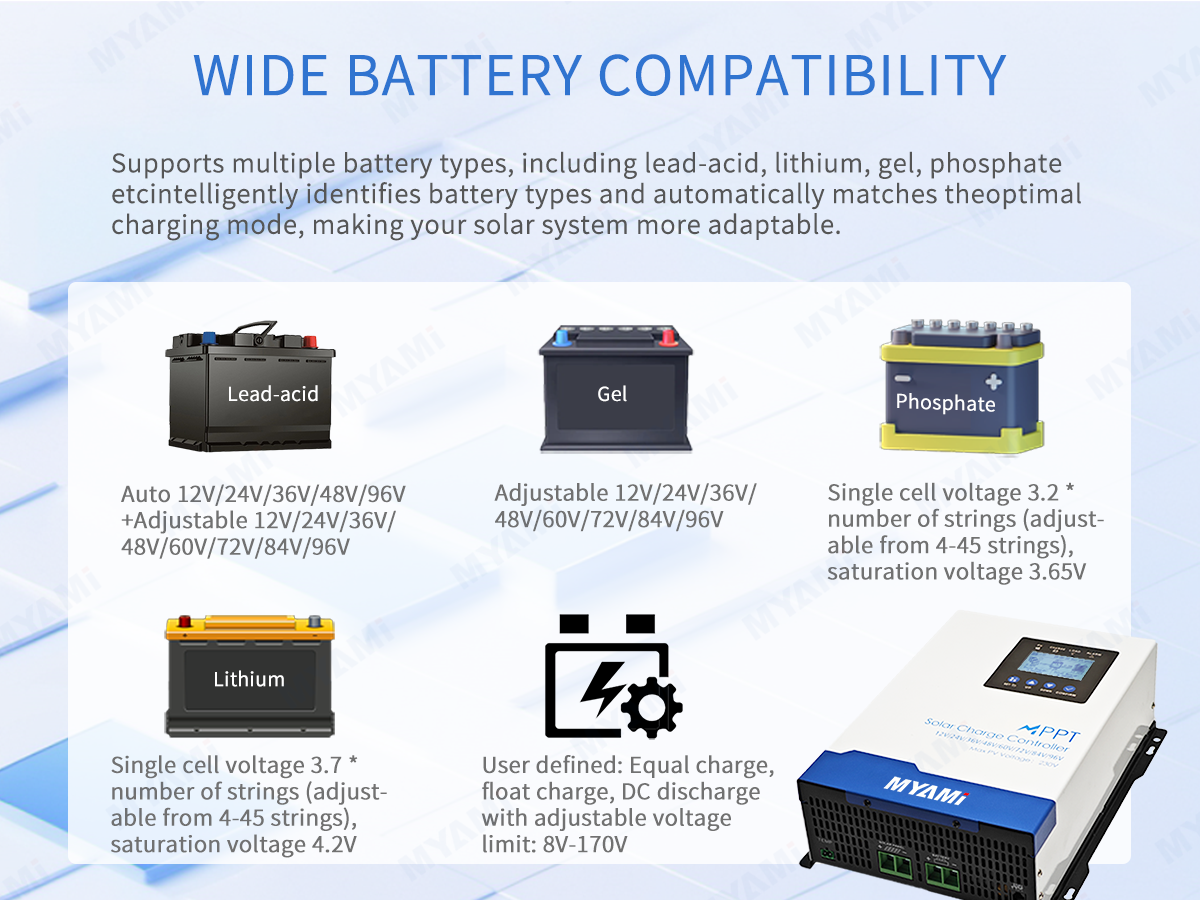

  • Strong Battery Compatibility: Suitable for lead-acid, gel, phosphate, ternary lithium, and user-defined battery types.
  • Adjustable Output: Supports battery voltages adjustable to 12V/24V/36V/48V/60V/72V/84V/96V. Current can be adjusted: 10-120A (for 120A model) or 10-60A (for 60A model).
  • Max 230V PV Input: High voltage tolerance for various solar array configurations.
  • Multi-Stage Charging: Supports MPPT tracking maximum power, fast charging, balanced charging, and float charging.
Note: The solar charge controller series has applied for a design patent and passed CE verification, ensuring reliability and quality assurance.

Why Choose This MPPT Solar Charge Controller?

This controller is designed for solar off-grid power generation systems to automatically regulate battery charging and discharging. Utilizing advanced tracking algorithms, it extracts the maximum power from solar cell modules to charge the battery. Meanwhile, its low voltage disconnect (LVD) function prevents damage caused by over-discharging the battery.

The battery charging process is optimized to extend battery life and improve overall system performance. The comprehensive self-test and electronic protection functions help prevent damage caused by installation errors and system failures.

MPPT Solar Charge Controller Product
Product Description

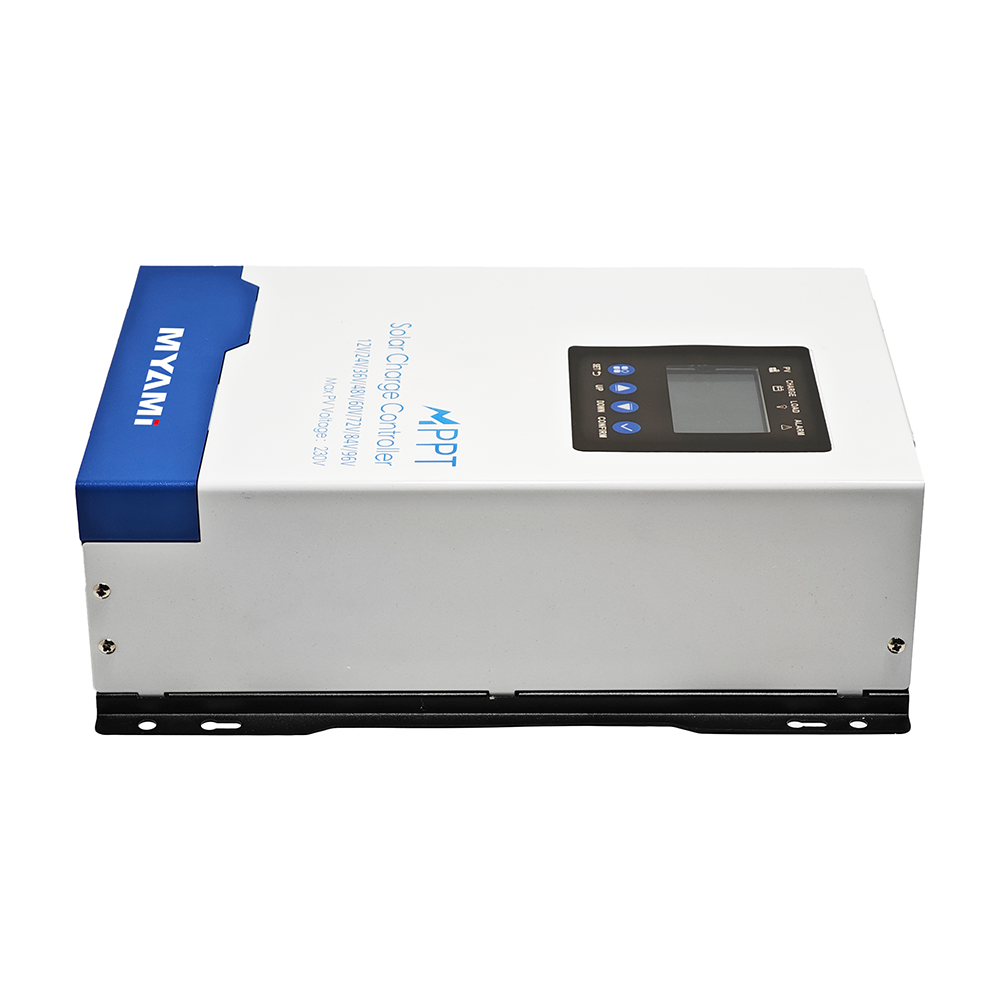

Detail 1 Detail 2 Detail 3 Detail 4 Detail 5 Detail 6 Detail 7 Detail 8 Detail 9 Detail 10

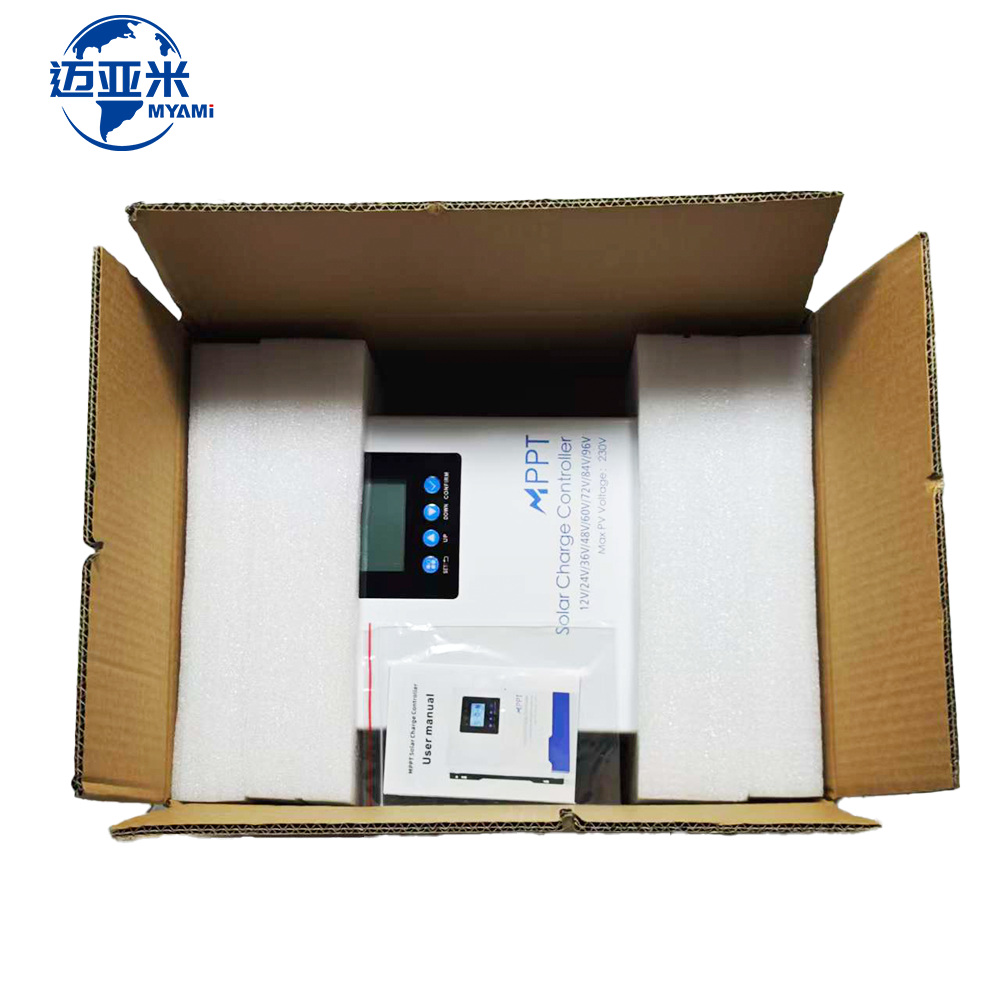

Additional Product View

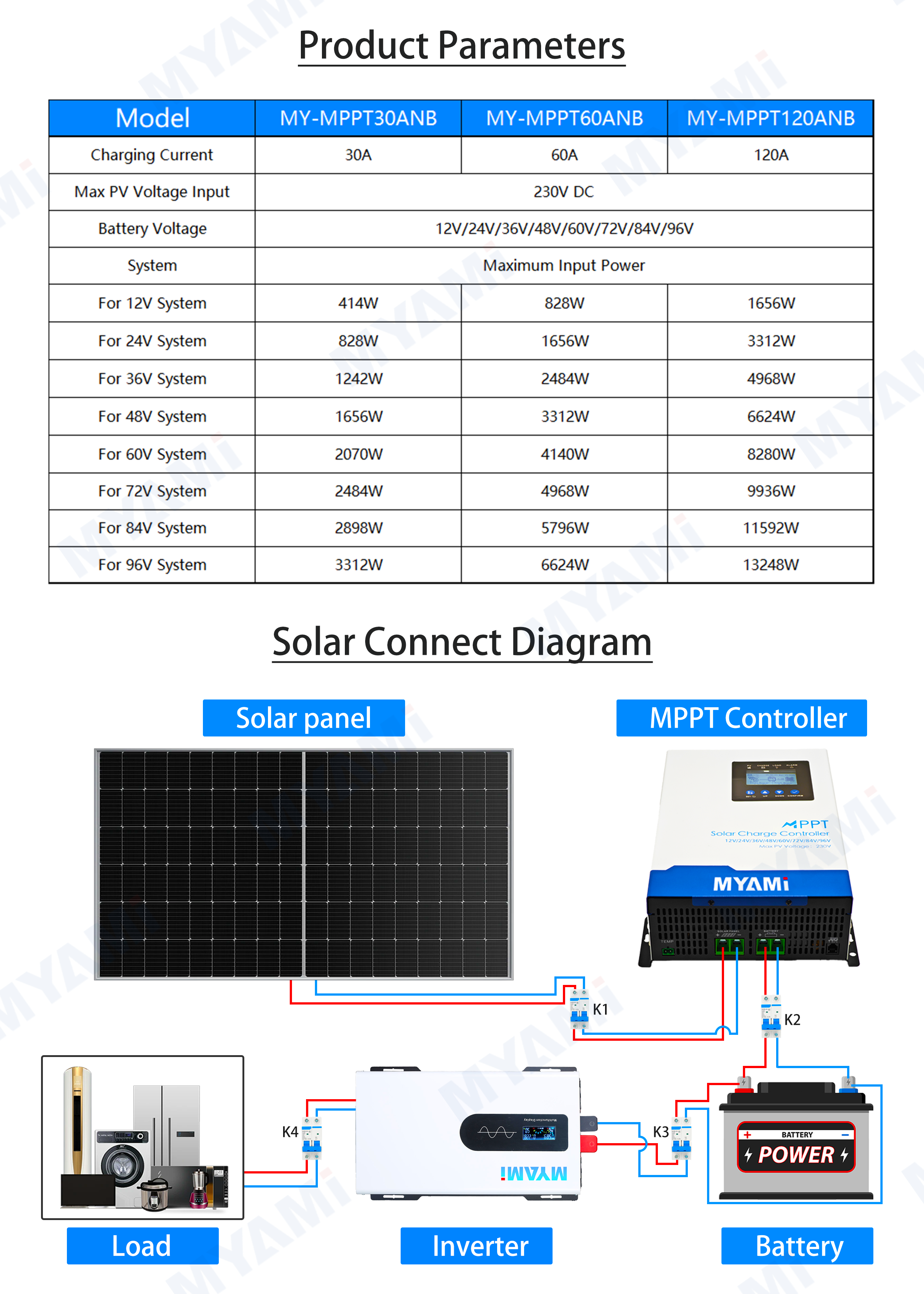

Specification
MPPT Model MY-MPPT60ANB MY-MPPT120ANB
Rated charging current 60A 120A
Maximum PV Input Power 12V system 828W 1656W
24V system 1656W 3312W
36V system 2484W 4968W
48V system 3312W 6624W
60V system 4140W 8280W
72V system 4968W 9936W
84V system 5796W 11592W
96V system 6624W 13248W
Model MY-MPPT30ANB MY-MPPT60ANB MY-MPPT120ANB
Charge Type MPPT
Battery Type Lead Acid Automatic recognition 12V/24V/36V/48V/96V (Adjustable: 12V/24V/36V/48V/60V/72V/84V/96V)
Gel 12V/24V/36V/48V/60V/72V/84V/96V
Phosphate Single cell voltage 3.2V * number of strings (adjustable 4-45 strings), saturation voltage 3.65V
Ternary Single cell voltage 3.7V * number of strings (adjustable 4-45 strings), saturation voltage 4.2V
User Defined Equal charging, float charging, adjustable DC discharge limit voltage: 8V-170V
Lithium Battery Activation With PV input, charging voltage is present to activate lithium batteries without battery DC output.
Maximum Input Voltage 0-230V
Charging Current (Adjustable) 10-30A 10-60A 10-120A
Start Charging Condition PV voltage is greater than battery voltage by 3V (allows charging with low current on cloudy and rainy days).
Charging Current Output Continuous DC output 30A Continuous DC output 60A Continuous DC output 120A
Temperature Compensation Automatically compensates charging voltage/current based on battery temperature to extend lifespan.

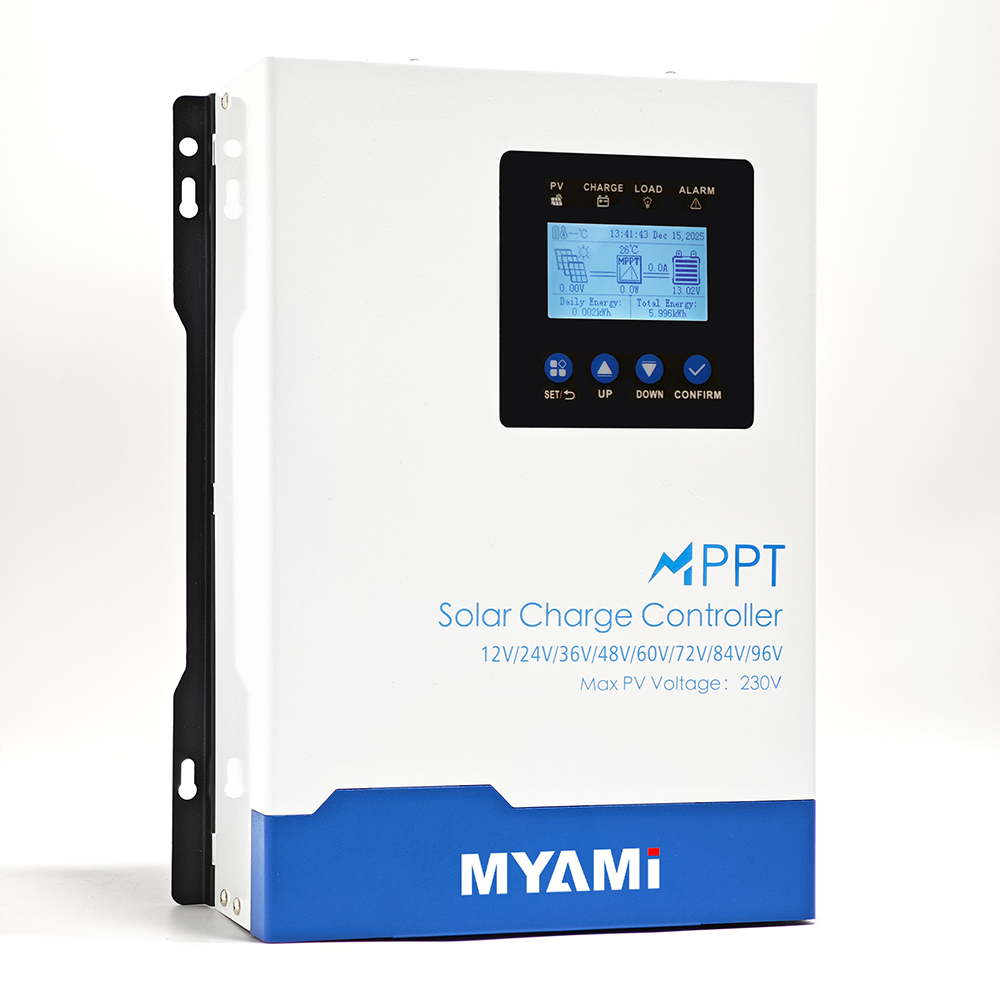

Display Touch-sensitive button LCD display: power generation, PV voltage, battery voltage, charging current, power, and operating status. (Chinese/English display settings).
Communication 8-pin RS485 communication interface (for querying operational status and settings).
Ambient Temperature -20℃ ~ 40℃
IP Protection Level IP 21
Altitude 0 ~ 3000M

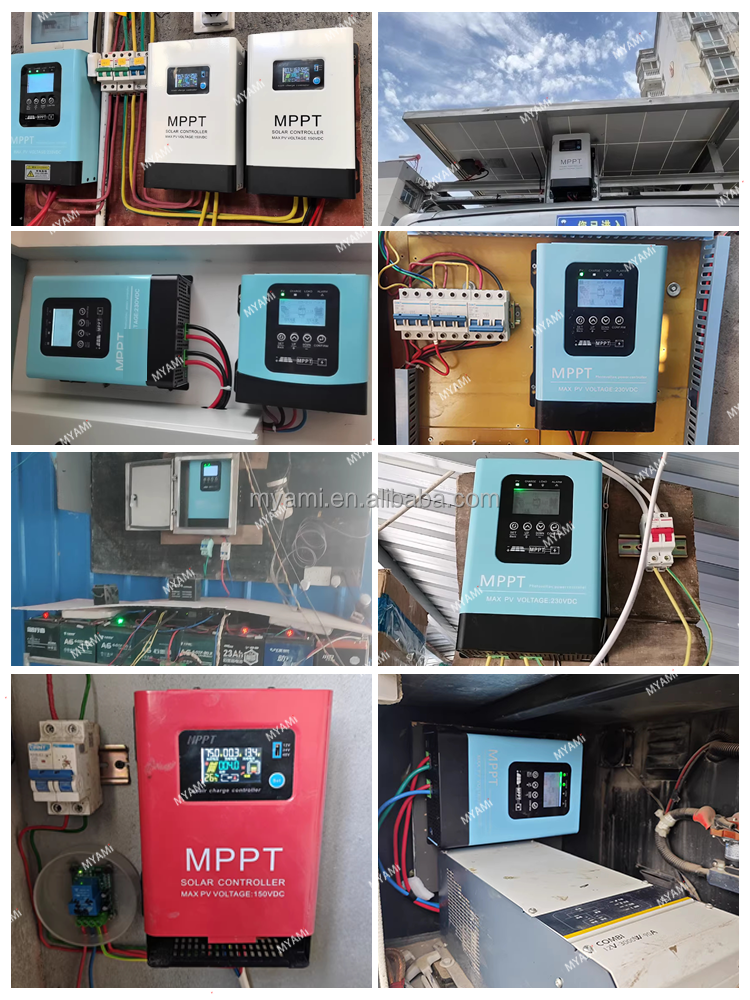

Parameters Diagram

Frequently Asked Questions (FAQ)

What is the tracking efficiency of this MPPT Solar Charge Controller?
This controller utilizes advanced MPPT core charging control technology, delivering a maximum power tracking rate of up to 99% and a peak conversion rate of up to 97% to significantly optimize energy efficiency.
What battery types are compatible with the controller?
It features strong battery compatibility and works seamlessly with lead-acid batteries, gel batteries, lithium iron phosphate (LiFePO4) batteries, ternary lithium batteries, and custom user-defined battery profiles.
Can the controller charge a lithium battery that has gone into protection mode?
Yes, the controller includes a lithium battery activation function. When there is photovoltaic (PV) input, it provides charging voltage to activate protected lithium batteries, even without a regular battery DC output.
What built-in protection features does the system have?
It includes 8 intelligent automatic protection functions: overcharge, overdischarge, overload, over-temperature, over-voltage, over-current, low voltage, and short circuit protection.
Can I monitor the system statistics and configure settings remotely?
Yes, the controller is equipped with an 8-pin RS485 communication interface, allowing multi-machine communication to monitor operational status and modify system parameters.
What is the maximum photovoltaic (PV) input voltage supported?
The controller supports a wide solar input range with a maximum PV input voltage of up to 230V.
