| MPPT Model | MY-MPPT60ANB | MY-MPPT120ANB |
|---|---|---|
| Rated charging current | 60A | 120A |
| Maximum PV Input Power | ||
| 12V system | 828W | 1656W |
| 24V system | 1656W | 3312W |
| 36V system | 2484W | 4968W |
| 48V system | 3312W | 6624W |
| 60V system | 4140W | 8280W |
| 72V system | 4968W | 9936W |
| 84V system | 5796W | 11592W |
| 96V system | 6624W | 13248W |
| Model | MY-MPPT30ANB | MY-MPPT60ANB | MY-MPPT120ANB |
|---|---|---|---|
| Charge Type | MPPT | ||
| Lead Acid Battery | Automatic recognition 12V/24V/36V/48V/96V, and adjustable 12V/24V/36V/48V/60V/72V/84V/96V | ||
| Gel Battery | 12V/24V/36V/48V/60V/72V/84V/96V | ||
| Phosphate Battery | Single cell voltage 3.2 * number of strings (adjustable from 4-45 strings), saturation voltage 3.65V | ||
| Ternary Battery | Single cell voltage 3.7 * number of strings (adjustable from 4-45 strings), saturation voltage 4.2V | ||
| User Defined | Equal charging, float charging, adjustable DC discharge limit voltage: 8V-170V | ||
| Lithium Activation | With photovoltaic input, there is charging voltage (activating lithium batteries) that can be used without battery DC output | ||
| Max Input Voltage | 0-230V | ||
| Charging Current | 10-30A | 10-60A | 10-120A |
| Start Charging | Photovoltaic voltage is greater than battery voltage by 3V (can charge with low current on cloudy and rainy days) | ||
| Current Output | Continuous DC output 30A | Continuous DC output 60A | Continuous DC output 120A |
| Temp Compensation | Automatically compensates for charging voltage and current based on battery temperature, extending battery life. | ||
| Display | Touch sensitive button LCD display: (power generation/photovoltaic voltage/battery voltage/charging current/power/operating status). Chinese and English display settings (battery type, charging current restored to factory). | ||
| Communication | 8-pin RS485 communication interface (capable of querying operational status and settings) | ||
| Ambient Temp | -20℃ ~ 40℃ | ||
| IP Protection Level | IP 21 | ||
| Altitude | 0~3000M | ||

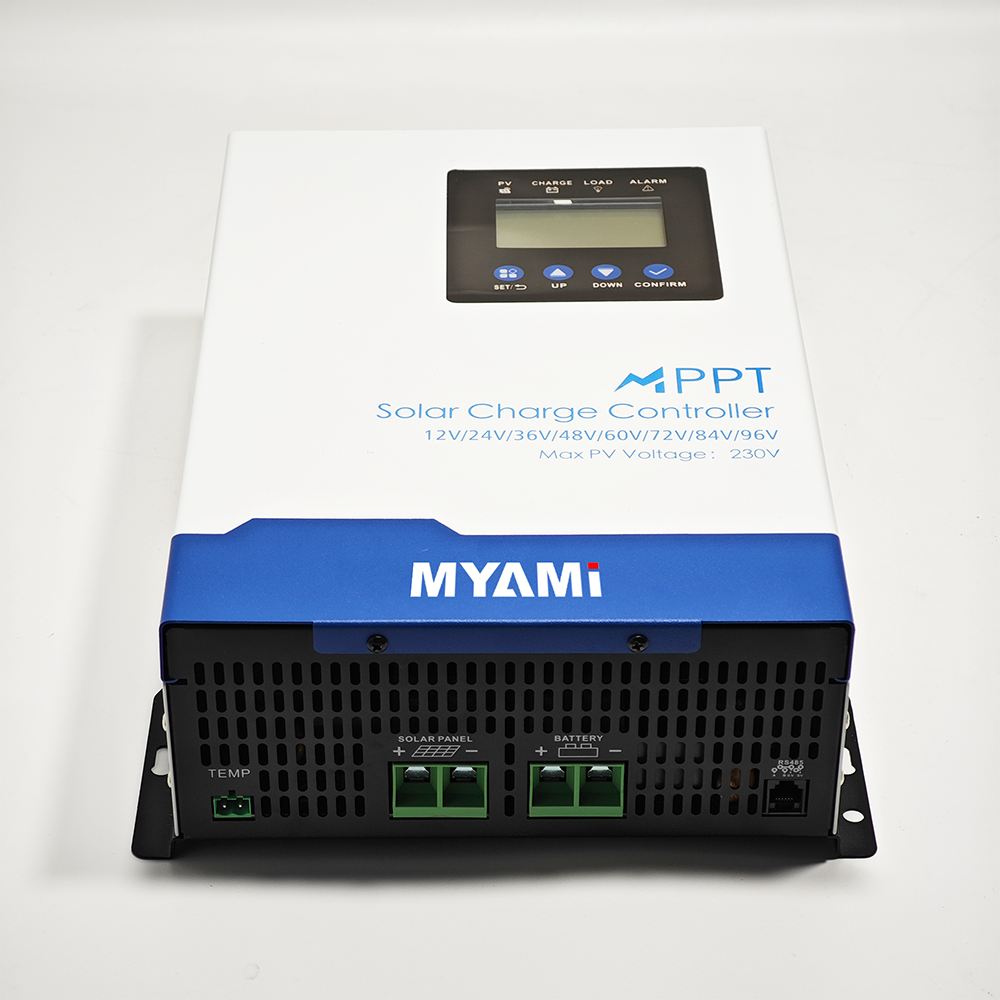

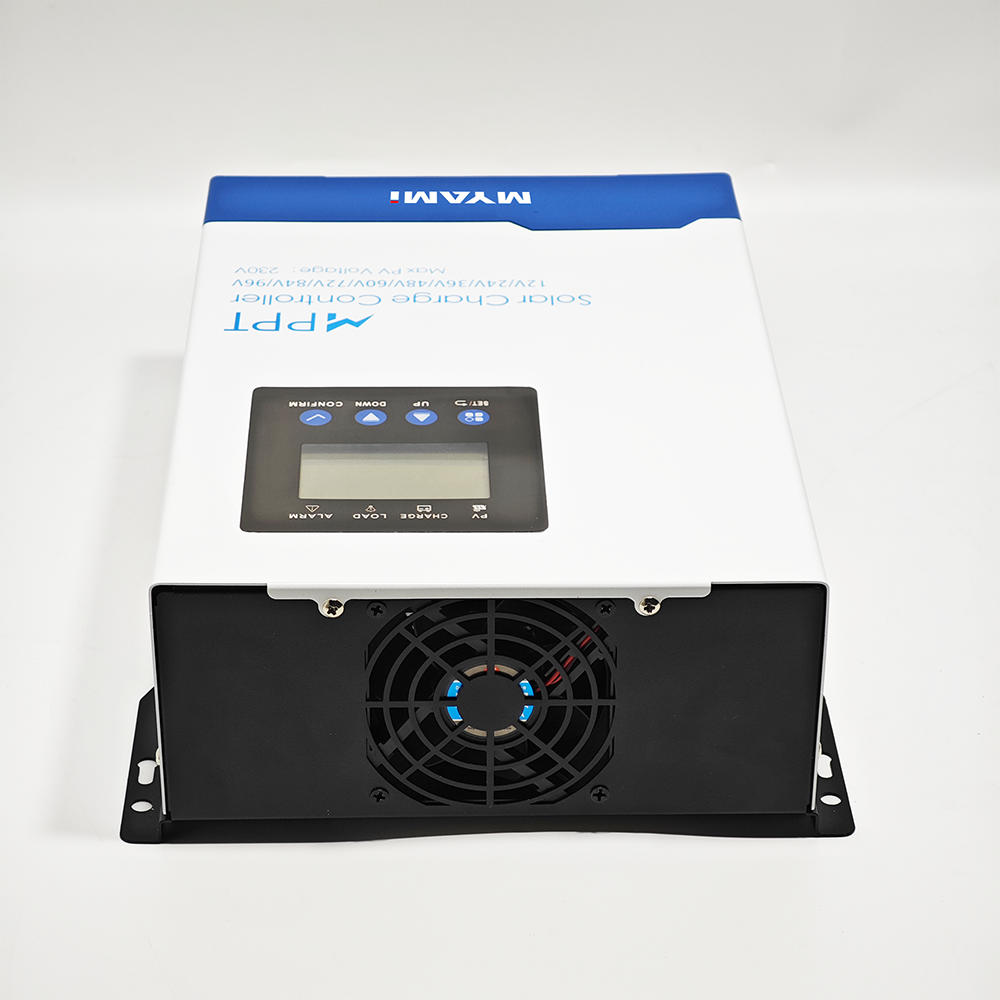

New Arrival MPPT Solar Charge Controller 120A 60A 30A
Designed for 12V 24V 36V 48V 60V 72V 84V 96V systems with max 230V PV input. Features a clear LCD display, perfect for home/RV solar systems and compatible with lead-acid and lithium batteries.
Core charging control and innovative maximum power tracking technology with tracking rate up to 99% and conversion rate up to 97%.
Protects against overcharge, overdischarge, overload, over temperature, over-voltage, over-current, low voltage, and short circuits.
Interface enabled for multi-machine communication, convenient for viewing the operating parameters of the controller.
Suitable for lead-acid, gel, phosphate, ternary lithium batteries, and user-defined battery profiles.
Voltage adjustable (12V-96V) and current adjustable: 10-120A for 120ANB model, 10-60A for 60ANB model.
Clear display with touch-sensitive function buttons for easy status checking and parameters settings adjustment.
This controller is used in solar off-grid power generation systems to automatically regulate battery charging and discharging. It features advanced tracking algorithms to obtain the maximum power of solar cell modules for charging the battery. Meanwhile, its low voltage disconnect (LVD) function prevents damage caused by excessive discharge of the battery.
The battery charging process of this MPPT controller is optimized to extend battery life and improve overall system performance. Its comprehensive self-test function and electronic protection system prevent damage caused by installation errors and system failures.
This controller utilizes advanced MPPT core charging control technology, delivering a maximum power tracking efficiency of up to 99% and a peak conversion rate of up to 97%.

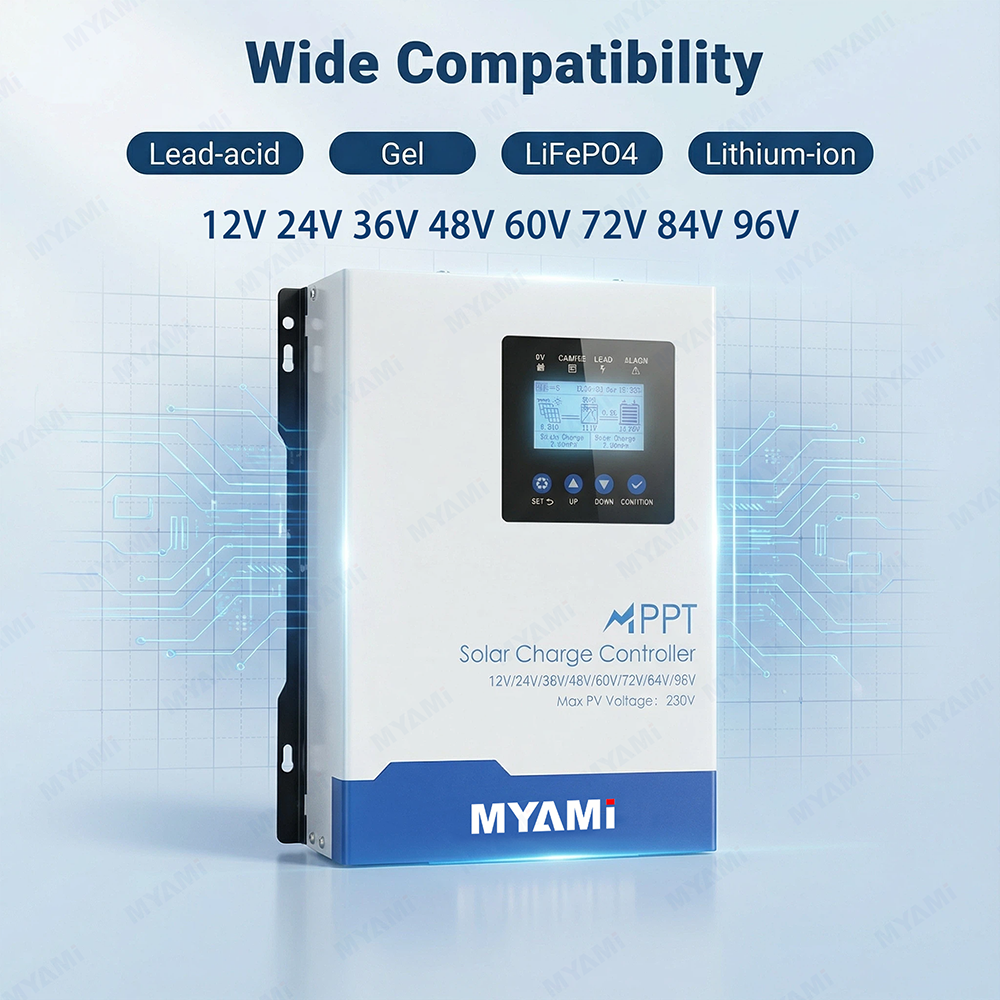

It offers strong battery compatibility and supports Lead-acid batteries, Gel batteries, Lithium Iron Phosphate (LiFePO4) batteries, Ternary lithium batteries, and custom parameters defined by the user.
Yes. With the built-in lithium battery activation function, when there is photovoltaic input, it can supply charging voltage to activate the battery and function without requiring a battery DC output.

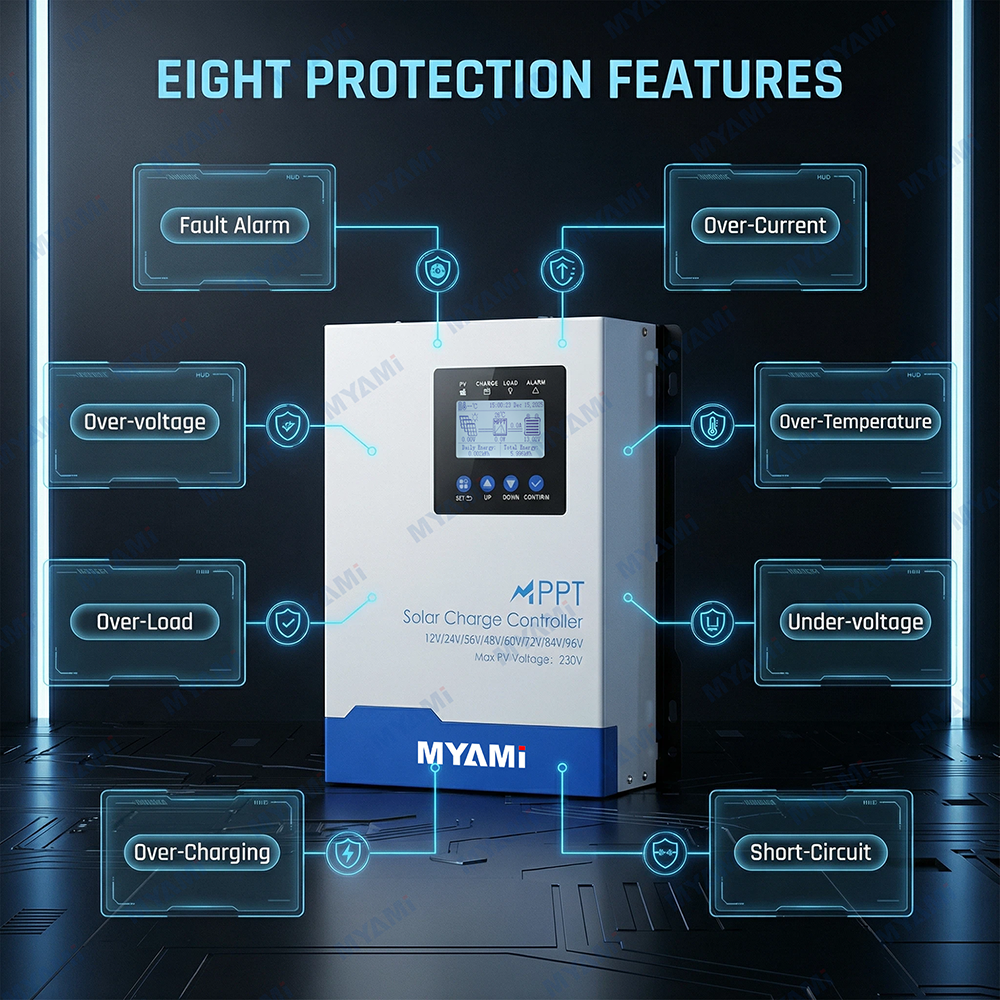

The controller has 8 intelligent protection functions: overcharge protection, overdischarge protection, overload protection, over temperature protection, over-voltage protection, over-current protection, low voltage protection, and short circuit protection.
Yes, the battery voltage is adjustable automatically or manually from 12V to 96V, and the charging current output is adjustable ranging from 10A up to 120A depending on the specific model.
It features a touch-sensitive HD LCD displaying power generation, voltages, currents, and status. For remote monitoring, it includes an 8-pin RS485 communication interface allowing querying of operational parameters.
