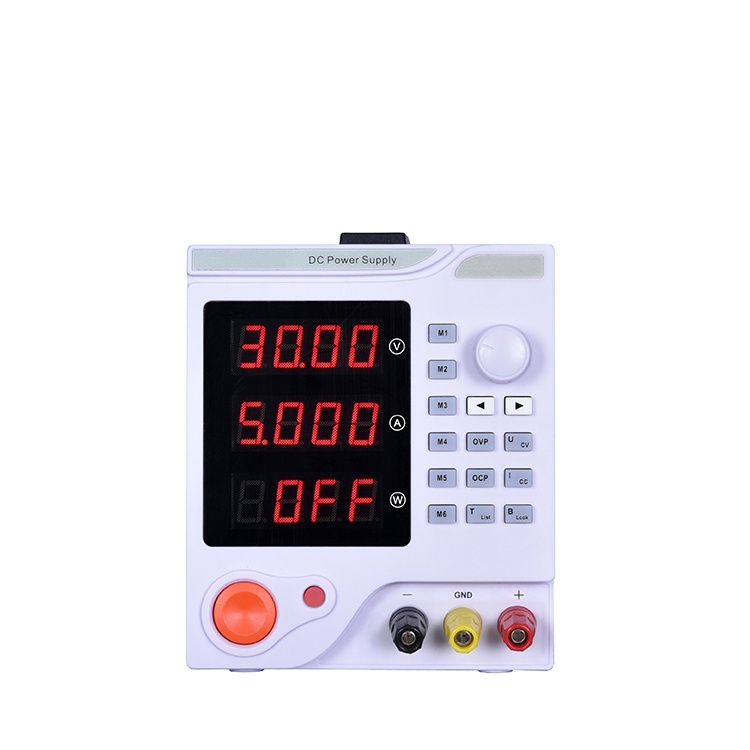

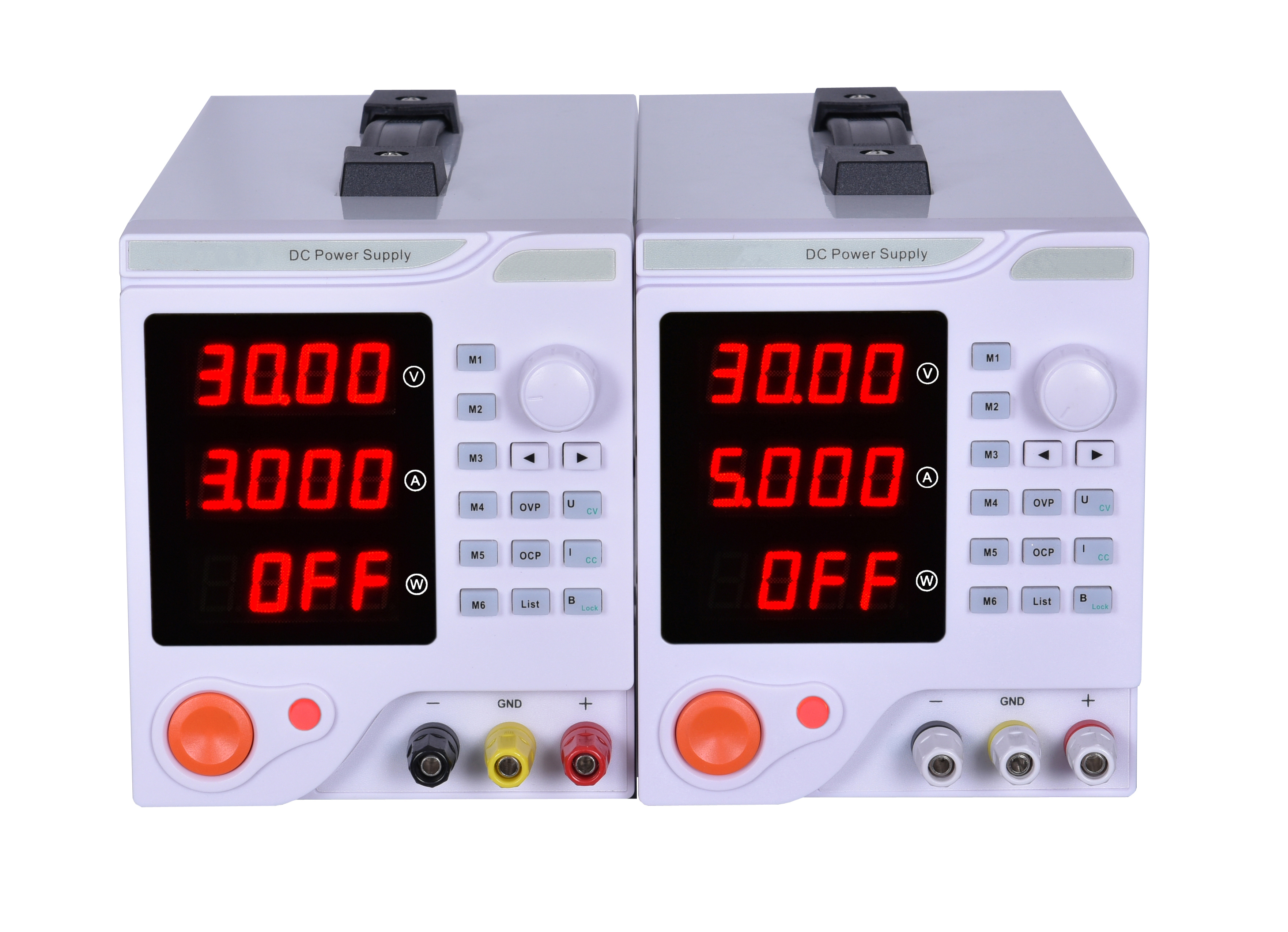

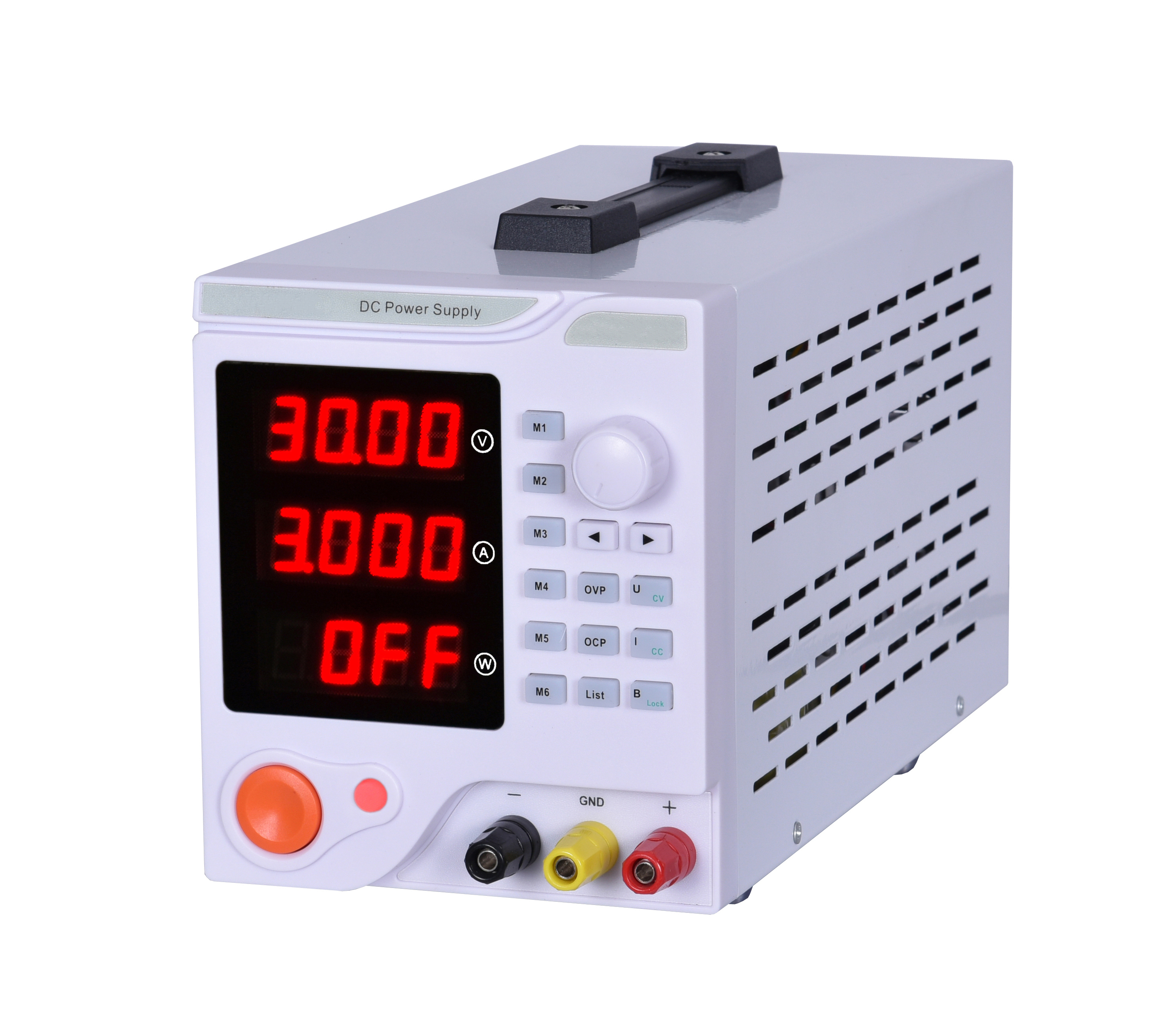

Laboratory Linear Programmable Variable Voltage Adjustable Regulated Dc Power Supply 60V 3A

1 / 5

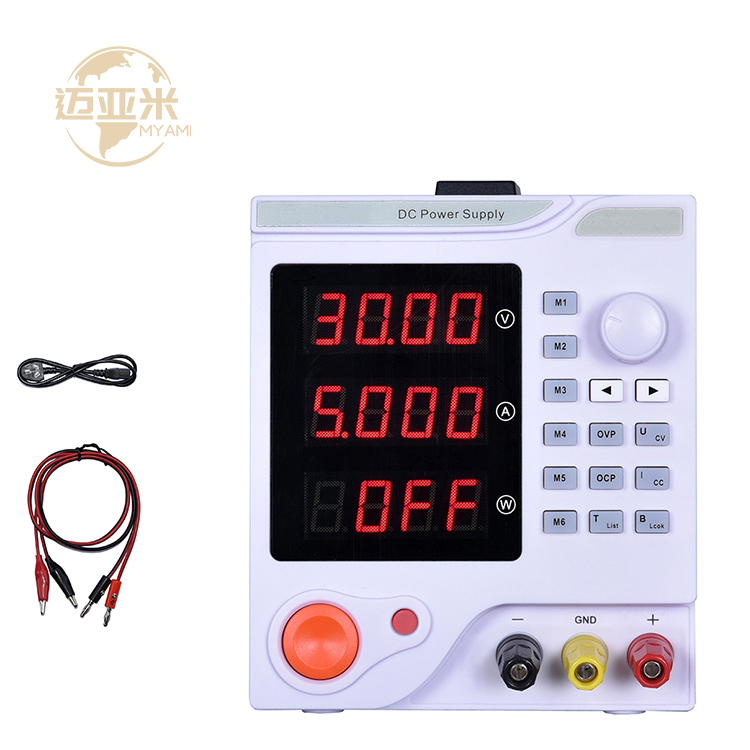

Laboratory Linear Programmable Variable Voltage Adjustable Regulated Dc Power Supply 60V 3A

Send Inquiry

Product Description

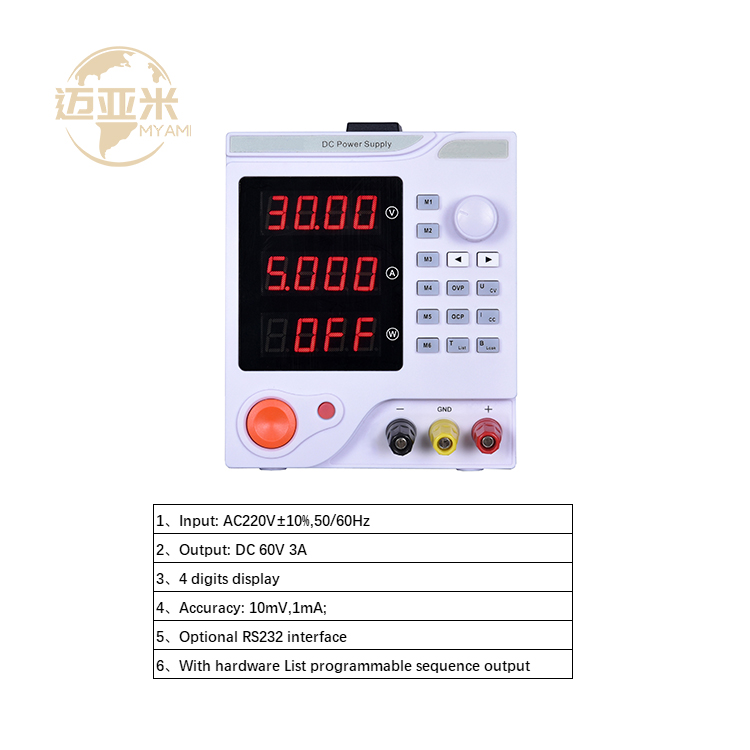

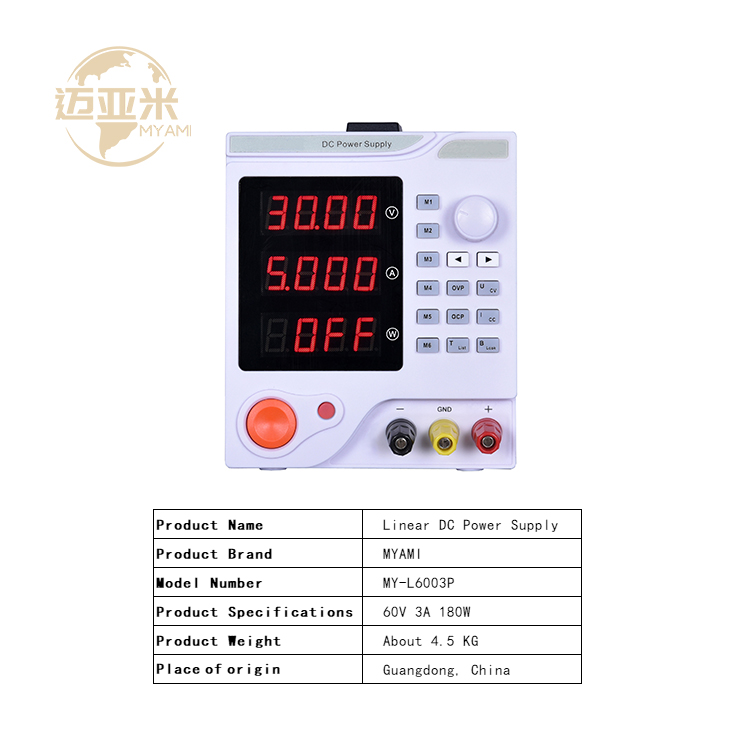

Programmable linear variable adjustable dc power supply ac dc regulated 60V 3A 150W digital tube, MY-L6003P.

Key Features

Low noise and low ripple
Power display
Automatic carry of the decimal point
Rear RS232/485/USB, upper computer software control (optional)
Over voltage, over current, over power, over temperature, short circuit five powerful protection functions
Long-term full load, short circuit ignition arc drawing machine
Unique sunflower cooling function (linear power supply)
High quality pure copper ring transformer (linear power supply)
Intelligent temperature control fan

Specifications

Model	MY-L3003P	MY-L3005P	MY-L6003P	MY-L6005P	MY-L15001P
Voltage	0～30V	0～30V	0～60V	0～60V	0～150V
Current	0～3A	0～5A	0～3A	0～5A	0～1A
Line Regulation
Voltage	≤0.1%+3mV	≤0.1%+3mV	≤0.1%+3mV	≤0.1%+3mV	≤0.1%+3mV
Current	≤0.01%+3mA	≤0.01%+3mA	≤0.01%+3mA	≤0.01%+3mA	≤0.01%+3mA
Load Regulation
Voltage	≤0.1%+2mV	≤0.1%+2mV	≤0.1%+2mV	≤0.1%+2mV	≤0.1%+2mV
Current	≤0.01%+5mA	≤0.01%+10mA	≤0.01%+5mA	≤0.01%+10mA	≤0.01%+5mA
Ripple & Noise
Voltage	≤1mVrms	≤2mVrms	≤2mVrms	≤2mVrms	≤1mVrms
Current	≤3mArms	≤3mArms	≤3mArms	≤3mArms	≤3mArms
Display & Resolution
Voltage Display	10mV
Current Display	1mA
Voltage Readback	10mV
Current Readback	1mA
Operating Environment (Indoor Use)
Elevation	≤2000m
Temperature	-10℃～-40℃
Humidity	≤80%
Storage Environment
Temperature	-20℃～-80℃
Humidity	≤80%
Power Input	AC110V/AC220V±10%, 50/60Hz
Dimensions

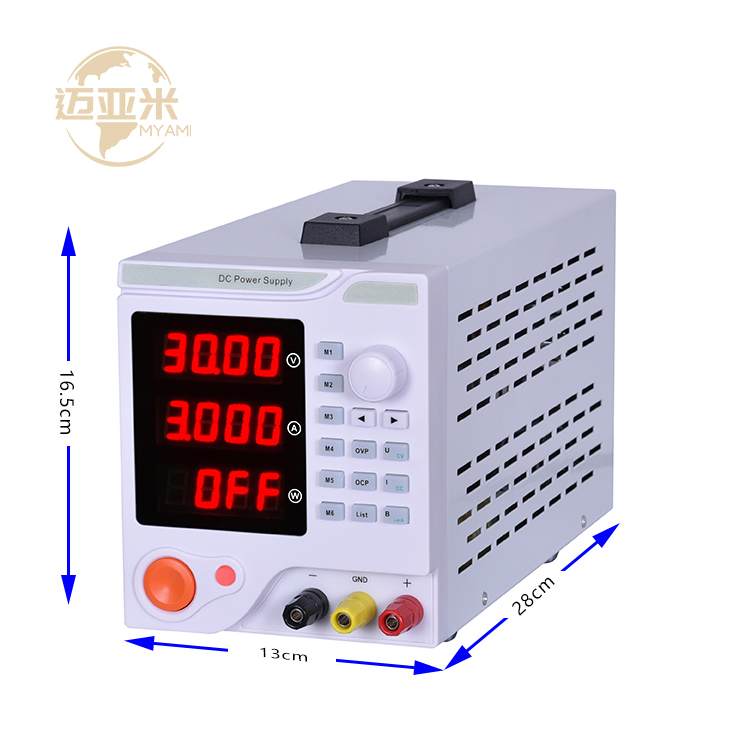

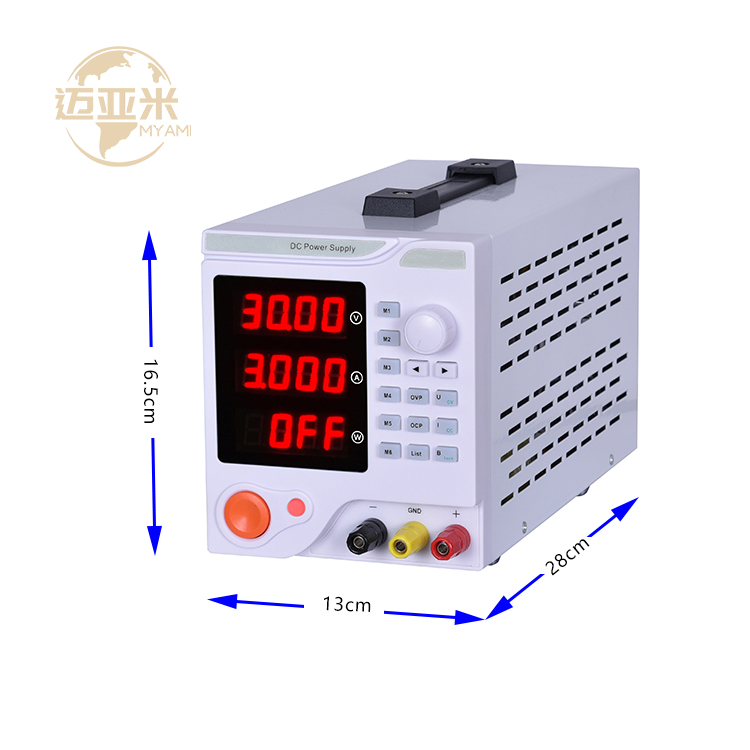

Fuselage size	280(D)×130(W)×165(H)mm
Package size	355(D)×178(W)×210(H)mm

Model	Voltage	Current	Display	Power Input
MY-L3003P	30V	3A	4 digits display	AC220V±10%
MY-L3005P	30V	5A	4 digits display	AC220V±10%
MY-L6003P	60V	3A	4 digits display	AC220V±10%
MY-L15001P	150V	1A	4 digits display	AC220V±10%
MY-L6005P	60V	5A	4 digits display	AC220V±10%

Product Description

About Our Power Supplies

Our company specializes in exporting of POWER SUPPLY. We have Switching Power Supply, Linear Power Supply, High Precision Cabinet Switching Power Supply, High Precision Cabinet Linear Power Supply, Multi-channel DC Voltage and Current Stabilized Power Supply, Electroplating Power Supply, Color Screen High Precision Cabinet Linear Power Supply, Digital Tube High Precision Cabinet Linear Power Supply and complete set of equipment. With a wide range, good quality, reasonable price and stylish design, our products are extensively used in many industries areas. We have a highly efficient team to deal with inquiries from customers. We are experienced in selling goods to South and East Asia and Africa and enjoy a good reputation among clients. The key of our success is to provide good products and good service to users. We are seeking sincerely cooperation with all interested companies.

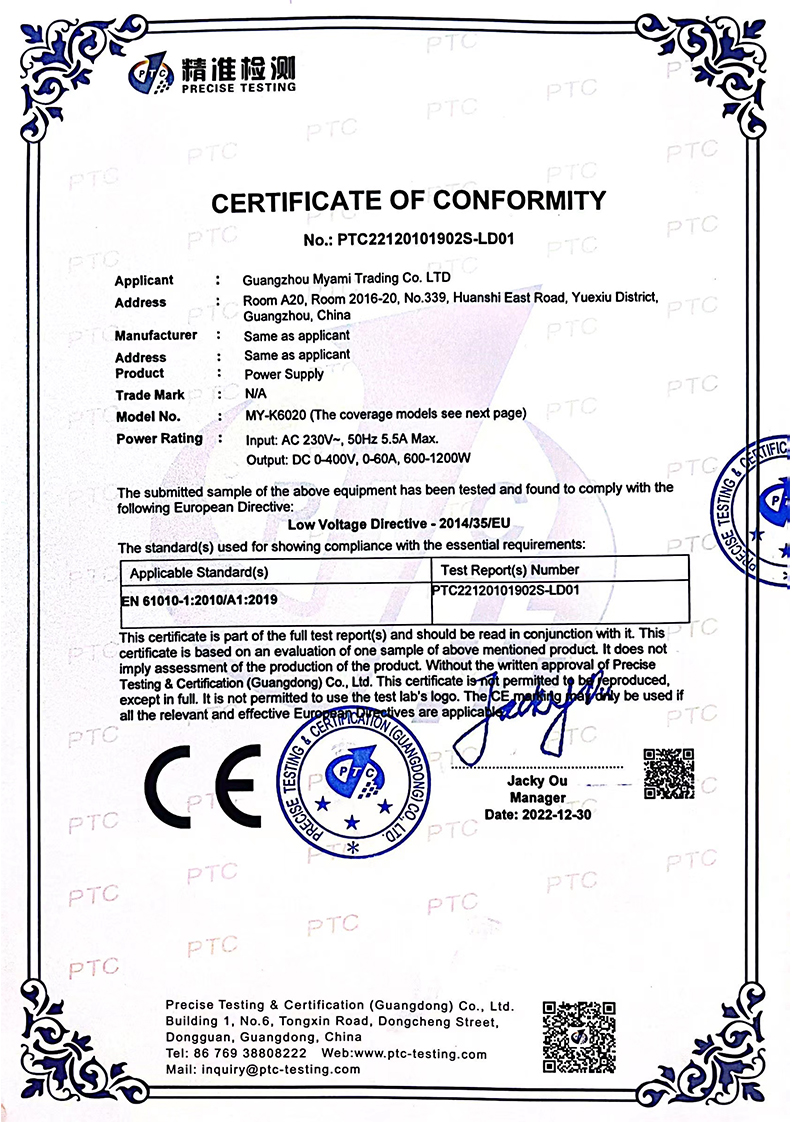

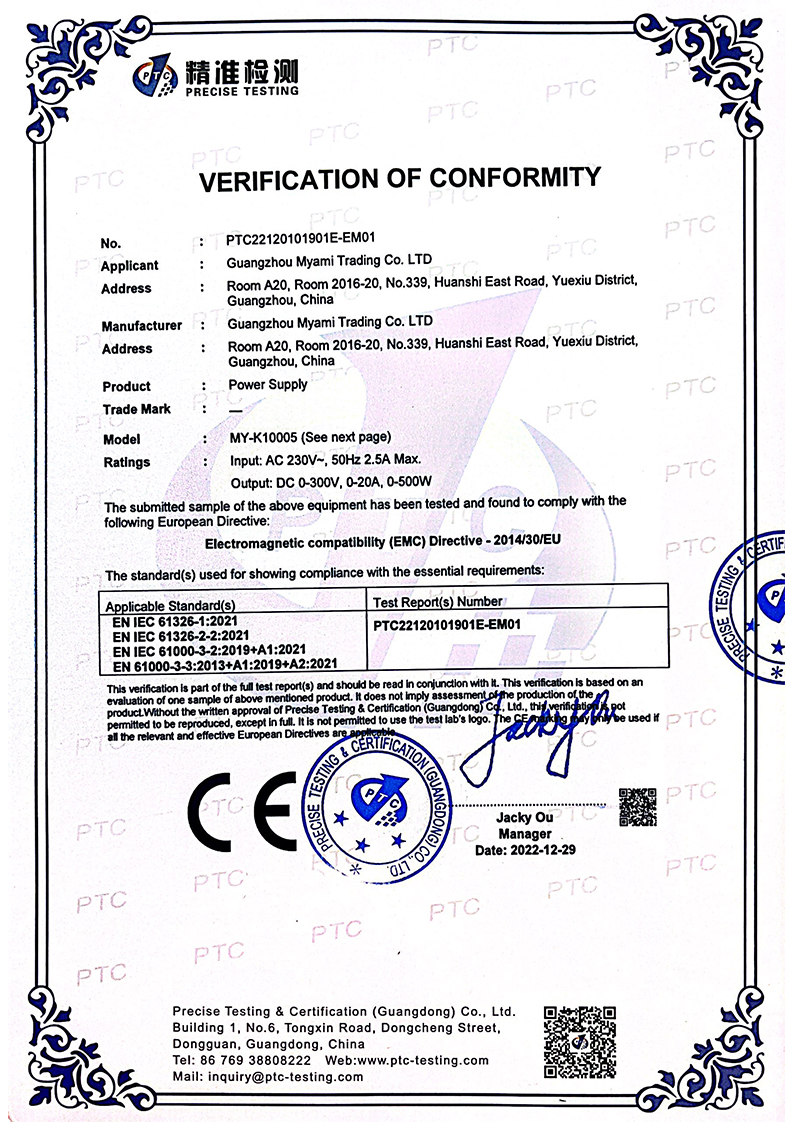

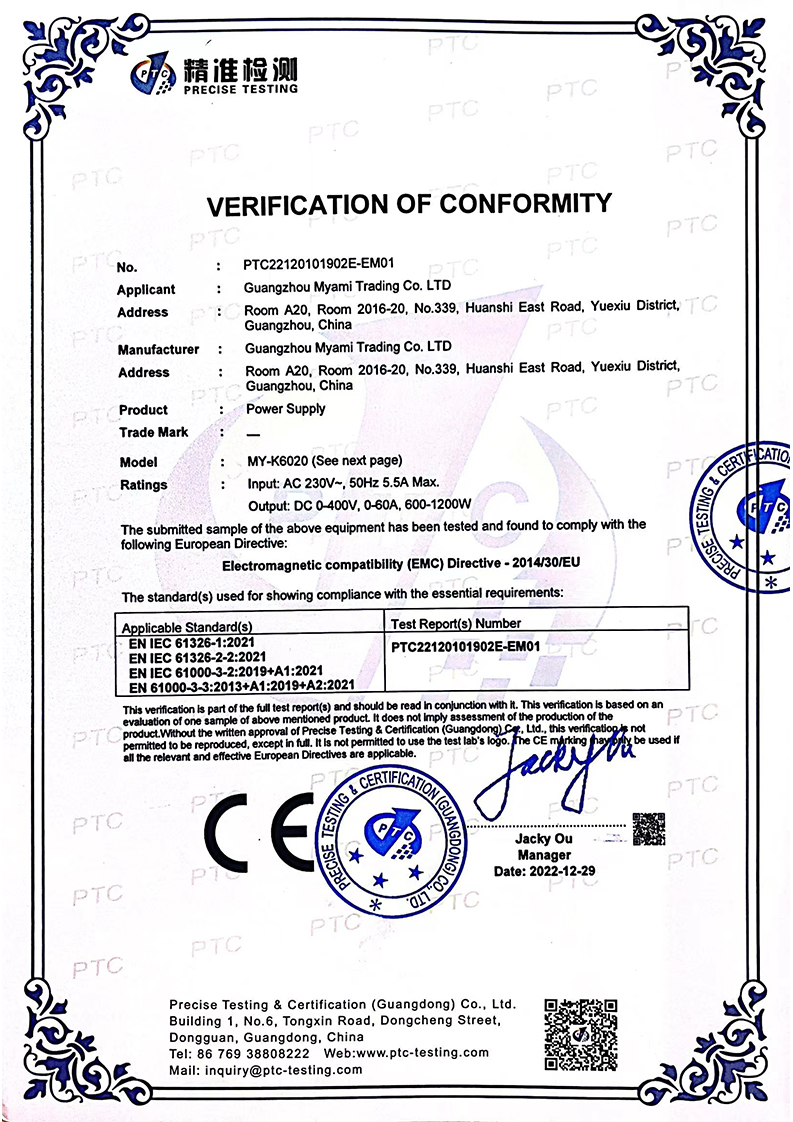

Certifications

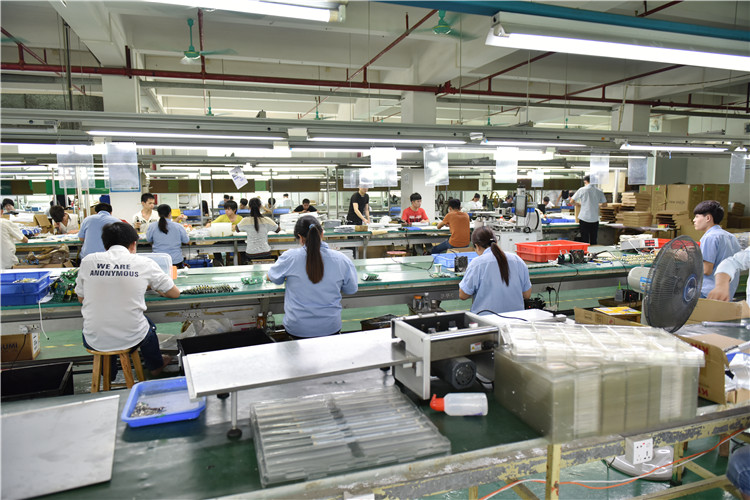

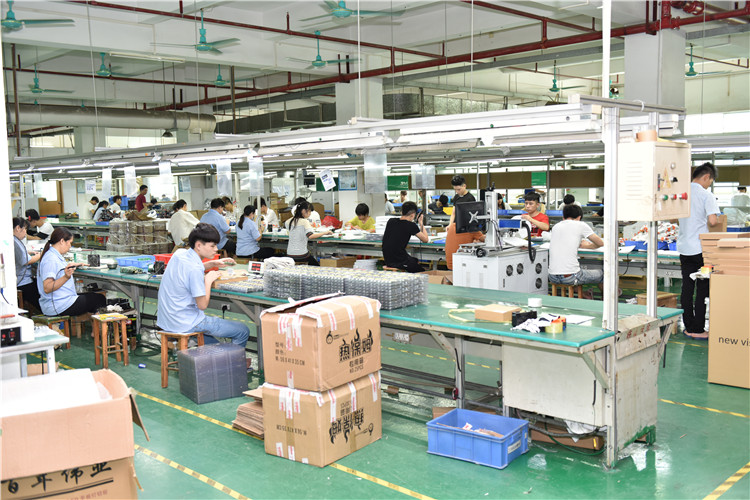

Product Process

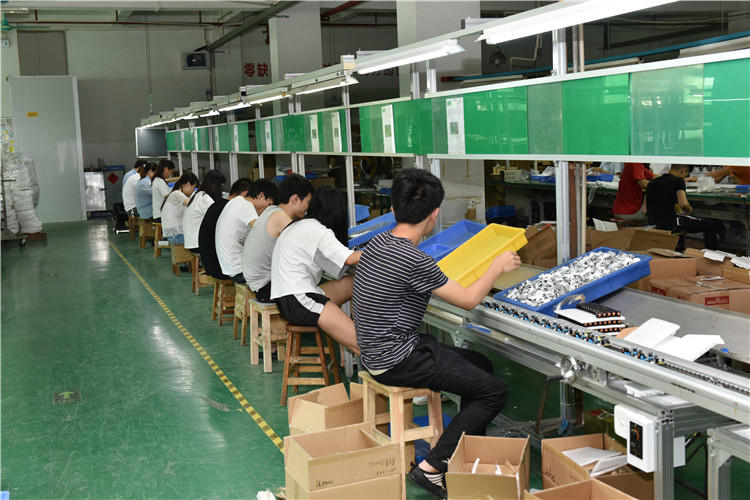

1. Assembling components

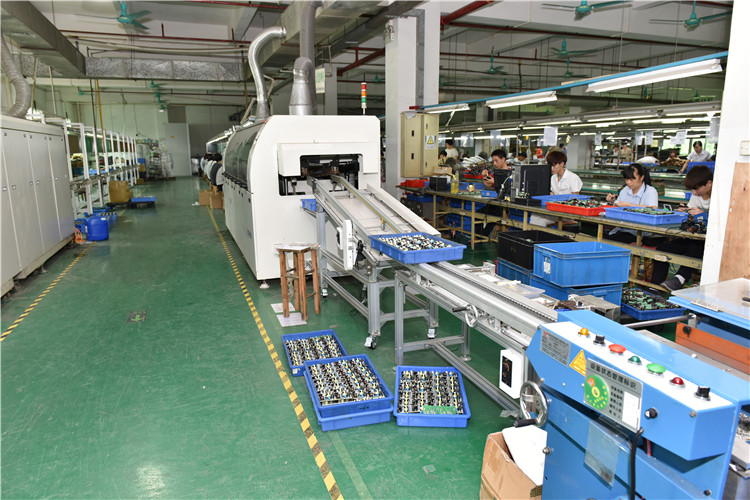

2. The circuit board is in production

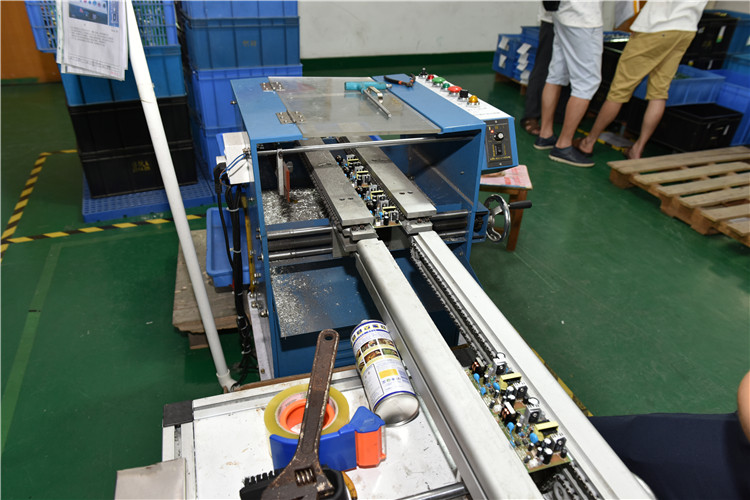

3. Trim the mouldings

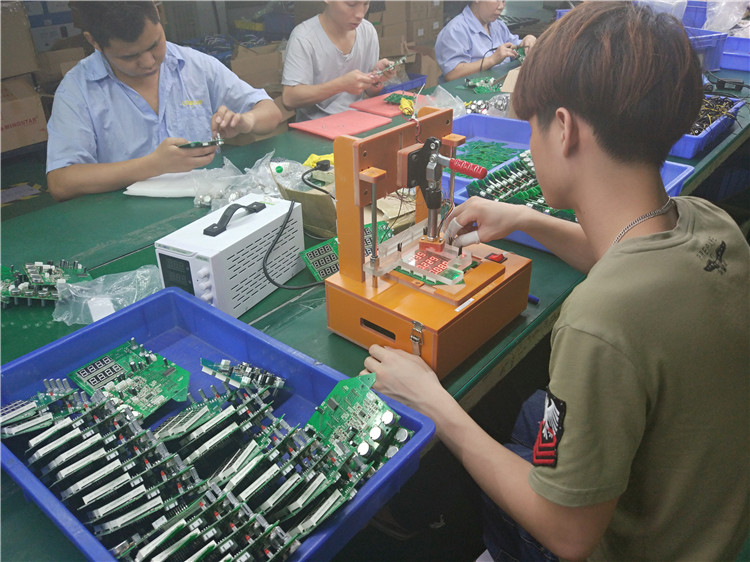

4. Circuit board test

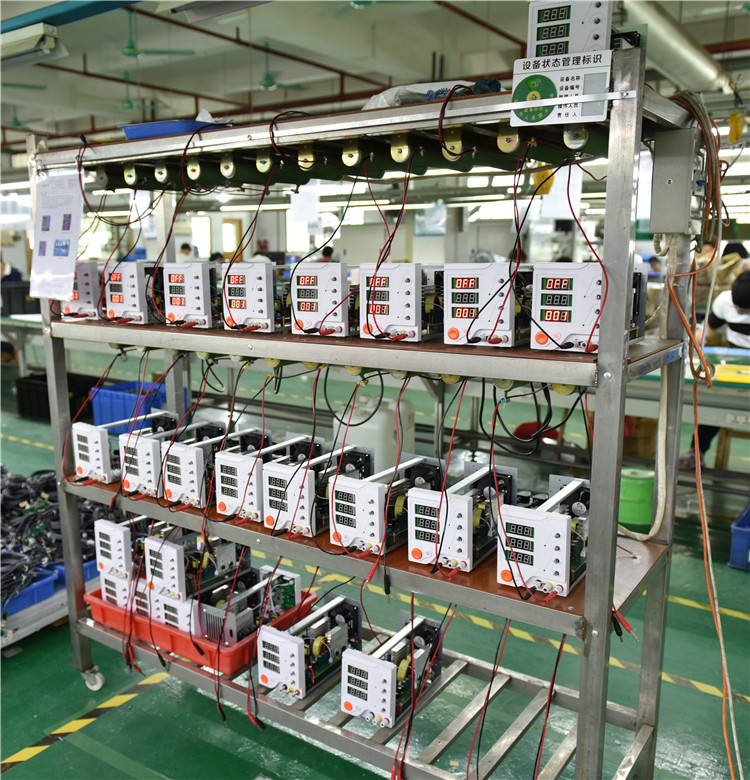

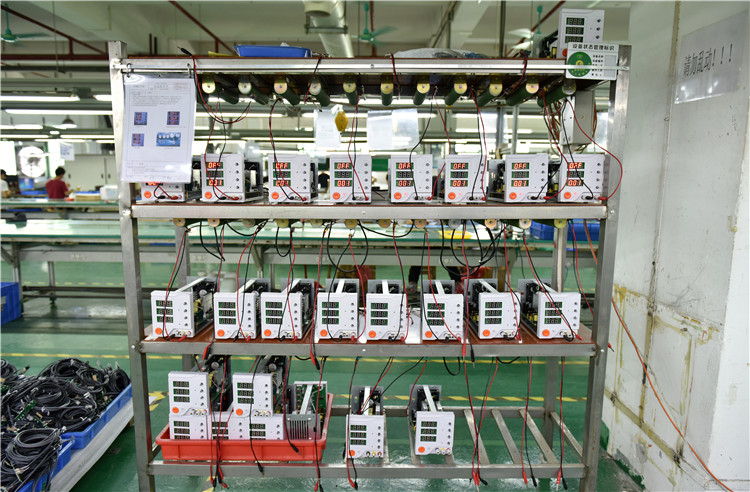

5. Machine aging test

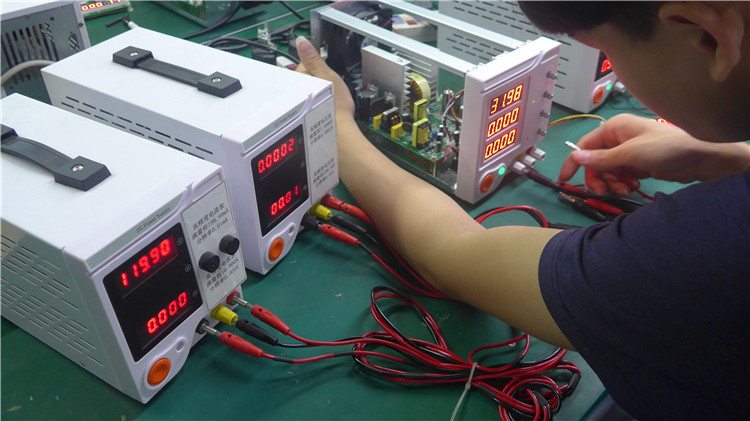

6. Debug machine

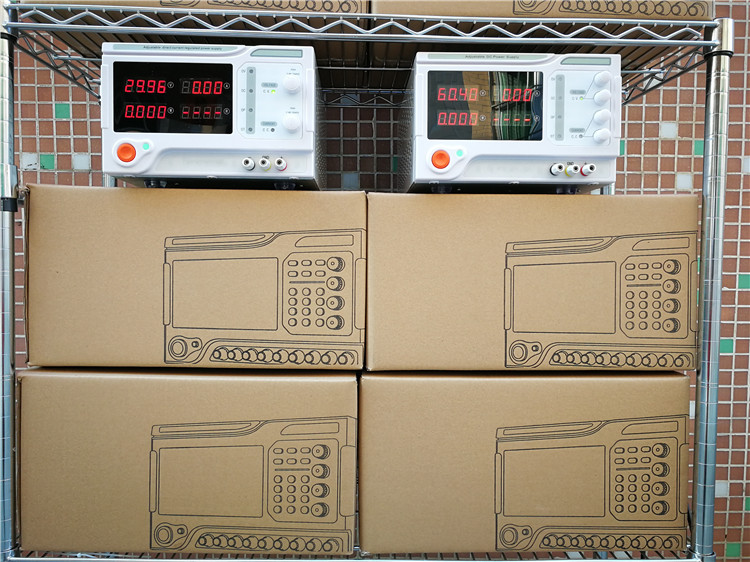

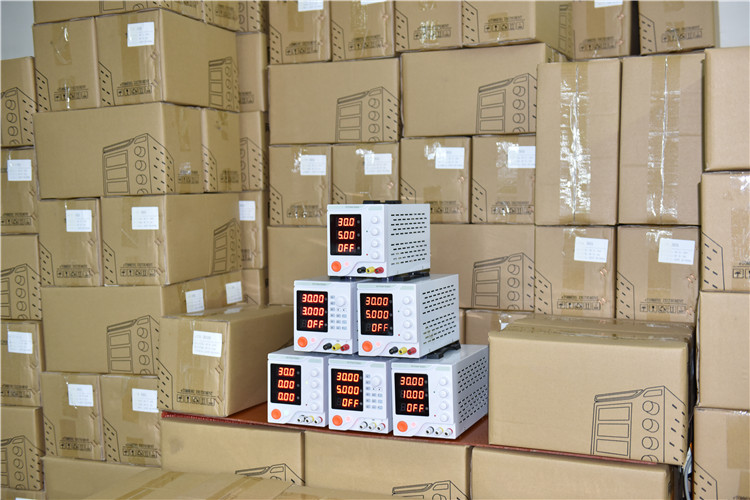

Packing & Delivery

Frequently Asked Questions

Q What's the MOQ?

The MOQ of machinery is 1 set.

Q What's delivery time?

The general delivery time is 3~5 days after order confirmed, depending on the order quantity.

Q Can you send the video to show how the machine works?

Certainly, we have videos of every machine. Please feel free to contact us, and we will send you the machine video.

Q What's your payment terms?

30% in advance, and 70% before shipment.

Q What's the payment method?

We accept T/T and L/C payment.

Q What safety protections do these power supplies offer?

These power supplies feature five powerful protection functions: over voltage, over current, over power, over temperature, and short circuit protection.
