Myami Power
1 / 5

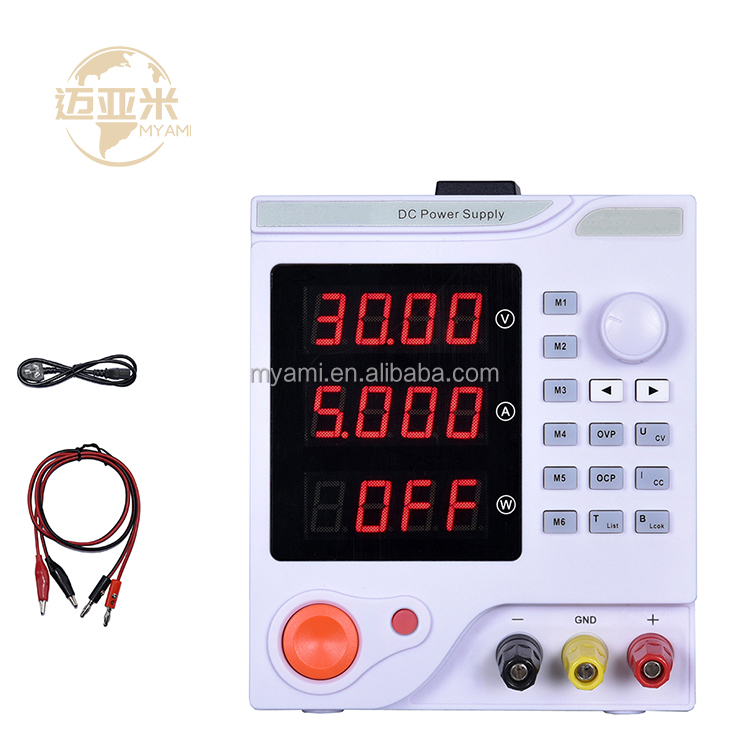

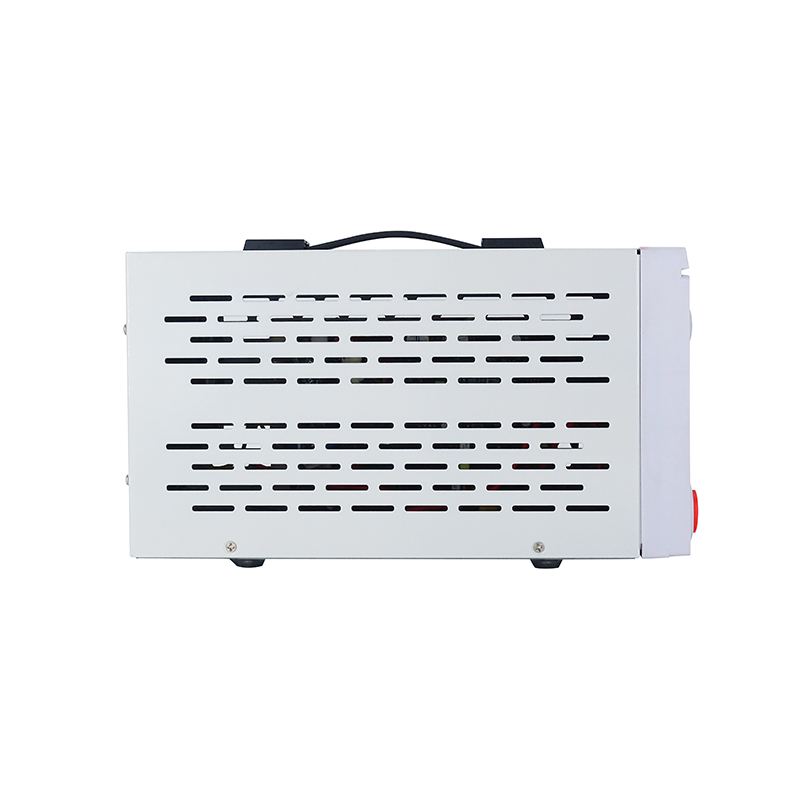

The MY-L3005P Single Channel DC Power Supply offers stable and reliable power for your electronic devices, thanks to its precision linear regulated output, making it an ideal choice for professionals and hobbyists.
Compatible with both AC220V±10% and AC110V±10% input voltages, this power supply provides flexibility and compatibility with various power sources, making it suitable for use in different locations and environments.
Adjust the output voltage and current within the ranges of 0-30V and 0-5A, respectively, to customize the power output for your specific device requirements. This feature allows for greater precision and control over the devices being powered.
With an output power range of 101-200W, the MY-L3005P Single Channel DC Power Supply is well-suited for a wide variety of applications, including laboratory settings, mobile phone motherboard repair, and computer power supply needs.
The simple and user-friendly design of the MY-L3005P Single Channel DC Power Supply allows for easy access to the essential controls, enabling quick adjustments and settings changes for optimal performance. Its compact size also saves space and ensures convenient storage and portability.
| Model | Voltage | Current | Display | Accuracy |
|---|---|---|---|---|
| MY-L3003P | 0-30V | 0-3A | 4-bit LED display | 0.1mV 0.01mA |
| MY-L3005P | 0-30V | 0-5A | 4-bit LED display | 0.1mV 0.01mA |
| MY-L6003P | 0-60V | 0-3A | 4-bit LED display | 0.1mV 0.01mA |
| MY-L15001P | 0-150V | 0-1A | 4-bit LED display | 0.1mV 0.01mA |
| MY-L6005P | 0-60V | 0-5A | 4-bit LED display | 0.1mV 0.01mA |
Voltage reduction through transformer → rectification and filtering into DC → regulator stabilization. Small adjustable current range, low output ripple (suitable for precision equipment).
Convert DC to high-frequency AC → quickly switch through switching tubes → step down with transformers → rectify and filter into DC. High efficiency but slightly higher ripple (suitable for high current scenarios).
Example: Choose a linear power supply (with stable voltage) to power a microscope, and choose a switching power supply (light, small, and high efficiency) to charge a phone.
Linear Power Supply: Large volume and weight (over 1kg) due to the need for a large transformer and rectifier filter circuit.
Switching Power Supply: High-frequency circuit and integrated design yields small size (only 1/3 of linear types) and light weight (within 500g). Preferred for portable devices like drones and laptop chargers.
Linear Power Supply: Energy conversion relies on resistance heating, resulting in about 60% efficiency (e.g., input 100W, output 60W).
Switching Power Supply: High conversion efficiency (80%-95%), generating almost no heat (e.g., input 100W, output 90W+), saving energy costs over time.
Linear Power Supply: Features extremely low output ripple (<10mV), making it excellent for sensitive equipment like medical instruments and laboratory hardware.
Switching Power Supply: High-frequency switching may introduce some ripple (>20mV), though modern filtered designs make it suitable for most standard devices.
Linear Power Supply: Fast transient response (microsecond level) as the regulator directly responds to voltage changes, fitting precision dynamic experiments.
Switching Power Supply: Slightly slower transient response (millisecond level) due to switching delay, though negligible for most devices.
| Scenario Requirements | Preferred Choice | Core Reasons |
|---|---|---|
| Portable devices (mobile phones, laptops) | Switching power supply | Small size, high efficiency, wide voltage input |
| High power equipment (servers, motors) | Switching power supply | High efficiency, low cost, no heat dissipation pressure |
| Precision instruments (oscilloscope, mass spectrometer) | Linear power supply | Low ripple, low noise, stable voltage |
| Low power fixed scenario (router, microcontroller) | Linear power supply | Low cost, high reliability, simple circuit |
| Audio equipment (amplifier, DAC) | Linear power supply | No switch noise, avoiding interference with sound quality |
The MY-L3005P features a single-channel, adjustable output with a voltage range of 0-30V and a current range of 0-5A. It delivers a robust output power within the range of 101-200W, making it suitable for lab research, motherboard, and computer repairs.
It is highly flexible and compatible with dual input voltages, supporting both AC 220V ±10% and AC 110V ±10% inputs, which allows it to function optimally across different regional electricity standards.
It is designed with five powerful protection mechanisms to safeguard your testing devices: over voltage protection, over current protection, over power protection, over temperature protection, and short circuit protection.
Yes, it features optional RS232, RS485, and USB serial communication ports. These interfaces support the MODBUS RTU protocol, allowing for seamless integration and programming.
A linear power supply is ideal for precision testing because it offers extremely low output ripple (<10mV) and microsecond-level transient responses, preventing signal noise or voltage fluctuation issues in sensitive devices like oscilloscopes and audio gear.
The unit supports up to 6 sets of data storage, allowing users to save and quickly recall preset voltage and current configurations for efficient work processes.
