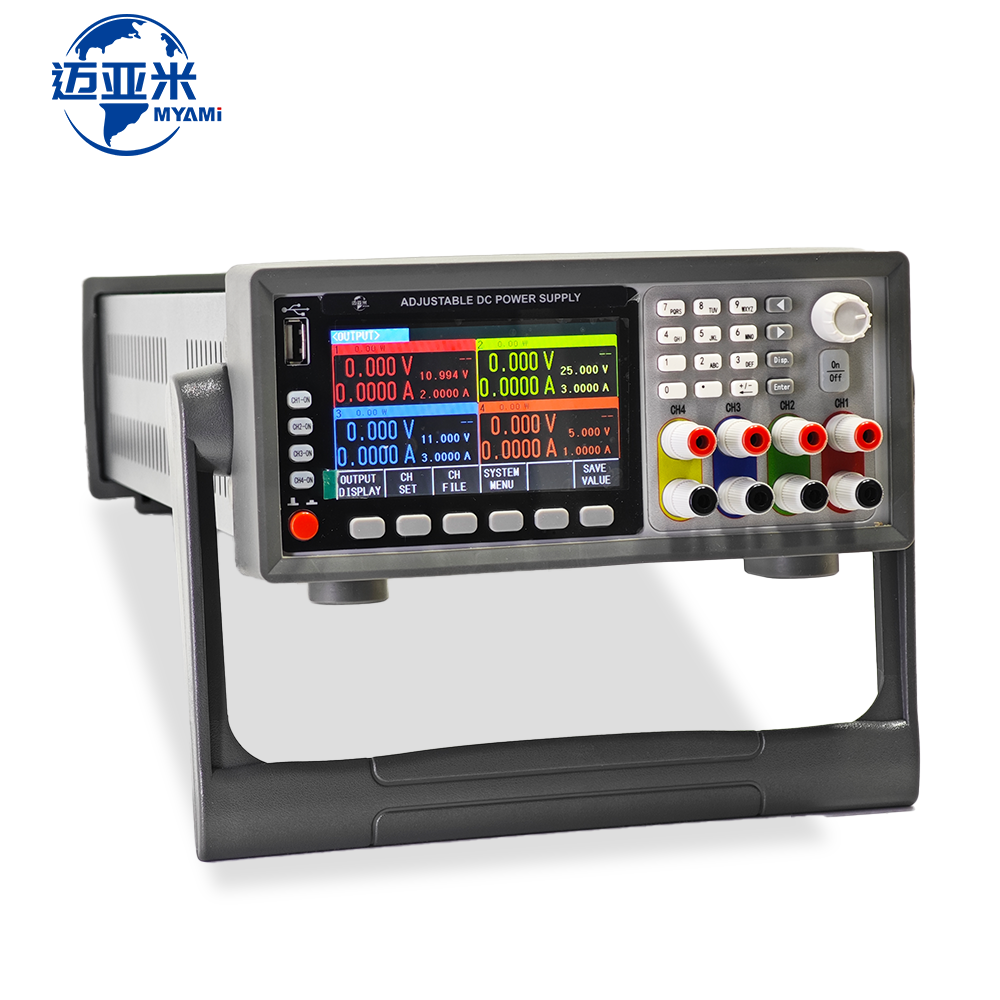

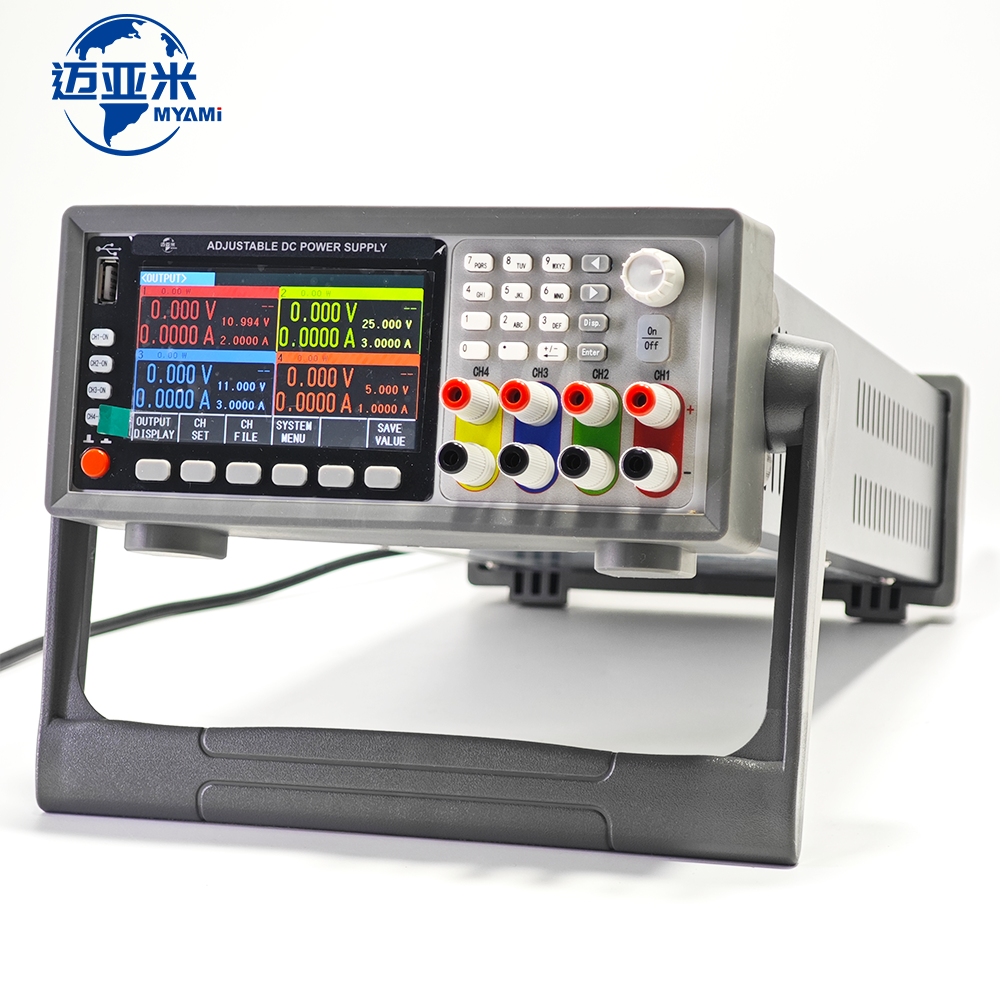

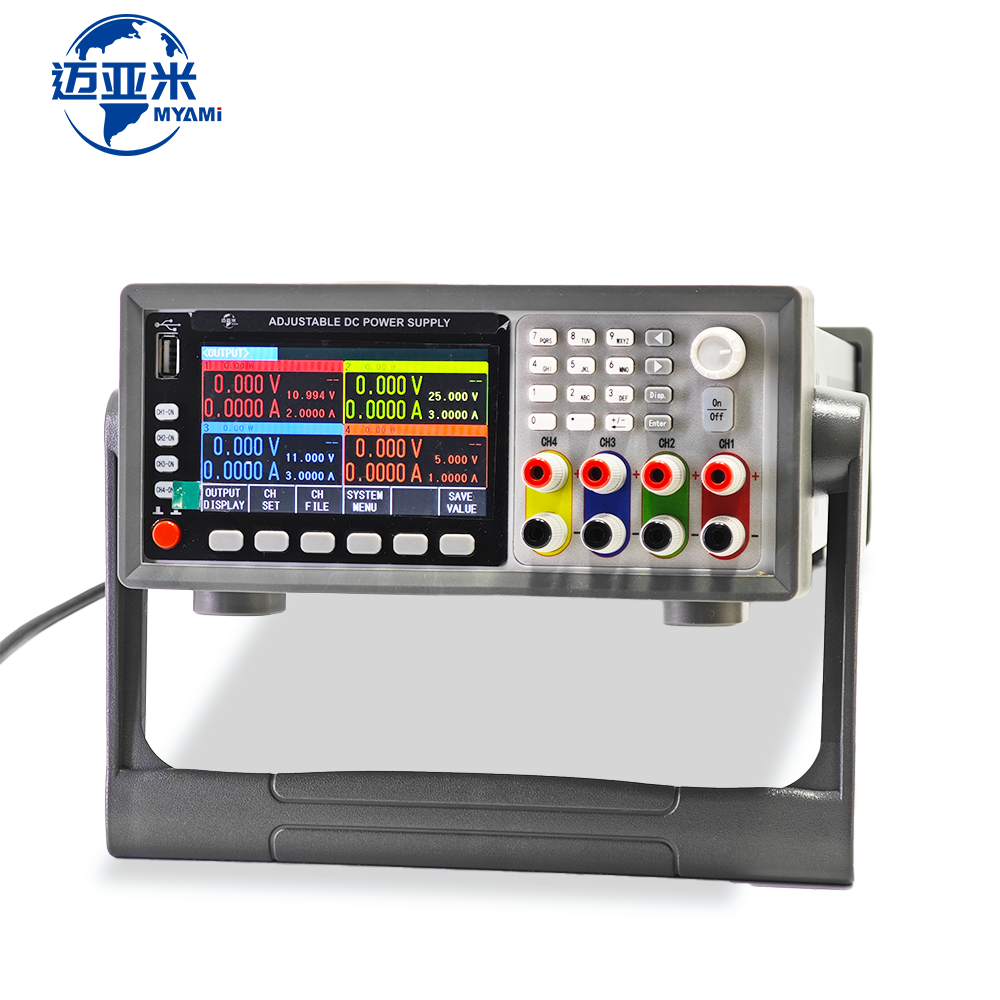

MYAMi 6V 10V 30V 60V Multi-channel Programmable Linear DC Power Supply 3/4 Channels Output 3A 5A 6A Adjustable High Reliability

Multi-Channel Programmable Linear DC Power Supply (Adjustable 30V/60V, 3-Channel Output Bench Laboratory Power Supply)

The MY-TK Series is a high-precision multi-channel (3-channel/4-channel) linear programmable DC power supply featuring 4 optional models, adjustable voltage from 0-60V/0-30V, and adjustable testing time (0.01-9999.99s). It is highly suitable for various testing scenarios including:

• New Energy (solar cells, power batteries, electric autonomous vehicles)
• Electronic Power Components (fuses, connectors, relays, sensors)
• Integration testing of automation equipment & semiconductor device testing

Product Highlights

4.3-inch 24-bit true color LCD screen with a crisp 480x272 resolution.
Multi-channel output linear design supporting series/parallel channel connections with high precision, stability, low ripple, and low noise.

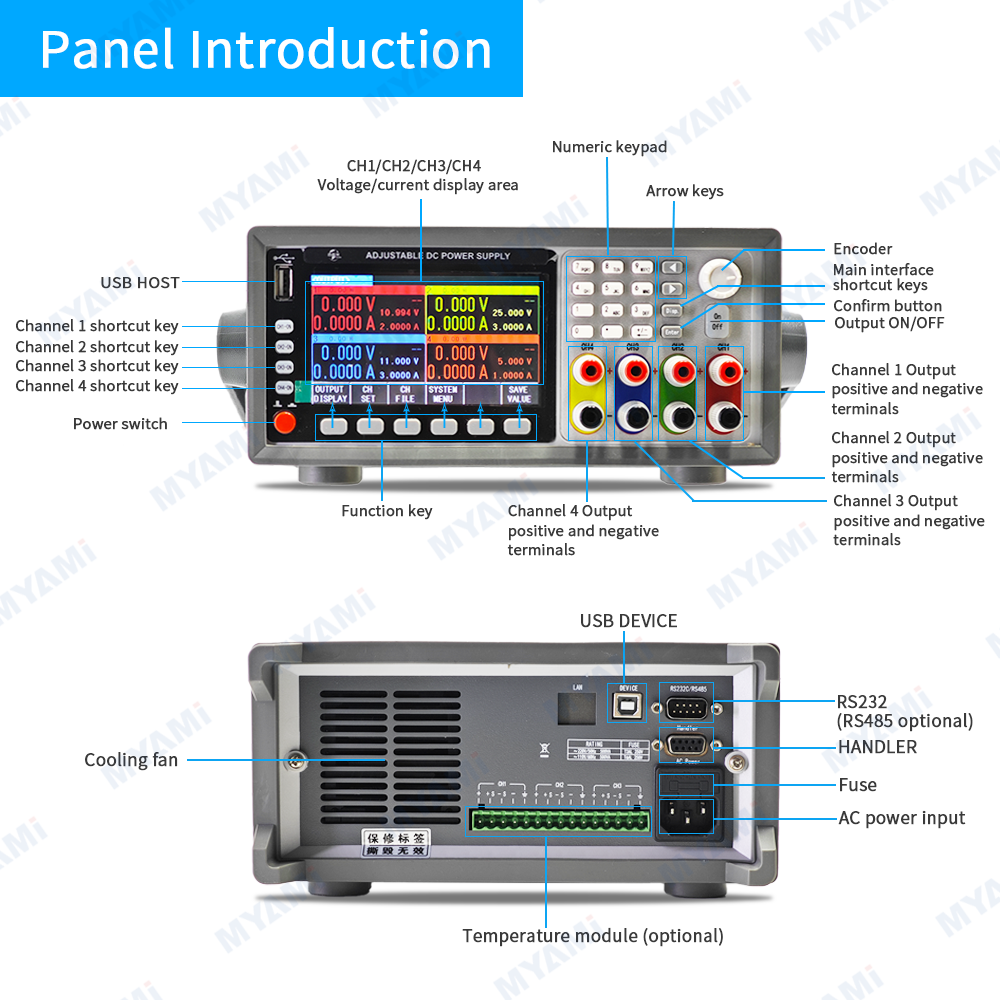

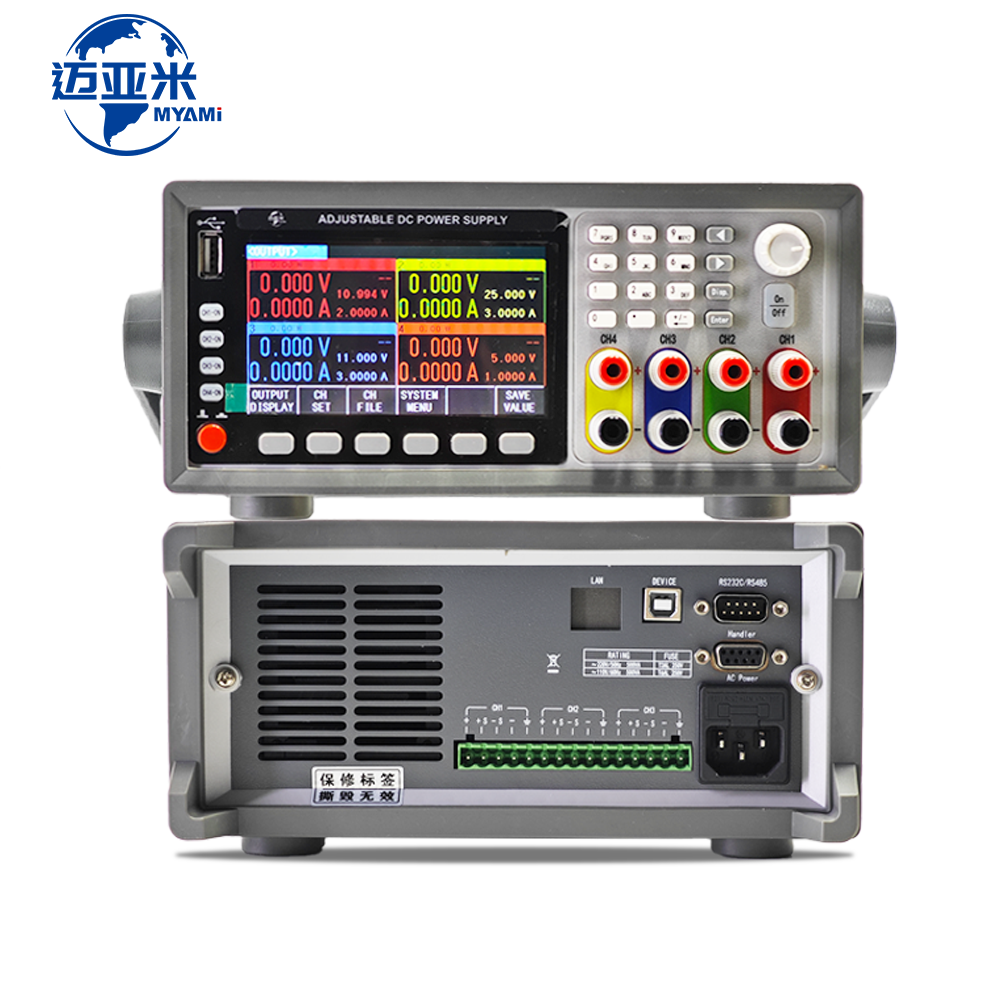

Ultra-compact 1/2 2U volume, featuring front and rear panel outputs and sampling terminals.
8 integrated temperature testing modules supporting thermocouples (K, T, J, N, E, S, R, B) with clean, multilingual UI settings.
Powerful programming capabilities with 1000 sets of state memory storage and retrieval.
20 trigger files, with each file supporting up to 1000 test series for loop outputs.
Timing output range adjustable from 0.1s to 99999.9s.

Flexible settings methods via convenient control knobs or numeric keypad.
Remote compensation function included.
Direct USB logging allows measurement results to be saved on a USB flash drive.
Screenshot & firmware upgrades supported easily via USB HOST.
Handler interface control for automated system setups.
Full protection mechanisms including Overvoltage (OVP), Overcurrent (OCP), and Overtemperature (OTP) protection.

Model Specifications

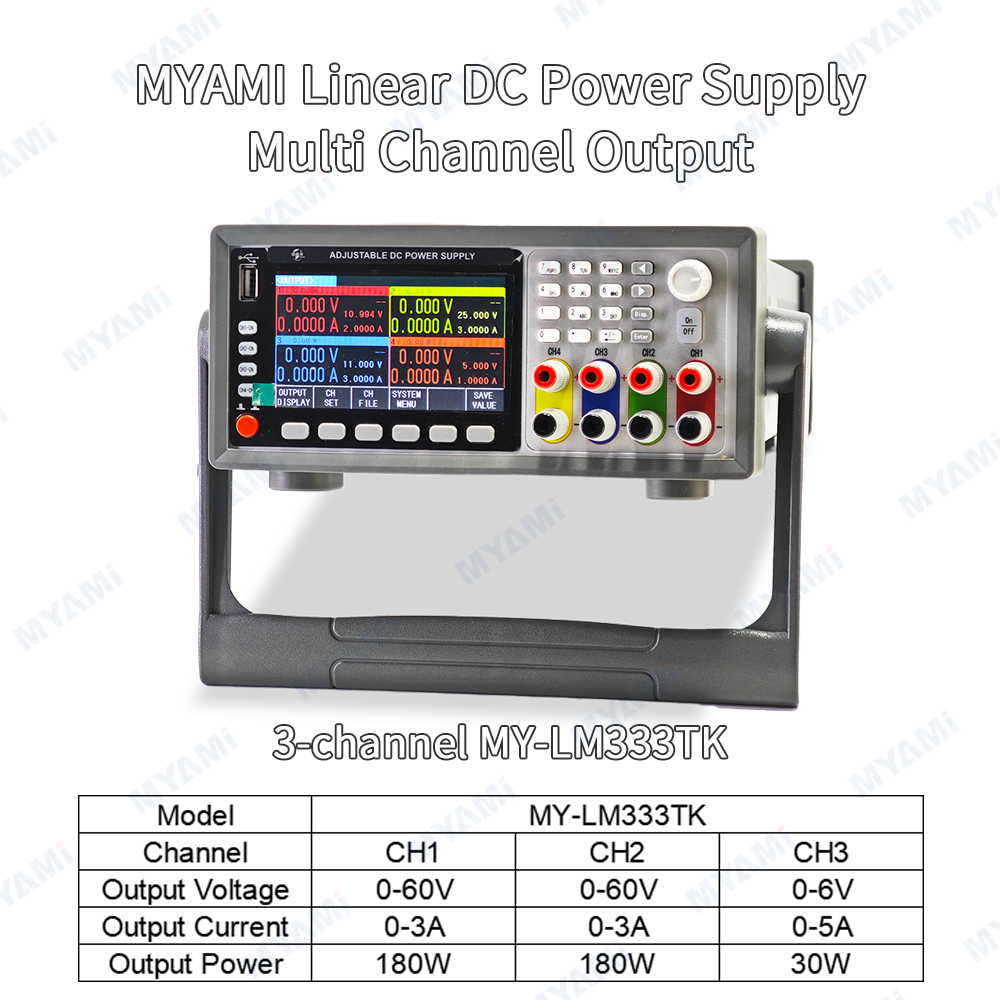

Model: MY-LM333TK	CH1	CH2	CH3
Output Voltage	0-60V	0-60V	0-6V
Output Current	0-3A	0-3A	0-5A
Output Power	180W	180W	30W

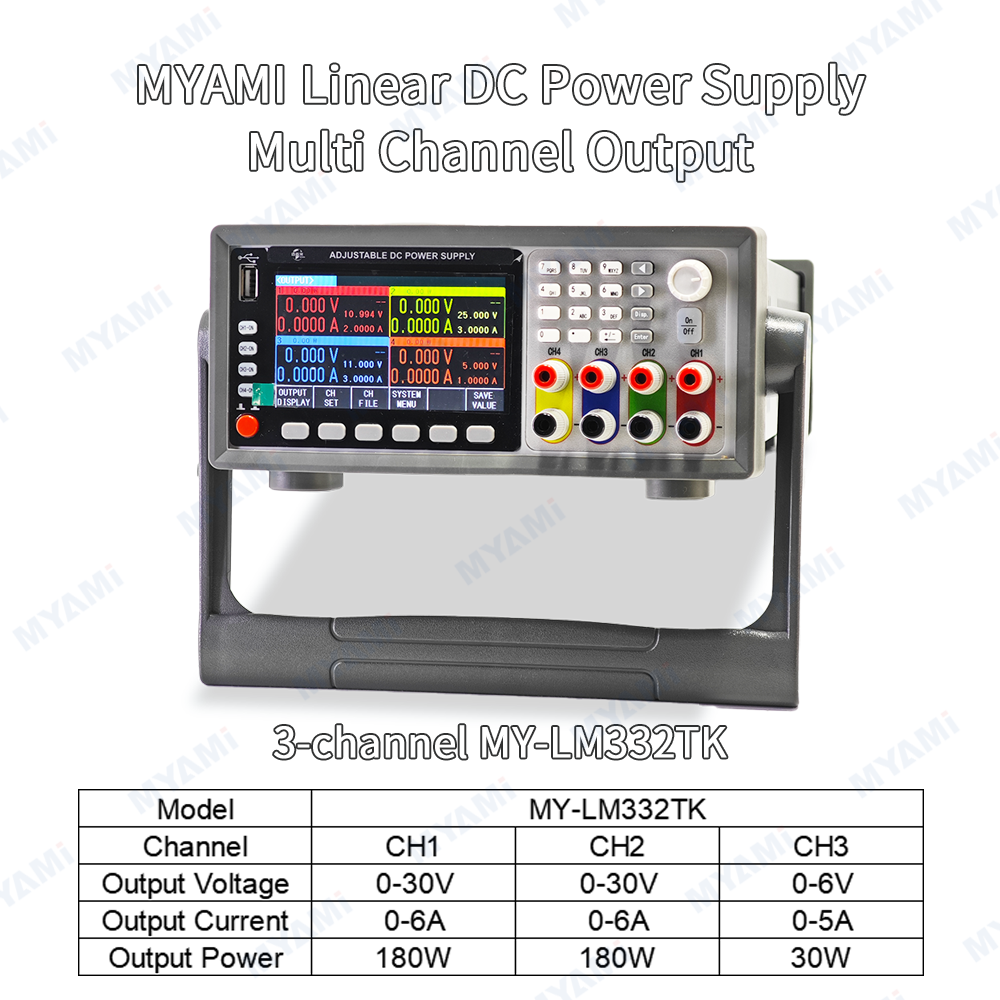

Model: MY-LM332TK	CH1	CH2	CH3
Output Voltage	0-30V	0-30V	0-6V
Output Current	0-6A	0-6A	0-5A
Output Power	180W	180W	30W

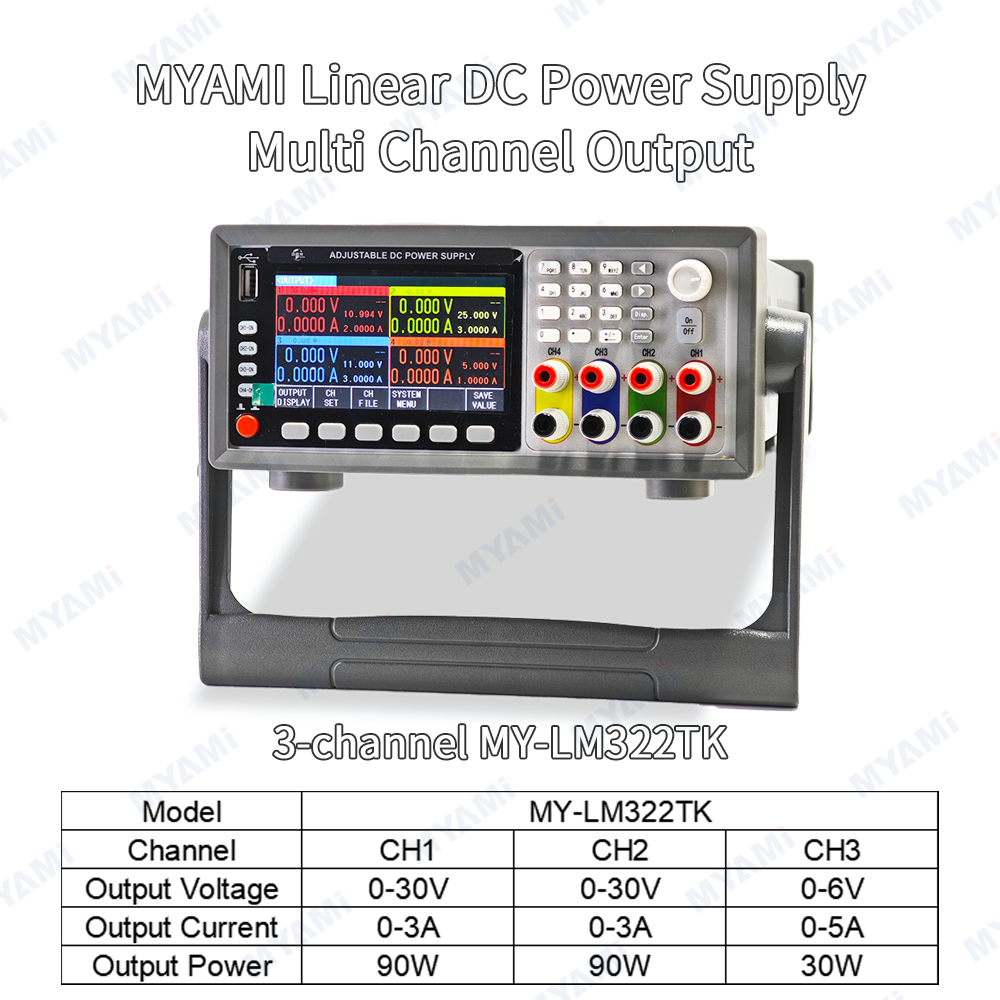

Model: MY-LM322TK	CH1	CH2	CH3
Output Voltage	0-30V	0-30V	0-6V
Output Current	0-3A	0-3A	0-5A
Output Power	90W	90W	30W

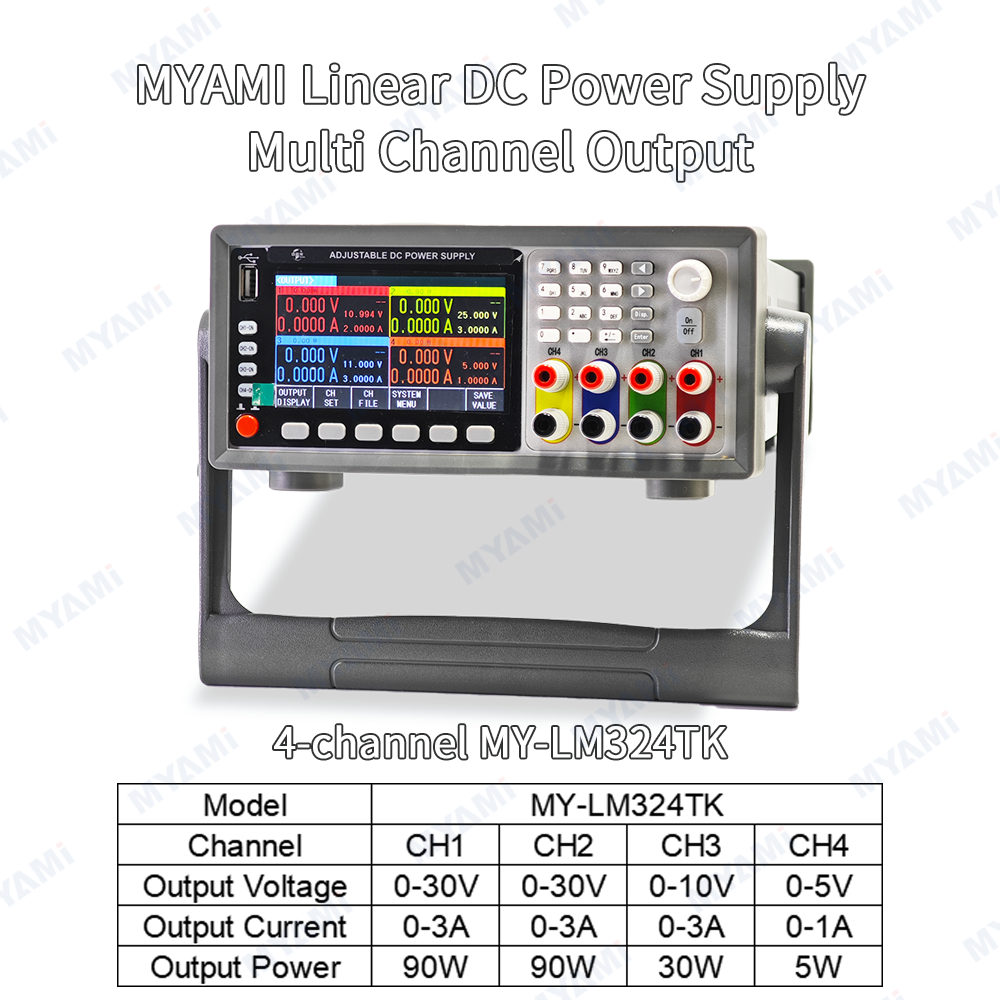

Model: MY-LM324TK	CH1	CH2	CH3	CH4
Output Voltage	0-30V	0-30V	0-10V	0-5V
Output Current	0-3A	0-3A	0-3A	0-1A
Output Power	90W	90W	30W	5W

Product Details

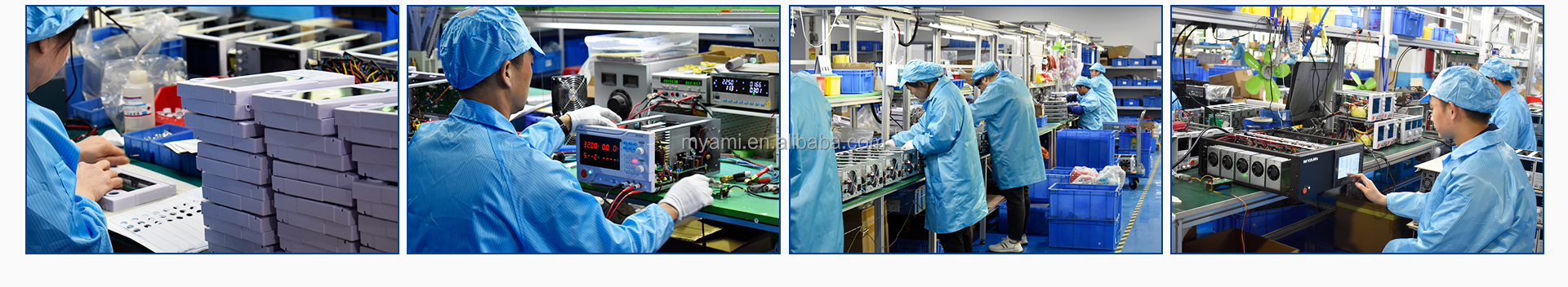

Production Showcase

Frequently Asked Questions

Q1: What Is A Variable DC Power Supply?

Re: It is a power source with an output voltage that the user can vary. Variable DC power supplies allow you to change the voltage and the current to the DUT.

Q2: Why Is A DC Power Source Needed?

Re: A DC power source provides a constant biasing voltage or current to electrical devices, components, or circuits and ensures that the DUT operates as expected.

Q3: How Do You Use A DC Power Source?

Re: A DC power source connects to a DUT via leads that connect to the DC power supply panel. Engineers can set voltages or current levels to power the device for testing purposes.

Q4: How Does A DC Power Source Work?

Re: A DC power source converts alternating current (AC) power into DC power using either a linear or switching methodology. A switching power supply has higher efficiency, reduced weight, and smaller size. Linear power supplies can achieve lower noise, but modern switching supplies have minimized or eliminated this advantage.

Q5: What Is A Bench DC Power Supply?

Re: A bench DC power supply is designed to sit on an engineer's bench. It will typically have a large, legible display and a user interface so engineers can easily control all aspects of the power supply from the front panel. Users can also control modern bench power supplies via software. In addition, the output terminals are easily accessible from the front. Bench power supplies are handy tools for testing circuits, as they allow you to adjust the voltage on the fly. If you have a project that needs a specific voltage or haven't designed the power section yet, a bench power supply can be a lifesaver.

Q6: What built-in safety protection features are available on these devices?

Re: These multi-channel linear programmable DC power supplies feature complete safety protections including overvoltage protection (OVP), overcurrent protection (OCP), and overtemperature protection (OTP) to ensure reliability and safeguard the user's circuits.

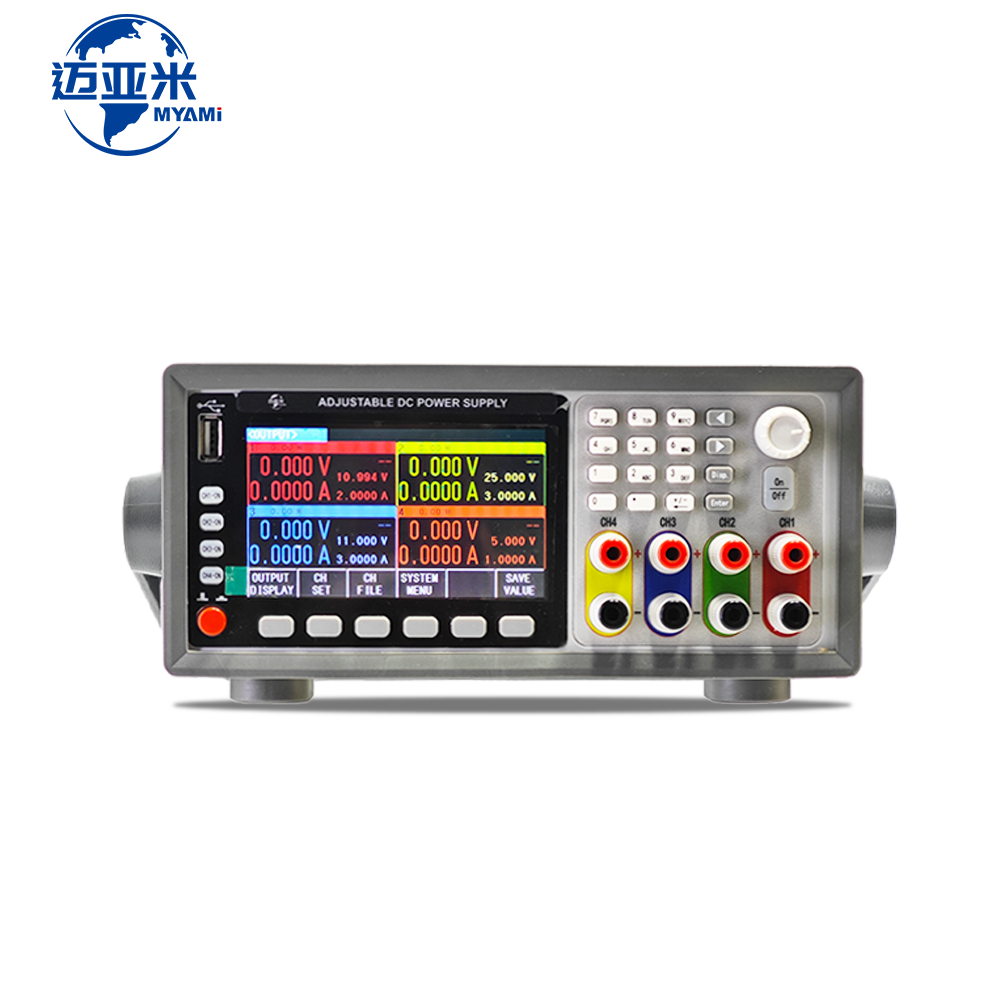

Product Detail
