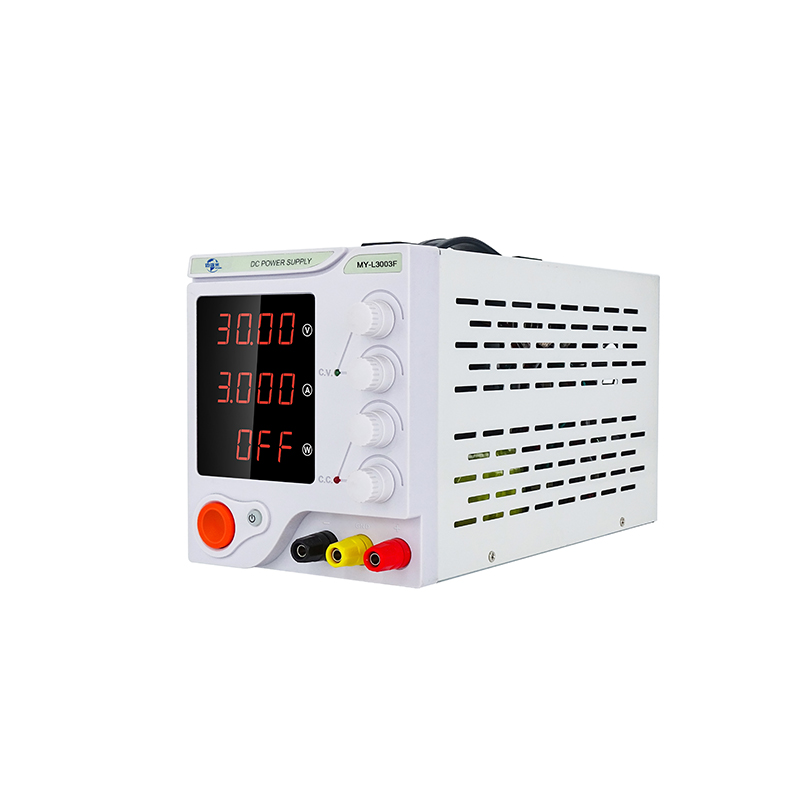

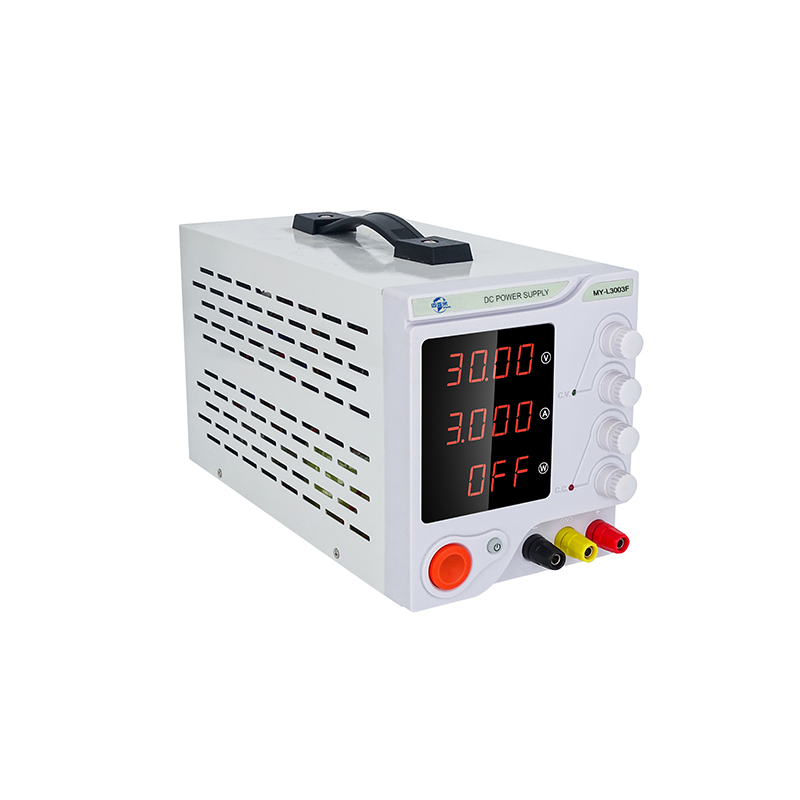

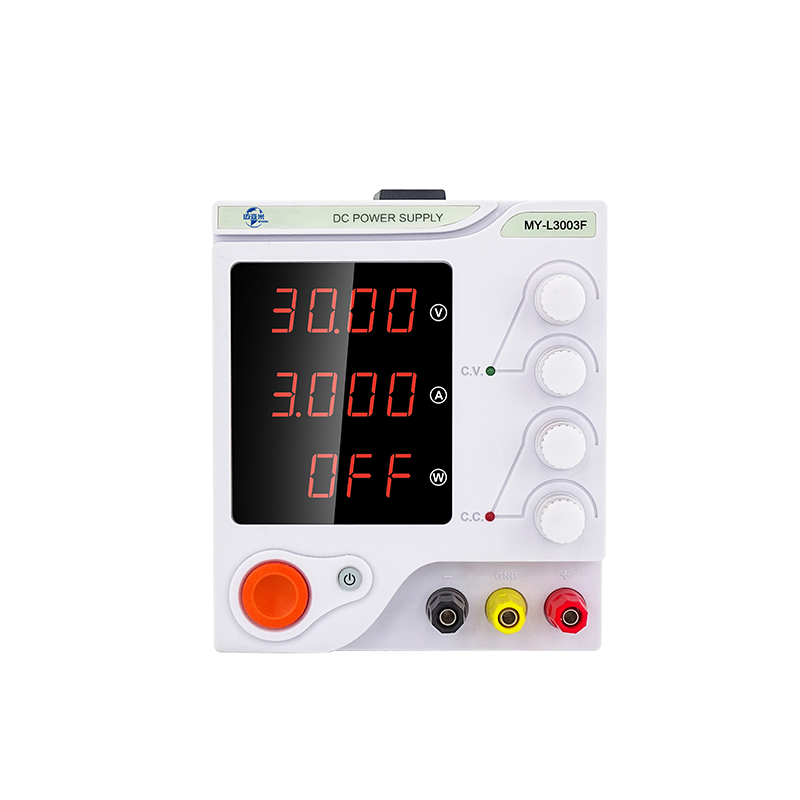

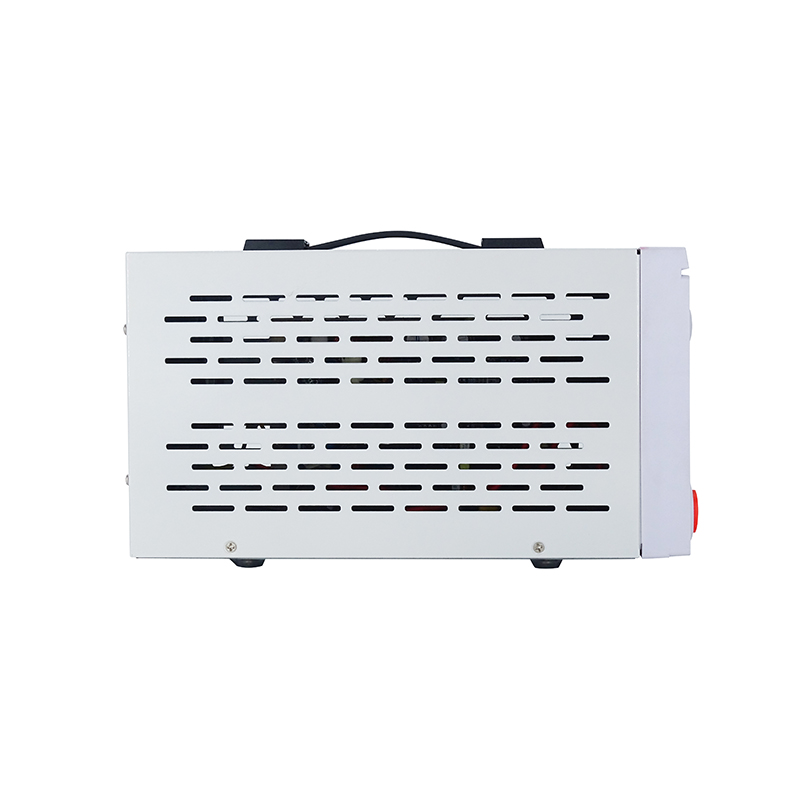

MYAMI MY-L3003F 30V 3A Lab 4 Digits Adjustable Linear Digital Display Laboratory Power Source 0.001A DC Power Supply

Send Inquiry

Product Description

MY-L3003F 30V 3A Lab 4 Digits Adjustable Linear Digital Display Laboratory Power Source 0.001A DC Power Supply

0-30V / 0-3A Variable / 90W | 4 LED Digital

Low noise, low ripple;
Power display;
ON/OFF unique break switch;
Decimal point automatic carry;
Voltage, current, maximum power can be preset;
Over voltage, over current, over power, over temperature, short circuit five strong protection function;
Long-term full load, short circuit ignition pull arc burning machine;
Unique cooling function of sunflower;

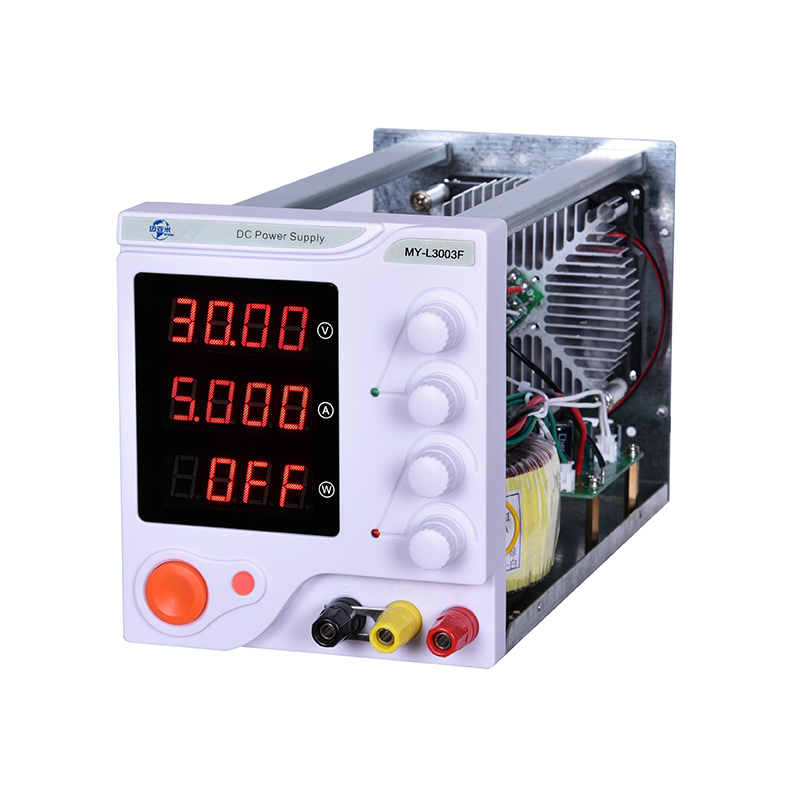

High-quality pure copper ring transformer;
Intelligent temperature control fan.

Specification

Model	MY-L3003F	MY-L3005F	MY-L6003F	MY-L6005F	MY-L15001F
Voltage	0 - 30V	0 - 30V	0 - 60V	0 - 60V	0 - 150V
Current	0 - 3A	0 - 5A	0 - 3A	0 - 5A	0 - 1A
Line Regulation
Voltage	≤0.1%+3mV	≤0.1%+3mV	≤0.1%+3mV	≤0.1%+3mV	≤0.1%+3mV
Current	≤0.01%+3mA	≤0.01%+3mA	≤0.01%+3mA	≤0.01%+3mA	≤0.01%+3mA
Load Regulation
Voltage	≤0.1%+2mV	≤0.1%+2mV	≤0.1%+2mV	≤0.1%+2mV	≤0.1%+2mV
Current	≤0.01%+5mA	≤0.01%+10mA	≤0.01%+5mA	≤0.01%+10mA	≤0.01%+5mA
Ripple & Noise
Voltage	≤1mVrms	≤2mVrms	≤2mVrms	≤2mVrms	≤1mVrms
Current	≤3mArms	≤3mArms	≤3mArms	≤3mArms	≤3mArms
Display
Voltage	10mV
Current	1mA
Readback value resolution
Voltage	10mV
Current	1mA
Operating environment (for indoor use)
Elevation	≤2000m
Temperature	-10°C ~ 40°C
Humidity	≤80%
Storage environment
Temperature	-20°C ~ 80°C
Humidity	≤80%
Power input	AC220V±10%,50/60Hz
Size
Fuselage size	280(D)×130(W)×165(H)mm
Package size	355(D)×178(W)×210(H)mm

Product Details

Product Classification

Company Profile

Our Certificate

Exhibition

Packaging & Transportation

FAQ

What's the MOQ?

The MOQ of machinery is 1 set.

What's delivery time?

The general delivery time is 3~5 days after order confirmed, it depends on the order quantity.

Can you send the video to show how the machine works?

Certainly, we have video of every machine, please feel free to contact us, we will send you machine video.

What's your payment terms?

100% before shipment.

What's the payment method?

We accept T/T and L/C payment.

What protection functions does the power supply have?

This power supply features five strong protection functions: over voltage, over current, over power, over temperature, and short circuit protection.
