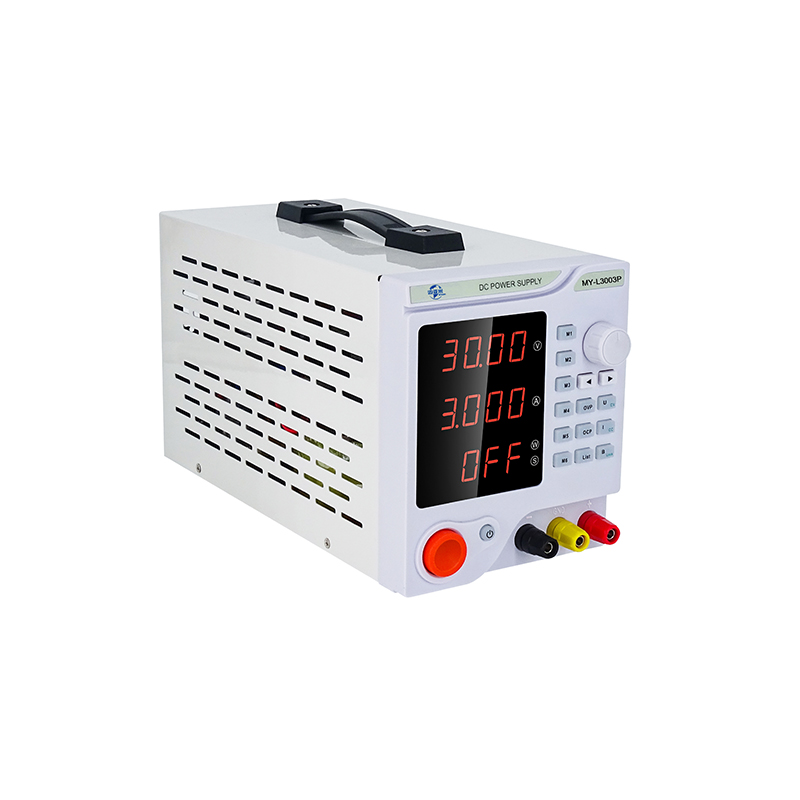

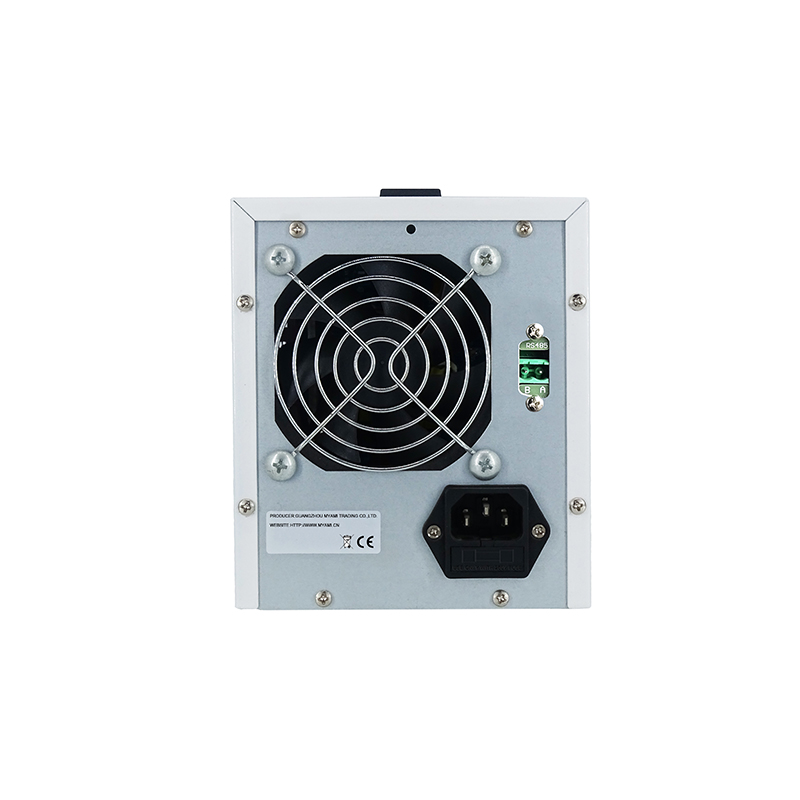

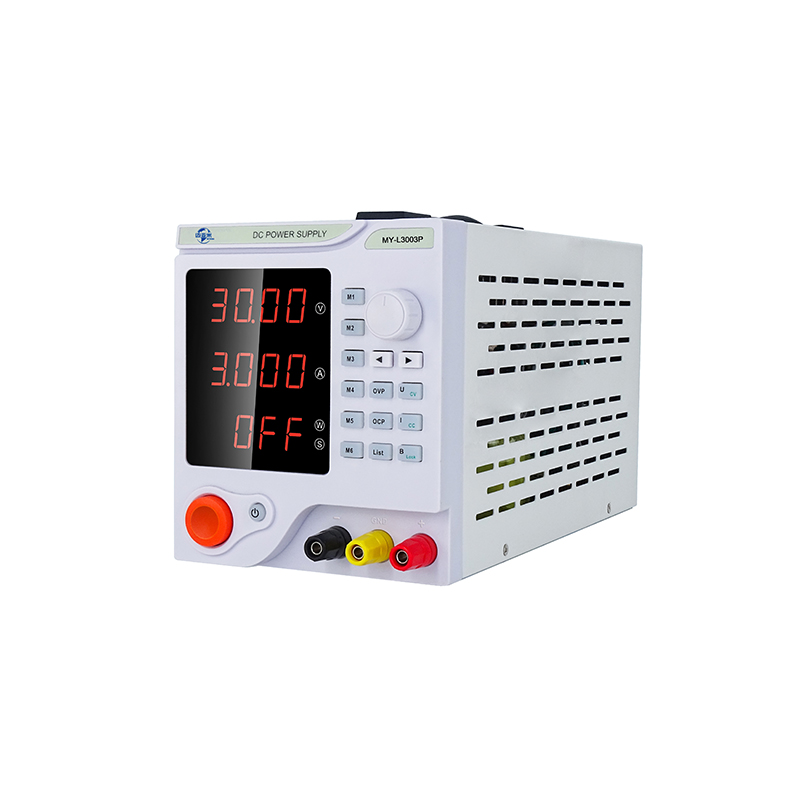

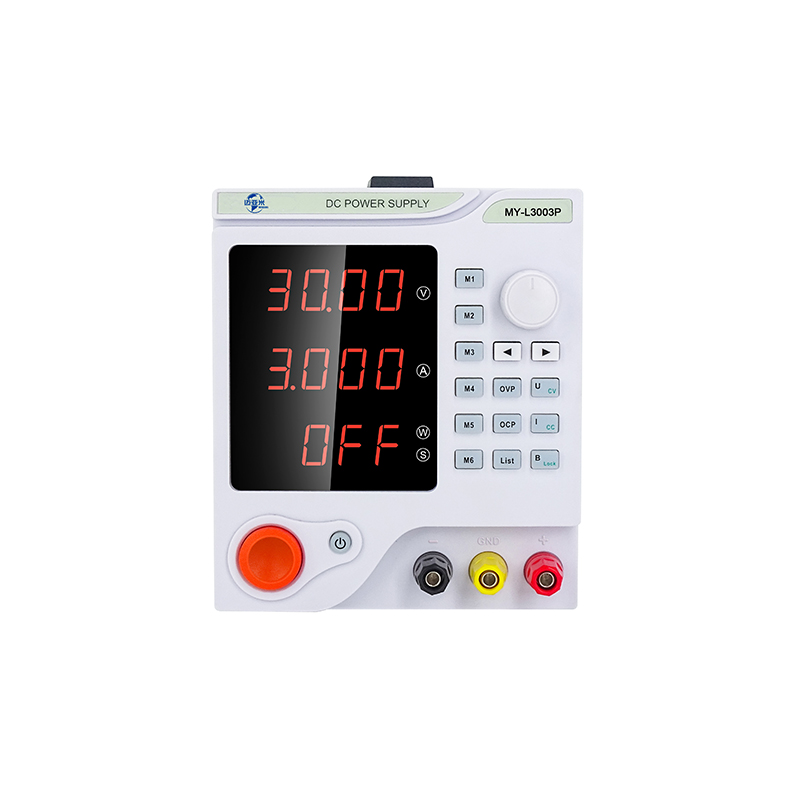

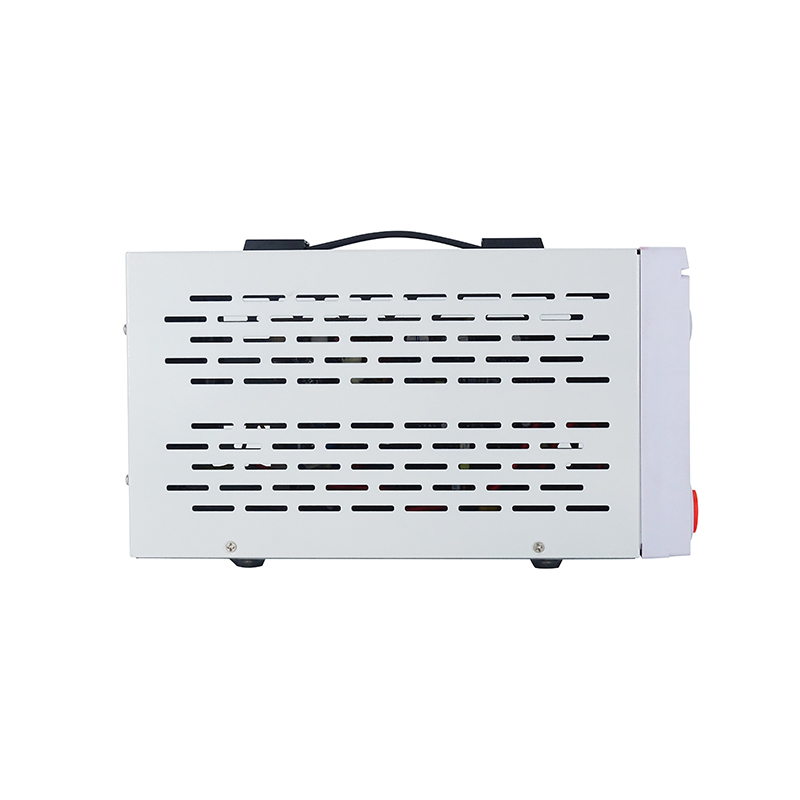

MYAMI MY-L3005P Laboratory Linear Programmable Variable Voltage Adjustable Regulated Dc Power Supply 30V 5A
MYAMI MY-L3005P Laboratory Linear Programmable Variable Voltage Adjustable Regulated Dc Power Supply 30V 5A
MYAMI MY-L3005P Laboratory Linear Programmable Variable Voltage Adjustable Regulated Dc Power Supply 30V 5A
MYAMI MY-L3005P Laboratory Linear Programmable Variable Voltage Adjustable Regulated Dc Power Supply 30V 5A
MYAMI MY-L3005P Laboratory Linear Programmable Variable Voltage Adjustable Regulated Dc Power Supply 30V 5A
1 / 5
MYAMI MY-L3005P Laboratory Linear Programmable Variable Voltage Adjustable Regulated Dc Power Supply 30V 5A
MYAMI MY-L3005P Laboratory Linear Programmable Variable Voltage Adjustable Regulated Dc Power Supply 30V 5A
MYAMI MY-L3005P Laboratory Linear Programmable Variable Voltage Adjustable Regulated Dc Power Supply 30V 5A
MYAMI MY-L3005P Laboratory Linear Programmable Variable Voltage Adjustable Regulated Dc Power Supply 30V 5A
MYAMI MY-L3005P Laboratory Linear Programmable Variable Voltage Adjustable Regulated Dc Power Supply 30V 5A

MYAMI MY-L3005P Laboratory Linear Programmable Variable Voltage Adjustable Regulated Dc Power Supply 30V 5A

Send Inquiry

Product Description

AC DC Regulated 30V 5A 150W Linear Digital Tube Programmable Variable Adjustable DC Power Supply
Model: MY-L3005P
Key Features
Low noise and low ripple
Power display
Automatic carry of the decimal point
Rear RS232/485/USB, upper computer software control (optional)
Over voltage, over current, over power, over temperature, short circuit protection
Long-term full load, short circuit ignition arc drawing machine
Unique sunflower cooling function (linear power supply)
High quality pure copper ring transformer (linear power supply)
Intelligent temperature control fan
Specification
Model MY-L3003P MY-L3005P MY-L6003P MY-L6005P MY-L15001P
Voltage 0 ~ 30V 0 ~ 30V 0 ~ 60V 0 ~ 60V 0 ~ 150V
Current 0 ~ 3A 0 ~ 5A 0 ~ 3A 0 ~ 5A 0 ~ 1A
Line Regulation
Voltage ≤ 0.1% + 3mV ≤ 0.1% + 3mV ≤ 0.1% + 3mV ≤ 0.1% + 3mV ≤ 0.1% + 3mV
Current ≤ 0.01% + 3mA ≤ 0.01% + 3mA ≤ 0.01% + 3mA ≤ 0.01% + 3mA ≤ 0.01% + 3mA
Load Regulation
Voltage ≤ 0.1% + 2mV ≤ 0.1% + 2mV ≤ 0.1% + 2mV ≤ 0.1% + 2mV ≤ 0.1% + 2mV
Current ≤ 0.01% + 5mA ≤ 0.01% + 10mA ≤ 0.01% + 5mA ≤ 0.01% + 10mA ≤ 0.01% + 5mA
Ripple & Noise
Voltage ≤ 1mVrms ≤ 2mVrms ≤ 2mVrms ≤ 2mVrms ≤ 1mVrms
Current ≤ 3mArms ≤ 3mArms ≤ 3mArms ≤ 3mArms ≤ 3mArms
Display
Voltage 10mV
Current 1mA
Readback value resolution
Voltage 10mV
Current 1mA
Operating environment (for indoor use)
Elevation ≤ 2000m
Temperature -10℃ ~ 40℃
Humidity ≤ 80%
Storage environment
Temperature -20℃ ~ 80℃
Humidity ≤ 80%
Power input AC 110V / AC 220V ± 10%, 50/60Hz
Size
Fuselage size 280(D) × 130(W) × 165(H) mm
Package size 355(D) × 178(W) × 210(H) mm
Model Voltage Current Display Power Input
MY-L3003P 30V 3A 4 digits display AC 220V ± 10%
MY-L3005P 30V 5A 4 digits display AC 220V ± 10%
MY-L6003P 60V 3A 4 digits display AC 220V ± 10%
MY-L15001P 150V 1A 4 digits display AC 220V ± 10%
MY-L6005P 60V 5A 4 digits display AC 220V ± 10%
Product Details
Product Details Image
Product View 1 Product View 2 Product View 3 Product View 4 Product View 5
Product Classification
Product Classification Chart
Our Certificate
Product Quality Certificate
Exhibition
Product Exhibition Gallery
Packaging & Transportation
Packaging and Transportation Details
FAQ Preview
FAQ Related Product View
Q1What's the MOQ?

Re: The MOQ of machinery is 1 set.

Q2What's delivery time?

Re: The general delivery time is 3~5 days after order confirmed, it depends on the order quantity.

Q3Can you send the video to show how the machine works?

Re: Certainly, we have video of every machine, please feel free to inquire, we will send you the machine video.

Q4What's your payment terms?

Re: 100% before shipment.

Q5What's the payment method?

Re: We accept T/T and L/C payment.

Q6What protection functions do these power supplies have?

Re: They feature five powerful protection functions: over voltage, over current, over power, over temperature, and short circuit protection.
