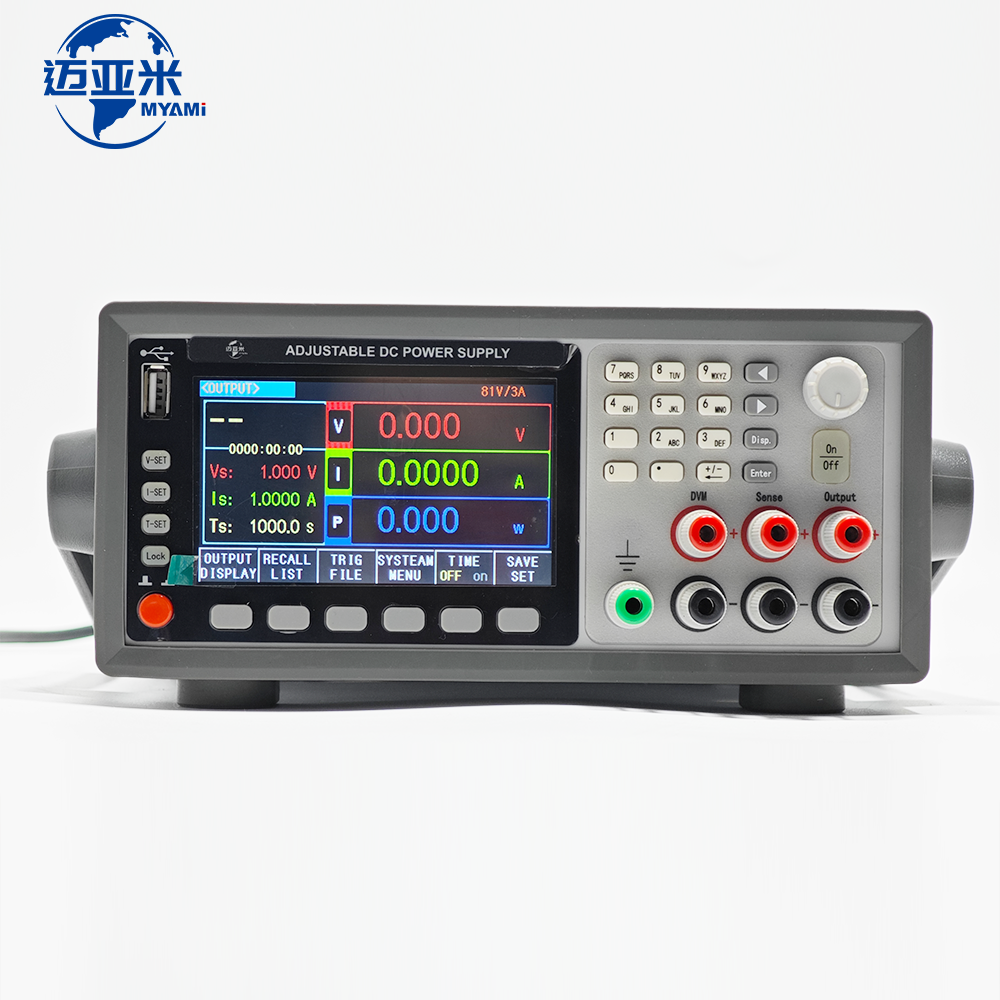

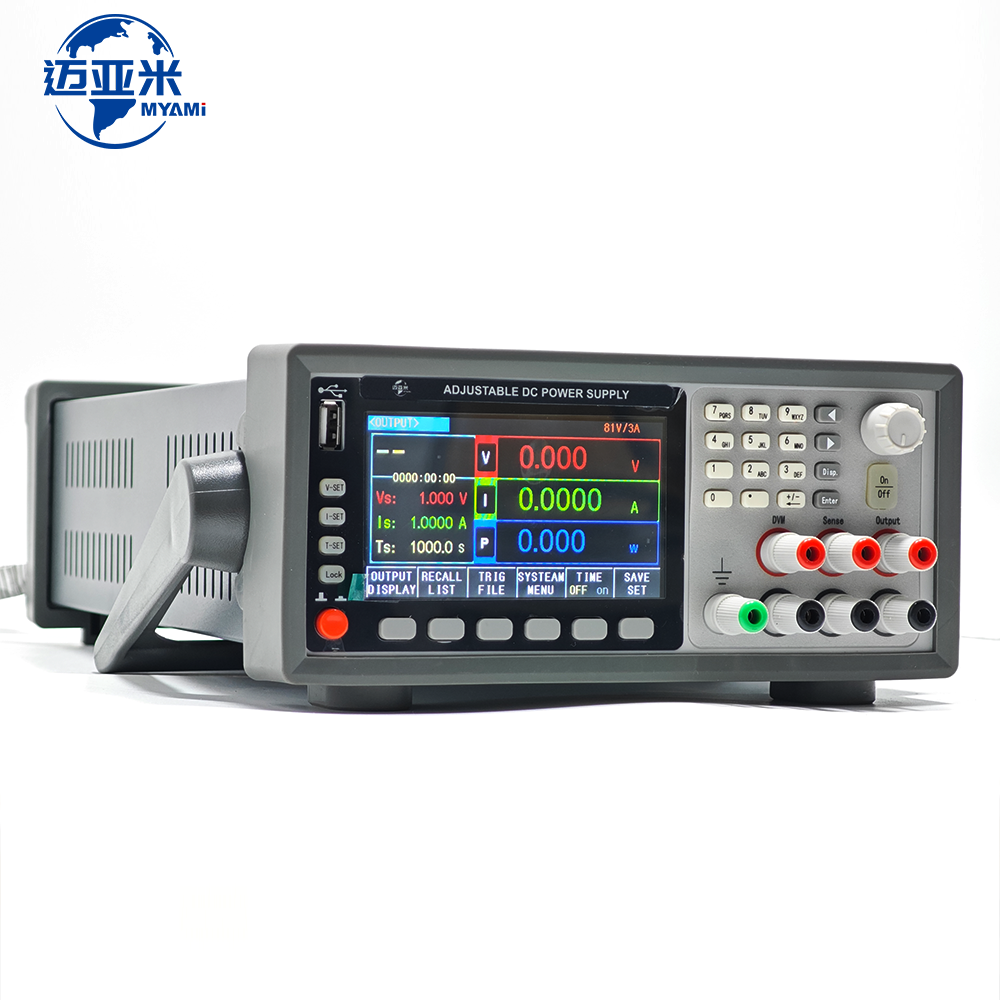

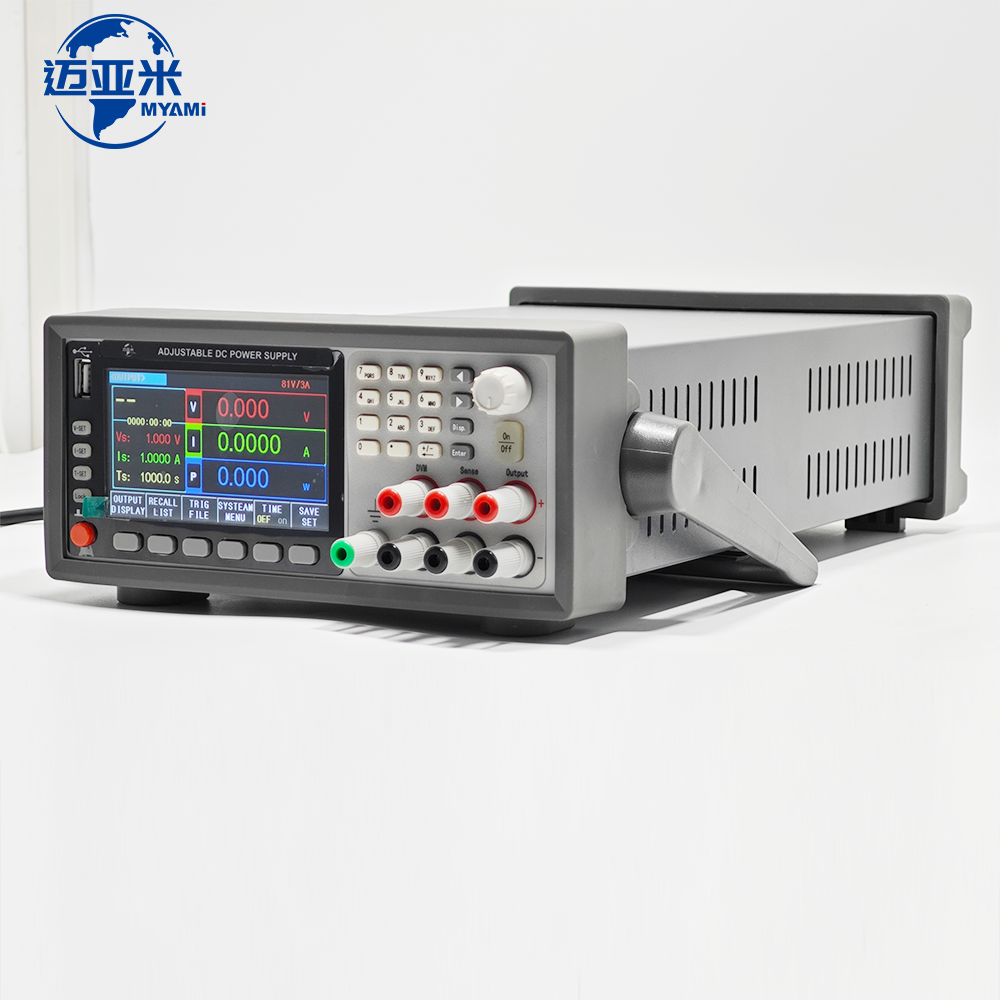

New Arrival Dual Range Programmable Linear DC Power Supply Adjustable
36V/6A/216W & 81V/3A/243W Output Bench Laboratory Power Supply
The MY-L872DTK is a new high-precision Dual Range linear programmable DC power supply, featuring two ranges: 36V/6A/216W and 81V/3A/243W. The voltage and current are adjustable, with a programmable testing time (0.01-9999.99s).
Suitable for various scenarios:
- New energy: solar cells, power batteries, electric autonomous vehicles
- Electronic power components: fuses/connectors/relays/sensors
- Integration testing of automation equipment
- Semiconductor Device Testing
36V/6A/216W 81V/3A/243W 2 range output High-precision Programmable Bench Linear DC Power Supply Adjustable voltage and current for Lab testing and automated testing
⚡ Product Highlights:
- 4.3-inch 24 bit true color LCD screen with a resolution of 480x272
- Linear design with dual range output
- High precision, high stability, low ripple, low noise

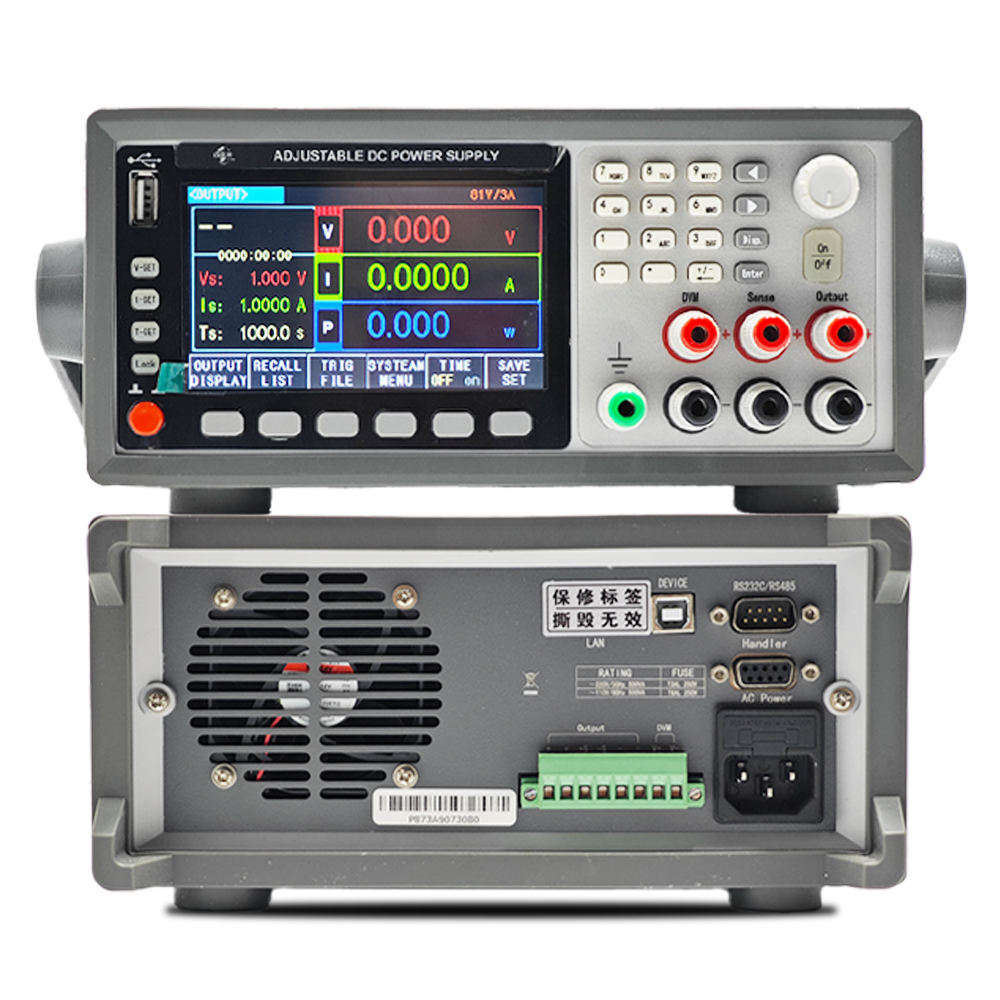

- 1/2 2U ultra small volume, front and rear panel (four ends) output and sampling end
- Voltage testing function (DVM)
- Integrates 8 temperature testing modules (supporting K, T, J, N, E, S, R, B multiple thermocouple ports), with a fresh and simple system setting and a Chinese and English operation interface
- Powerful programming ability, with 1000 sets of settings for state memory storage and retrieval
- 20 trigger files, each file can support up to 1000 test series, with programming loop output
- Timing output: Time (0.1-99999.9s)
- Flexible and convenient voltage, current, and time setting methods (knob or numeric keypad)
- Remote compensation function
- Measurement result data can be saved on a USB flash drive
- Screenshot function, data recording and parameter saving function to upgrade instrument firmware via USB HOST
- EHeader interface control
- Intelligent temperature control fan, reducing fan noise
- Protection against overvoltage, overcurrent, and overtemperature

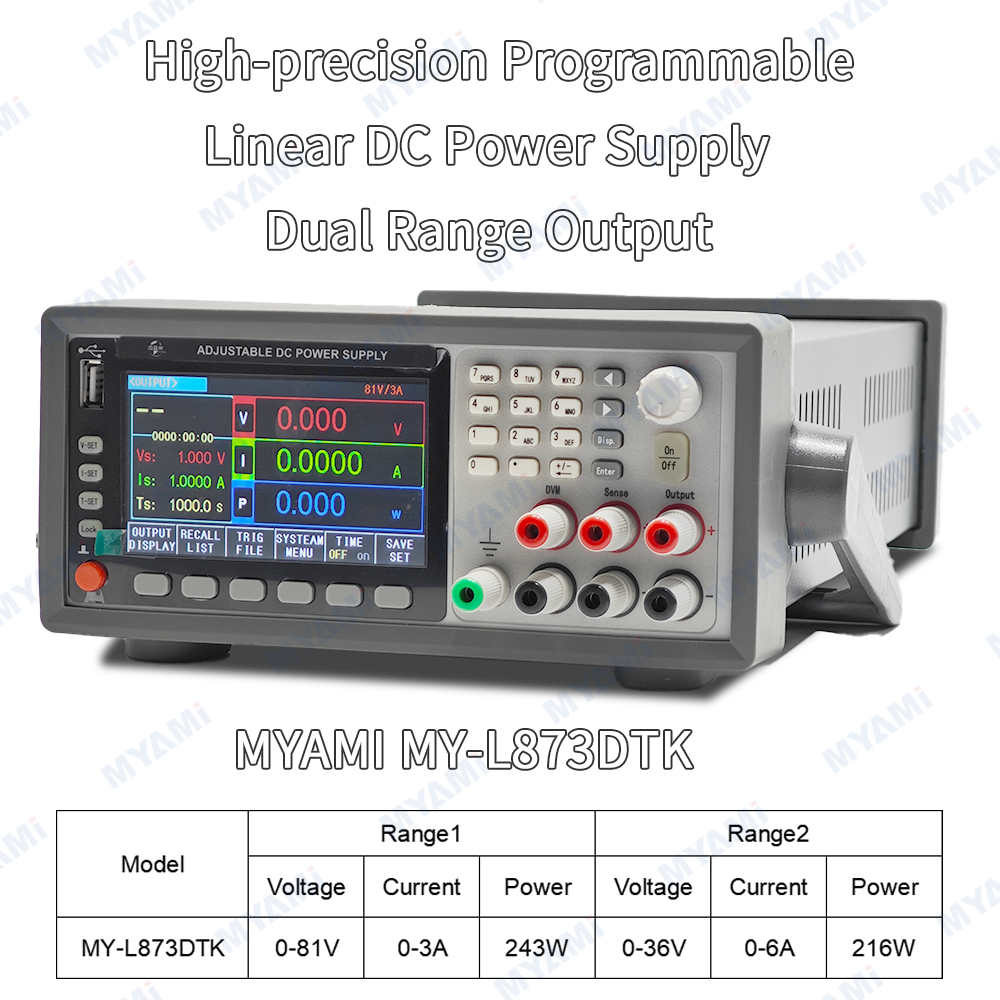

Model Selection
| Model |
Range 1 |
Range 2 |
| Voltage |
Current |
Power |
Voltage |
Current |
Power |
| MY-L873DTK |
0-81V |
0-3A |
243W |
0-36V |
0-6A |
216W |
Product Parameters
| Model / Specifications |
MY-L873DTK |
MY-L2010TK-6B |
| Rated Output |
Range |
Range 1 / Range 2 |
- |
| Voltage |
0-81V / 0-36V |
- |
| Current |
0-3A / 0-6A |
- |
| Power |
243W / 216W |
- |
| Load Regulation |
Voltage |
≤0.01%+5mV |
- |
| Current |
≤0.01%+4mA |
- |
| Power Regulation |
Voltage |
≤0.01%+5mV |
- |
| Current |
≤0.01%+4mA |
- |
| Programming Resolution |
Voltage |
1mV |
- |
| Current |
0.1mA |
- |
| Read Back Resolution |
Voltage |
0.1mV |
- |
| Current |
0.1mA |
- |
| Transient Response |
<50us (Output recovery time within 75mV when output current changes from full to half, or vice versa) |
- |
| Rise Time (10% - 90%) |
<180ms |
- |
| Descent Time (90% - 10%) |
<250ms |
<200ms |
| DVM (DC) |
Display Value Accuracy |
±0.05%+10mv |
- |
| Display Resolution |
1mv |
- |
| Timer |
0.1-99999.9s |
- |
| Trigger Output |
20 sets of trigger outputs, 1000 steps per group, 1000 sets of memory settings |
- |
Frequently Asked Questions
What Is A Variable DC Power Supply?
It is a power source with an output voltage that the user can vary. Variable DC power supplies allow you to change the voltage and the current to the DUT.
Why Is A DC Power Source Needed?
A DC power source provides a constant biasing voltage or current to electrical devices, components, or circuits and ensures that the DUT operates as expected.
How Do You Use A DC Power Source?
A DC power source connects to a DUT via leads that connect to the DC power supply panel. Engineers can set voltages or current levels to power the device for testing purposes.
How Does A DC Power Source Work?
A DC power source converts alternating current (AC) power into DC power using either a linear or switching methodology. A switching power supply has higher efficiency, reduced weight, and smaller size. Linear power supplies can achieve lower noise, but modern switching supplies have minimized or eliminated this advantage.
What Is A Bench DC Power Supply?
A bench DC power supply is designed to sit on an engineer’s bench. It will typically have a large, legible display and a user interface so engineers can easily control all aspects of the power supply from the front panel. Users can also control modern bench power supplies via software. In addition, the output terminals are easily accessible from the front. Bench power supplies are handy tools for testing circuits, as they allow you to adjust the voltage on the fly. If you have a project that needs a specific voltage or haven’t designed the power section yet, a bench power supply can be a lifesaver.
