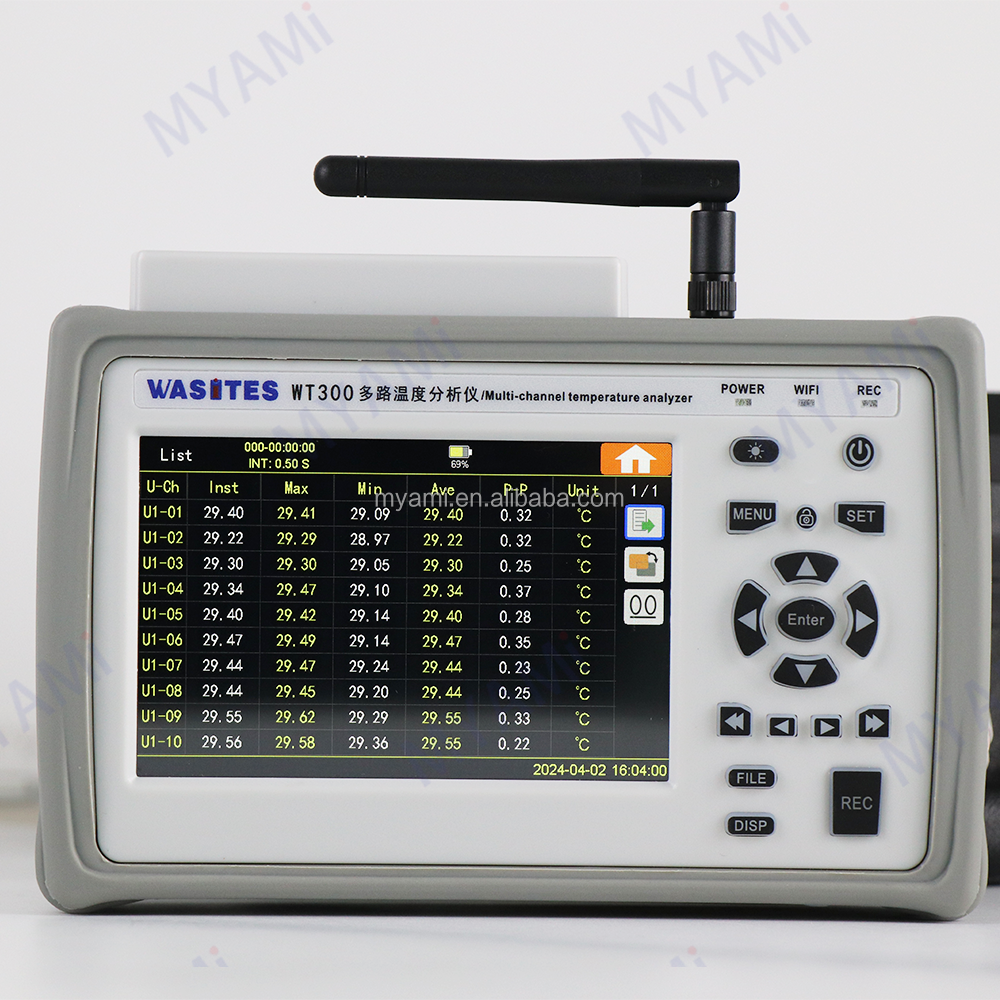

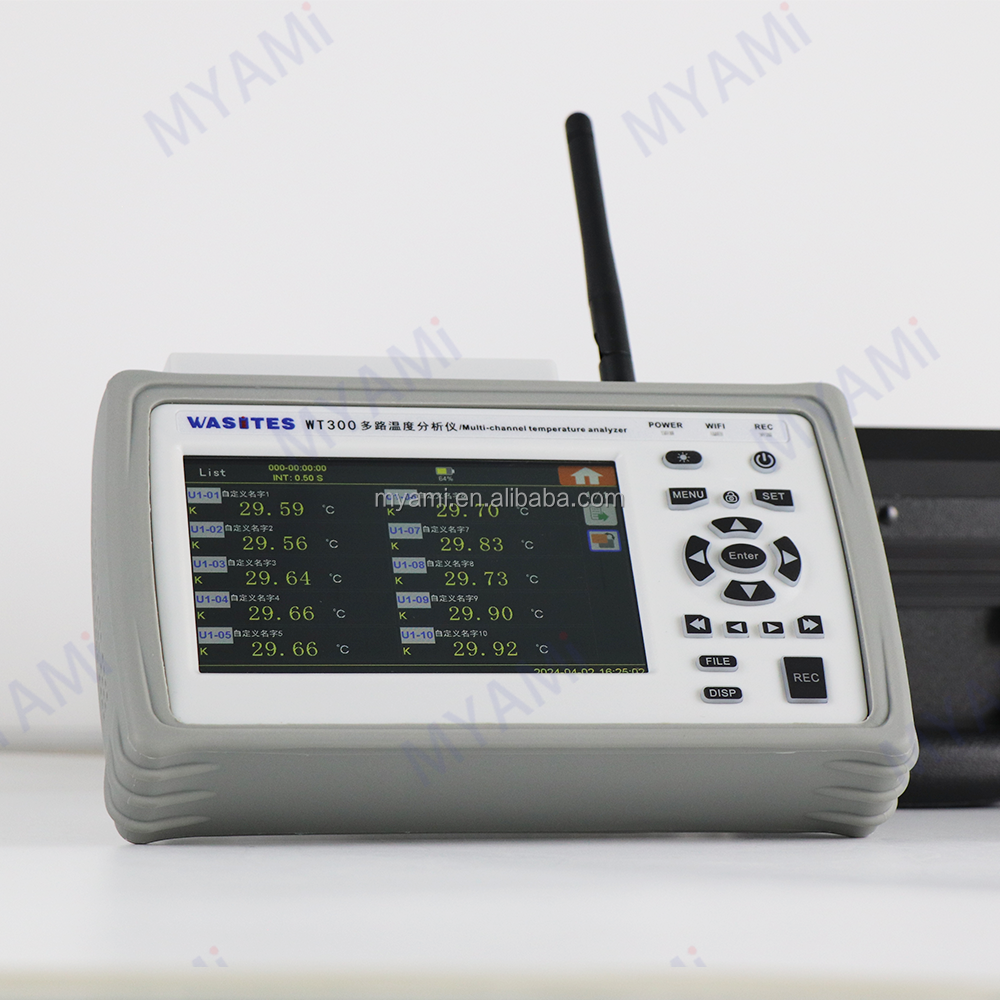

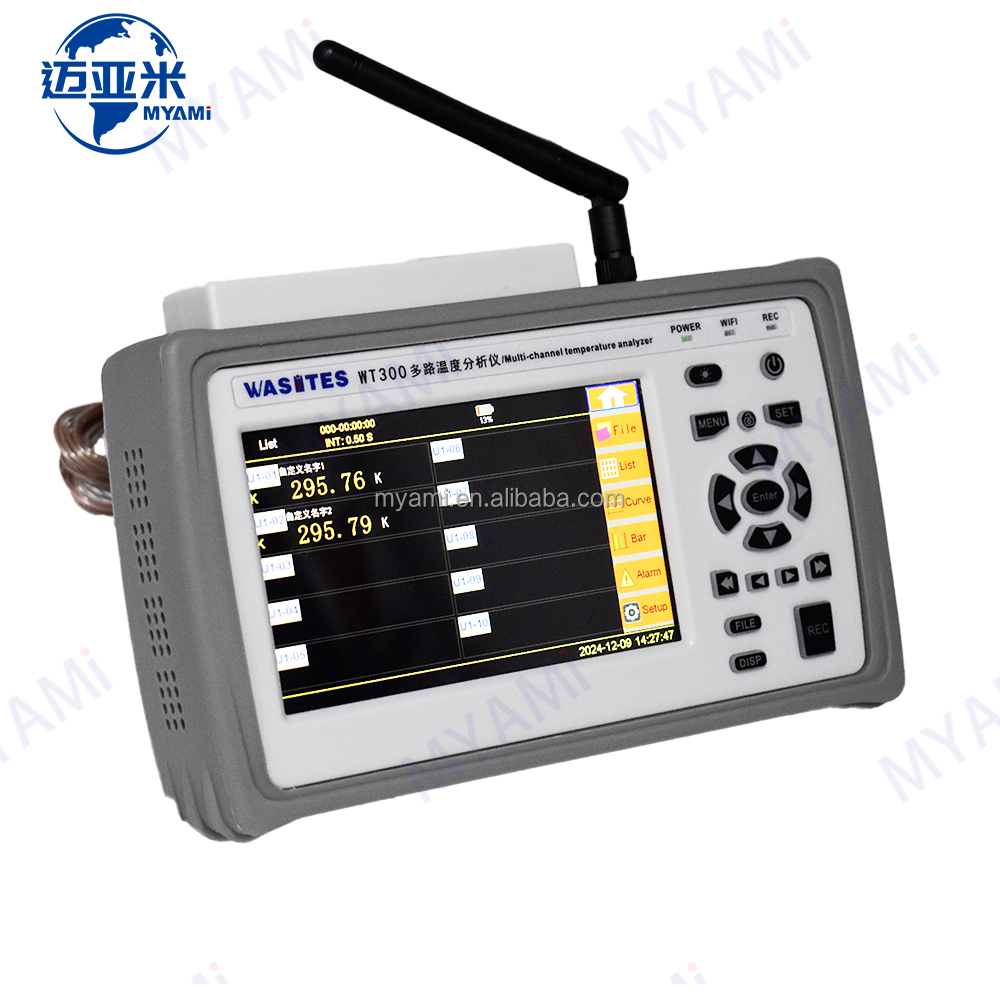

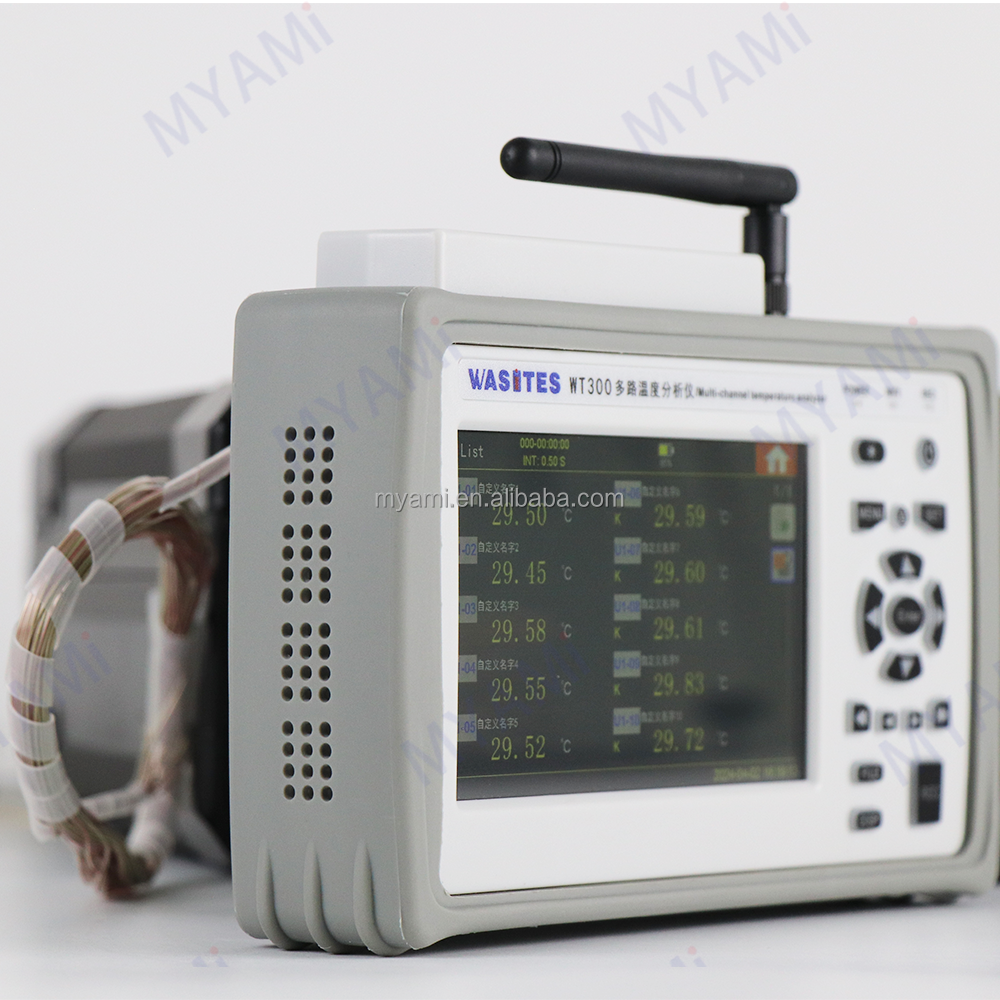

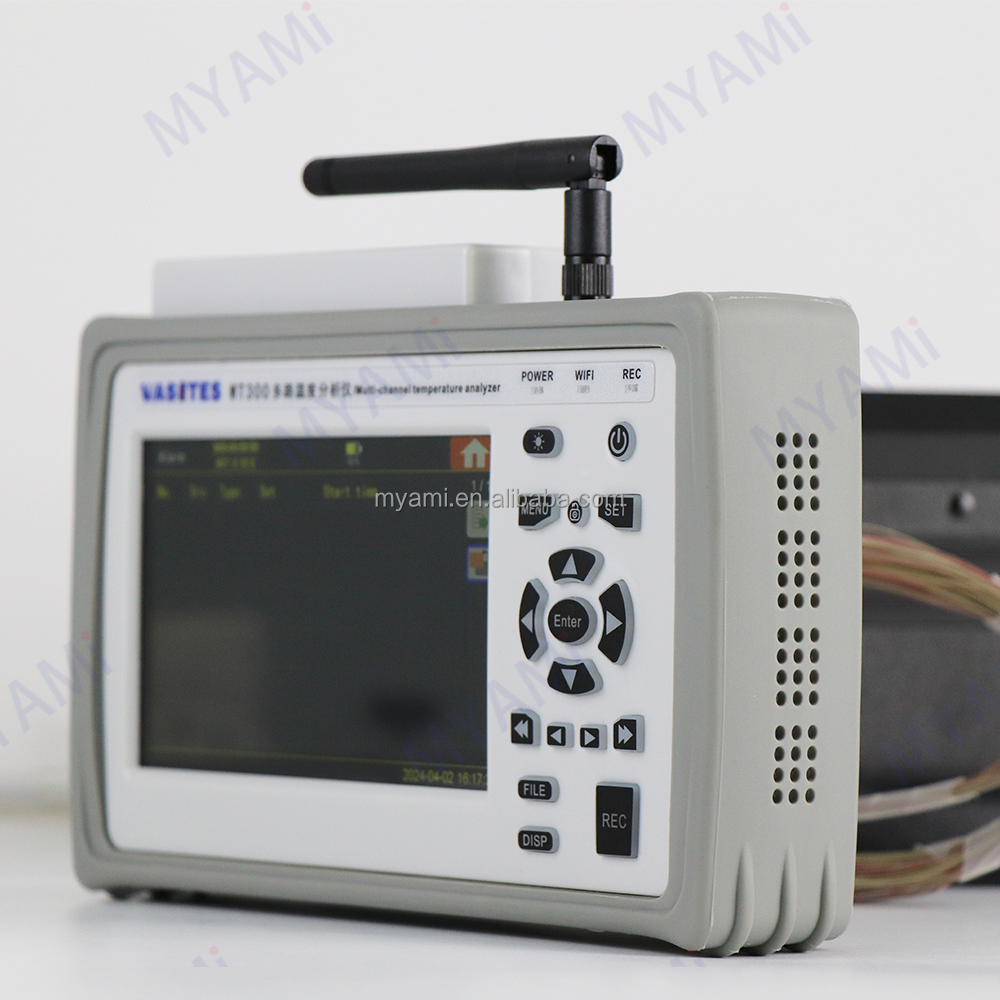

10-Channel High Resolution WIFI Programmable Temperature Data Logger Probe Multi-Contact Plastic Material ODM Customizable
10-Channel High Resolution WIFI Programmable Temperature Data Logger Probe Multi-Contact Plastic Material ODM Customizable
10-Channel High Resolution WIFI Programmable Temperature Data Logger Probe Multi-Contact Plastic Material ODM Customizable
10-Channel High Resolution WIFI Programmable Temperature Data Logger Probe Multi-Contact Plastic Material ODM Customizable
10-Channel High Resolution WIFI Programmable Temperature Data Logger Probe Multi-Contact Plastic Material ODM Customizable
1 / 5
10-Channel High Resolution WIFI Programmable Temperature Data Logger Probe Multi-Contact Plastic Material ODM Customizable
10-Channel High Resolution WIFI Programmable Temperature Data Logger Probe Multi-Contact Plastic Material ODM Customizable
10-Channel High Resolution WIFI Programmable Temperature Data Logger Probe Multi-Contact Plastic Material ODM Customizable
10-Channel High Resolution WIFI Programmable Temperature Data Logger Probe Multi-Contact Plastic Material ODM Customizable
10-Channel High Resolution WIFI Programmable Temperature Data Logger Probe Multi-Contact Plastic Material ODM Customizable

10-Channel High Resolution WIFI Programmable Temperature Data Logger Probe Multi-Contact Plastic Material ODM Customizable

Send Inquiry

Product Description

Product Description
Logger Interface Overview
Logger Design Detail
Logger Hardware Specs
Multichannel Connection
Screen Display Details
Realtime Data Plotting
Software Analysis Interface
Hardware Quality View
Wireless Setup Mode
Device Application Scenario
Temperature Logger Probe Connection Logger Back View and Stand Multi-sensor Input Configuration Data Curve Representation Realtime Logging Interface Close-up Multichannel Color Coding Display PC Software Dashboard Integration Complete Temperature Logger Kit Box
Temperature Tracking Stability Chart
Performance Characteristics:
  • Industrial grade 5-inch IPS touch screen 800*480 HD screen
  • Sampling speed can be customized settings (filter coefficient)
  • Host 10 channels of measurement, can be expanded to 40 channels wirelessly (3 wireless modules)
  • Support a variety of sensor inputs: K, J, E, T, N, S, R, B
  • Can customize the name of each channel, and can export the name to EXCEL
  • Maximum support for 72 log files, each file 100,000 sets of data, the interval time can be set arbitrarily (HH:MM:SS:ms)
  • File list, real-time list display, bar graph (temperature rise) display, real-time/record/analysis curve display, alarm list, system settings, etc.
  • Each channel independent error correction Y=KX+B
  • Each channel can be set to use a different thermocouple type
  • Basic measurement accuracy: 0.2°C+2 words (without sensor), cold end compensation accuracy: 0.5°C
  • The voltage difference between channels can be as high as AC/DC 350V, super anti-interference ability
  • Record file can be deleted and exported by single or multiple selection, U disk and PC directly export EXCEL file
  • Two levels of alarm indication, HH/H, LL/L alarm setting and alarm indication, and historical alarm record function
  • Using 32-bit high-speed MCU data processing + 24-bit high-speed AD measurement chip, fast response speed, high precision, stable and reliable
  • Detailed curve analysis, X-axis and Y-axis coordinate setting, the curve can be up and down, left and right panning zoom in and out, the timescale line moving left and right, and can display the corresponding temperature value
Specification
Name Handheld Multi-Channel Temperature Logger
Model WT300
Display Format 5 inch TFT true color LCD industrial touch screen 800*480 pixels
Display Form Real-time list, curve (historical curve), bar graph, current alarm (historical alarm) file record list
Record Inquiry Local view analysis record curve, historical alarm records, computer software analysis query
Number of channels Stand-alone 10 channels, can be expanded to 40 channels wirelessly
Thermocouple K, J, E, T, N, S, R, B
Basic Accuracy 0.2°C+2 words (without thermocouple error)
Measuring Range -200~1820°C (subject to thermocouple indexing range)
Cold End Compensation Accuracy: 0.5°C
Resolution 0.01°C
Calibration Independent error correction per channel Y=kx+b (x=measured value)
TYPE-C interface OTG function, integrating charging, PG communication, connecting to USB flash disk and virtual USB flash disk
Number of files 100 (cyclic record)
File Capacity A file can record 120,000 groups (not distinguish the number of channels), a total of 12 million groups
Recording Interval 100mS-2h:59m:59S.950mS set arbitrarily. (Minimum 0.1 second when 2 channels are turned on)
Record Duration With 0.1 second interval, it can record continuously for 13.88 hours. Calculate total time = recording interval X 138.8 hours.
Sampling Speed, Filtering Single-channel fastest: 50mS, filter wash (1-64) the larger the slower the measurement speed, the more stable value
Communication Interface Wireless WIFI (2.4G) TYPE-C (USB) standard analysis software
Interchannel isolation AC / DC up to 350V, high-voltage charged measurement, super anti-interference ability
Alarm sound Circuit buzzer sounding (ringing at any alarm, can be set to mute)
Communication Interface (Duplicated) Wireless WIFI, TYPE-C(USB)
Power Supply Built-in 5000mAH battery, 10 hours (off WIFI), with charger support 18W charging
Thermocouple Included Each channel is equipped with a standard 2-meter K-type thermocouple (Temperature range: -50~200°C)
Dimension 195*127*41mm
Weight About 1.5kg
Environmental conditions 5~40°C, 20%~80%RH (no condensation)
Packing & Delivery
Logger Packaging View
Accessory Placement inside Packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Company Operation Overview
Testing Lab Facilities
Manufacturing Line
Product Compliance Certificate
📋 Frequently Asked Questions (FAQ)
Q: How many channels does the WT300 temperature logger support?
A: The stand-alone host supports 10 measurement channels. It can be wirelessly expanded to a maximum of 40 channels using up to 3 wireless modules.
Q: What types of thermocouples are compatible with the logger?
A: The WT300 supports multiple sensor inputs including K, J, E, T, N, S, R, and B. Each channel can be independently set to configure a different thermocouple type.
Q: How much measurement data can the device store?
A: The device supports up to 100 cyclic file records. A single file can record up to 120,000 sets of data (independent of active channel counts), allowing for a total storage capacity of 12 million data points.
Q: What is the battery capacity and operating duration?
A: The logger features a built-in 5000mAh high-capacity battery that supports up to 10 hours of continuous operation (with WIFI off) and supports 18W fast charging.
Q: Does the logger feature any electrical protection or isolation?
A: Yes, it features advanced interchannel isolation capable of handling AC/DC voltage differences up to 350V, which allows for high-voltage charged measurement and provides superior anti-interference capabilities.
Q: How can data be exported and analyzed on a computer?
A: Record files can be easily exported via Type-C connection or a USB flash drive. Files are formatted directly in EXCEL for convenience. You can also analyze curves and historical data locally on the 5-inch IPS touch screen or using the bundled standard analysis software on a PC.
