Product Description

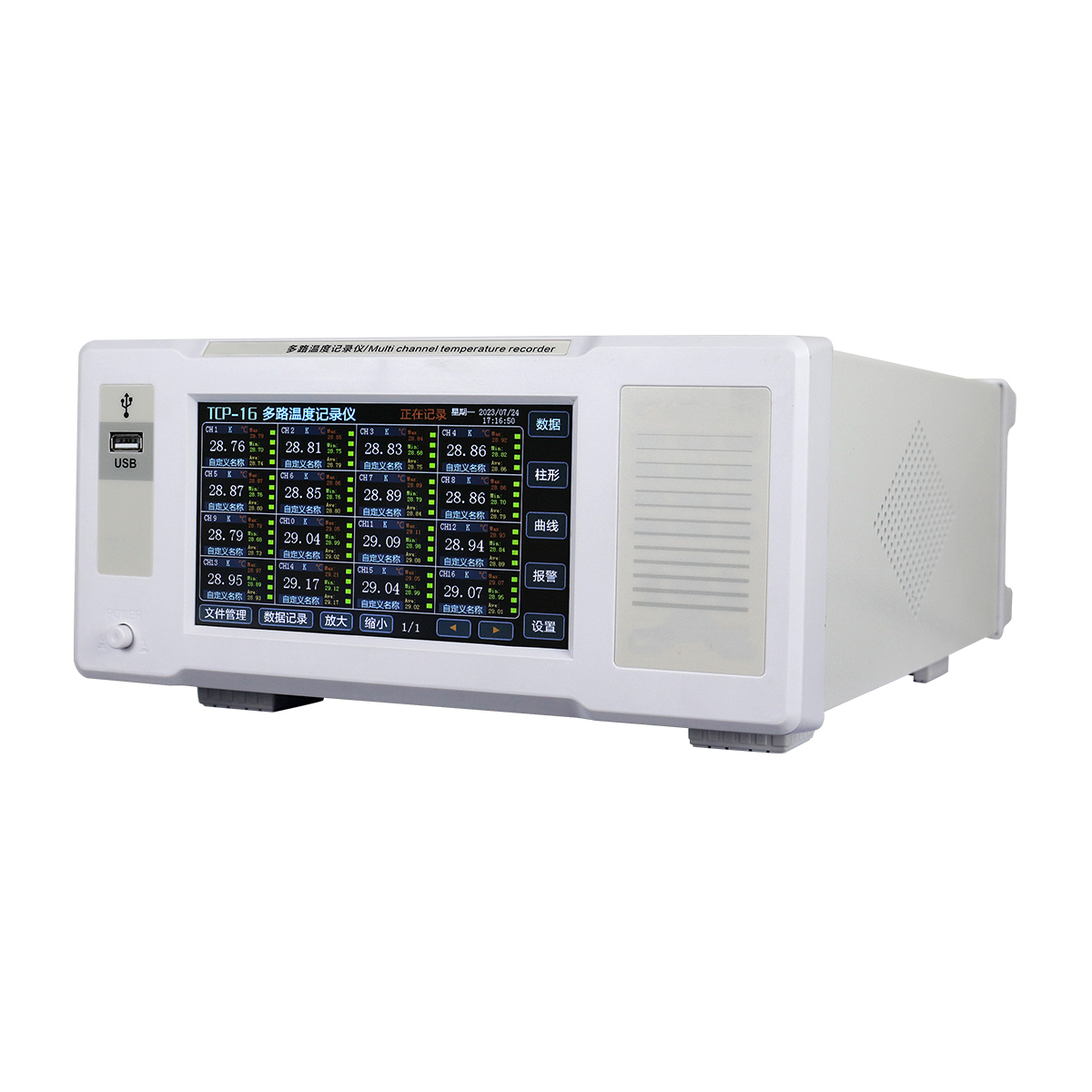

Multi Channel Temperature Tester
The TCP-X series multi-channel temperature recorder has been widely used in various industries due to its rich display screen, flexible operation mode, and powerful recording, calculation, and management functions. Composed of a motherboard with ARM microprocessor as the core, main power supply, external transmitter power supply, intelligent channel board, large capacity FLASH, etc.

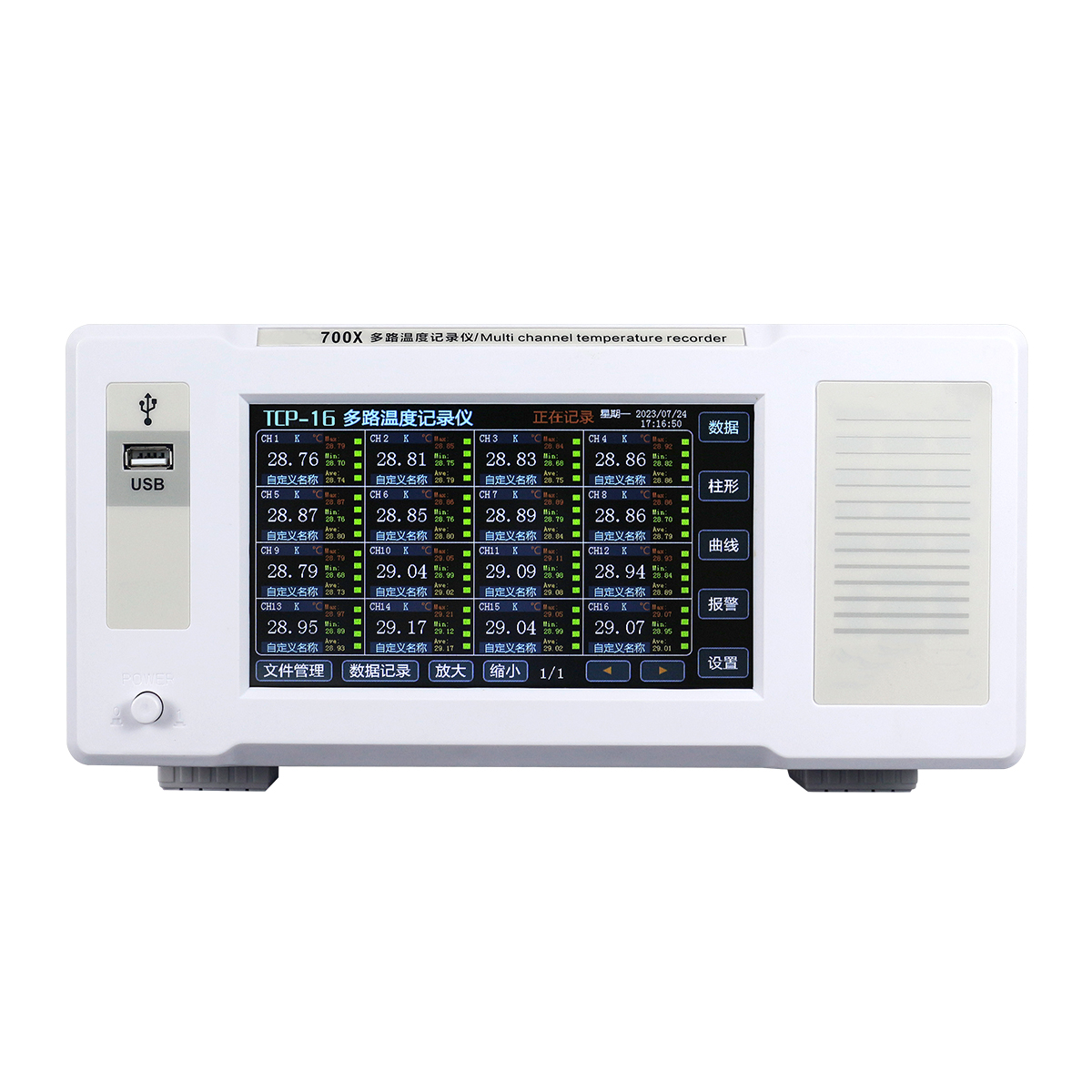

7-Inch Touch Screen
Upgraded with a new interface, high-definition display of test data, high accuracy, clarity and intuitiveness, making testing more convenient.
Anti High Frequency Interference
More stable testing. The peak isolation voltage can reach 2500V, ensuring the reliability and stability of the sampled data.
High Performance 32-Bit ARM Microprocessor
The motherboard adopts high-speed, high-performance 32-bit ARM microprocessor, which has the advantages of fast sampling speed and high efficiency.
Standard K-Type Thermocouple Probe
Provides options for extending or customizing thermocouple probe lengths.

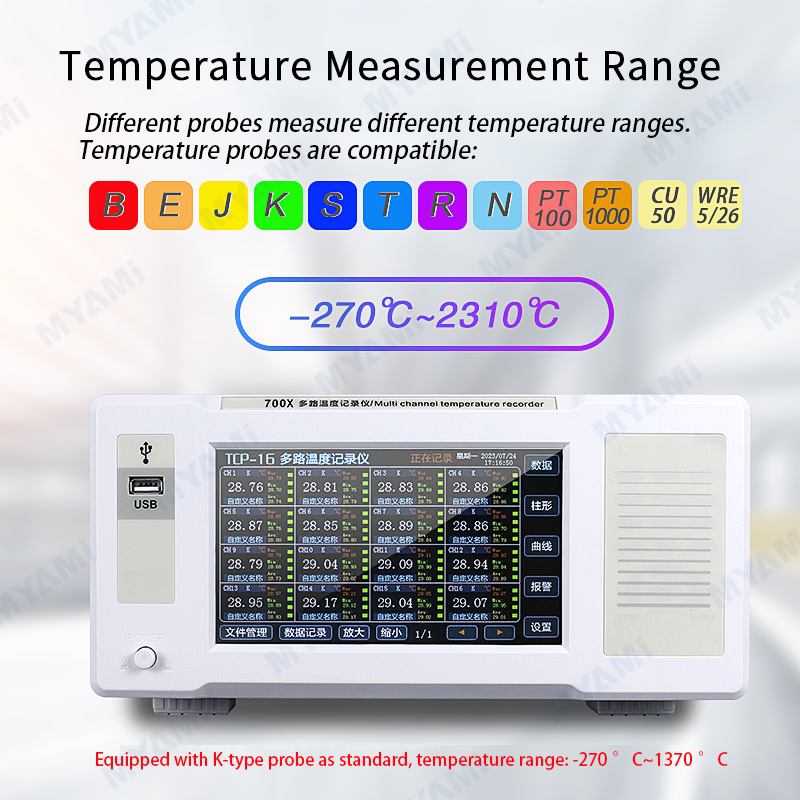

Wide Probe Compatibility
Different probes measure different temperature ranges. Temperature probes are compatible with B, E, J, K, S, T, R, and N. Standard K-type probe range: -270°C ~ 1370°C.
Application Scenarios
Ideal for workshop inspection, lighting inspection, environmental inspection, electrical inspection, and more.
Specifications Table
Product Series TCP-X series
Model TCP-8 TCP-16 TCP-24 TCP-32 TCP-40 TCP-48 TCP-56 TCP-64
Test route 8 16 24 32 40 48 56 64
Screen size 7-inch screen
Display basic accuracy 0.2% + 0.5°C ± 2 words (excluding thermocouple)
Correction Error correction for each channel
Bar chart Display real-time temperature in column chart format, providing a clearer and more intuitive comparison of temperature values across different channels
Curve graph Real time temperature tracking in the form of a curve chart, with X and Y axis values supporting automatic and manual settings
Alarm function Can set upper limit, lower limit, and supporting recording function
Voltage The default pressure type for 0~5V and 0~10V is voltage (optional)
Current The default flow type for 0~20mA and 4~20mA is current (optional)
Temperature unit K, °F, °C
Interface display Support switching between Chinese and English interfaces
Performance testing 32-bit ARM microprocessor, screen response time < 0.5S
Anti high-frequency dry resistance Each channel is isolated from each other, resistant to high-frequency interference, and has a live test voltage of DC 500V and AC 380V
Storage capacity 8GB large capacity, FLASH flash data
Data protection Electronic data is not lost and can store data from 72 hours to 180 days
USB function Support external USB drive for exporting and storing data
Display process -999.9 ~ 1999.9
Temperature compensation Each channel supports temperature compensation and provides multiple compensation modes
Marking & commenting Each temperature value can be named arbitrarily
Real-Time Clock Using hardware real-time clock with clock error of ± 1 minute/year
Sampling period Three adjustable modes: high 100ms, medium 500ms, and low 1s
Communication interface USB communication interface
Power configuration Can operate normally within a wide voltage range of AC 85V~265V
Product Details
Product Details Image
Detailed Feature 1 Detailed Feature 2 Detailed Feature 3 Detailed Feature 4 Detailed Feature 5 Detailed Feature 6 Detailed Feature 7 Detailed Feature 8 Detailed Feature 9 Detailed Feature 10
Product Classification
Product Classification Diagram
Factory Overview
Factory Overview Image
Certificates
Certificates Image
Exhibition
Exhibition Image
Packaging & Transportation
Packaging & Transportation Image
Frequently Asked Questions
FAQ Image
Q1What's the MOQ?
The MOQ of machinery is 1 set.
Q2What's delivery time?
The general delivery time is 3~5 days after order confirmed, depending on the order quantity.
Q3Can you send the video to show how the machine works?
Certainly, we have videos of every machine, please feel free to reach out to obtain the video demonstration.
Q4What's your payment terms?
100% payment before shipment.
Q5What's the payment method?
We accept T/T and L/C payment.
Q6What temperature range and probe compatibility does the tester offer?
The temperature tester is compatible with B, E, J, K, S, T, R, and N type probes. The standard K-type probe covers a temperature range of -270°C to 1370°C.
