| Product Parameter | |||
|---|---|---|---|

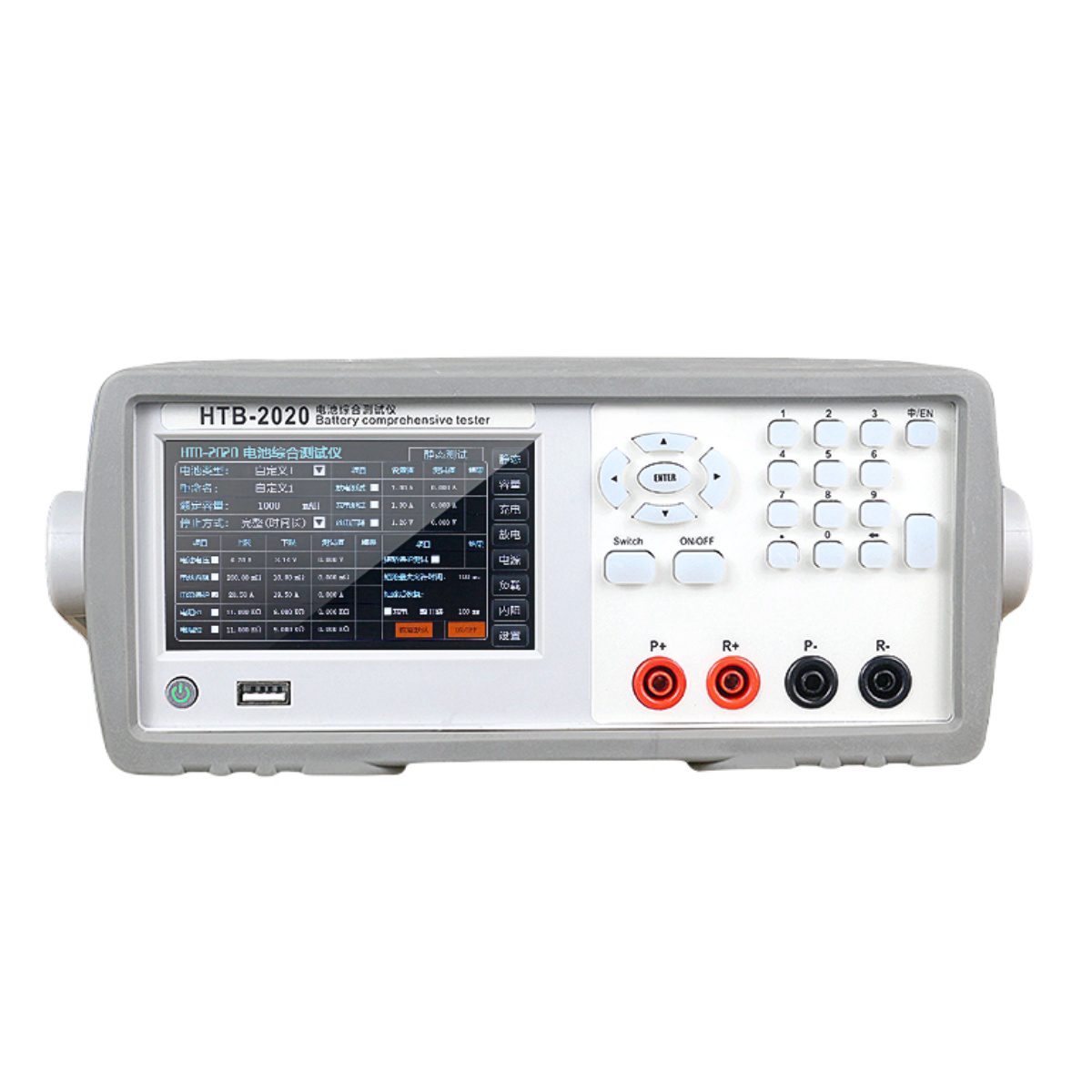

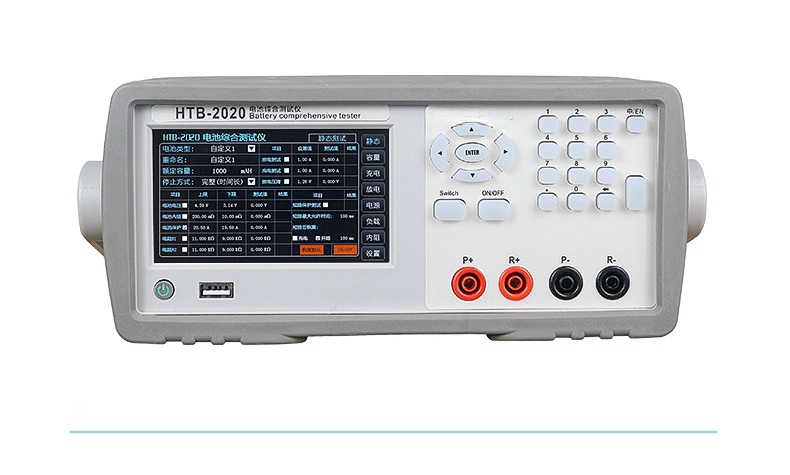

| Model | HTB-2020 | HTB-2060 | HTB-2060 (External Version) |
| Applicable Environment | 1. Temperature: 0~40°C 2. Altitude: Use within 2 Km 3. Relative Humidity: 40-80% |
||
| Measuring Range | |||
| 1. Battery Voltage | 0~20.000V (Min Resolution: 0.001V) |
0~80.000V (Min Resolution: 0.001V) |
- |
| 2. Overcurrent | 0~10.000A (Min Resolution: 0.001A) |
0~20.000A (Min Resolution: 0.001A) |
- |
| 3. Internal Resistance | 0~999.0mΩ (Min Resolution: 0.1mΩ) | ||
| 4. Resistance Identification | 0.1~999.9KΩ (Min Resolution: 0.1KΩ) | ||
| 5. Capacity Range | 0~100.0AH (Min Resolution: 0.1mAH) | ||
| Test Speed | |||
| 1. Static Test (All functions) | 1.1~2 Seconds | ||
| 2. Capacity Test (1C charge/discharge) | 3 to 4 hours (depending on battery capacity) | ||
| Accuracy of Measurement | |||
| 1. Voltage Accuracy | ± (Result 0.5% + 3 mV) | ||
| 2. Current Accuracy | ± (Result 0.5% + 5 mA) | ||
| 3. Internal Resistance Accuracy | ± (Result: 1% + 1 mΩ) | ||
| 4. Resistance Identification Accuracy | 10KΩ ± 1% | ||
| 5. Capacity Accuracy | 10AH ± 2% | ||
| Internal CNC DC Power Supply Index | |||
| 1. Max Output Voltage | 20V | 60V | - |
| 2. Max Output Current | 2A | 5A | - |
| 3. Max Output Power | 40W | 200W | - |
| Internal CNC Electronic Load Index | |||
| 1. Max Discharge Voltage | 20V | 60V | - |
| 2. Max Discharge Current | 5A | 10A | - |
| 3. Limit Power | 50W | 200W | - |
| 4. Wire Voltage | < 20mV | ||
| 5. Load Adjustment Rate | < 10% | ||
| 6. Response Time | 1S | ||
