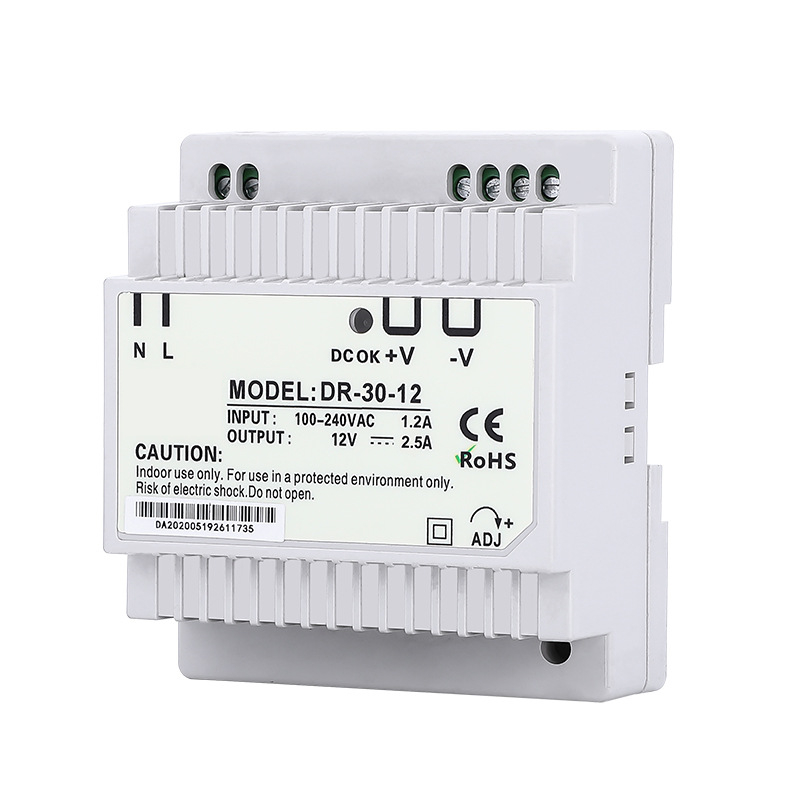

| Model number | DR-30-5 | DR-30-12 | DR-30-15 | DR-30-24 | DR-30-48 | |
|---|---|---|---|---|---|---|
| Output | DC voltage | 5V | 12V | 15V | 24V | 48V |
| Rated current | 3A | 2A | 2A | 1.5A | 0.75A | |
| Electric current range | 0-3A | 0-2A | 0-2A | 0-1.5A | 0-0.75A | |
| Power rating | 15W | 24W | 30W | 36W | 36W | |
| Ripple and Noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| Voltage adjustment range | 4.7~6V | 12~14V | 13~17V | 23~28V | 48V~53V | |
| Voltage accuracy | ±2% | ±2% | ±2% | ±1% | ±1% | |
| Linear adjustment rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load regulation rate | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Start-up, rise time | 100ms, 30ms/230VAC 100ms, 30ms/115VAC (when fully loaded) | |||||
| Hold time (typ) | 100ms/230VAC 21ms/115VAC (when fully loaded) | |||||
| Input | voltage range | 100-240VAC or 140-370VDC | ||||
| Frequency Range | 50-60Hz | |||||
| Efficiency (Typ) | 77% | 82% | 83% | 84% | 85% | |
| AC current (Typ) | 1.2A/115VAC 0.8A/230VAC | |||||
| Inrush Current(Typ) | Cold Start: 15A/115VAC 65A/230VAC | |||||
| leakage current | < 2mA/240VAC | |||||
| Protection | Overload | 105%~150% of rated output power | ||||
| Protection mode | Hiccup protection, it can automatically recover after the abnormal load condition is removed | |||||
| Overvoltage | 5.75-6.9V | 15-16.5V | 17-20V | 29-33V | 58-65V | |
| Protection mode | Turn off the output voltage, restart can be restored | |||||
| Environment | Operating temperature | -10℃ ~ +60℃ | ||||
| Working humidity | 20-90% RH, non-condensing | |||||
| Storage temp/humidity | -10 ~ +75℃, 10 ~ 95%RH | |||||
| Temperature Coefficient | ±0.03%/℃ (0-50℃) | |||||
| Vibration resistant | 10-500Hz, 2G 10 minutes/cycle, X, Y, Z axis each 60 minutes; installation conforms to IEC60068-2-6 | |||||
| Safety & EMC | Safety regulations | UL508, UL60950-1, TUV EN60950-1, EAC TPTC 004 compliant | ||||
| Pressure resistance | I/P-O/P:3KVAC I/P-FG:2.0KVA O/P-FG:0.4KVAC | |||||
| Insulation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC25℃/70% RH | |||||
| EMC Emissions | Comply with EN550L11, EN55032 (CISPR32) CLASS B, EN61000-3-2, -3, EAC TP TC 020 | |||||
| EMC Immunity | Comply with EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN1000-6-2 (EN50082-2), class A heavy industry standard | |||||
| Other | MRBF | ≥441Khrs, MIL-HDBK-217F (25℃) | ||||

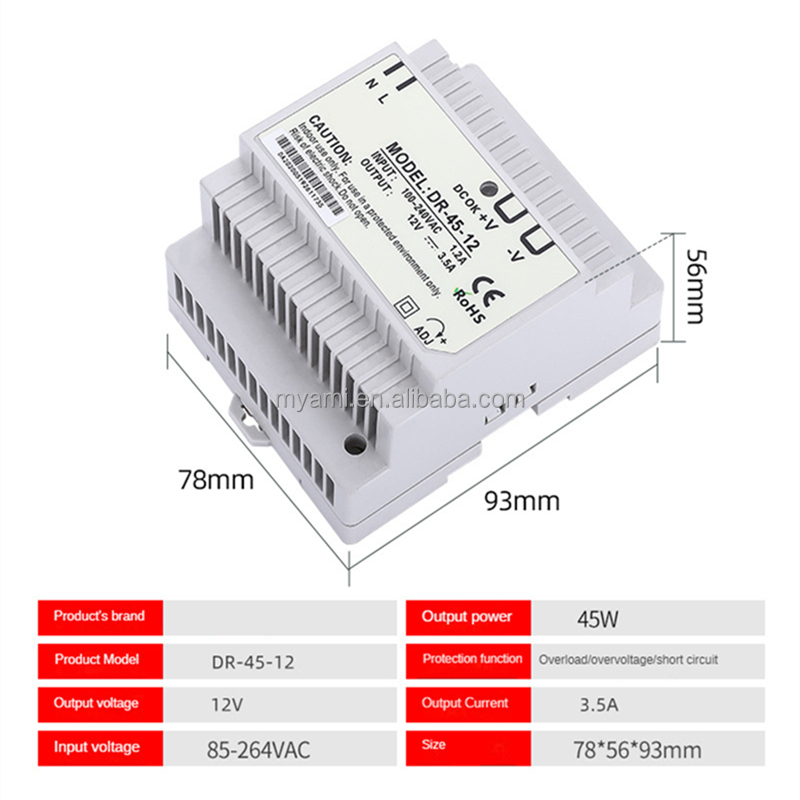

| Size | 78*93*56mm (L*W*H) | |||||
| Package | 0.25Kg: 50PCS/15Kg | |||||
