| Model / Parameter | NDR-120-12 | NDR-120-24 | NDR-120-48 | |
|---|---|---|---|---|
| Output | DC Voltage | 12V | 24V | 48V |
| Rated Current | 10A | 5A | 2.5A | |
| Power Rating | 120W | 120W | 120W | |
| Ripple & Noise | < 120mV | < 120mV | < 150mV | |
| Voltage Accuracy | ±2% | ±1% | ||
| Output Voltage Regulation Range | ±10% | |||
| Load Regulation Rate | ±1% | |||
| Linear Adjustment Rate | ±0.5% | |||
| Input | Voltage Range | 85-264VAC 47Hz ~ 63Hz (127VDC ~ 370VDC: DC input can be realized by connecting AC/L(+), AC/N(-)) | ||
| Efficiency (Typical) | > 86% | > 88% | > 89% | |
| Operating Current | < 2.25A / 110VAC, < 1.3A / 220VAC | |||
| Impulse Current | 110VAC: 20A, 220VAC: 35A | |||
| Start-up, Rise, Hold Time | 500ms, 70ms, 32ms at 110VAC / 500ms, 70ms, 36ms at 220VAC | |||
| Protection | Overload Protection | 105%-150% rating. Protection Mode: Constant current limiting, recovers automatically after fault condition is removed. | ||
| Overvoltage Protection | Shut down output voltage when it exceeds 135%. Automatically recovers after fault condition is removed. | |||
| Short-circuit Protection | Shut down output when +VO drops to undervoltage point. Automatically recovers after fault condition is removed. | |||
| Environment | Operating Temp, Humidity | -10°C ~ +60°C; 20% ~ 90% RH | ||
| Storage Temp, Humidity | -20°C ~ +85°C; 10% ~ 95% RH | |||
| Safety | Withstanding Voltage | I/P-O/P: 3KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC for 1 minute | ||
| Leakage Current | < 1mA / 240VAC | |||
| Isolation Resistor | I/P-O/P, I/P-FG, O/P-FG: 500VDC / 100MΩ | |||

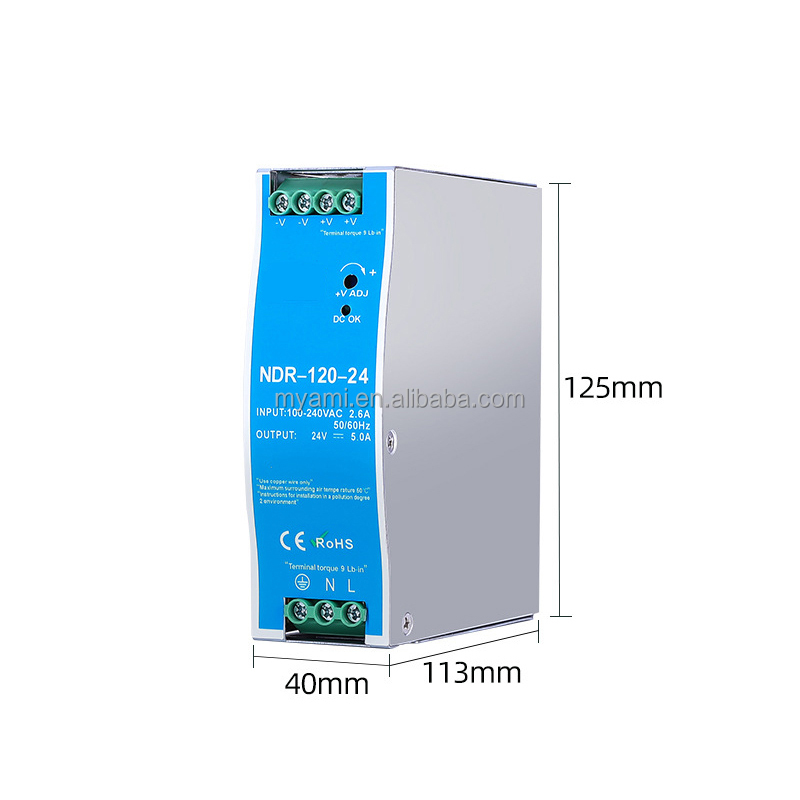

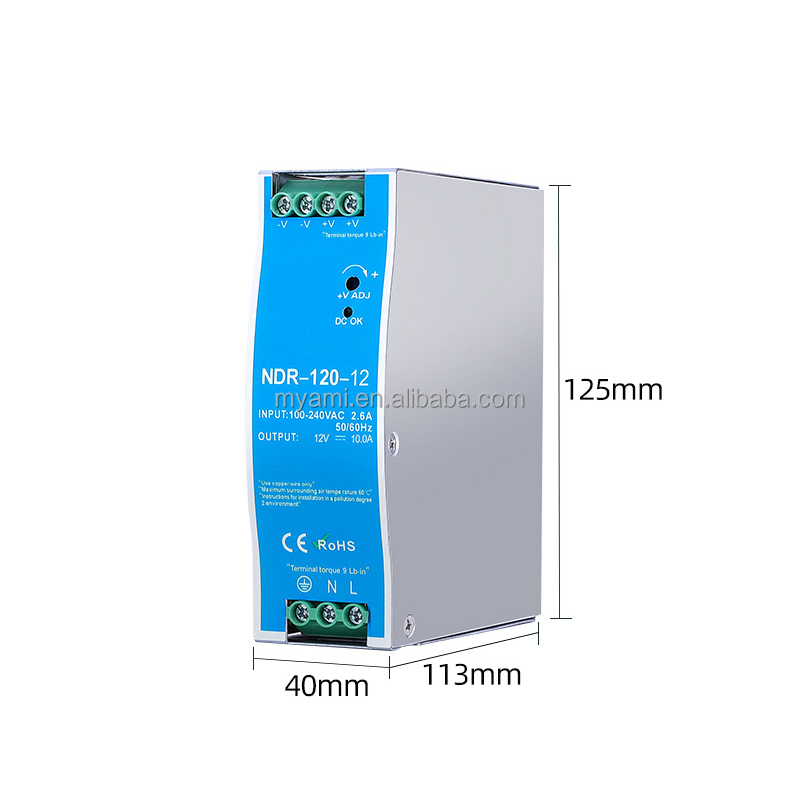

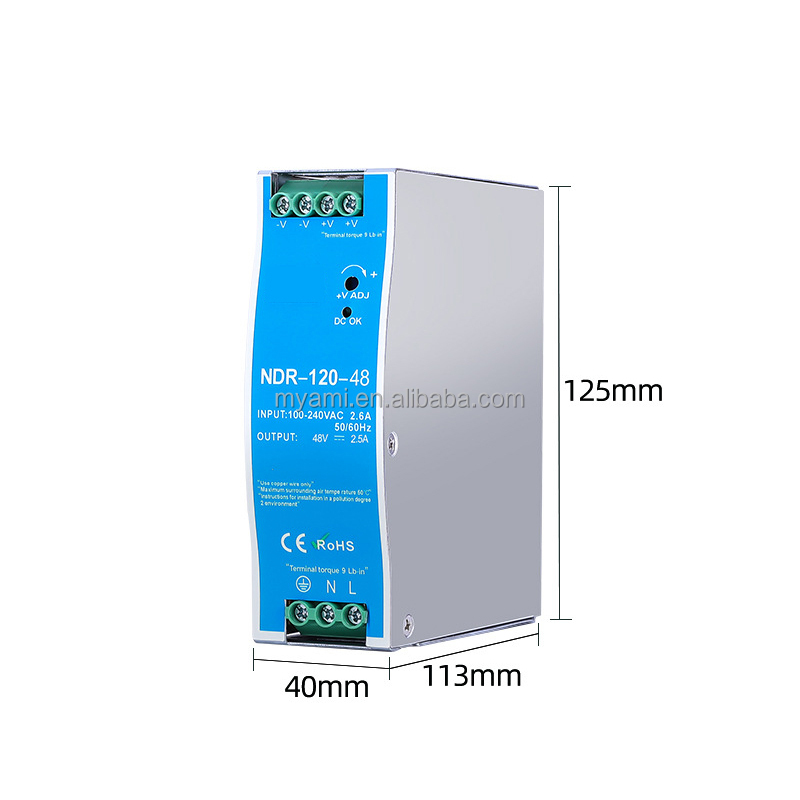

| Other | Size | 40 * 125 * 113mm | ||
| Weight (Net/Gross) | 707g / 750g | |||
