| Display | 5 inches HD IPS touch screen 854*480 pixels |

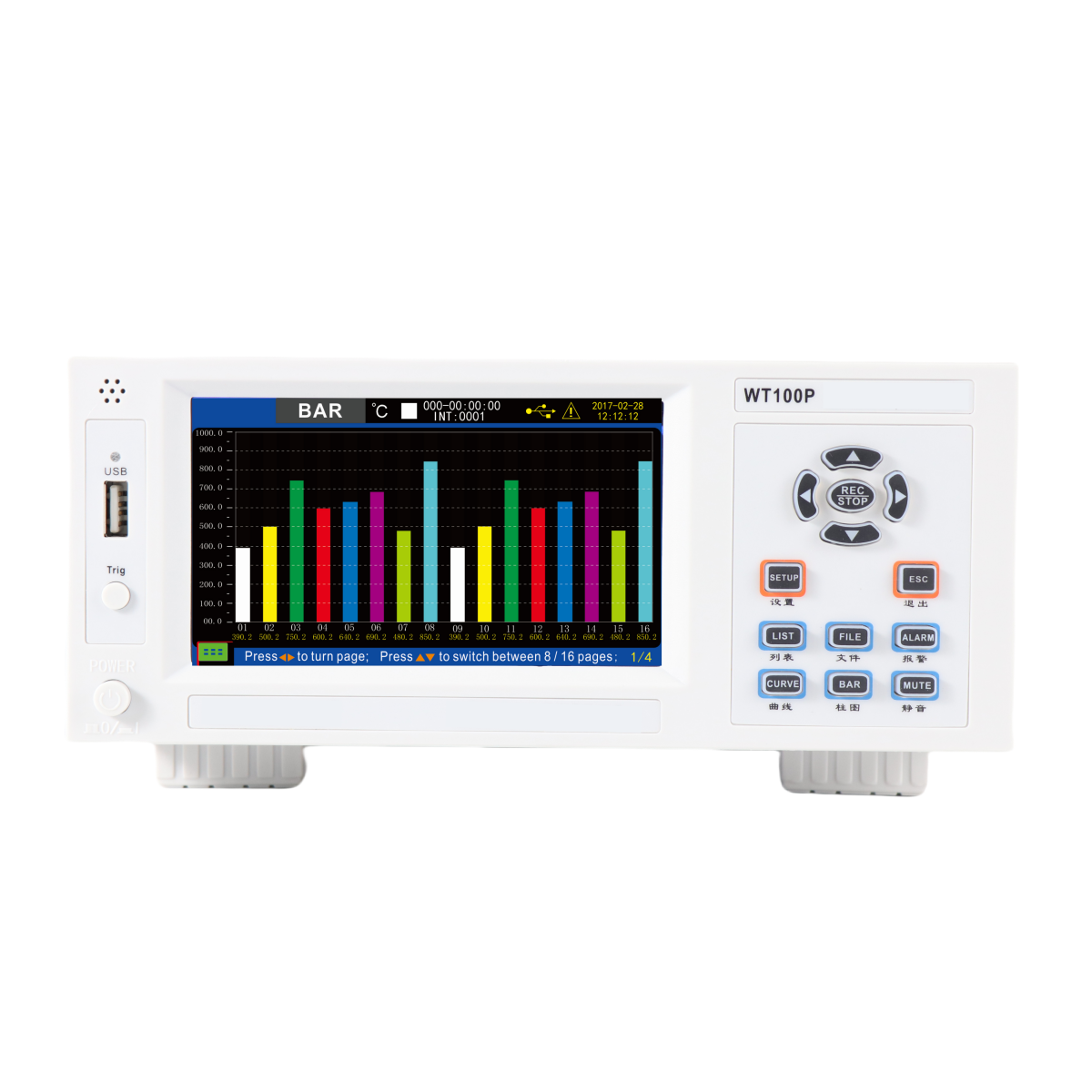

| Mode | Real time list, curve, bar chart, alarm function, file record list |
| Record Query | Curve record, alarm record, PC record |
| Channel | 8 channels per module, 64 channels MAX |
| Thermocouple | K J E T N S R B |
| Accuracy | 2 words at 0.2°C (excluding thermocouple error) |
| Measuring Range | -200°C to 1820°C (Subject to the thermocouple range) |
| Cold Junction Compensation | Precision: 0.5°C |
| Resolution | 0.1°C |
| Correcting | Each channel can modify the error value according to the formula y=kx+b |
| File Nums | 64 circular records, FILE FORMAT: CSV opened directly with Excel |
| File Capacity | Each file can record 130,000 sets of data |
| USB Interface | Export records, U disk function, get files and software directly |
| Recording Time | Recording interval of 1 second can record continuously for 97 days, total calculation time = recording interval * 97 days. |
| Sampling Rate | Each channel high speed 0.1S, low speed 1S. |
| Allowable Voltage between channels | AC/DC up to 350W, high voltage live measurement, super anti-interference ability |
| Control Output | Two sets of relays (H/L) and (HH/LL) |
| Alarm Sound | All the way buzzer sound (any alarm when sounded, can be set to mute) |
| Recording Interval | From 1 to 9999 |
| Communication Port | Standard USB, optional RS485, RS232 |
| Power Supply | AC 85-265V ±10%, 50Hz/60Hz < 10W |
| Thermocouple Accessory | 2m long K-type thermocouple per channel |

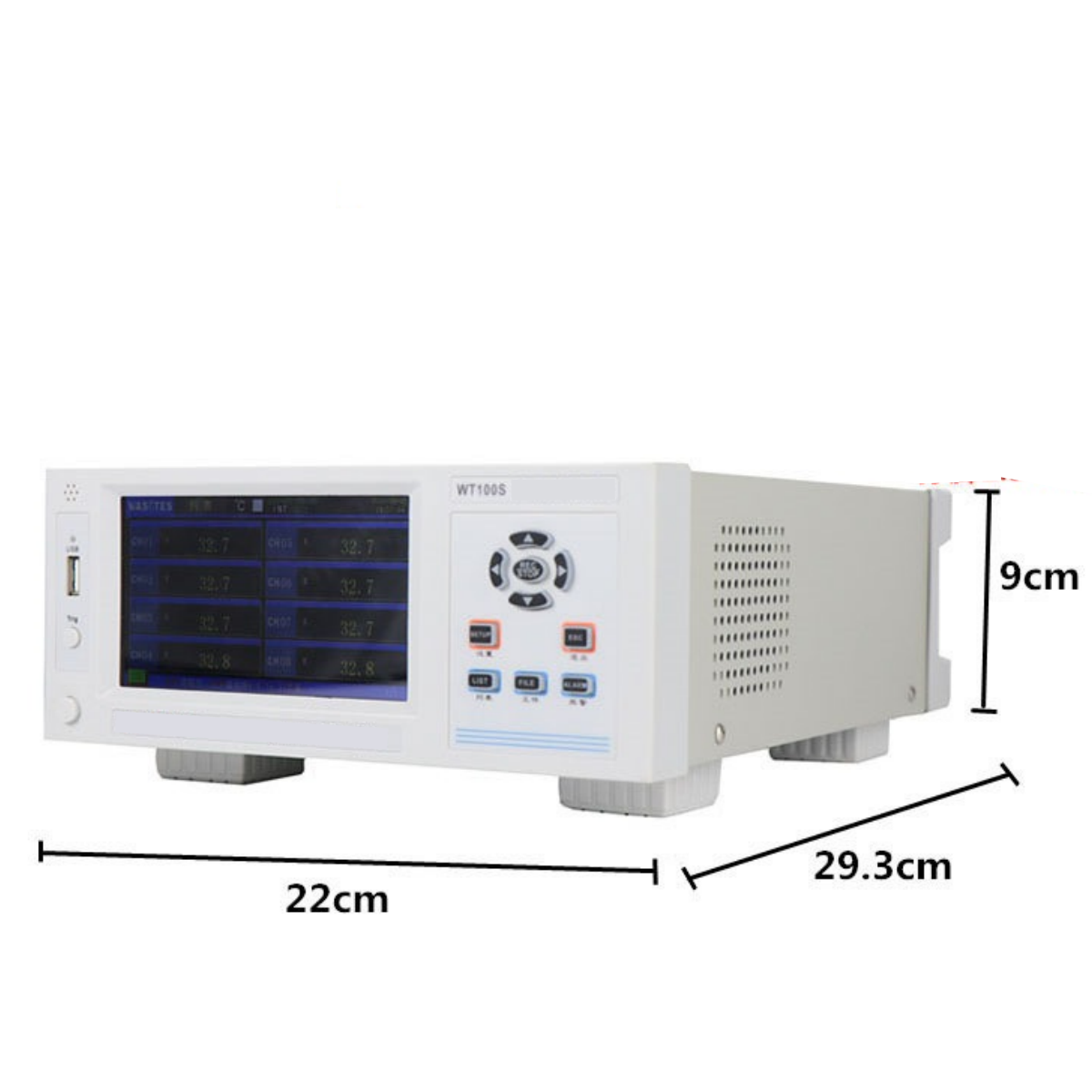

| Product Size | Width 220 X depth 293 X high foot 106mm |
| Weight | About 3Kg (Different configurations vary) |
| Environment | 0-40°C, 20%~80%RH (No condensation) |
