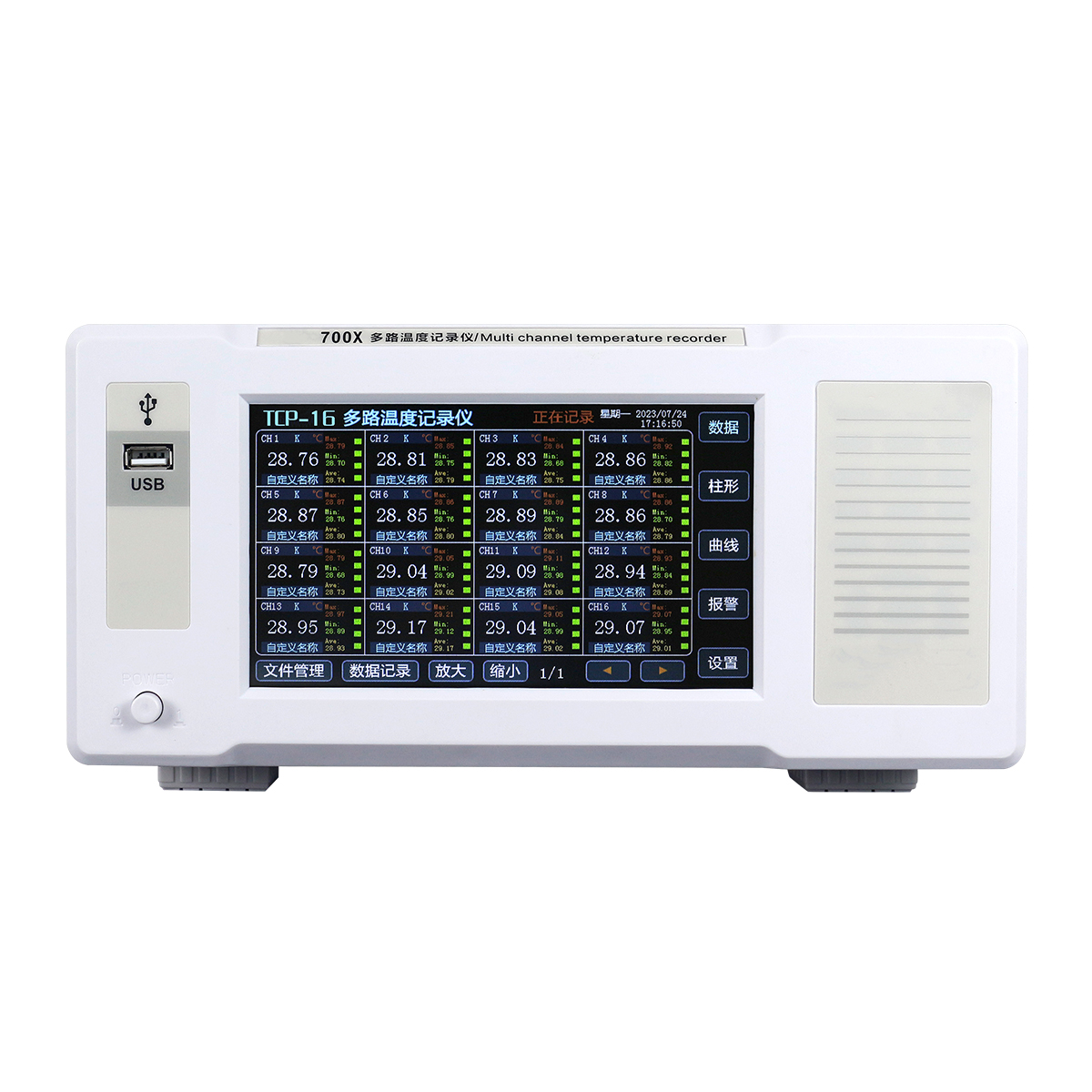

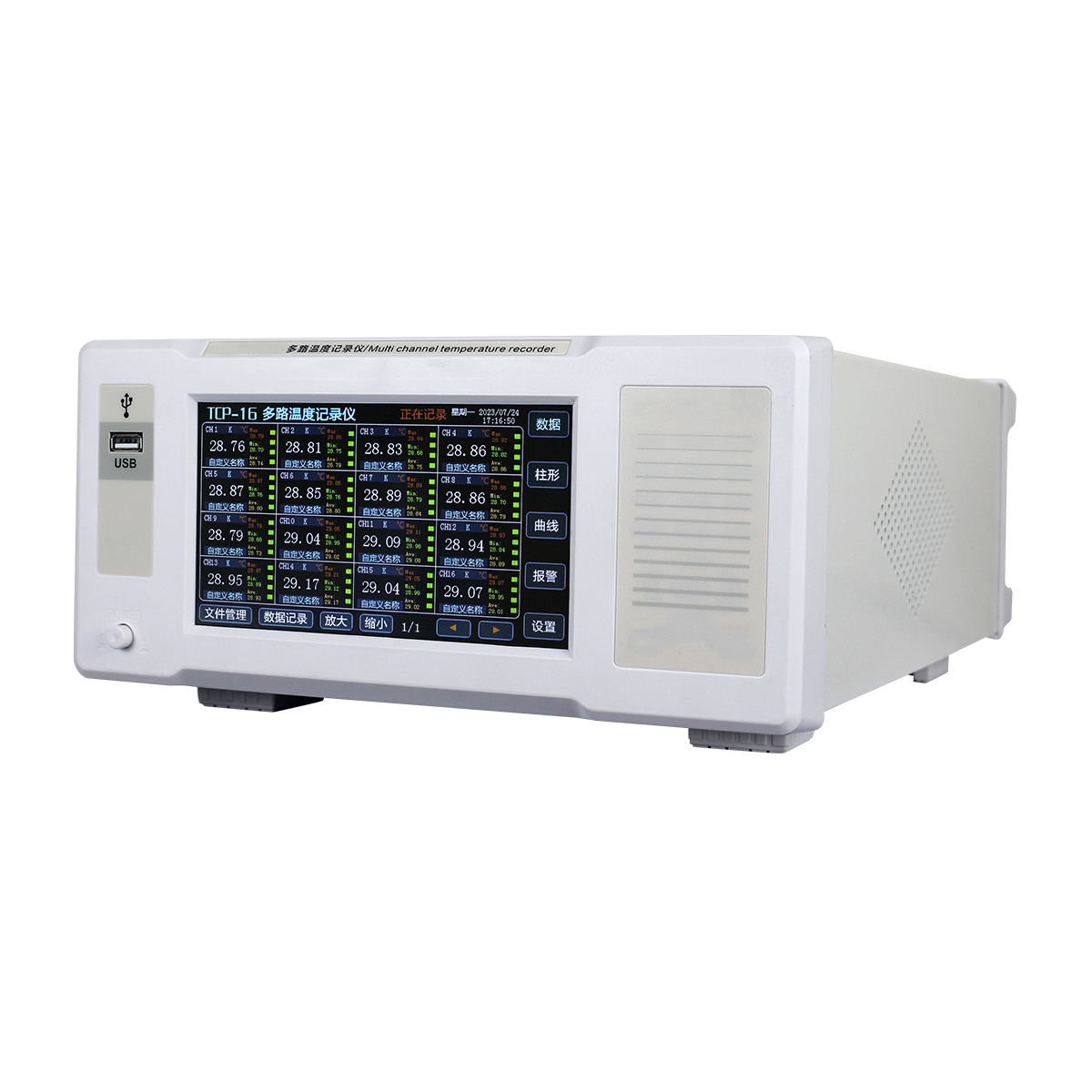

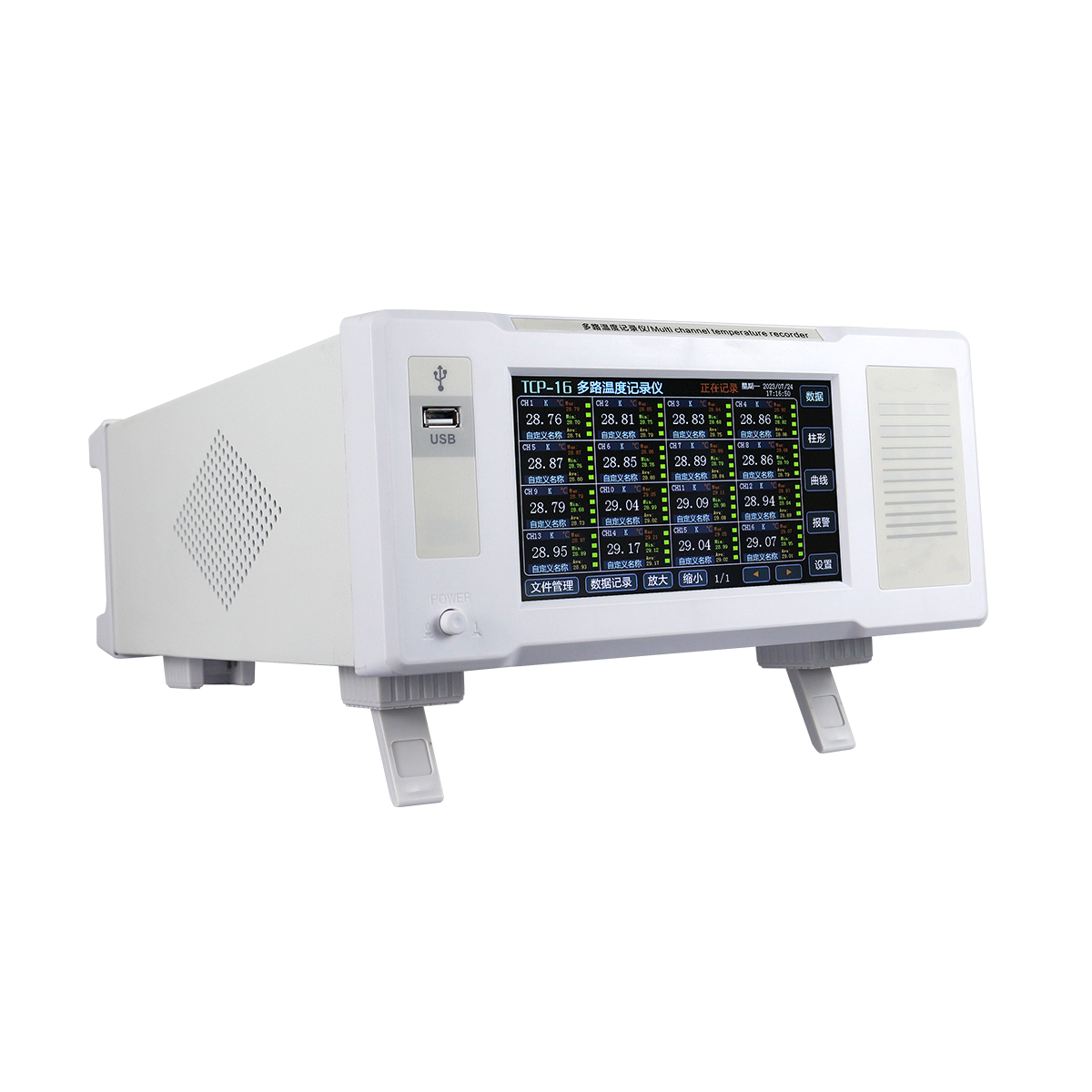

MYAMI Hot Sale Industrial Digital Thermometer 40 Channel Temperature Tester Temperature Data Recorder Logger with USB Interface

1 / 5

MYAMI Hot Sale Industrial Digital Thermometer 40 Channel Temperature Tester Temperature Data Recorder Logger with USB Interface

Send Inquiry

Product Description

8-64 Channel Multi Channel Temperature Tester Digital Thermometer

The TCP-X series multi-channel temperature recorder has been widely used in various industries due to its rich display screen, flexible operation mode, and powerful recording, calculation, and management functions. Composed of a motherboard with ARM microprocessor as the core, main power supply, external transmitter power supply, intelligent channel board, large capacity FLASH, etc.

Selling Points

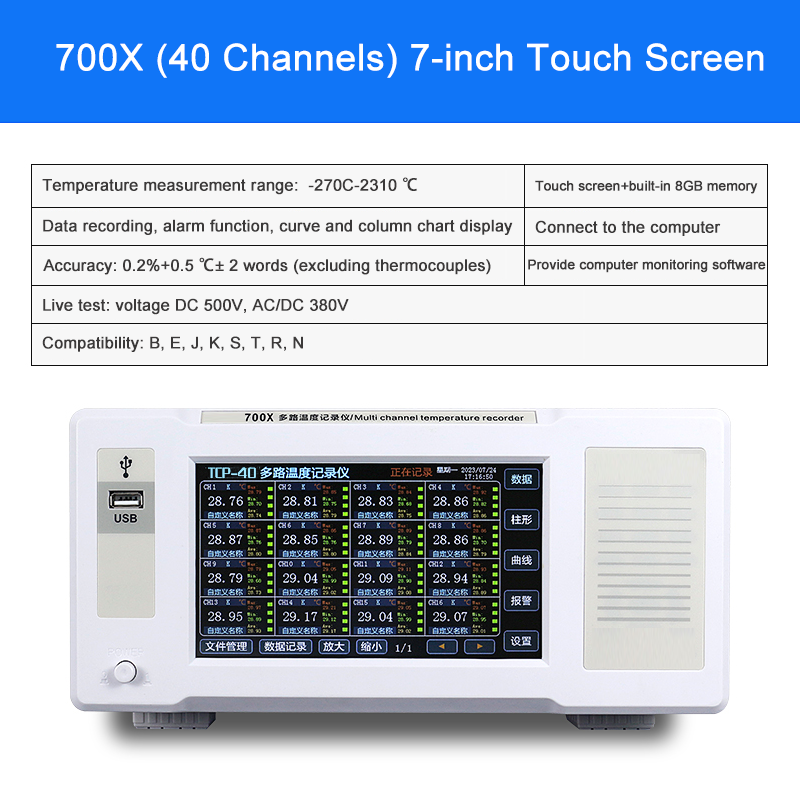

7-Inch Touch Screen

Upgraded with a new interface, high-definition display of test data, high accuracy, clarity, and intuitiveness, making testing more convenient.

Anti-High Frequency Interference

More stable testing. The peak isolation voltage can reach 2500V, ensuring the reliability and stability of the sampled data.

32-Bit ARM Microprocessor

The motherboard adopts a high-speed, high-performance 32-bit ARM microprocessor, providing fast sampling speed and high efficiency.

K-Type Thermocouple Probe

Standard K-type thermocouple probe. Services for extending or customizing thermocouple probe lengths are available.

Multi-Probe Compatibility

Temperature probes are compatible with B, E, J, K, S, T, R, and N types. (Comes standard with K-type probe range: -270°C ~ 1370°C).

Application Scenarios

Widely applied in workshop inspection, lighting inspection, environmental inspection, electrical inspection, and more.

Product Specifications

Product Series	TCP-X series
Model	TCP-8	TCP-16	TCP-24	TCP-32	TCP-40	TCP-48	TCP-56	TCP-64
Test route	8	16	24	32	40	48	56	64
Screen size	7-inch screen
Display basic accuracy	0.2% + 0.5 ℃ ± 2 words (excluding thermocouple)
Correction	Error correction for each channel
Bar chart	Display real-time temperature in column chart format, providing a clearer and more intuitive comparison of temperature values across different channels
Curve graph	Real time temperature tracking in the form of a curve chart, with X and Y axis values supporting automatic and manual settings
Alarm function	Can set upper limit, upper limit, lower limit, and lower limit alarms, while supporting recording function
Voltage	The default pressure type for 0~5V and 0~10V is voltage (optional)
Current	The default flow type for 0~20mA and 4~20mA is current (optional)
Temperature unit	K, °F, °C
Interface display	Support switching between Chinese and English interfaces
Performance testing	32-bit ARM microprocessor, screen response time < 0.5S
Anti high-frequency dry resistance	Each channel is isolated from each other, resistant to high-frequency interference, and has a live test voltage of DC 500V and AC 380V
Storage capacity	8GB large capacity, FLASH flash data
Data protection	Electronic data is not lost and can store data from 72 hours to 180 days
USB function	Support external USB drive for exporting and storing data
Display process	-999.9 ~ 1999.9
Temperature compensation	Each channel supports temperature compensation and provides multiple compensation modes
Marking and commenting function	Each temperature value can be named arbitrarily
Real-Time Clock	Using hardware real-time clock with clock error of ± 1 minute/year
Sampling period	Three adjustable modes: high 100ms, medium 500ms, and low 1s
Communication interface	USB communication interface
Power configuration	Can operate normally within a wide voltage range of AC 85V~265V

Product Details

Product Classification

Company Profile

Our Certificate

Exhibition

Packaging & Transportation

FAQ

Q1 What's the MOQ?

Re: The MOQ of machinery is 1 set.

Q2 What's delivery time?

Re: The general delivery time is 3~5 days after order confirmed, it depends on the order quantity.

Q3 Can you send the video to show how the machine works?

Re: Certainly, we have video of every machine, please feel free to contact us, we will send you machine video.

Q4 What's your payment terms?

Re: 100% before shipment.

Q5 What's the payment method?

Re: We accept T/T and L/C payment.

Q6 What probe types are compatible with the temperature recorder?

Re: The temperature recorder is compatible with B, E, J, K, S, T, R, and N type thermocouple probes. It comes standard with a K-type thermocouple probe, covering a range of -270°C to 1370°C.
