Myami Power
1 / 5

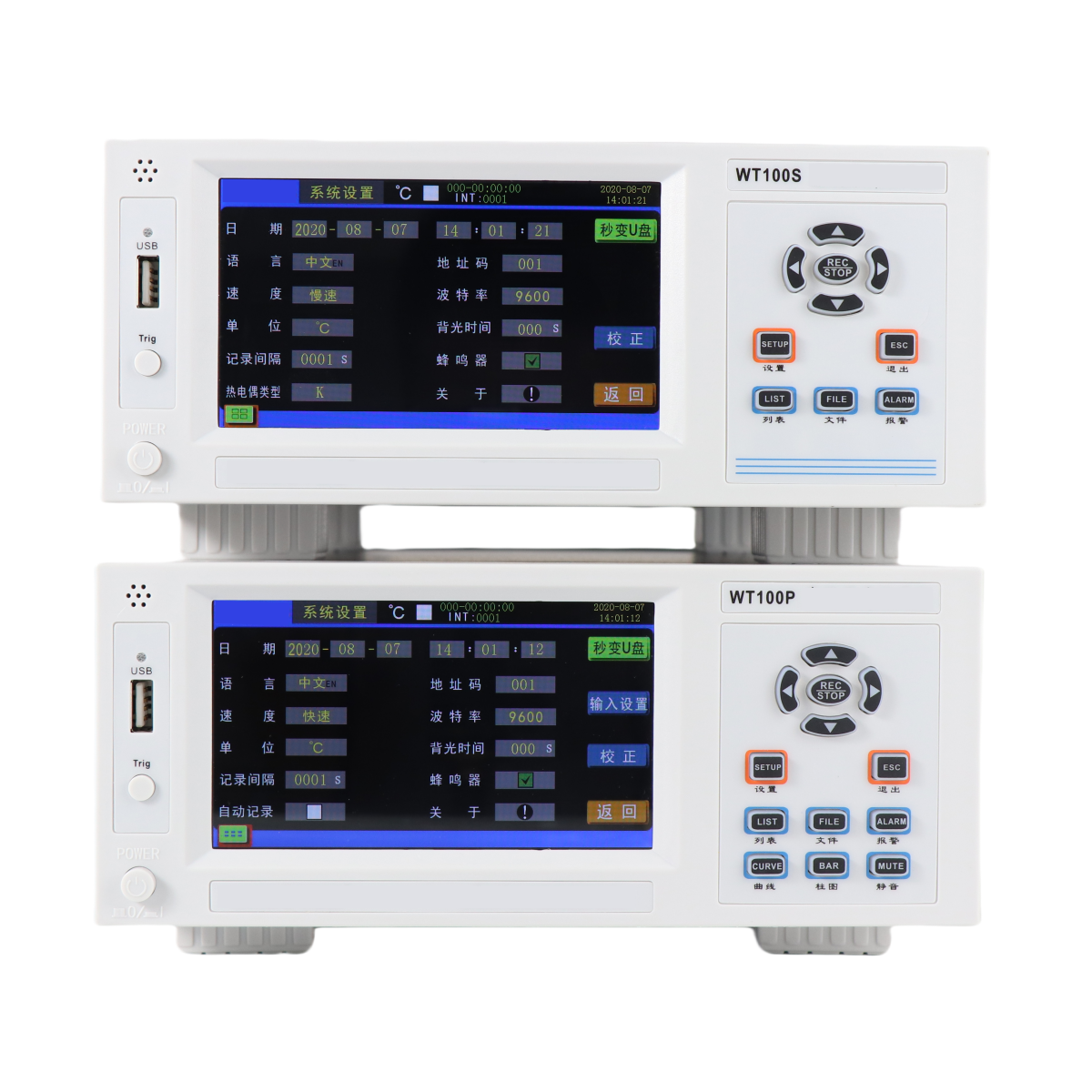

| Display mode | 5 inch TFT true color LCD industrial touch screen 854 x 480 pixels |

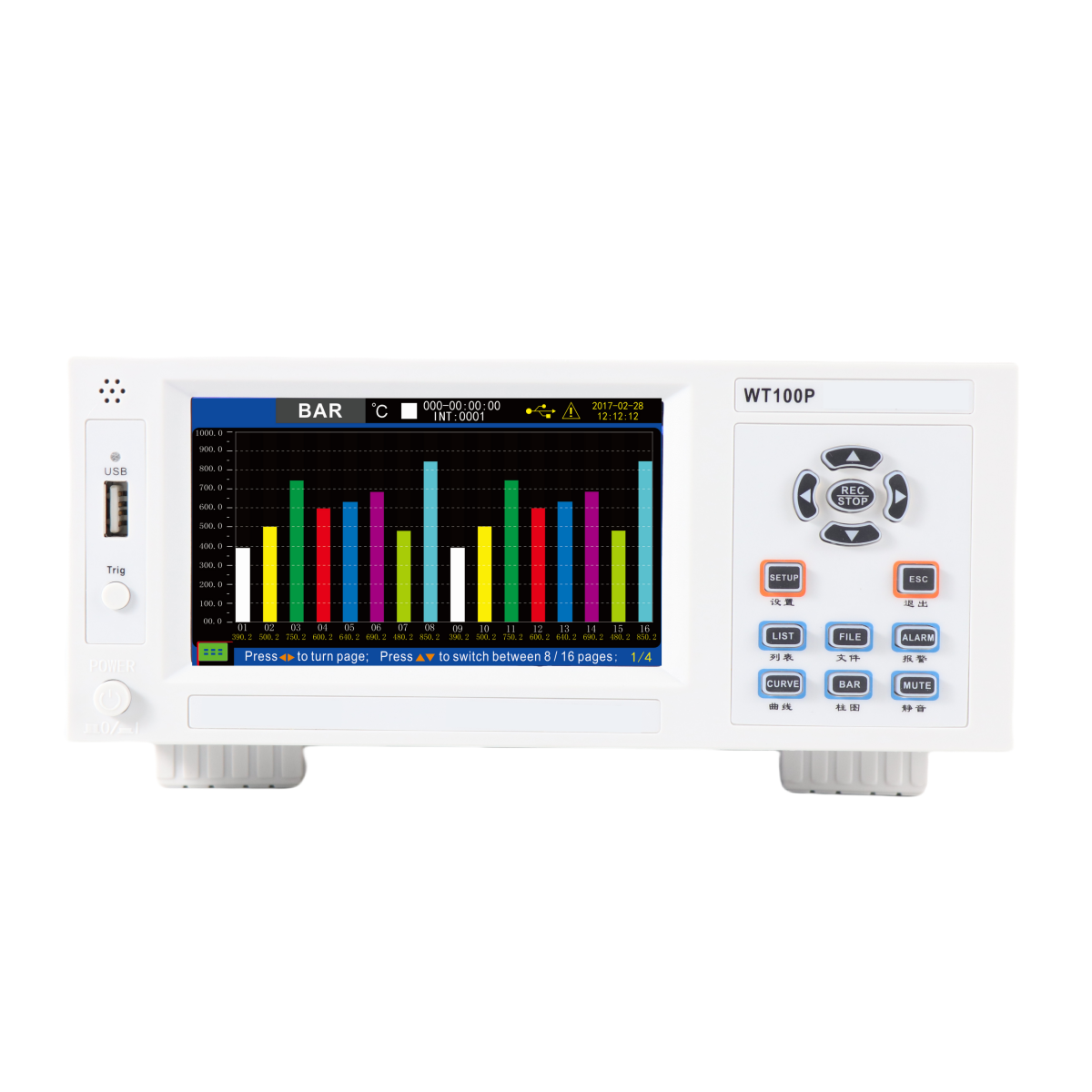

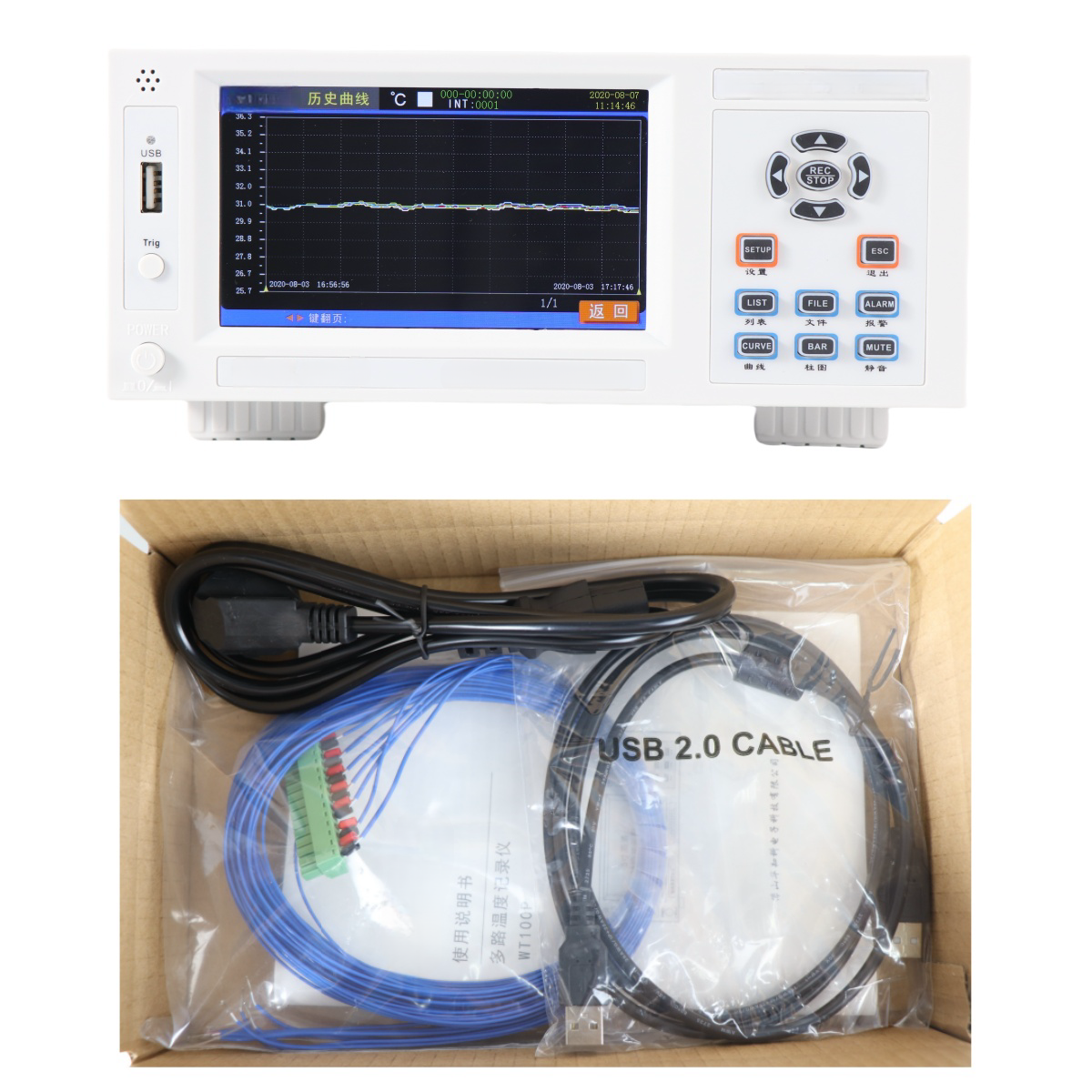

| Display form | Real-time list, curve (history curve), Bar Chart, current alarm (history alarm), file record, record list |
| Record Query | Local view record curve, history alarm record, computer software analysis query |

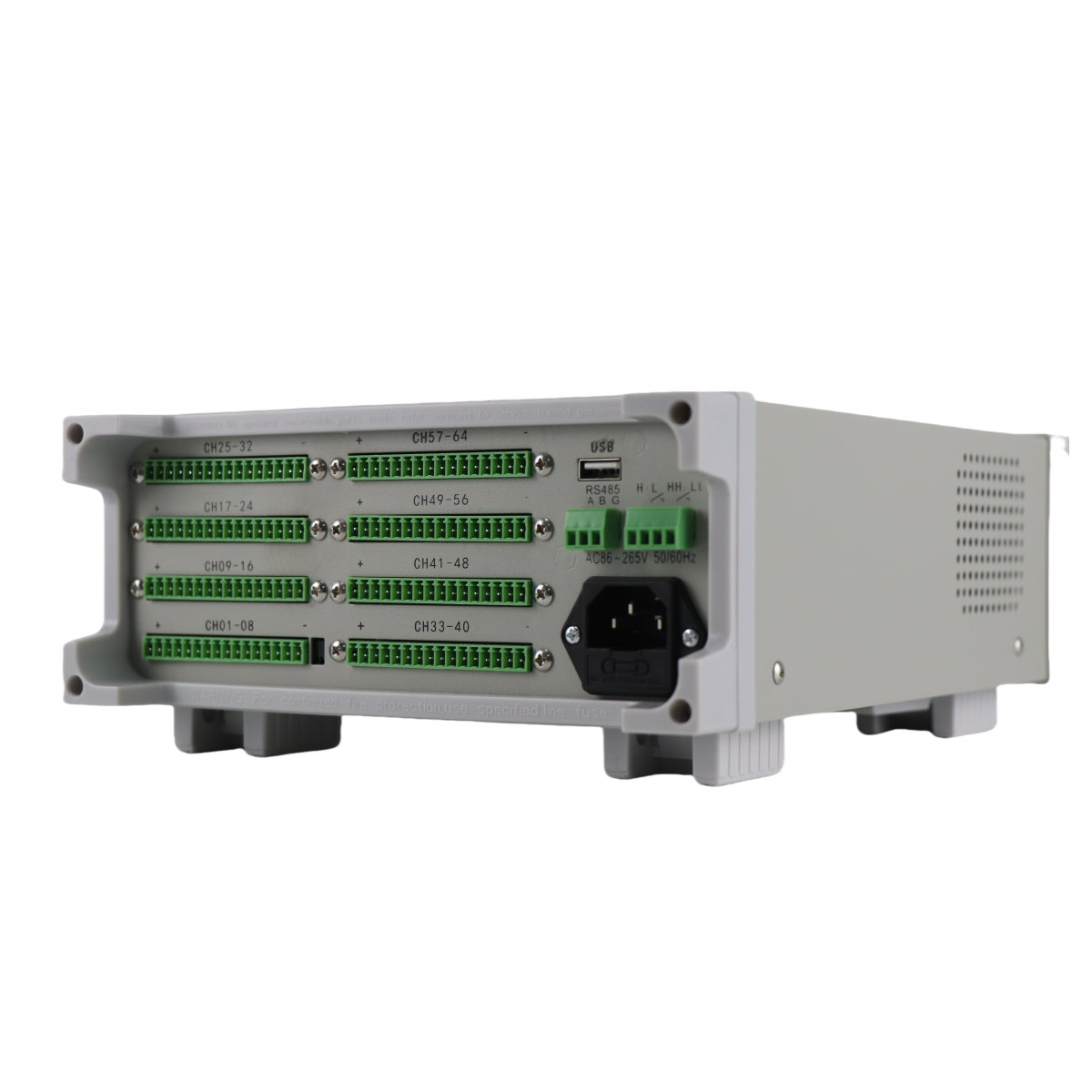

| Number of channels | Each module has 8 channels and supports up to 64 channels. |
| Thermocouple | K J E T N S R B |
| Basic accuracy | 0.2% ± 2 words (excluding thermocouple error) |
| Measuring range | -200 ~ 1820°C (depending on the scale of thermocouple) |
| Cold End compensation | ACCURACY: 0.5 °C |
| Resolution | 0.1°C |
| Calibration | Independent error correction for each channel Y=Kx+B (x=measured value) |
| Number of files | 64 (circular record) |
| File capacity | A file can record 130,000 sets of numbers (channel numbers are not distinguished) |
| USB Port | Export Record file, second change U Disk Function (instrument is U Disk) directly view files and software. |
| Record time | 1-second recording interval can record 97 consecutive days. Total time = record interval x 97 days. |
| Sampling speed | Speed per channel: 0.1 S, SLOW: 1s |
| Interchannel isolation | AC/DC up to 350V, high voltage live measurement, super anti-interference ability |
| Control output | Two sets of independent relay outputs are (H/L) and (HH/LL) relays |
| Alarm sounds | All the way buzzer sound (any alarm when sounded, can be set to mute) |
| Record interval | 1-9999 seconds, any setting |
| Communication Interface | Standard USB, RS485 |
| Power supply | AC85-265V±10%, frequency 50Hz/60Hz < 10W |
| Thermocouple | Each channel is equipped with a standard 2M K type thermocouple |
| Dimensions | Width 220 X depth 293 X height 106mm |
| Weight | About 3 kg (configuration is different) |
| Environmental conditions | 0~40°C, 20%~80%RH (no condensation) |
