WS30 is a multi-channel temperature recorder equipped with a 32-bit high-speed CPU for precise data processing and a 5-inch industrial liquid-crystal touch-screen. Supporting K, J, E, T, N, S, R, and B type thermocouple inputs, it features three intuitive display modes: list, curve, and bar chart. Designed with complete measuring functions, it is ideal for production, laboratory, and R&D applications.
This versatile instrument is widely utilized in household appliances, lighting devices, power tools, motors, electric heating products, pharmaceutical research, chemical engineering, metallurgy, power generation, and scientific inspection facilities. Customized measurement functions can be configured to meet complex specialized testing scenarios.
The WS30 selects channel signals via a photoelectric switch selector and amplifies them using a high-fidelity signal amplifier. The analog signal is converted to digital through an A/D converter and processed by the microcontroller unit (MCU). An integrated cold-junction compensation circuit measures real-time ambient temperature for calibration. Combined measurement and cold-junction values are processed to output correct, highly accurate temperatures on the screen. External interfacing allows configuration, local storage, and connection to computers for professional data analysis.
| Mode | WS30 |
| Display method | 5-inch IPS industrial-grade liquid-crystal touch-screen |
| Display form | Real-time list values, real-time bar charts, real-time line charts |
| Record query | Analyzed and queried through computer software |
| Number of channels | 10CH |
| Thermocouple types | K, J, E, T, N, S, R, B |
| Accuracy | ±0.2°C plus 2 characters (excluding the error of the thermocouple) |
| Measurement range | -200 to 1820 degrees Celsius (subject to thermocouple calibration) |
| Cold-end compensation | Accuracy: ±0.5°C |
| Resolution | 0.01°C |
| Number of documents | Twenty (loop records) |
| File capacity | One file can record 200,000 sets of data (regardless of channel count) |
| Recording duration | Total recording duration = recording interval × 46.29 days |
| Sampling speed | 100mS per channel |
| Isolation between channels | Measurement of live 350V high-voltage AC/DC |
| Alarm sound | Available (Sounds when triggered, can be set to mute) |
| Recording interval | Can be set from 1 to 300 seconds |
| Communication interface | Standard USB |
| Power supply | DC 5V ≤ 2W |
| Thermocouple cable | Each channel is equipped with a 2-meter K-type thermocouple |
| Size | 195.0mm x 127.0mm x 41.0mm |
| Weight | About 1.5Kg |
| Environmental conditions | 5 to 40 degrees Celsius, 20% to 80% relative humidity (non-condensing) |
The WS30 supports eight standard thermocouple types, including K, J, E, T, N, S, R, and B, allowing for high adaptability across diverse measurement environments.
It can save up to 20 files in a loop recording structure. Each file holds up to 200,000 sets of data, regardless of the number of active channels.

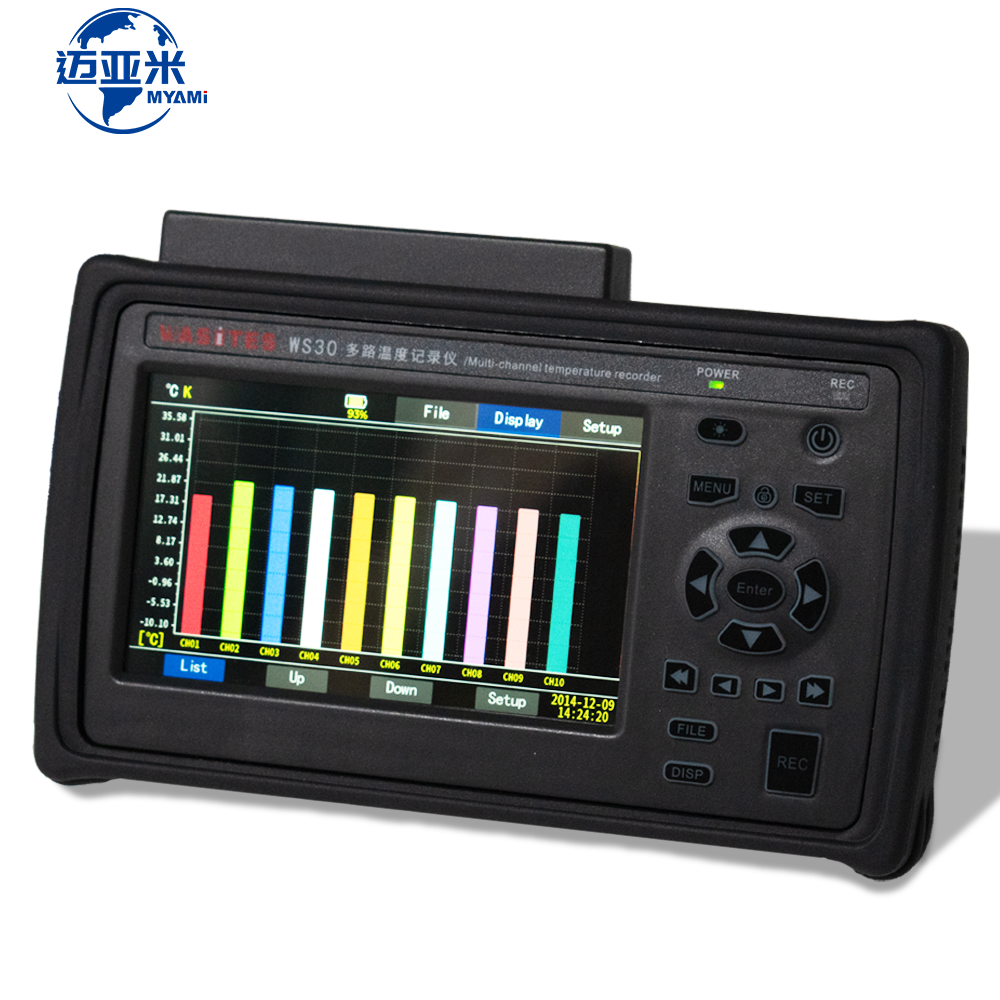

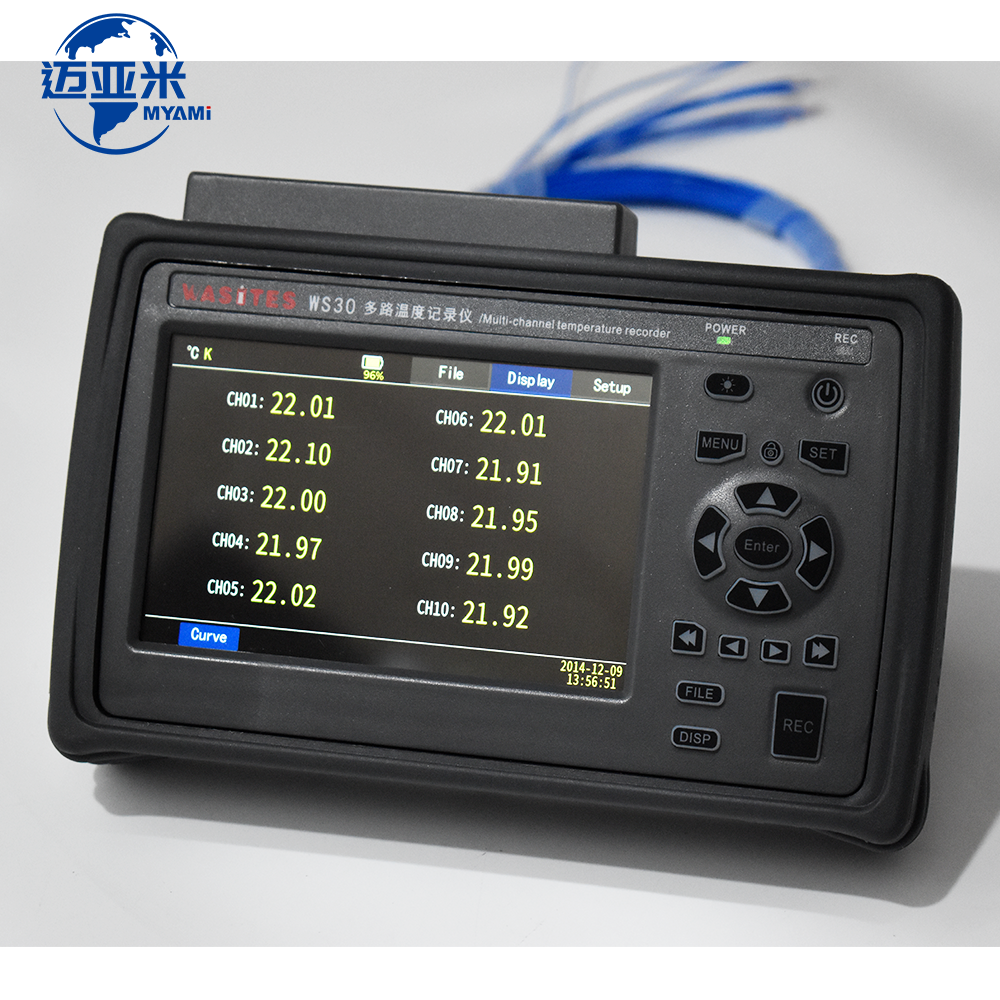

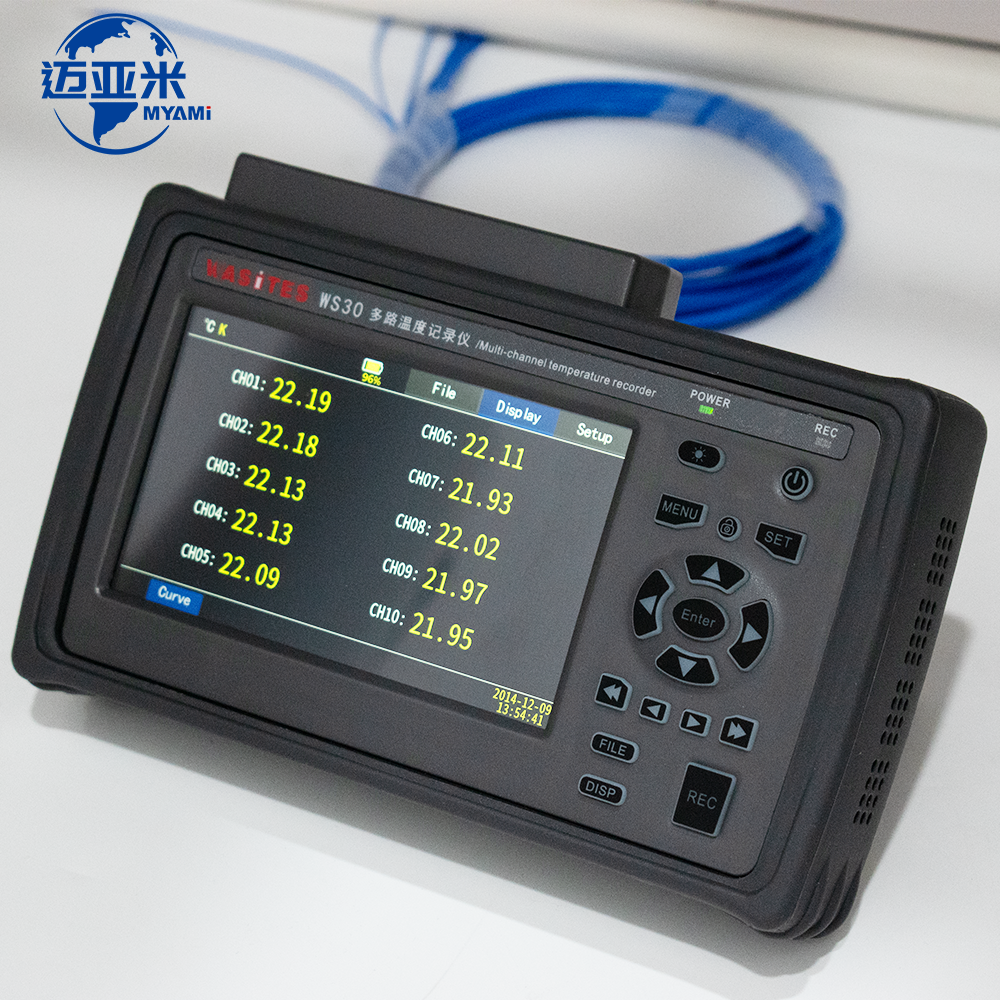

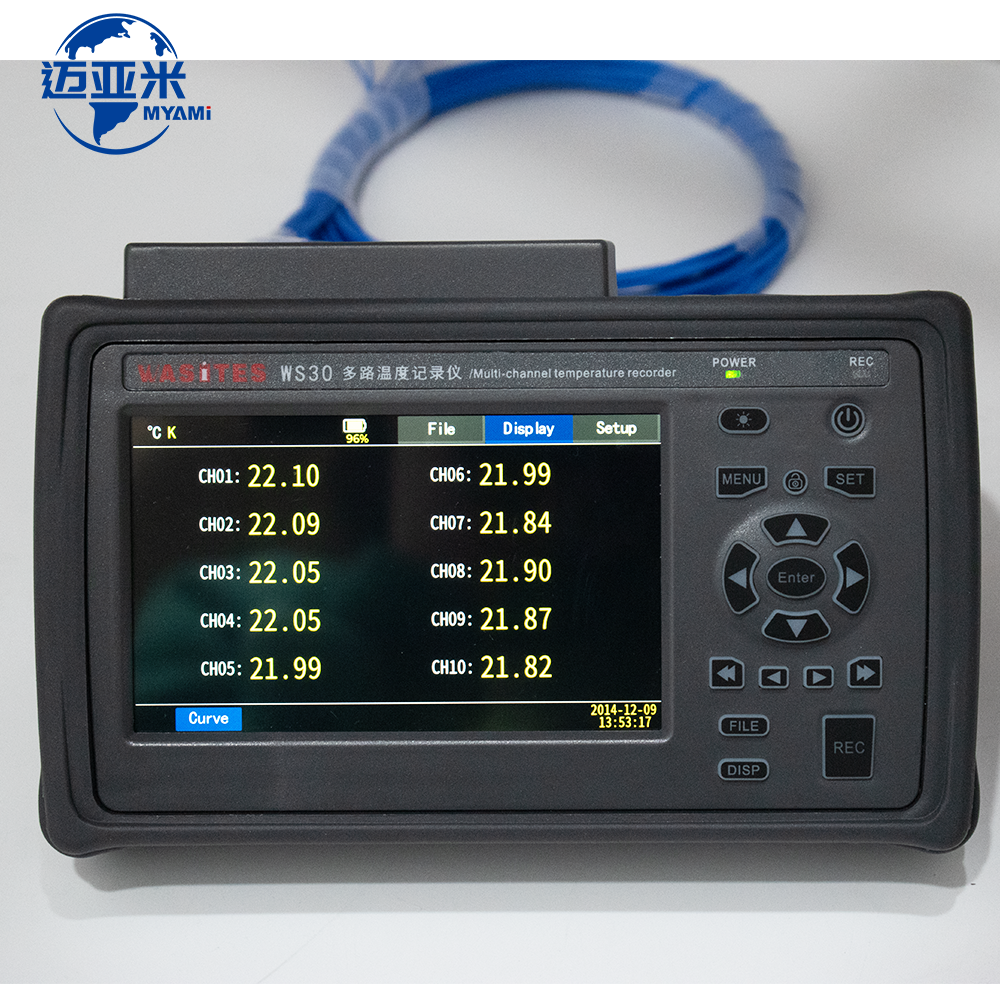

The 5-inch IPS industrial touch-screen supports three real-time display formats: list values, bar charts, and line graphs (curves) for intuitive monitoring.
The WS30 comes with a standard USB interface. Using the included Type-C cable and computer software, you can query, transfer, and analyze recorded historical files.
Yes. It features electrical isolation capable of handling live 350V high-voltage AC/DC measurements, and includes an audible alarm that can be customized or muted.
