| Mode | ws30 |
| Display Format | 5 inch IPS industrial grade LCD touch screen |
| Display Form | Real-time list of values, real-time bar graphs, Bi real-time graphs |
| Record query | Only in the computer software analysis query. |
| Number of channels | 10 channels |
| Thermocouple | K, J, E, T, N, S, R, B |
| Basic Accuracy | ±0.2°C +2 words (without thermocouple error) |
| Measuring Range | -200~1820°C (subject to thermocouple indexing range) |
| Cold End Compensation | Accuracy: ±0.5°C |
| Resolution | 0.01°C |
| Number of files | 20 (Cyclic Recording) |
| File capacity | A file can record 200,000 groups (not distinguish the number of channels) |
| Recording Duration | Total recording time = recording interval x 46.29 days. |
| Sampling Speed | 100mS per channel |
| Interchannel isolation | AC/DC 350V high voltage charged measurement |
| Control Output | None |
| Alarm sound | One way buzzer ringing (ringing at any alarm, mute can be set) |
| Recording interval | 1-300 seconds arbitrary settings |
| Communication Interface | Standard USB |
| Power supply | DC5V <2W |
| Thermocouple Accessories | Each channel is equipped with a standard 2-meter K-type thermocouple |
| Dimension | 195.0mm x 127.0mm x 41.0mm |
| Weight | Approx. 1.5Kg |
| Environmental Conditions | 5~40°C, 20%~80%RH (no condensation) |
The WS30 data logger supports multiple thermocouple indexing types, including K, J, E, T, N, S, R, and B. This wide range of compatibility allows for flexible usage across various temperature ranges.
The device is equipped with 10 isolated channels. The sampling speed is remarkably fast at 100 milliseconds per channel, ensuring accurate real-time data acquisition.
Yes, it features interchannel isolation rated for AC/DC 350V high voltage, making it safe and reliable to perform measurements even on charged circuits and systems.
The device supports cyclic recording across 20 files. Each file has a massive capacity of 200,000 groups, allowing you to log data for up to 46.29 days depending on the selected recording interval.

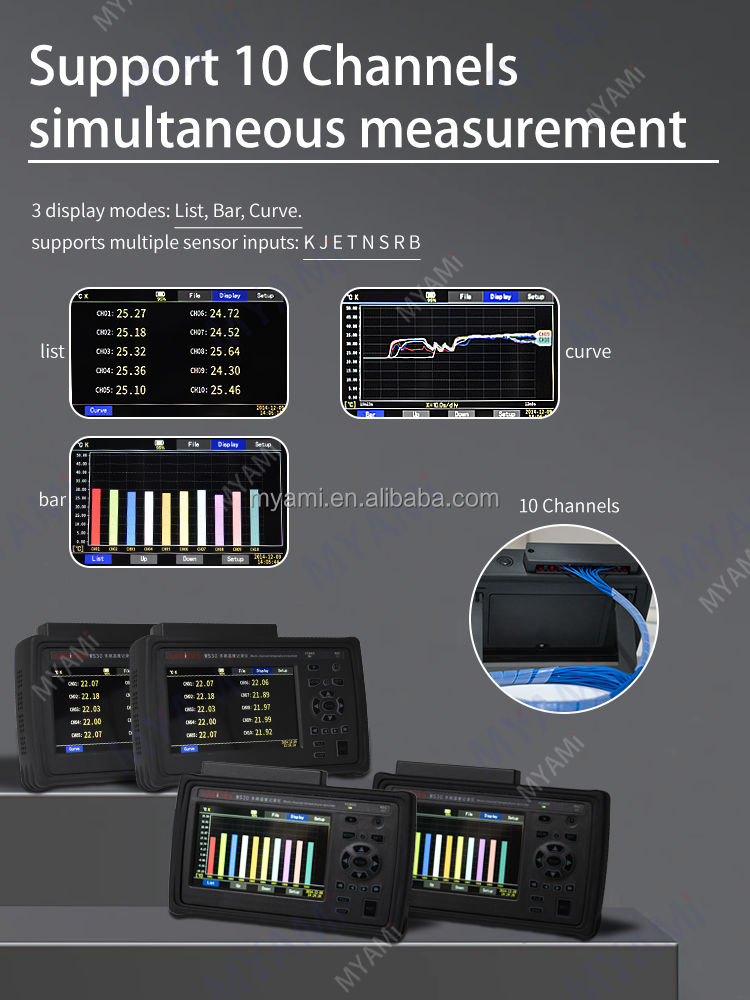

The device features a 5-inch IPS touch screen that displays real-time lists, bar graphs, and curves. For detailed analysis and historical queries, data can be exported to a computer via the standard USB communication interface.
