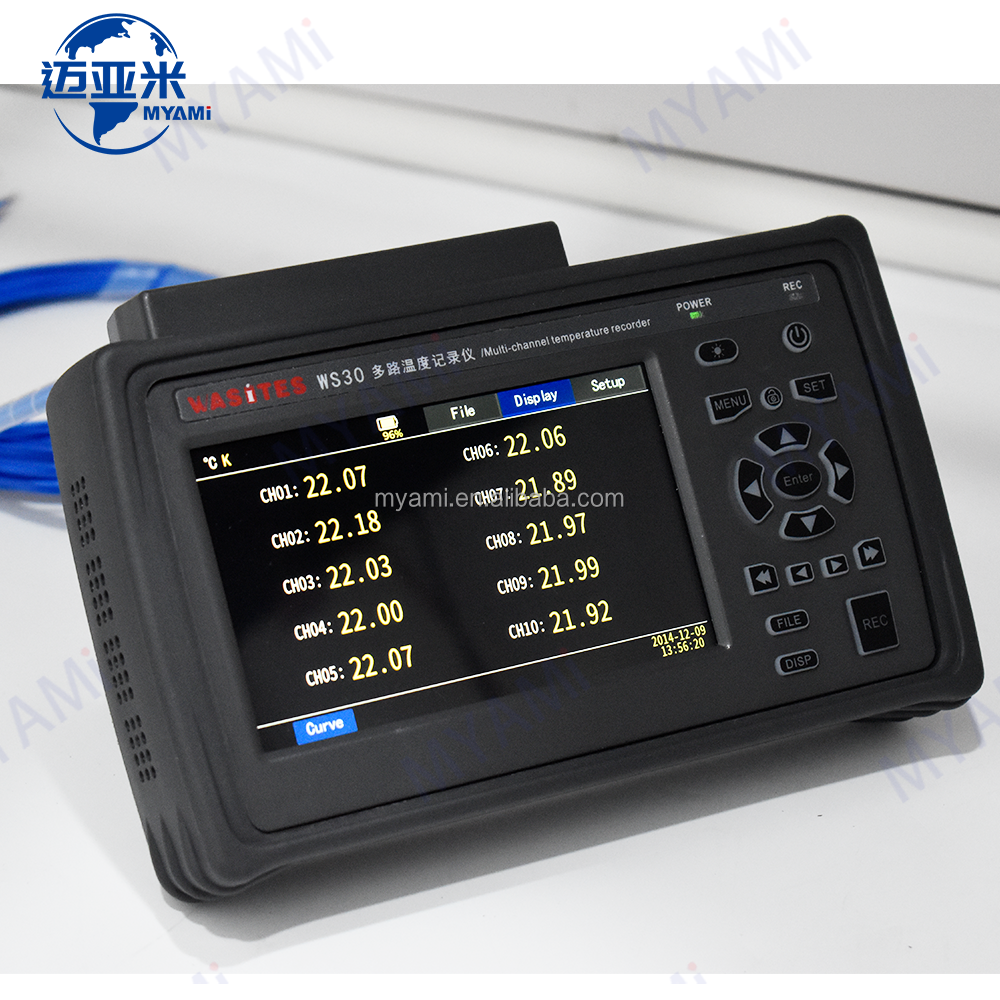

| Mode | ws30 |
| Display Format | 5 inch IPS industrial grade LCD touch screen |
| Display Form | Real-time list of values, real-time bar graphs, Bi real-time graphs |
| Record query | Only in the computer software analysis query. |
| Number of channels | 10 channels |
| Thermocouple | K, J, E, T, N, S, R, B |
| Basic Accuracy | ±0.2°C + 2 words (without thermocouple error) |
| Measuring Range | -200 ~ 1820°C (subject to thermocouple indexing range) |
| Cold End Compensation | Accuracy: ±0.5°C |
| Resolution | 0.01°C |
| Number of files | 20 (Cyclic Recording) |
| File capacity | A file can record 200,000 groups (not distinguish the number of channels) |
| Recording Duration | Total recording time = recording interval x 46.29 days. |
| Sampling Speed | 100mS per channel |
| Interchannel isolation | AC/DC 350V high voltage charged measurement |
| Control Output | None |
| Alarm sound | One way buzzer ringing (ringing at any alarm, mute can be set) |
| Recording interval | 1-300 seconds arbitrary settings |
| Communication Interface | Standard USB |
| Power supply | DC5V < 2W |
| Thermocouple Accessories | Each channel is equipped with a standard 2-meter K-type thermocouple |
| Dimension | 195.0mm x 127.0mm x 41.0mm |
| Weight | Approx. 1.5Kg |
| Environmental Conditions | 5 ~ 40°C, 20% ~ 80%RH (no condensation) |
A1: The ws30 temperature data logger supports 10 measurement channels, allowing you to monitor and record multiple points simultaneously.
A2: The device features a 5-inch IPS industrial-grade LCD touch screen. It supports multiple display forms, including a real-time list of values, real-time bar graphs, and Bi real-time graphs.
A3: The ws30 is compatible with K, J, E, T, N, S, R, and B thermocouple types. Additionally, each channel comes equipped with a standard 2-meter K-type thermocouple.
A4: The device supports 20 cyclic recording files. Each file can record up to 200,000 groups of data (combined across all active channels).
A5: The basic accuracy is ±0.2°C + 2 words (excluding thermocouple error), with a high resolution of 0.01°C and a cold end compensation accuracy of ±0.5°C.
A6: The sampling speed is 100mS per channel, and the device features AC/DC 350V high voltage charged measurement isolation between channels to ensure safe and stable operation.
