Output Characteristics of Channel A

Waveform Characteristics

Waveform type: 32 wave forms including: Sine, Square, Triangle, Ramp, Pulse etc.

Waveform length: 1024 points

Sample rate: 100MSa/s

Waveform amplitude resolution: 8bits

Sinusoidal harmonic rejection: ≥40dBc (<1MHz), ≥35dBc (1MHz~20MHz)

Sine wave total distortion: ≤1% (20Hz~200kHz)

Square rise/fall edge time: ≤35ns

Overshoot: ≤10%

Square wave duty cycle: 1%~99%

Channel A Frequency & Amplitude

Frequency Characteristics

Frequency range: Sine: 40mHz~Max. frequency (MHz)
Other waveforms: 40mHz~1MHz

Frequency resolution: 40mHz

Frequency accuracy: ±(5×10-5+40mHz)

Frequency stability: ±5×10-6/3 hours

Amplitude Characteristics

Amplitude range:
- 2mVpp~20Vpp 40mHz~10MHz (high impedance)
- 2mVpp~15Vpp 10MHz~15MHz (high impedance)
- 2mVpp~8Vpp 15MHz~20MHz (high impedance)

Resolution: 20mVpp (amplitude>2Vpp), 2mVpp (amplitude<2Vpp)

Amplitude accuracy: ±(1%+2mVrms) (high impedance, true RMS, frequency at 1kHz)

Amplitude stability: ±0.5%/3 hours

Amplitude flatness: ±5% (frequency<10MHz), ±10% (frequency >10MHz)

Output impedance: 50Ω

Channel A Offset & Sweep

DC Offset Characteristics

Offset range: ±10V (high impedance, attenuation 0dB)

Resolution: 20mVdc

Offset accuracy: ±(1%+20mVdc)

Sweep Characteristics

Linear sweep on frequency or amplitude.

Sweep range: free to set start point and stop point.

Sweep step: higher than any figure of resolution.

Sweep rate: 10ms~60s/step

Sweep mode: UP, DOWN, UP-DOWN

Manual sweep: step/time

Channel A Modulation & Burst

Frequency Modulation Characteristics

Carrier signal: channel A signal

Modulation signal: internal signal of channel B or external signal

FM deviation: 0%~20%

Shift Keying Characteristics

FSK: free to set carrier frequency and hop frequency

ASK: free to set carrier amplitude and hop amplitude

PSK: hop phase 0~360°, Max. resolution 1°

Alternative rate: 10ms~60s

Burst Characteristics

Carrier signal: channel A signal

Trigger signal: TTL_A signal

Burst count: 1~65000 cycles

Burst mode: Internal TTL, External, Single

Output Characteristics of Channel B

Waveform Characteristics

Waveform type: 32 waveform including: Sine, Square, Triangle, Ramp, Pulse etc.

Waveform length: 1024 points

Sample rate: 12.5MSa/s

Waveform amplitude resolution: 8bits

Square duty cycle: 1%~99%

Frequency Characteristics

Frequency range: Sine: 10mHz~1MHz
Other waveform: 10mHz~100kHz

Frequency resolution: 10mHz

Frequency accuracy: ±(1×10-5+10mHz)

Amplitude Characteristics

Amplitude range: 50mVpp~20Vpp (high impedance)

Resolution: 20mVpp

Output impedance: 50Ω

Burst Characteristics

Carrier single: channel B signal

Trigger signal: TTL_B signal

Burst count: 1~65000 cycles

Burst mode: Internal TTL, External, Single

TTL & Optional Characteristics

TTL Output Characteristics

Waveform Characteristics: Square, rise/fall time≤20ns

Frequency Characteristics: 40mHz~1MHz

Amplitude Characteristics: TTL, CMOS compatible, low<0.3V, high>4V

Optional Parts Characteristics

Frequency Counter:
- Testing frequency range: 1Hz~150MHz
- Input signal amplitude: 100mVpp~20Vpp

Power Amplifier:
- Max.output power: 7W (8Ω), 1W (50Ω)
- Max.output voltage: 22Vpp
- Frequency bandwidth: 1Hz~200kHz

Common Characteristics

Power Source

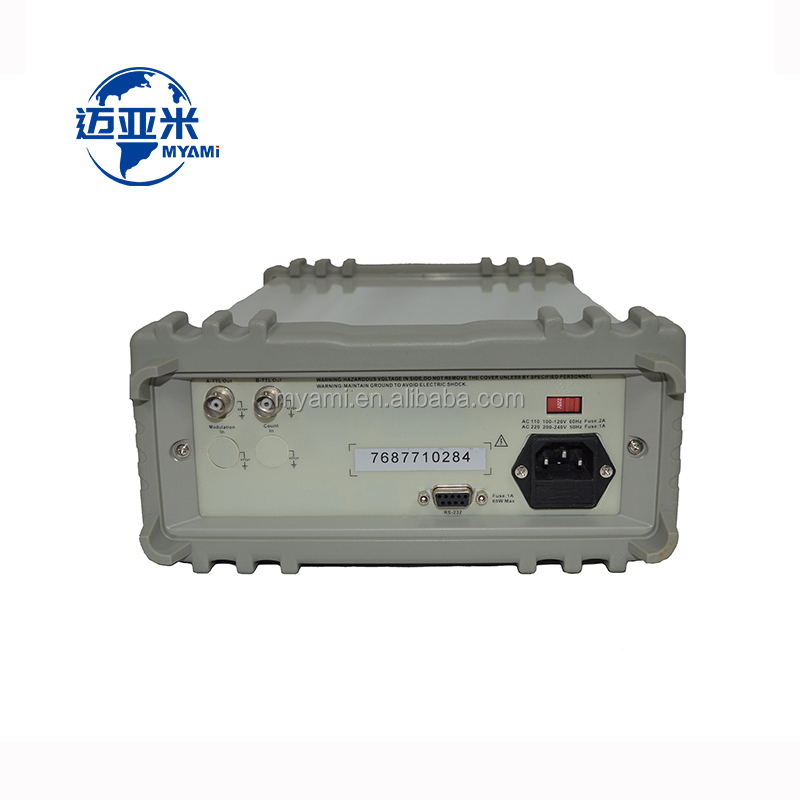

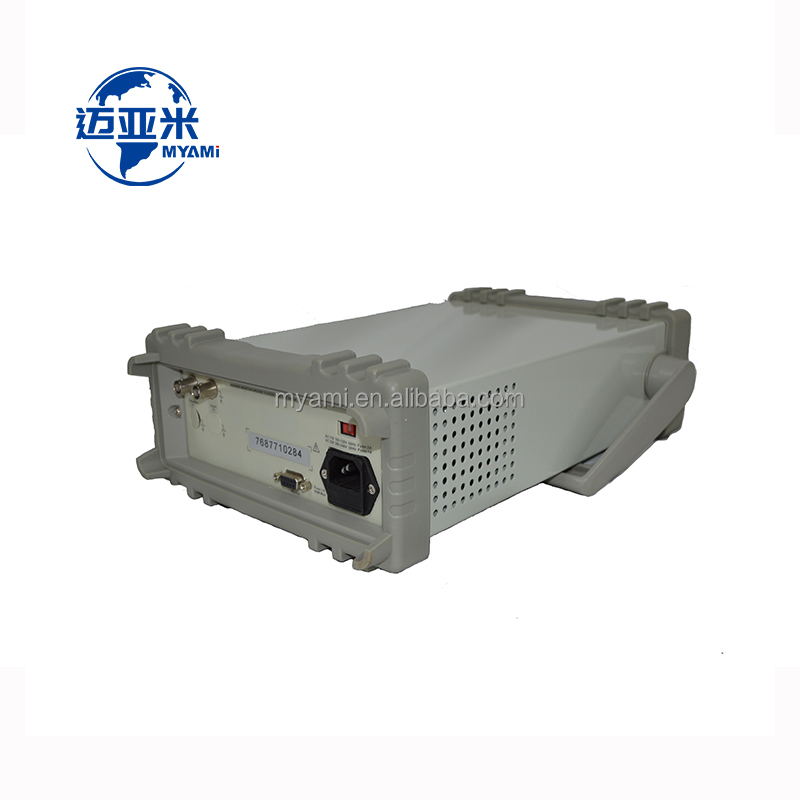

Voltage: AC220V (1±10%) / AC110V (1±10%) (Pay attention to the voltage selection on rear panel)

Frequency: 50Hz (1±5%)

Power: <45VA

Environment

Temperature: 0~40°C

Humidity: <80%

Operation Characteristics

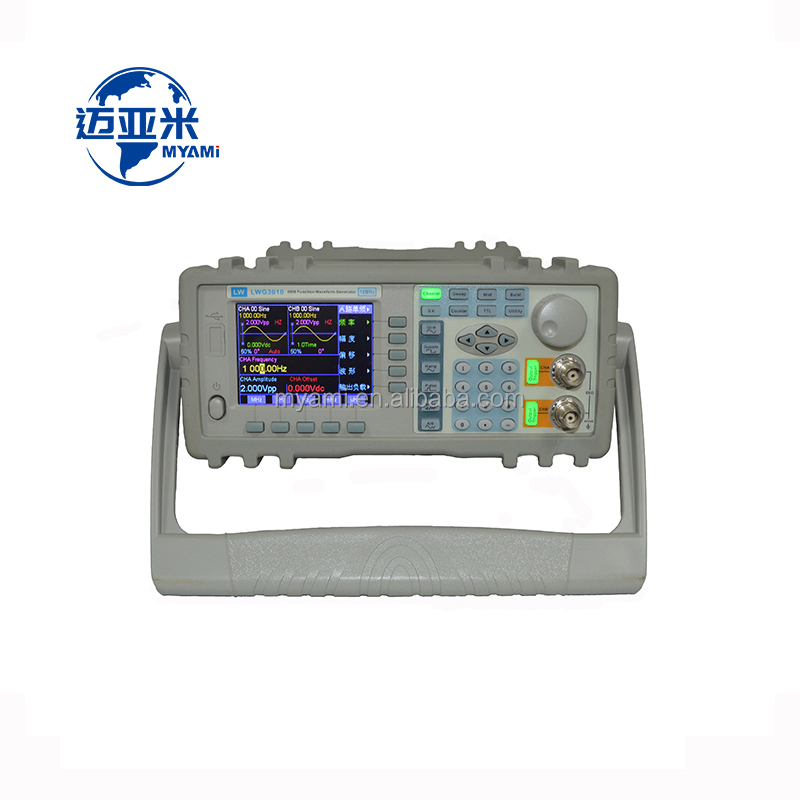

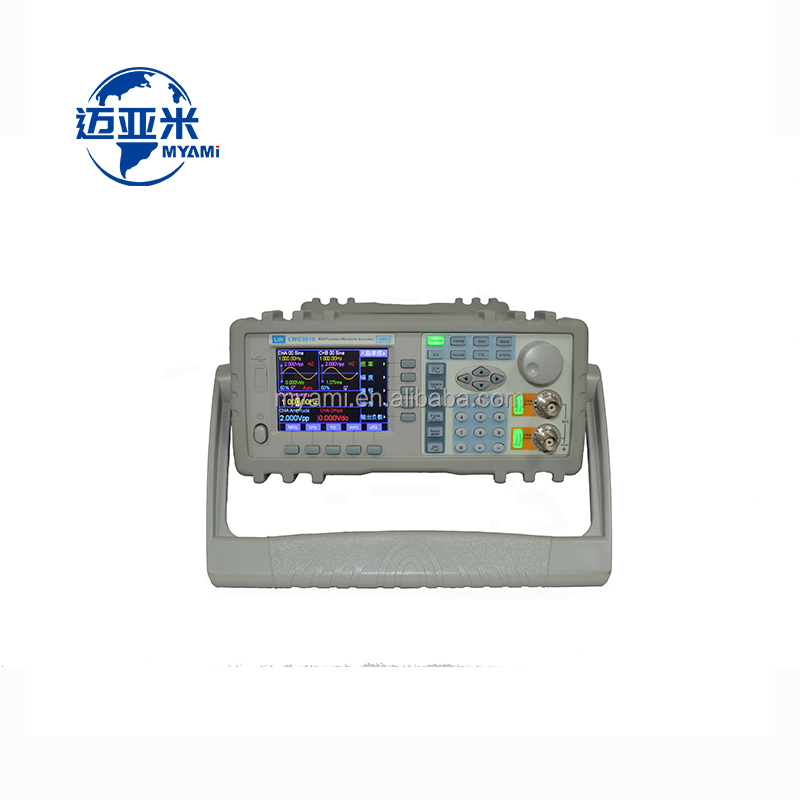

Keypad operation and rotary knob operation

Display

3.5-inch TFT display
English, Chinese (simplified), Chinese (traditional)

Dimension and Weight

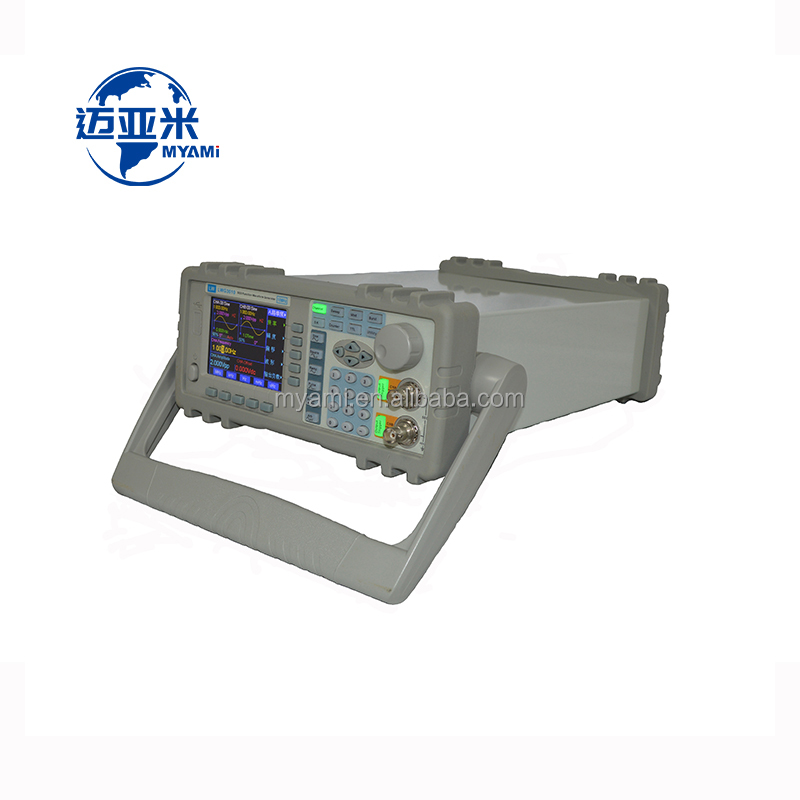

415mm x 295mm x 195mm
Weight: 3.5kg

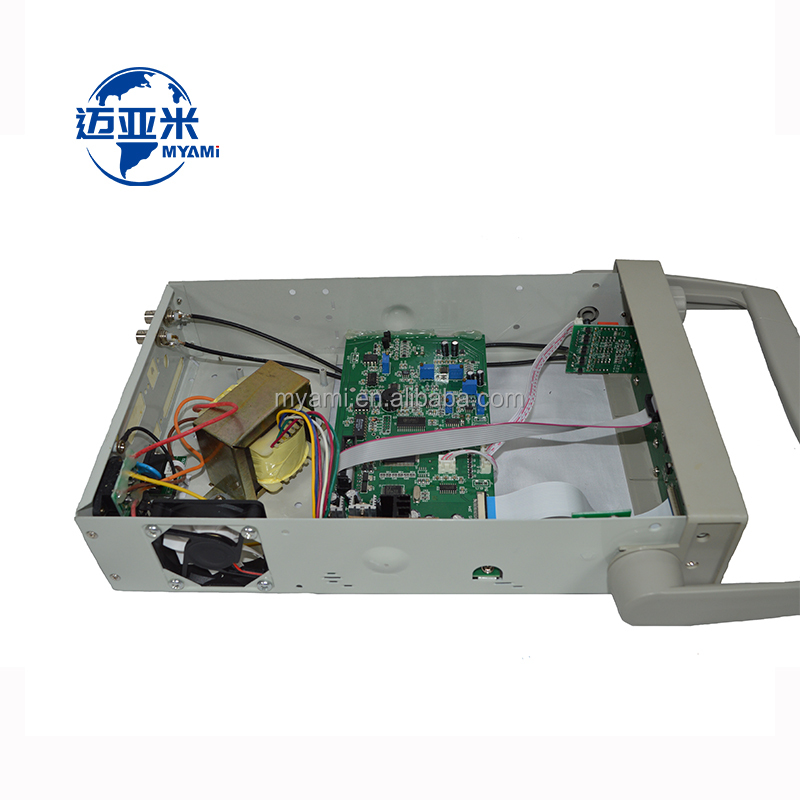

Manufacturing Technology

Surface Mount Technology, Integrated Circuit. High reliability and stability.
