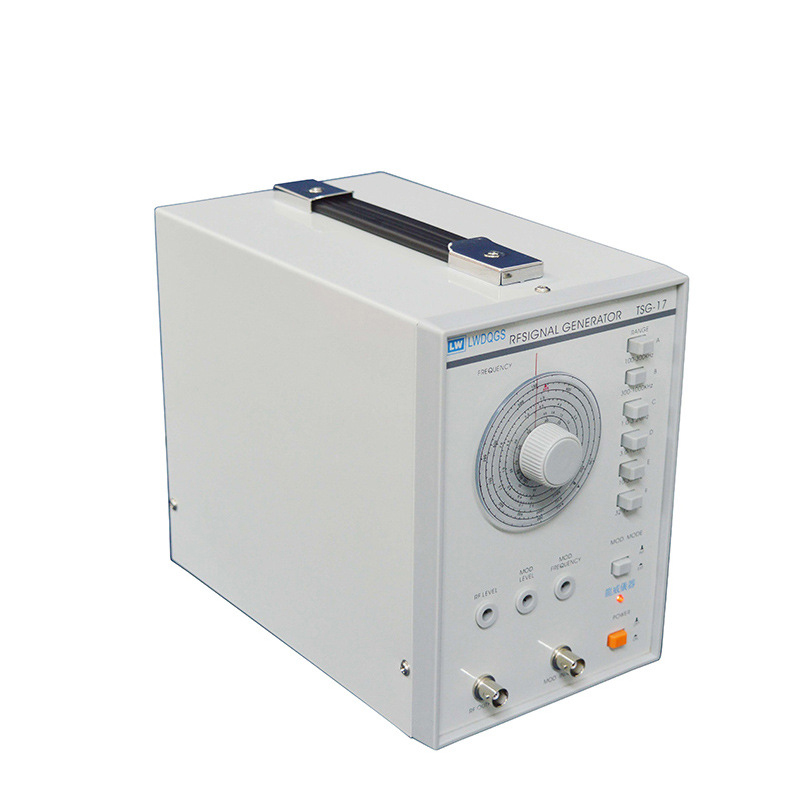

TSG-17 100KHz-150MHz Factory Selling High Frequency signal Generator Standard signal Source signal Generator

TSG-17 100KHz-150MHz High Frequency Signal Generator Standard Signal Source Signal Generator

Features

Advanced circuit design is installed with imported components to ensure minimal accuracy deviation
Generates signal frequency of 100KHz~150MHz, and ± 3% third harmonic can reach 450MHz
Waveform generation: sine wave and amplitude modulated wave
Over adjustment of modulation signal up to 80% or 100% in 1KHz
The output is RF/AM, and the maximum signal strength is ≥ 10VP-P
External modulation can be set arbitrarily at 50Hz~20KHz

Frequency band	A: 100KHz–300KHz
	B: 300KHz–1MHz
	C: 1MHZ–3.2MHz
	D: 3MHz–10MHz
	E: 10MHz–35MHz
	F: 32MHz–150MHz
Frequency range	100KHz–150MHz
Frequency accuracy	±5%
Output waveform	RF/AM
Output impedance	600Ω
RF output	>100Mvrms（Gear frequency ≤ 35MHz）
Level control	1mV~100mV
External modulation	150HZ~1.5KHz (The amplitude modulation is about 0-30% adjustable)
Work environment	50Hz~20KHz

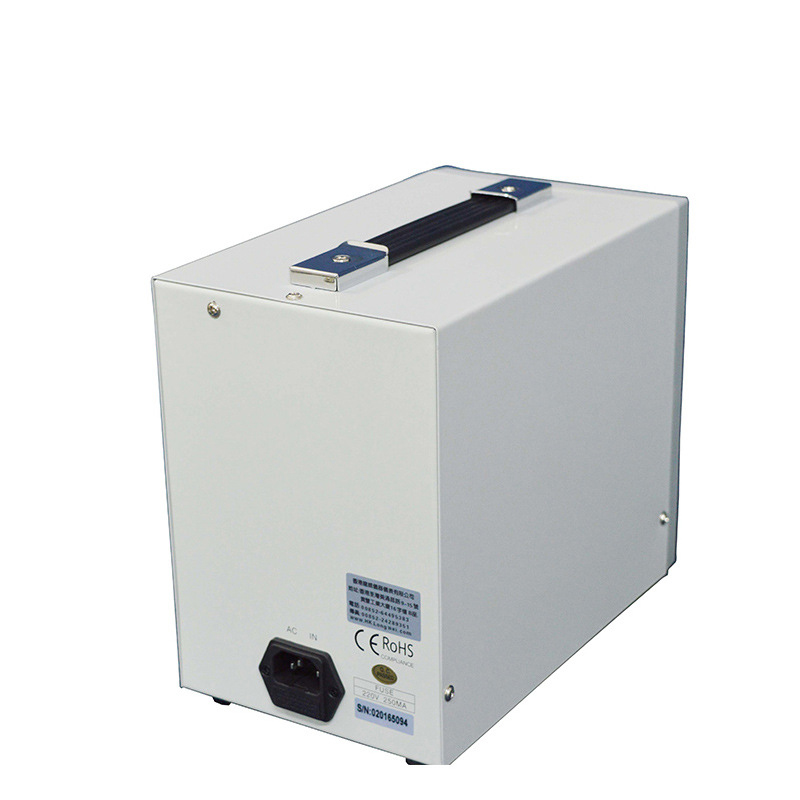

Power	220V/110V±10% 50Hz/60Hz
Size	239×140×200mm
Weight	2.5Kg

Product Details

Product Classification

Company Profile

Our Certificate

Exhibition

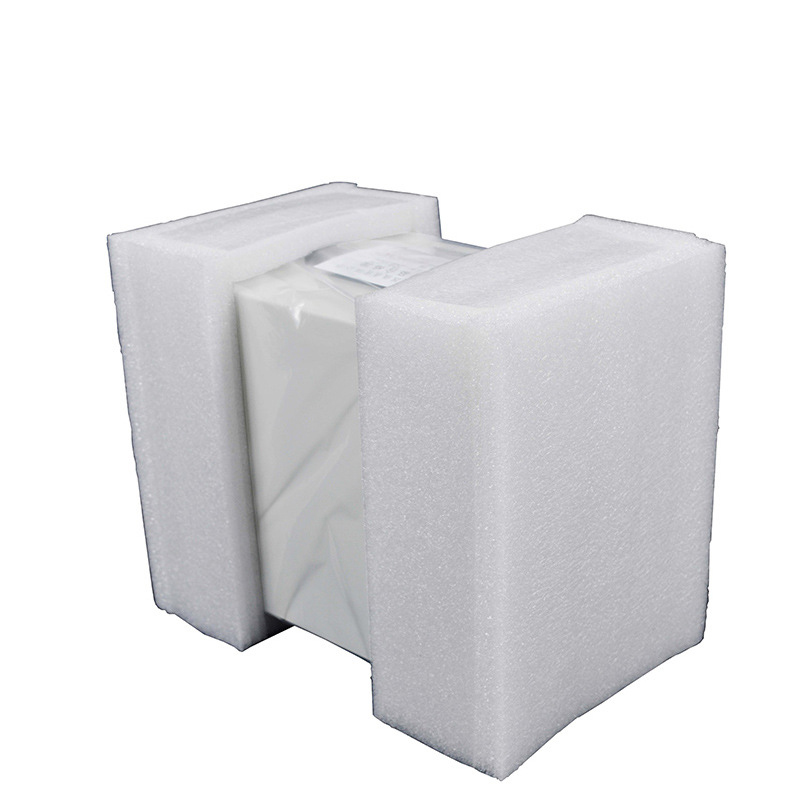

Packaging & Transportation

FAQ

What's the MOQ?

Re: The MOQ of machinery is 1 set.

What's delivery time?

Re: The general delivery time is 3~5 days after order confirmed, it depends on the order quantity.

Can you send the video to show how the machine works?

Re: Certainly, we have video of every machine, please feel free to contact us, we will send you machine video.

What's your payment terms?

Re: 100% before shipment.

What's the payment method?

Re: We accept T/T and L/C payment.

What power supply does the signal generator support?

Re: It supports 220V/110V±10% at 50Hz/60Hz.
