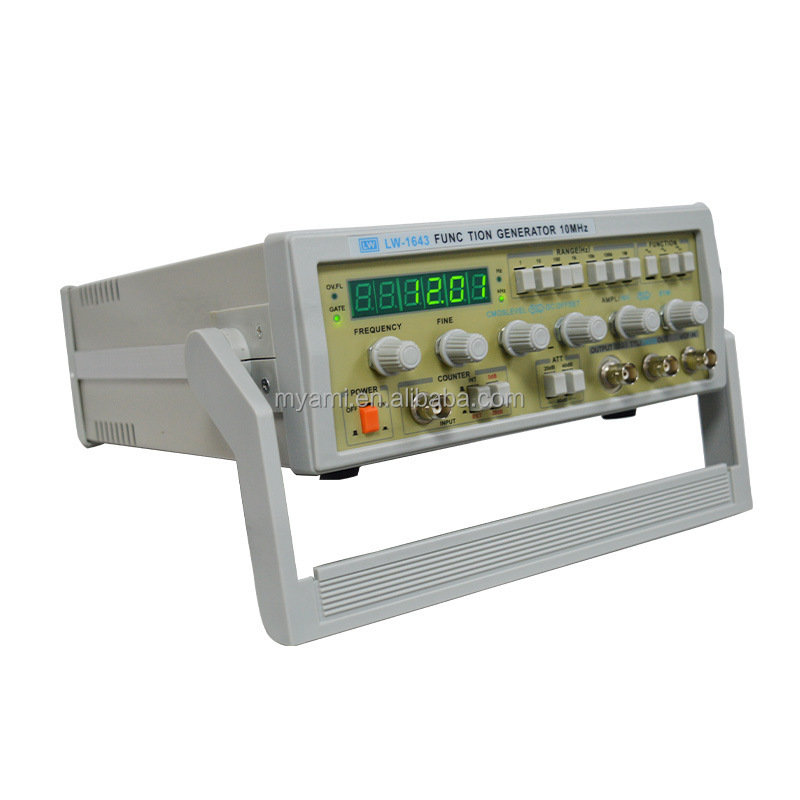

LW-1643 Low Frequency Generator Function Signal Generator 0.1Hz to 10MHz Frequency Meter Arbitrary Waveform Signal Generator

LW-1643 Low Frequency Generator Function Signal Generator (0.1Hz to 10MHz Frequency Meter Arbitrary Waveform Signal Generator)

Application: Laboratory

Key Features

Frequency Range: Generated frequency covers from 0.1Hz to 10MHz.

Output Waveforms: Sine wave, triangular wave, square wave, ramp wave, positive or negative pulse wave, sawtooth wave, etc.

Synchronous Output: TTL / CMOS can output synchronously.

Low Distortion: 10Hz to 100kHz is less than 1%.

Flat Frequency Response: 0.1Hz to 100kHz, no more than ± 0.5dB.

Frequency Measurement: Standard built-in meter measuring 1Hz to 30MHz.

Product Specifications

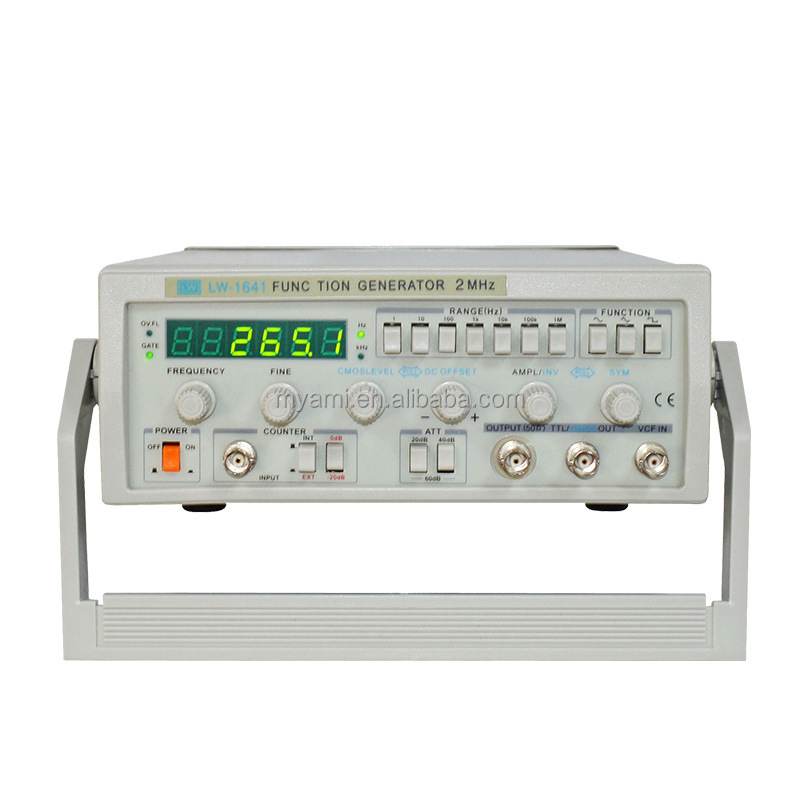

Model Parameter	LW-1641	LW-1642	LW-1643	LW-1645
Frequency Range	0.1Hz - 2MHz	0.1Hz - 5MHz	0.1Hz - 10MHz	0.1Hz - 15MHz
Output Impedance	50Ω ± 10%
Amplitude	Not less than 20Vp-p (no load)
DC Voltage	0 - ± 10V, continuously adjustable
Symmetrical Range	90:10 - 10:90
Square Wave Front	<100ns	<50ns	<35ns	<35ns
Sine Wave Characteristics
Distortion	Less than 1% (10Hz - 100kHz)
Frequency Response	0.1Hz-100KHz: ≤±0.5dB 100KHz-2MHz: ≤±1dB	0.1Hz-100KHz: ≤±0.5dB 100KHz-5MHz: ≤±1dB	0.1Hz-100KHz: ≤±0.5dB
TTL/CMOS Output
Level	TTL pulse low level ≤ 0.4V, high level ≥ 3.5V. CMOS pulse low level ≤ 0.5V, high level adjustable from 5V to 14V.
Rising Time	<100ns
VCR Input
Voltage	-5V ~ 0V ± 10%
Max Voltage Control Ratio	1000:1
Output Signal	DC - 1KHz
Frequency Meter
Test Scope	1Hz ~ 1KHz ≥ 10Vp-p
Input Impedance	Not less than 1MΩ / 20pF
Sensitivity	100mVrms
Maximum Input	150V (AC + DC)
Input Failure	20dB
Accuracy	Less than 0.003% ± 1 word

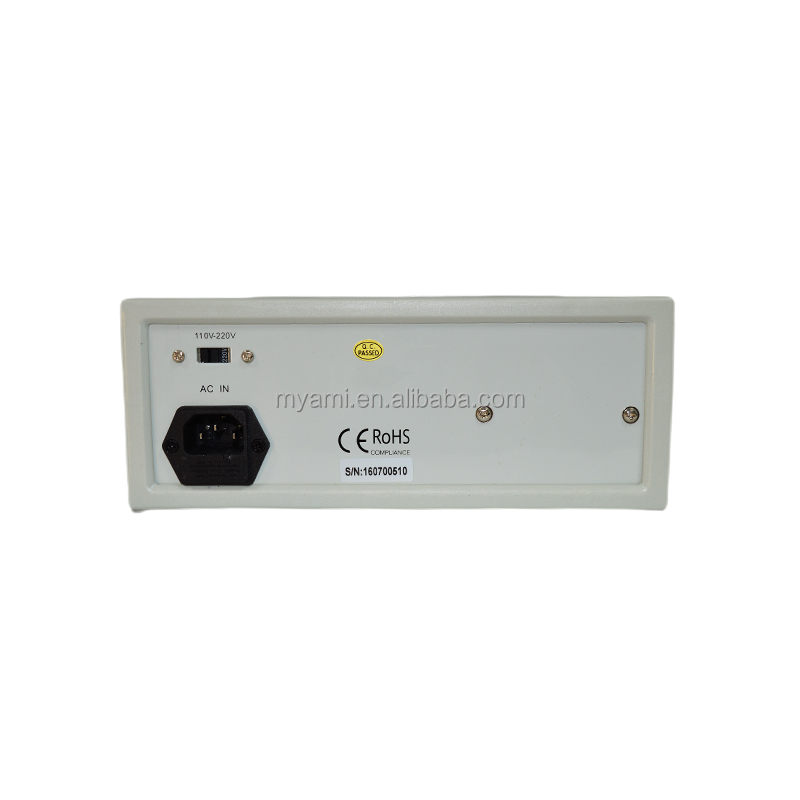

Power Supply	220V / 110V ± 10% 50Hz / 60Hz
Physical properties

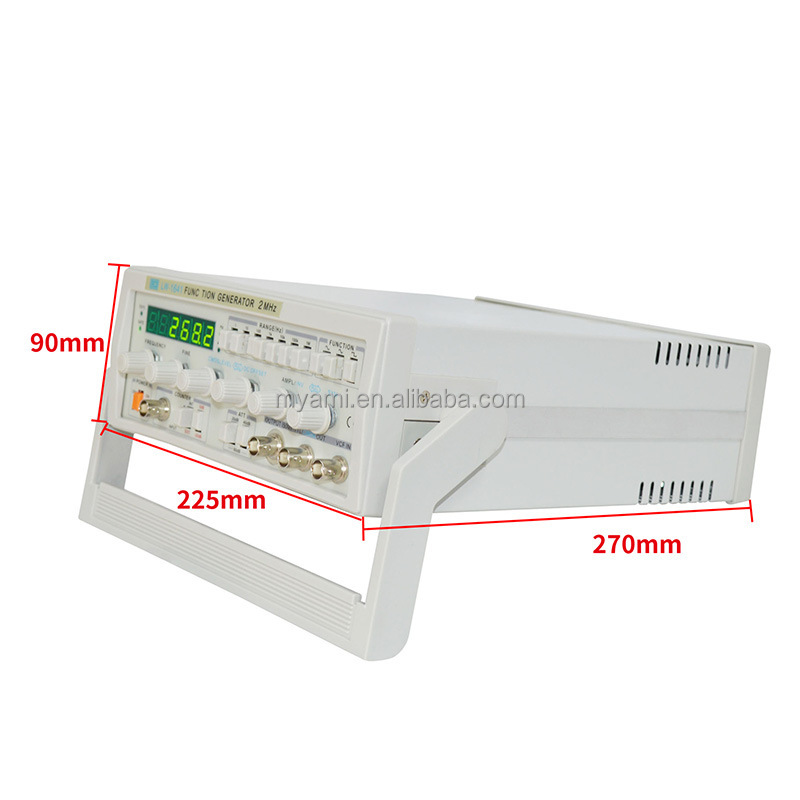

Dimensions	270 × 225 × 90mm
Weight	2.5Kg
