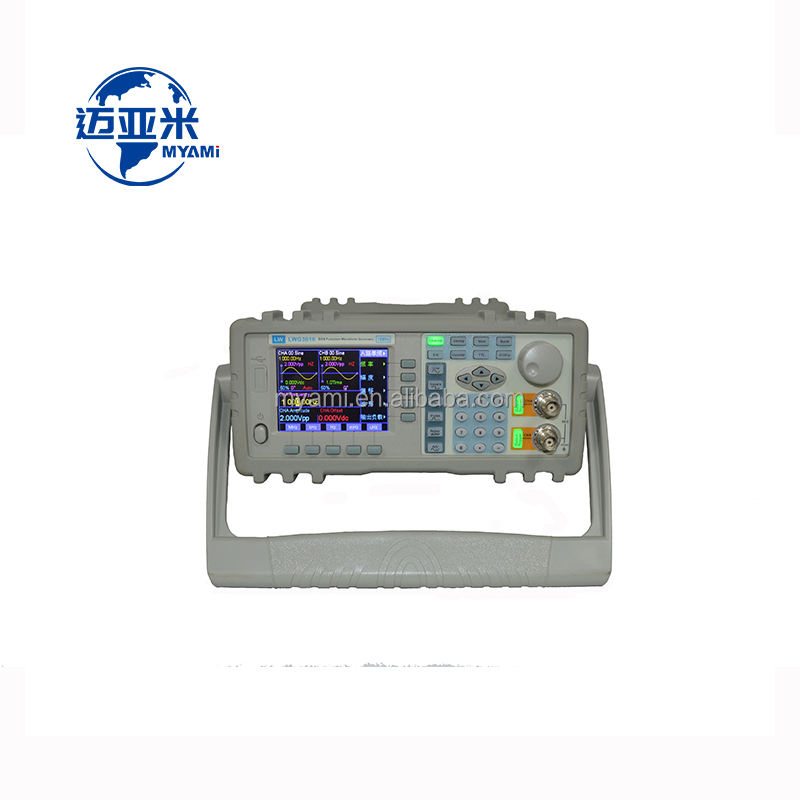

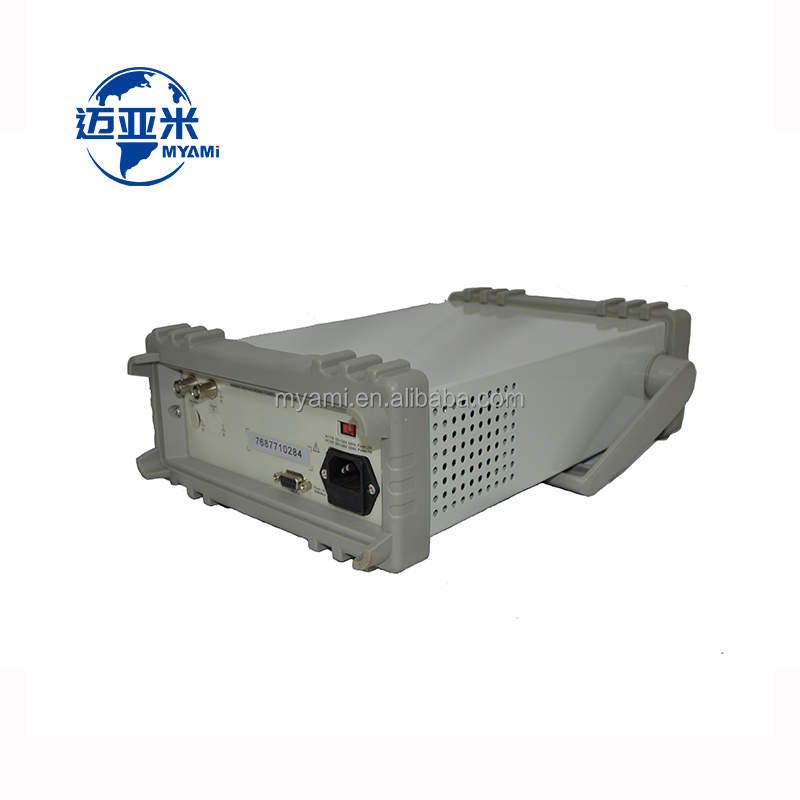

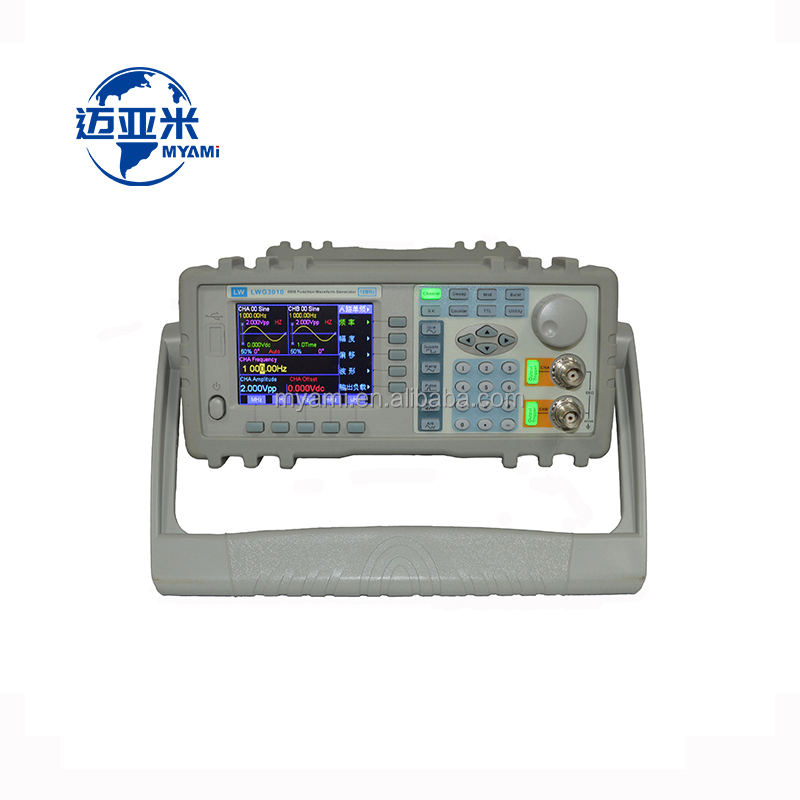

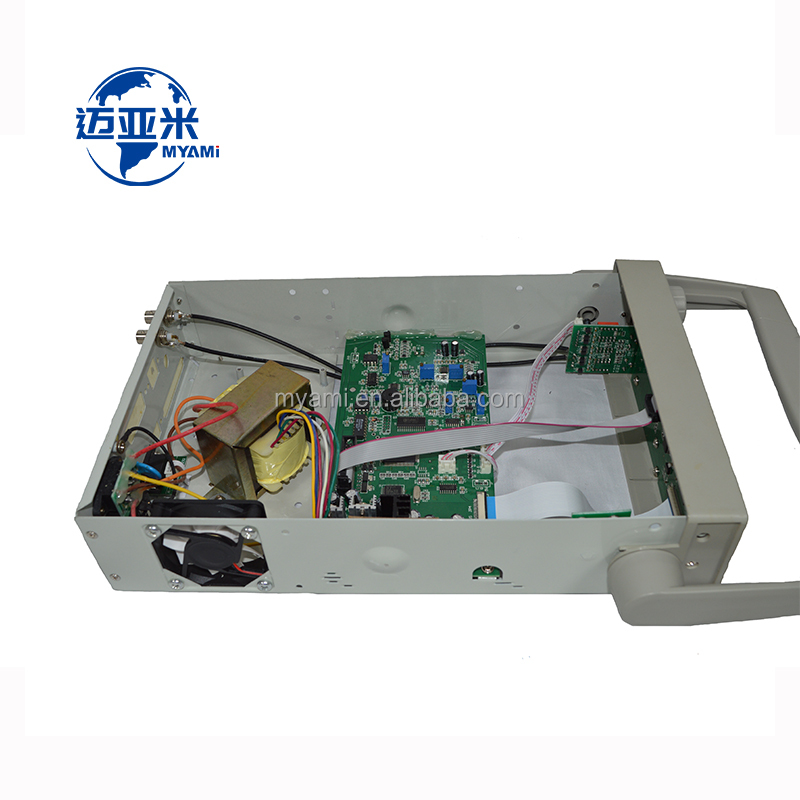

LWG-3060 60MHz 100MSa/s DDS Dual Channel Signal Generator USB Function Arbitrary Waveform Frequency Digital Signal Generator
Application: Laboratory
Key Features
- Direct Digital Synthesis (DDS) technology, 2 independent output channels
- 3.5-inch TFT display
- 32 kinds of standard or built-in fixed waveforms
- Minimum stable output waveform: 1mV (50Ω)
- Multiple modulation functions: FM, FSK, ASK, PSK
- Frequency sweep, amplitude sweep, and burst functions
- Over voltage, over current, output short-circuit, and reverse voltage protections.
Specification
Output Characteristics of Channel A (Waveform)
- Waveform type: 32 waveforms including Sine, Square, Triangle, Ramp, Pulse etc.
- Waveform length: 1024 points
- Sample rate: 100MSa/s
- Waveform amplitude resolution: 8 bits
- Sinusoidal harmonic rejection: ≥40dBc (<1MHz), ≥35dBc (1MHz~20MHz)
- Sine wave total distortion: ≤1% (20Hz~200kHz)
- Square rise/fall edge time: ≤35ns
- Overshoot: ≤10%
- Square wave duty cycle: 1%~99%
Frequency Characteristics (Channel A)
- Frequency range: Sine: 40mHz~Max. frequency (MHz) | Other waveforms: 40mHz~1MHz
- Frequency resolution: 40mHz
- Frequency accuracy: ±(5×10-5 + 40mHz)
- Frequency stability: ±5×10-6 / 3 hours
Amplitude Characteristics (Channel A)
- Amplitude range:
- 2mVpp~20Vpp (40mHz~10MHz, high impedance)
- 2mVpp~15Vpp (10MHz~15MHz, high impedance)
- 2mVpp~8Vpp (15MHz~20MHz, high impedance)
- Resolution: 20mVpp (amplitude > 2Vpp), 2mVpp (amplitude < 2Vpp)
- Amplitude accuracy: ±(1% + 2mVrms) (high impedance, true RMS, frequency at 1kHz)
- Amplitude stability: ±0.5% / 3 hours
- Amplitude flatness: ±5% (frequency < 10MHz), ±10% (frequency > 10MHz)
- Output impedance: 50Ω
DC Offset & Sweep Characteristics
- Offset range: ±10V (high impedance, attenuation 0dB)
- Offset resolution: 20mVdc
- Offset accuracy: ±(1% + 20mVdc)
- Sweep type: Linear sweep on frequency or amplitude
- Sweep range: Free to set start point and stop point
- Sweep step: Higher than any figure of resolution
- Sweep rate: 10ms~60s/step
- Sweep mode: UP, DOWN, UP-DOWN
- Manual sweep: Step/time
Modulation & Shift Keying
- FM Carrier signal: Channel A signal
- FM Modulation signal: Internal signal of channel B or external signal
- FM deviation: 0%~20%
- FSK: Free to set carrier frequency and hop frequency
- ASK: Free to set carrier amplitude and hop amplitude
- PSK: Hop phase 0~360°, Max. resolution 1°
- Alternative rate: 10ms~60s
Burst & Channel B Characteristics
- Burst Carrier / Trigger: Channel A signal / TTL_A signal
- Burst count / mode: 1~65000 cycles / Internal TTL, External, Single
- Channel B Waveforms: Sine, Square, Triangle, Ramp, Pulse etc. (32 types)
- Channel B Waveform parameters: Length 1024 points, Sample rate 12.5MSa/s, Resolution 8bits, Duty cycle 1%~99%
- Channel B Frequency: Sine: 10mHz~1MHz | Other waveforms: 10mHz~100kHz (Res: 10mHz)
- Channel B Amplitude: 50mVpp~20Vpp (high impedance, Res: 20mVpp)
TTL Output & Common Characteristics
- TTL Waveform / Freq: Square, rise/fall time ≤20ns / 40mHz~1MHz
- TTL Amplitude: TTL, CMOS compatible, low <0.3V, high >4V
- Power Source: AC220V (±10%) / AC110V (±10%), 50Hz (±5%), Power <45VA
- Environment: Temp: 0~40℃, Humidity: <80%
- Display: 3.5-inch TFT display (English, Simplified Chinese, Traditional Chinese)
- Dimension & Weight: 415mm x 295mm x 195mm | Weight: 3.5kg
Optional Parts Characteristics
- Frequency Counter range: 1Hz~150MHz
- Input signal amplitude: 100mVpp~20Vpp
- Power Amplifier Max output: 7W (8Ω), 1W (50Ω)
- Power Amplifier Max voltage: 22Vpp
- Power Amplifier Bandwidth: 1Hz~200kHz
