Hot Sale Factory Price 20MHz Portable Analog Dual Channel Oscilloscope with 1 GSa/s Sample Rate 8-Bit Resolution for Laboratory
Hot Sale Factory Price 20MHz Portable Analog Dual Channel Oscilloscope with 1 GSa/s Sample Rate 8-Bit Resolution for Laboratory
Hot Sale Factory Price 20MHz Portable Analog Dual Channel Oscilloscope with 1 GSa/s Sample Rate 8-Bit Resolution for Laboratory
Hot Sale Factory Price 20MHz Portable Analog Dual Channel Oscilloscope with 1 GSa/s Sample Rate 8-Bit Resolution for Laboratory
Hot Sale Factory Price 20MHz Portable Analog Dual Channel Oscilloscope with 1 GSa/s Sample Rate 8-Bit Resolution for Laboratory
1 / 5
Hot Sale Factory Price 20MHz Portable Analog Dual Channel Oscilloscope with 1 GSa/s Sample Rate 8-Bit Resolution for Laboratory
Hot Sale Factory Price 20MHz Portable Analog Dual Channel Oscilloscope with 1 GSa/s Sample Rate 8-Bit Resolution for Laboratory
Hot Sale Factory Price 20MHz Portable Analog Dual Channel Oscilloscope with 1 GSa/s Sample Rate 8-Bit Resolution for Laboratory
Hot Sale Factory Price 20MHz Portable Analog Dual Channel Oscilloscope with 1 GSa/s Sample Rate 8-Bit Resolution for Laboratory
Hot Sale Factory Price 20MHz Portable Analog Dual Channel Oscilloscope with 1 GSa/s Sample Rate 8-Bit Resolution for Laboratory

Hot Sale Factory Price 20MHz Portable Analog Dual Channel Oscilloscope with 1 GSa/s Sample Rate 8-Bit Resolution for Laboratory

Send Inquiry

Product Description

20MHz Portable Analog Dual Channel Oscilloscope for Laboratory
Key Features
✓
Bandwidth: 20MHz
✓
Rise Time: <=17.5ns
✓
Deflection Factor: 5mv/DIV~20V/DIV (12 steps in 1-2-5 sequence, Extended x5 to 1mv)
✓
Vertical Mode: CH1, CH2, ALT, CHOP, ADD
✓
Sweep Time: 0.2uS/DIV-0.5s/DIV (20 steps in 1-2-5 sequence)
✓
Trigger Mode: INT, EXT, ALT, LINE, TV-V, TV-H, LOCK
✓
Sweep Mode: AUTO, NORM, MAGx10
✓
Dimension (mm): 310(W) * 150(H) * 455(D)
✓
Weight: 8kg
✓
Useful Screen Area: 8x10DIV (1DIV = 10mm)
Specifications
Parameter Specification Details
Frequency Range DC-20MHz
On Screen Grid 8 * 10div (1div = 1cm)
Vertical Deflection Display Mode CH1, CH2, CH3, ADD, ALT, CHOP
Deflection Factor 5mV/div to 5V/div ±3% (1mV/div ±5%)
Rise Time ≤17.5ns
Polarity Selection ±CH2
Max Input Voltage 250V (≤1KHz)
Horizontal Bias Display Mode 1, 10, X-Y
Time Base 0.2us/div ~ 0.2s/div
Sweep Width ×10
Accuracy 3%
Correction Waveform Frequency 1KHz 20%, Voltage: 0.5V 1%
Input Impedance 1MΩ
Size 450 × 310 × 150mm
Weight 8Kg
Product Details

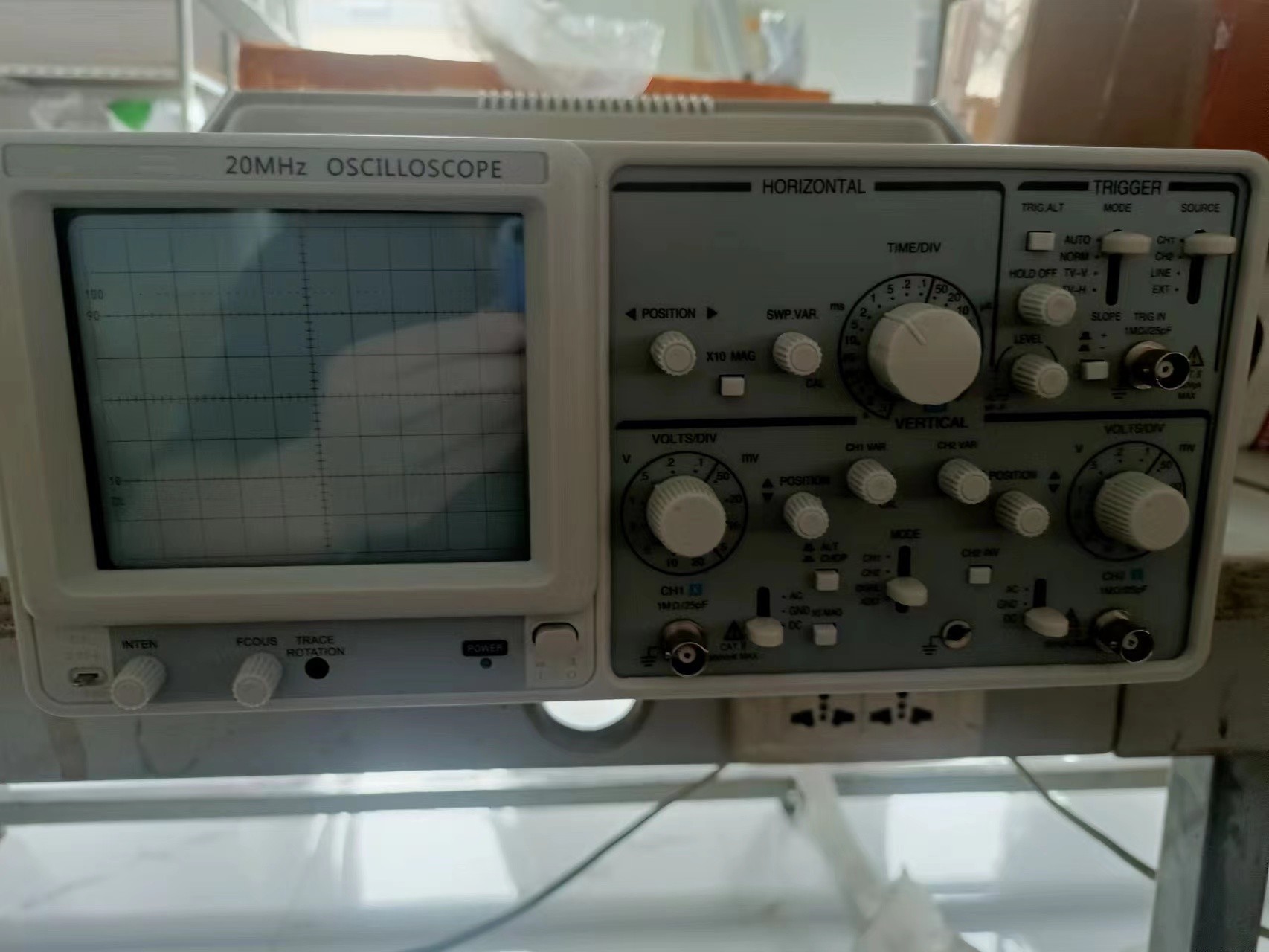

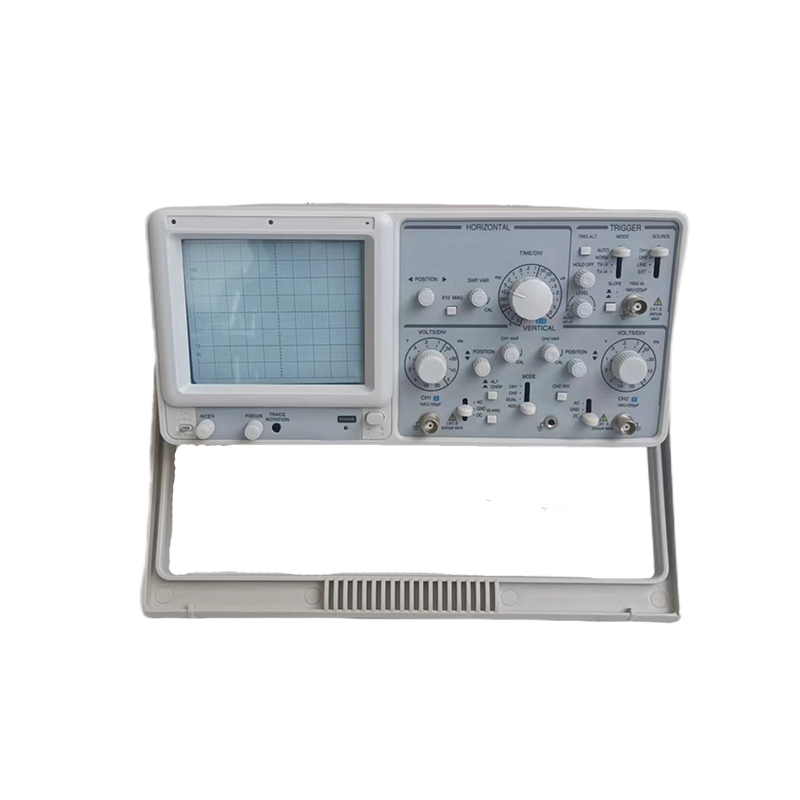

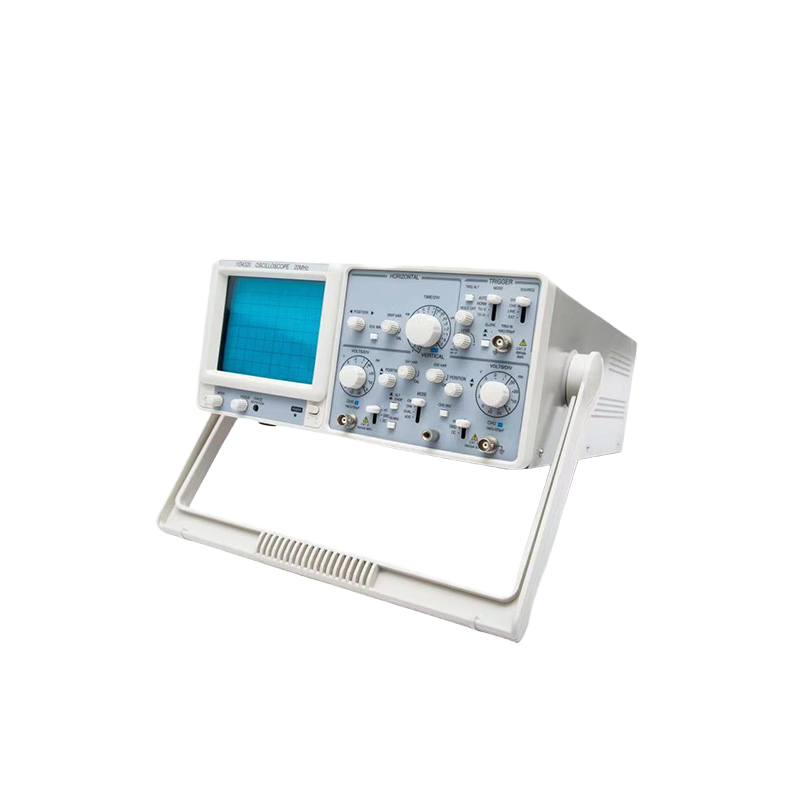

Product Image
Detail View 1 Detail View 2 Detail View 3 Detail View 4
Product Classification
Product Classification
Our Certificate
Our Certificate

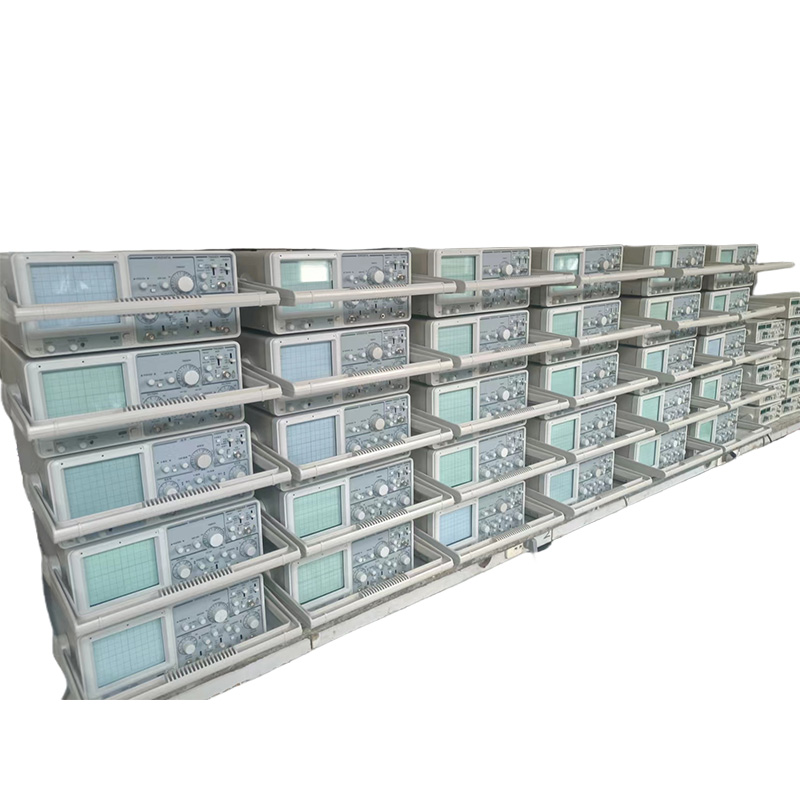

Exhibition
Exhibition
Packaging & Transportation
Packaging and Transportation
Frequently Asked Questions
What's the MOQ?
The MOQ of machinery is 1 set.
What's the delivery time?
The general delivery time is 3~5 days after the order is confirmed, depending on the order quantity.
Can you send a video to show how the machine works?
Certainly, we have videos of our machines. Please feel free to reach out, and we will send you the machine demonstration video.
What are your payment terms?
Our payment term is 100% payment before shipment.
What's the payment method?
We accept T/T (Telegraphic Transfer) and L/C (Letter of Credit) payments.
What are the dimensions and weight of this oscilloscope?
The dimensions of the device are 310(W) * 150(H) * 455(D) mm, and it has a net weight of approximately 8kg.
