40MHz 2 Channel Oscilloscope with Component Tester Dual Channel Analog Oscilloscope
Key Features:
Bandwidth
DC20MHz-100MHz range options.
High Sensitivity
Vertical sensitivity is 1mV/cell.
6-inch CRT Screen
Large display with red planning lines for easy waveform measurement.
DC Compensation
Allows monitoring of large amplitude input waveforms (available on select models).
ALTMAG Function
Synchronously observe X1 or X10 scanning waveforms.
ALT Triggering
Obtains two stable waveforms when inputting different frequencies simultaneously.
TV Signal Synchronization
TV sync separation line ensures stable TV signal reception.
Dual-Trace X-Y Operation
Can be configured as an X-Y oscilloscope, using CH1 as horizontal and CH2 as vertical axis.
Flexible Trigger Modes
Supports automatic, normal, TV field, and TV line triggering.
Vertical Modes
Options for alternating, intermittent, or addition modes.
Specification
| Model / Parameter |

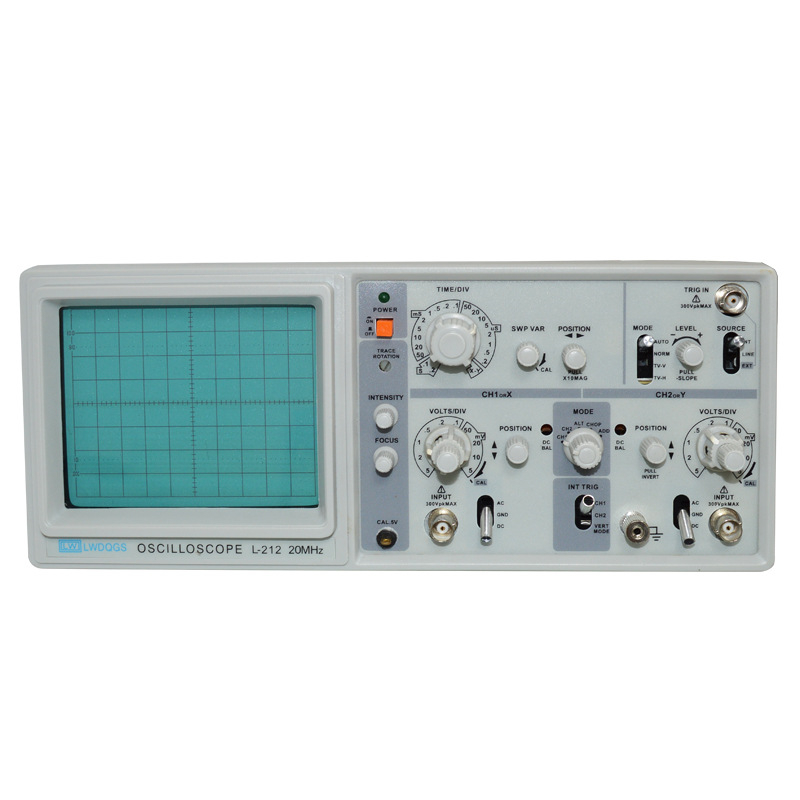

L-212 |
L-5040 |
L-5060 |

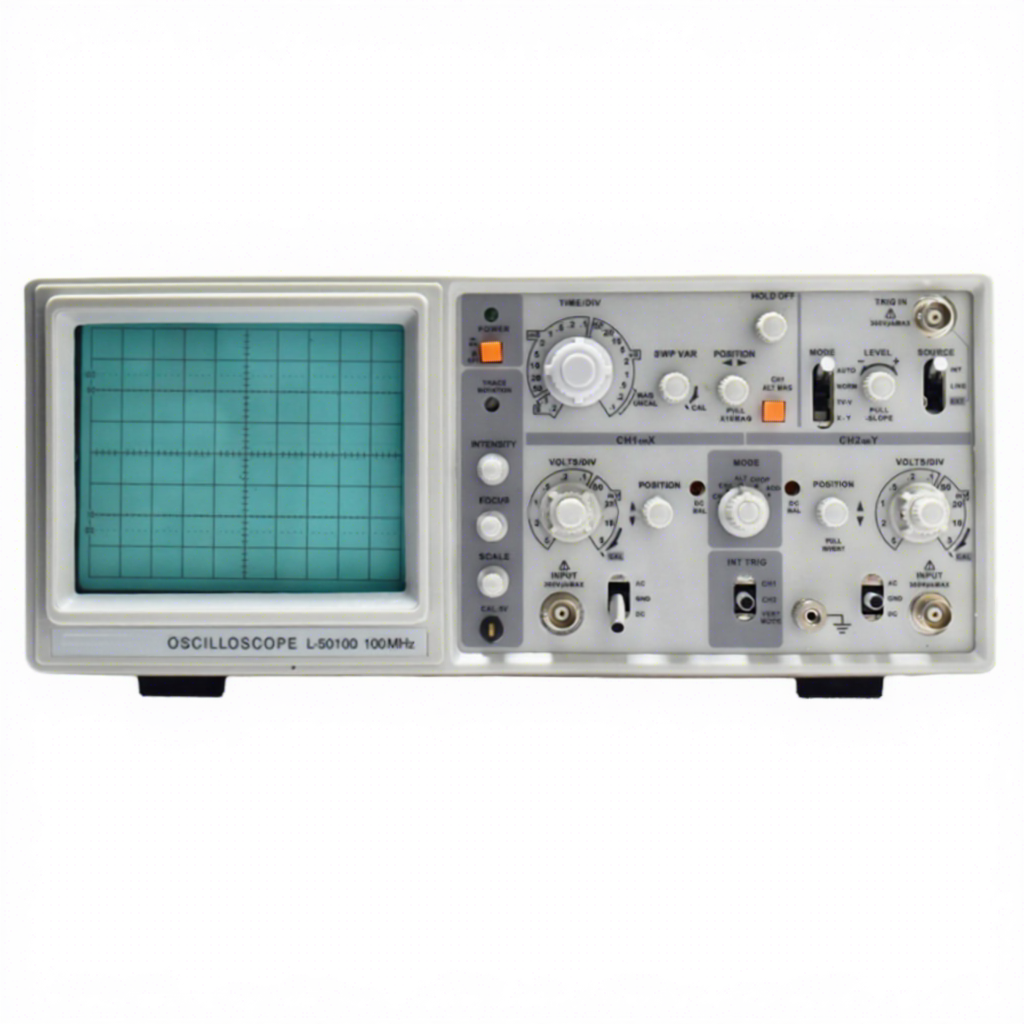

L-50100 |
| Frequency Range |
DC-20MHz |
DC-40MHz |
DC-60MHz |
DC-100MHz |
| On-Screen Grid |
8*10div (1div=1cm) |
8*10div |
8*10div |
8*10div |
| Vertical Deflection |
Display Mode |
CH1, CH2, CH3, ADD, ALT, CHOP |
| Deflection Factor |
5mV/div to 5V/div ±3% (1mV/div ±5%) |
| Rise Time |
≤17.2ns |
≤17.2ns |
≤17.2ns |
≤17.2ns |
| Polarity Selection |
±CH2 |
| Max Input Voltage |
250V (≤1KHz) |
| Horizontal Bias |
Display Mode |
1, 10, X-Y |
| Time Base |
0.2us/div - 0.2s/div |
| Sweep Width |
×10 |
×10 |
×10 |
×10 |
| Accuracy |
3% |
3% |
3% |
3% |
| Correction Waveform |
Frequency: 1KHz 20%, Voltage: 0.5V 1% |
| Input Impedance |
1MΩ |
1MΩ |
1MΩ |
1MΩ |

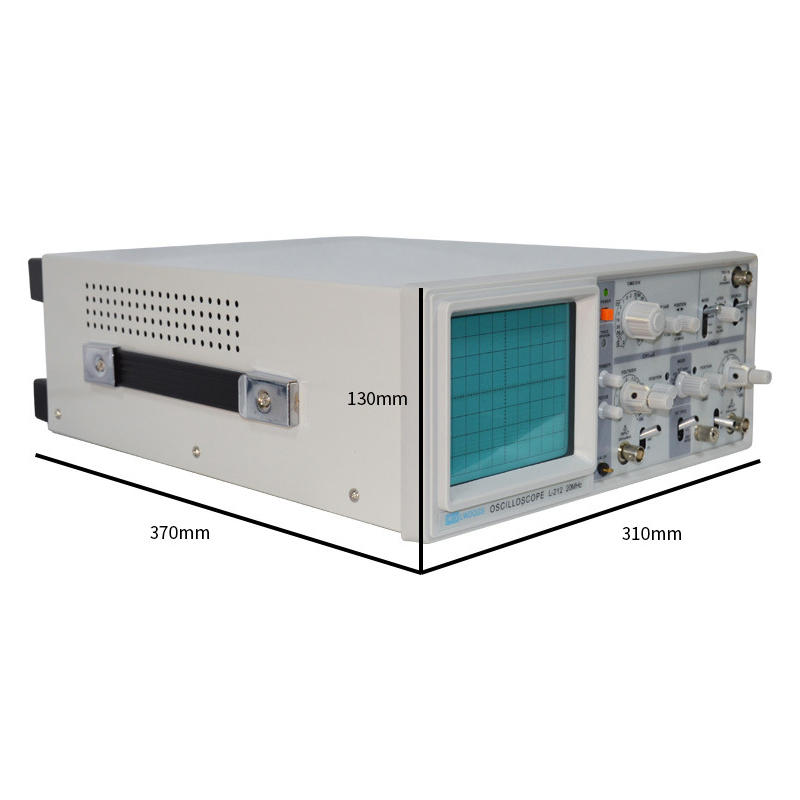

| Size |
370×310×130mm |
| Weight |
11Kg |
Product Details
Product Classification
Our Certificates
Exhibition
Packaging & Transportation
Q1
What's the Minimum Order Quantity (MOQ)?
The MOQ of the machinery is 1 set.
Q2
What is the estimated delivery time?
The general delivery time is 3 to 5 days after order confirmation, depending on the actual order quantity.
Q3
Can you provide a video demonstration of how the machine operates?
Certainly. We have demonstration videos of our equipment. Please feel free to reach out to us and we will share the relevant video.
Q4
What are your terms of payment?
Payment is required 100% prior to shipment.
Q5
What payment methods do you accept?
We currently support payments via T/T and L/C.
Q6
Do you test all products prior to dispatch?
Yes, all units undergo rigorous testing before shipping to ensure proper functionality and performance.
