Product Description

20MHz Dual Channel Laboratory Teaching Oscilloscope Dual Trace Analog Oscilloscope Portable Oscilloscope

Features

  • Bandwidth: 20MHz
  • Rise Time: ≤17.5ns
  • Deflection Factor: 5mv/DIV~20V/DIV (12 steps in 1, 2, 5 sequence, Extended x5 to 1mv)
  • Vertical Mode: CH1, CH2, ALT, CHOP, ADD
  • Sweep Time: 0.2uS/DIV-0.5s/DIV (20 steps in 1, 2, 5 sequence)
  • Trigger Mode: INT, EXT, ALT, LINE, TV-V, TV-H, LOCK
  • Sweep Mode: AUTO, NORM, MAGx10
  • Dimension (mm): 310(W) * 150(H) * 455(D)
  • Weight: 8kg
  • Useful Screen Area: 8x10DIV (1DIV = 10mm)

Product Highlights

  • Dual channel 20MHz
  • The electronic scanning code switch can rotate 360 degrees without slipping or damage
  • Equipped with a trigger output terminal, the trigger channel implements a common channel output for external frequency meters
  • Equipped with trigger level locking, automatic synchronization function, and flexible trigger modes for internal and external selection
  • Equipped with Z-axis input, implementing high-level blanking
  • ALT trigger function, capable of simultaneously measuring two unrelated signals

Specification

Parameter Specification Details
Frequency Range DC-20MHz
On Screen Grid 8 * 10 div (1 div = 1 cm)
Vertical Deflection: Display Mode CH1, CH2, CH3, ADD, ALT, CHOP
Vertical Deflection: Deflection Factor 5mV/div to 5V/div ±3% (1mV/div ±5%)
Vertical Deflection: Rise Time ≤17.5ns (≤17.2ns max)
Vertical Deflection: Polarity Selection ±CH2
Vertical Deflection: Max Input Voltage 250V (≤1KHz)
Horizontal Bias: Display Mode 1, 10, X-Y
Horizontal Bias: Time Base 0.2us/div ~ 0.2s/div
Horizontal Bias: Sweep Width ×10
Horizontal Bias: Accuracy 3%
Correction Waveform Frequency 1KHz 20% Voltage: 0.5V 1%
Input Impedance 1MΩ
Size 450 × 310 × 150 mm
Weight 8Kg

Product Details

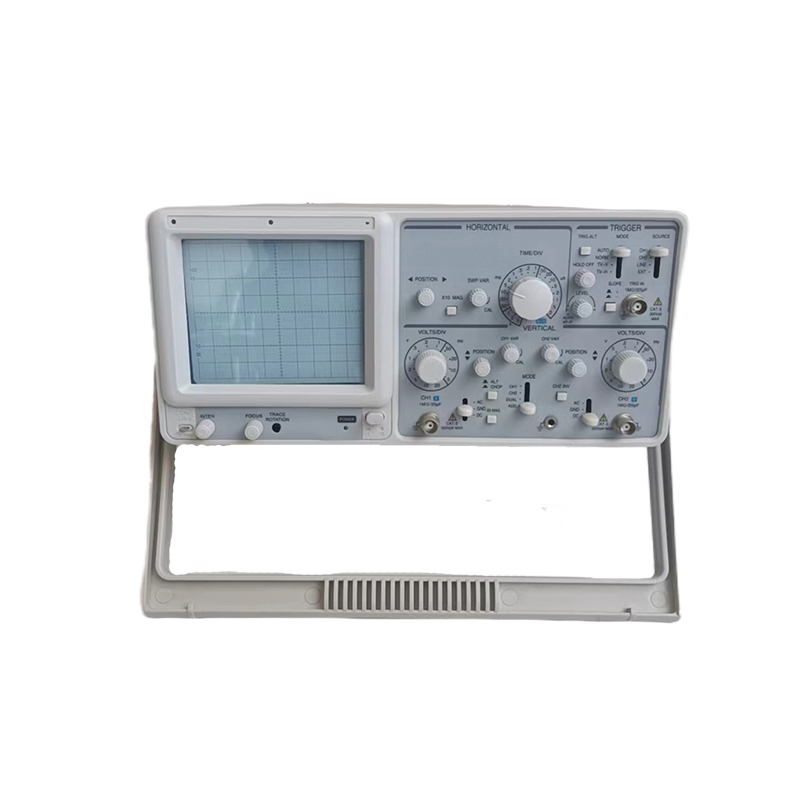

Analog Oscilloscope Main View
Oscilloscope Detail 1
Oscilloscope Detail 2
Oscilloscope Detail 3
Oscilloscope Detail 4
Oscilloscope Detail 5
Oscilloscope Detail 6
Oscilloscope Detail 7
