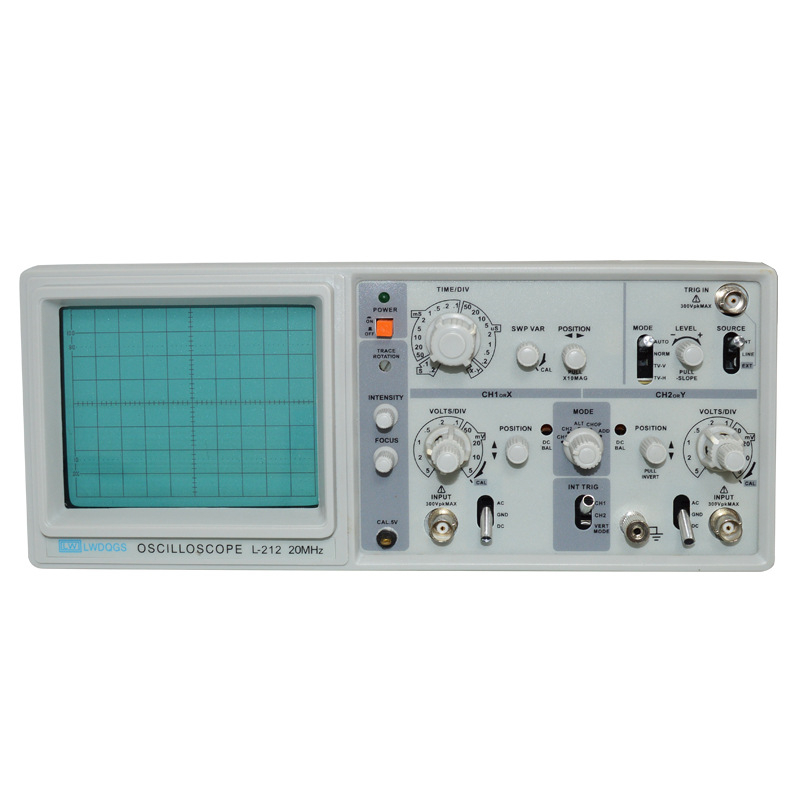

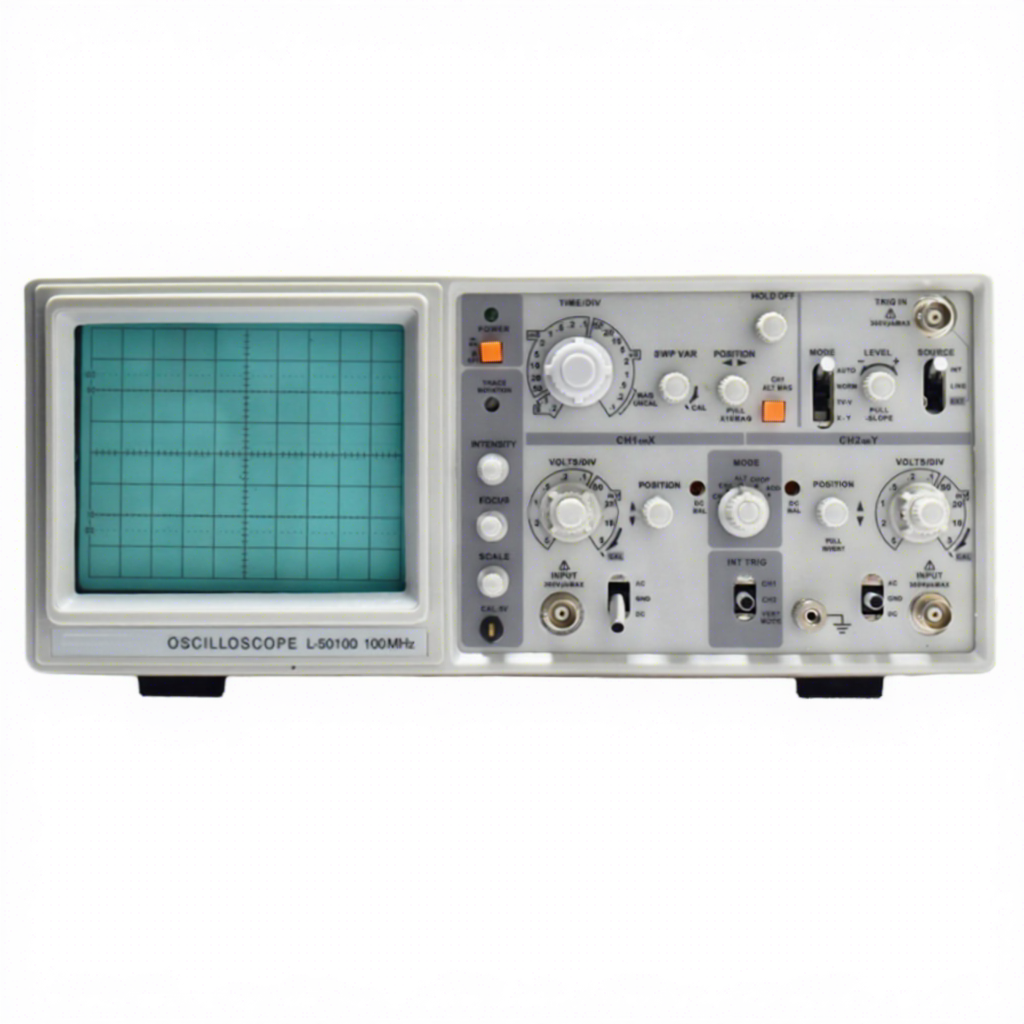

| Model | L-212 | L-5040 | L-5060 | L-50100 | |
|---|---|---|---|---|---|
| Frequency range | DC-20MHz | DC-40MHz | DC-60MHz | DC-100MHz | |
| On screen grid | 8*10div(1div=1cm) | 8*10div | 8*10div | 8*10div | |
| Vertical deflection | Display mode | CH1 CH2 CH3 ADD ALT CHOP | |||
| Deflection factor | 5mV/div to 5V/div±3%(1mV/div±5%) | ||||
| Rise time | ≤17.2ns | ≤17.2ns | ≤17.2ns | ≤17.2ns | |
| Polarity selection | ±CH2 | ||||
| Max input voltage | 250V (≤1KHz) | ||||
| Horizontal bias | Display mode | 1, 10, X-Y | |||
| Time base | 0.2us/div~0.2s/div | ||||
| Sweep width | ×10 | ×10 | ×10 | ×10 | |
| Accuracy | 3% | 3% | 3% | 3% | |
| Correction waveform | Frequency 1KHz 20% Voltage: 0.5V 1% | ||||
| Input impedance | 1MΩ | 1MΩ | 1MΩ | 1MΩ | |
| Size | 370×310×130mm | ||||
| Weight | 11Kg | ||||
