Product Description

20MHz 40MHz 60MHz 100Mhz Dual Channel Analog Oscilloscope

Key Features

Bandwidth

DC20MHz-100MHz range to cover diverse testing needs.

High Sensitivity

Excellent sensitivity down to 1mV/cell.

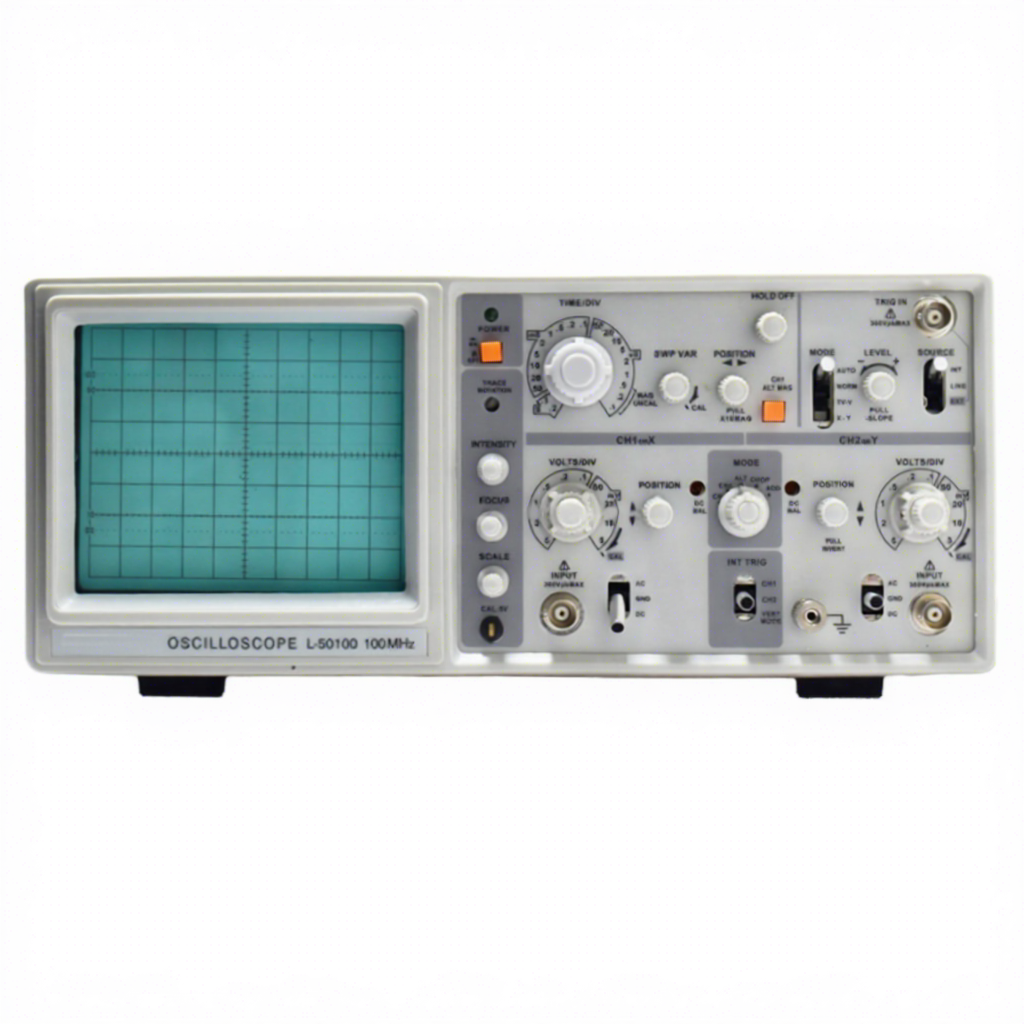

Large 6-inch CRT Screen

Clear observation with built-in red scale planning lines for precise waveform measurement.

DC Compensation

Allows monitoring of large amplitude waveforms (Available in LW5040, LW-5060, LW-50100).

ALTMAG Function

Synchronous observation of X1 or X10 scanning waveforms (Available in LW5040, LW-5060, LW-50100).

ALT Trigger

Obtain two stable waveforms simultaneously when channels input different frequencies.

TV Signal Synchronization

Equipped with a TV synchronization separation line to receive TV signals stably.

Dual Pass & X-Y Operation

Functions as an X-Y oscilloscope with CH1 as horizontal and CH2 as vertical axis.

Multiple Trigger Modes

Supports Automatic, Normal, TV Field, and TV Line modes.

Flexible Vertical Modes

Alternating, intermittent, and adding modes available.

Input Voltage

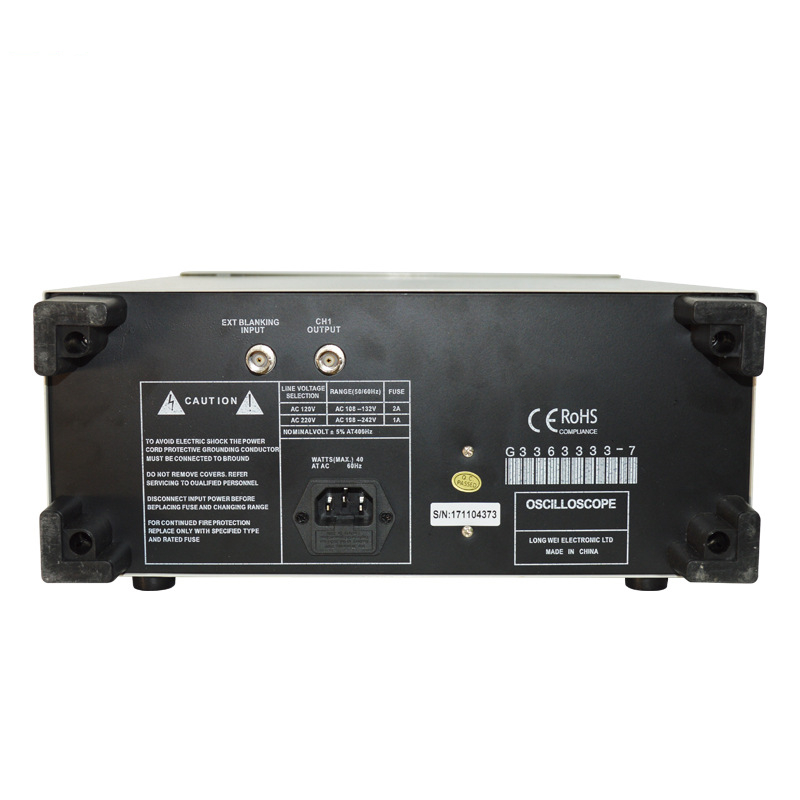

AC 220V standard (110V optional).

Specifications

Model		L-212	L-5040	L-5060	L-50100
Frequency range		DC-20MHz	DC-40MHz	DC-60MHz	DC-100MHz
On screen grid		8*10div (1div=1cm)	8*10div	8*10div	8*10div
Vertical deflection	Display mode	CH1 CH2 CH3 ADD ALT CHOP
	Deflection factor	5mV/div to 5V/div ±3% (1mV/div ±5%)
	Rise time	≤17.2ns	≤17.2ns	≤17.2ns	≤17.2ns
	Polarity selection	±CH2
	Max input voltage	250V (≤1KHz)
Horizontal bias	Display mode	1, 10, X-Y
	Time base	0.2us/div~0.2s/div
	Sweep width	×10	×10	×10	×10
	Accuracy	3%	3%	3%	3%
Correction waveform		Frequency 1KHz 20% Voltage: 0.5V 1%
Input impedance		1MΩ	1MΩ	1MΩ	1MΩ

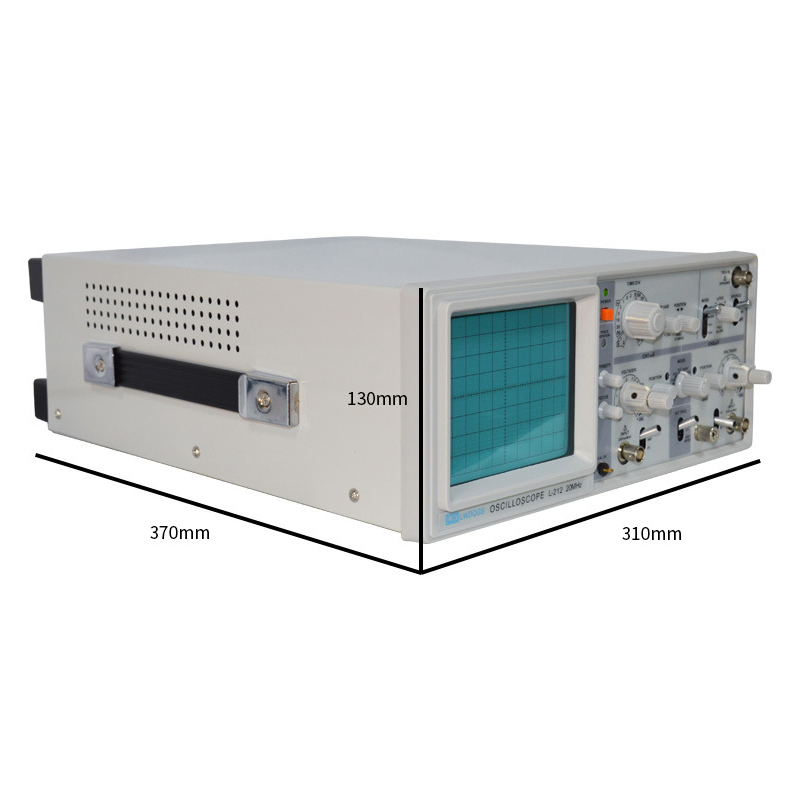

Size		370×310×130mm
Weight		11Kg

Product Details

Product Classification

Company Profile

Our Certificate

Exhibition

Packaging & Transportation

FAQ

Q1: What's the MOQ?

Re: The MOQ of machinery is 1 set.

Q2: What's delivery time?

Re: The general delivery time is 3~5 days after order confirmed, it depends on the order quantity.

Q3: Can you send the video to show how the machine works?

Re: Certainly, we have video of every machine, please feel free to contact us, we will send you machine video.

Q4: What's your payment terms?

Re: 100% before shipment.

Q5: What's the payment method?

Re: We accept T/T and L/C payment.
