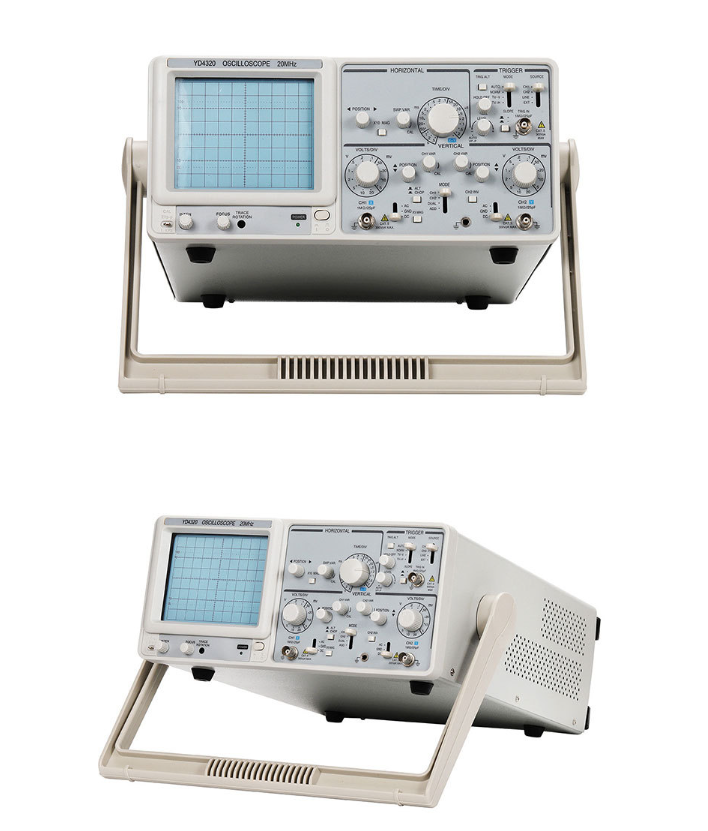

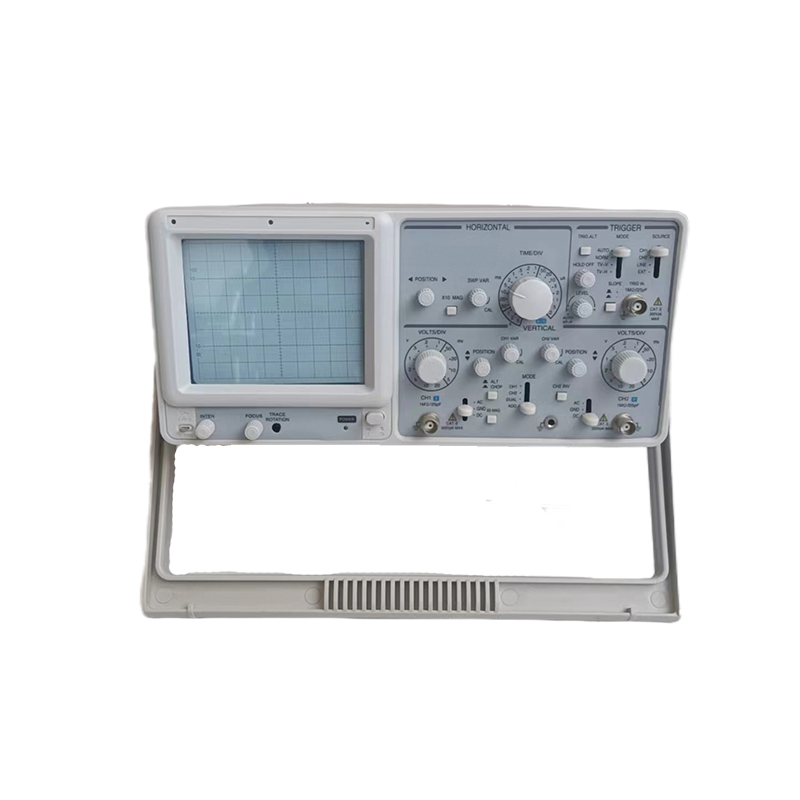

MYAMI Dual Trace Teaching Oscilloscope 20MHz 2 Channels Teaching Instrument, Physics Electromagnetic Electronic Instrument

1 / 5

MYAMI Dual Trace Teaching Oscilloscope 20MHz 2 Channels Teaching Instrument, Physics Electromagnetic Electronic Instrument

Send Inquiry

Product Description

20MHz Dual Channel Laboratory Teaching Oscilloscope Dual Trace Analog Oscilloscope Portable Oscilloscope

✓ Bandwidth: 20MHz

✓ Rise Time: <=17.5ns

✓ Deflection Factor: 5mv/DIV~20V/DIV 12 steps in 1,2,5 sequence Extended x5 to 1mv

✓ Vertical Mode: CH1, CH2, ALT, CHOP, ADD

✓ Sweep Time: 0.2uS/DIV-0.5s/DIV 20 steps in 1,2,5 sequence

✓ Trigger Mode: INT, EXT, ALT, LINE, TV-V, TV-H, LOCK

✓ Sweep Mode: AUTO, NORM, MAG x10

✓ Dimension (mm): 310(W) * 150(H) * 455(D)

✓ Weight: 8kg

✓ Screen Area: 8x10DIV (1DIV=10mm)

▲ Dual channel 20MHz

▲ The electronic scanning code switch can rotate 360 degrees without slipping or damage

▲ Equipped with a trigger output terminal, the trigger channel implements a common channel output for external frequency meters

▲ Equipped with trigger level locking, automatic synchronization function, and flexible trigger modes for internal and external selection

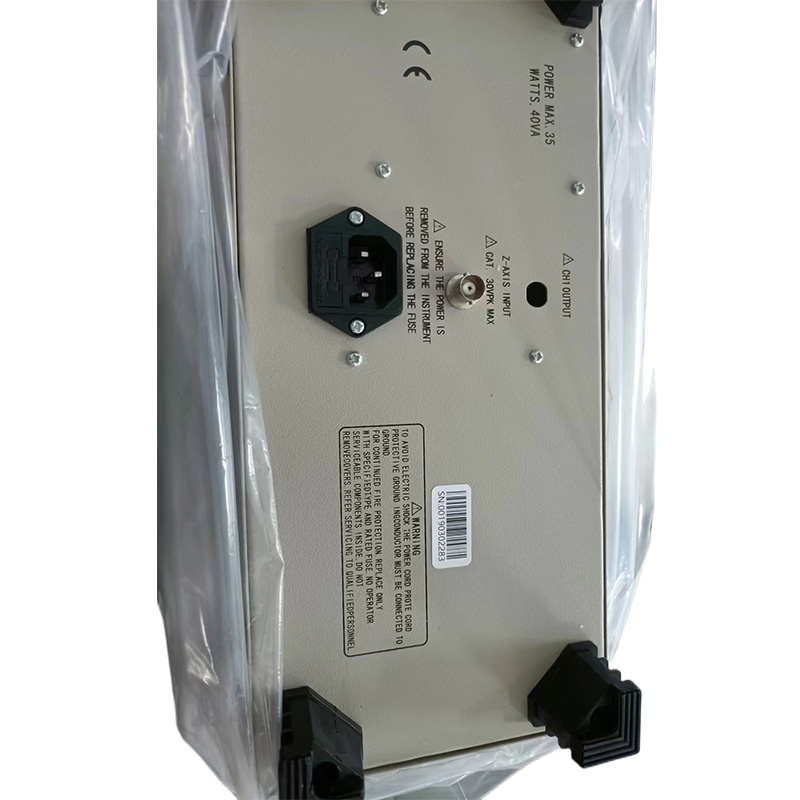

▲ Equipped with Z-axis input, implementing high-level blanking

▲ ALT trigger function, capable of simultaneously measuring two unrelated signals

Specification

Frequency range		DC-20MHz
On screen grid		8*10div(1div=1cm)
Vertical deflection	Display mode	CH1 CH2 CH3 ADD ALT CHOP
	Deflection factor	5mV/div to 5V/div±3%(1mV/div±5%)
	Rise time	≤17.5ns
	Polarity selection	±CH2
	Max input voltage	250V (≤1KHz)
Horizontal bias	Display mode	1, 10, X-Y
	Time base	0.2us/div~0.2s/div
	Sweep width	×10
	Accuracy	3%
Correction waveform		Frequency 1KHz 20% Voltage:0.5V 1%
Input impedance		1MΩ
Size		450×310×150mm
Weight		8Kg

Product Details

Product Classification

Our Certificate

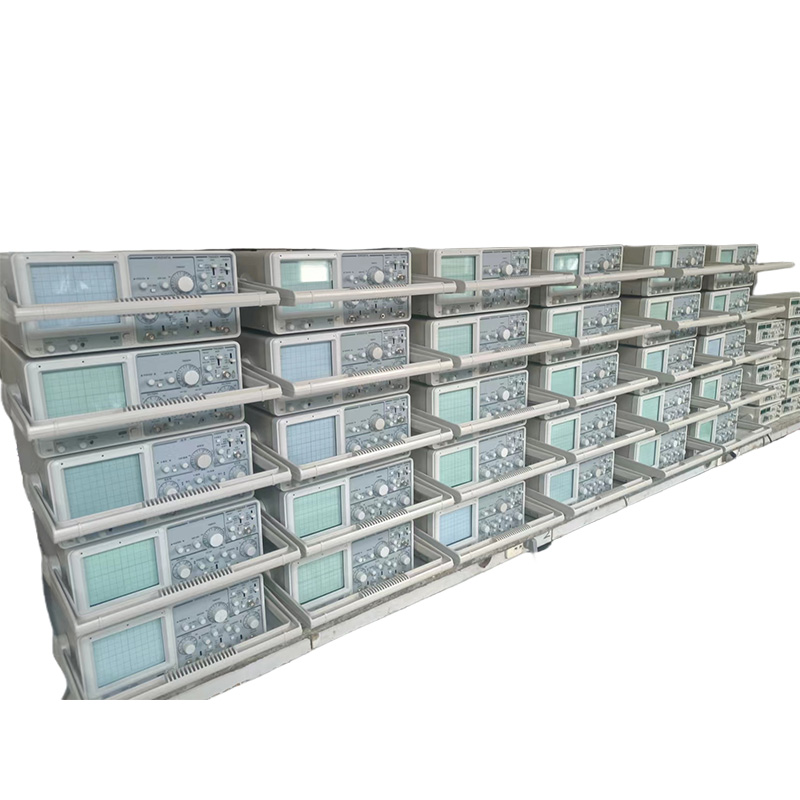

Exhibition

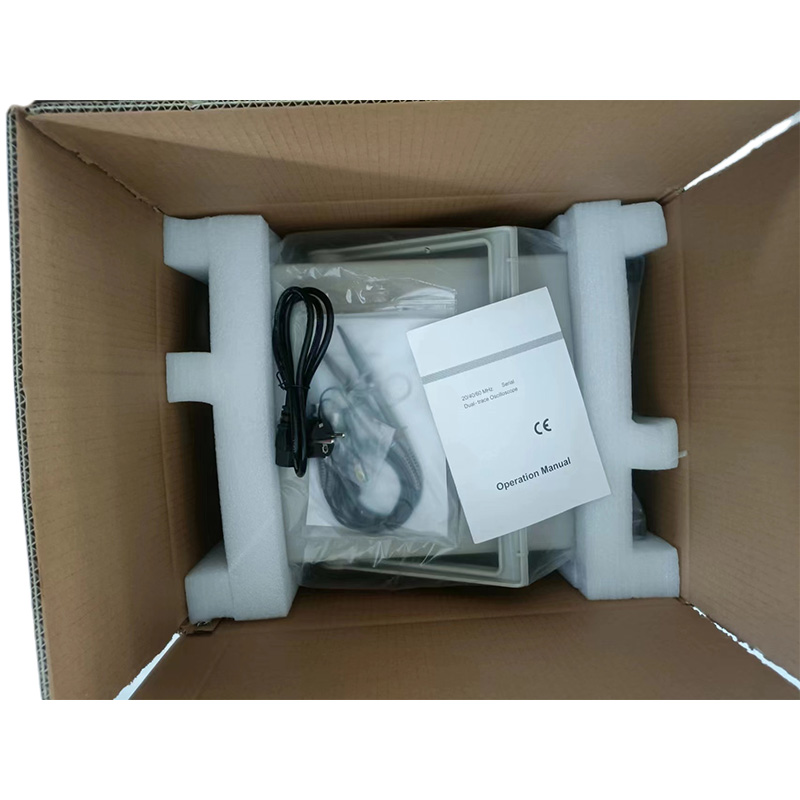

Packaging & Transportation

FAQ

What's the MOQ?

The MOQ of machinery is 1 set.

What's delivery time?

The general delivery time is 3~5 days after order confirmed, it depends on the order quantity.

Can you send the video to show how the machine works?

Certainly, we have video of every machine, please feel free to contact us, we will send you machine video.

What's your payment terms?

100% before shipment.

What's the payment method?

We accept T/T and L/C payment.

What is the bandwidth and rise time of this oscilloscope?

This oscilloscope features a bandwidth of 20MHz and a rise time of less than or equal to 17.5ns.
