20MHz 40MHz 60MHz 100Mhz Dual Channel Analog Oscilloscope

Bandwidth: DC20MHz-100MHz
Highly sensitive: sensitivity is 1mV/cell
CRT: The 6-inch large screen is convenient for observing and measuring waveforms, and there are red scale planning lines in the screen for measuring waveforms.
DC compensation: (LW5040, LW-5060, LW-50100 have) When the input waveform is a large amplitude waveform, it can be monitored
ALTMAG: (LW5040, LW-5060, and LW-50100 have) Synchronously observe the scanning waveform of X1 or X10
ALT trigger: When two channels input waveforms of different frequencies at the same time, use this function to obtain two waveforms stably.
TV signal synchronization: TV synchronization separation line is set to receive TV signal stably
Dual pass/dual trace X-Y operation: when it is set at the X-Y position, it can be used as an x-y oscilloscope. CH1 is the horizontal axis and CH2 is the vertical axis.
Trigger mode: automatic, normal, TV field, TV line
Vertical mode: alternating, intermittent, adding
Input AC voltage: 220v (110v optional)

Specification

Model	L-212	L-5040	L-5060	L-50100
Frequency range	DC-20MHz	DC-40MHz	DC-60MHz	DC-100MHz
On screen grid	8*10div(1div=1cm)	8*10div	8*10div	8*10div
Vertical deflection
Display mode	CH1 CH2 CH3 ADD ALT CHOP
Deflection factor	5mV/div to 5V/div±3%(1mV/div±5%)
Rise time	≤17.2ns	≤17.2ns	≤17.2ns	≤17.2ns
Polarity selection	±CH2
Max input voltage	250V ï¼ˆ≤1KHzï¼‰
Horizontal bias
Display mode	1ï¼Œ10ï¼ŒX-Y
Time base	0.2us/div~0.2s/div
Sweep width	×10	×10	×10	×10
Accuracy	3%	3%	3%	3%
General Details
Correction waveform	Frequency 1KHz 20% Voltage:0.5V 1%
Input impedance	1MΩ	1MΩ	1MΩ	1MΩ

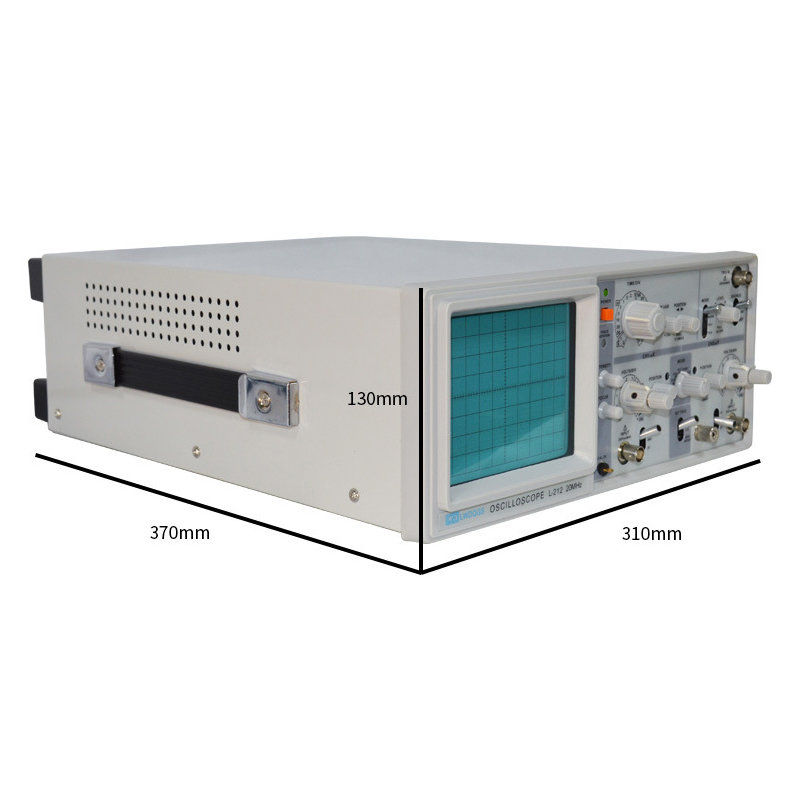

Size	370×310×130mm
Weight	11Kg

Product Details

Product Classification

Company Profile

Our Certificate

Exhibition

Packaging & Transportation

FAQ

What's the MOQ?

Re: The MOQ of machinery is 1 set.

What's delivery time?

Re: The general delivery time is 3~5 days after order confirmed, it depends on the order quantity.

Can you send the video to show how the machine works?

Re: Certainly, we have video of every machine, please feel free to contact us, we will send you machine video.

What's your payment terms?

Re: 100% before shipment.

What's the payment method?

Re: We accept T/T and L/C payment.
