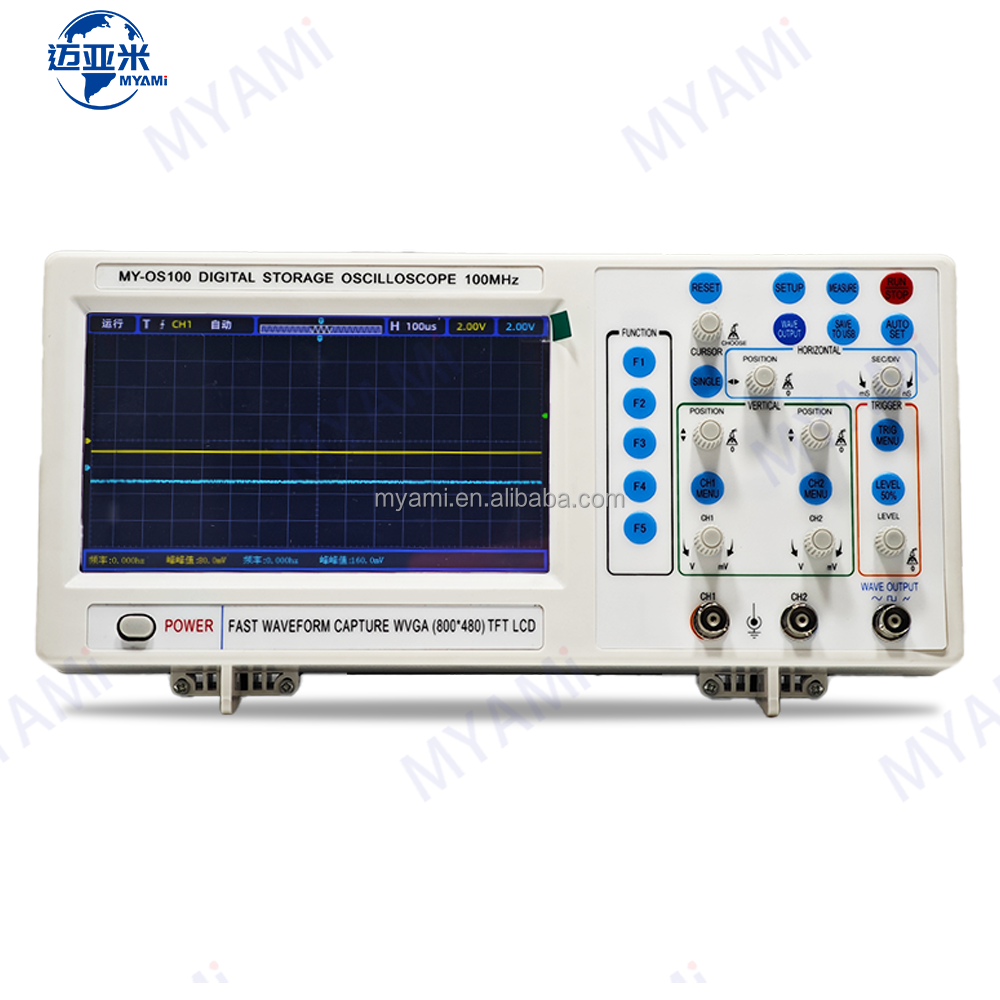

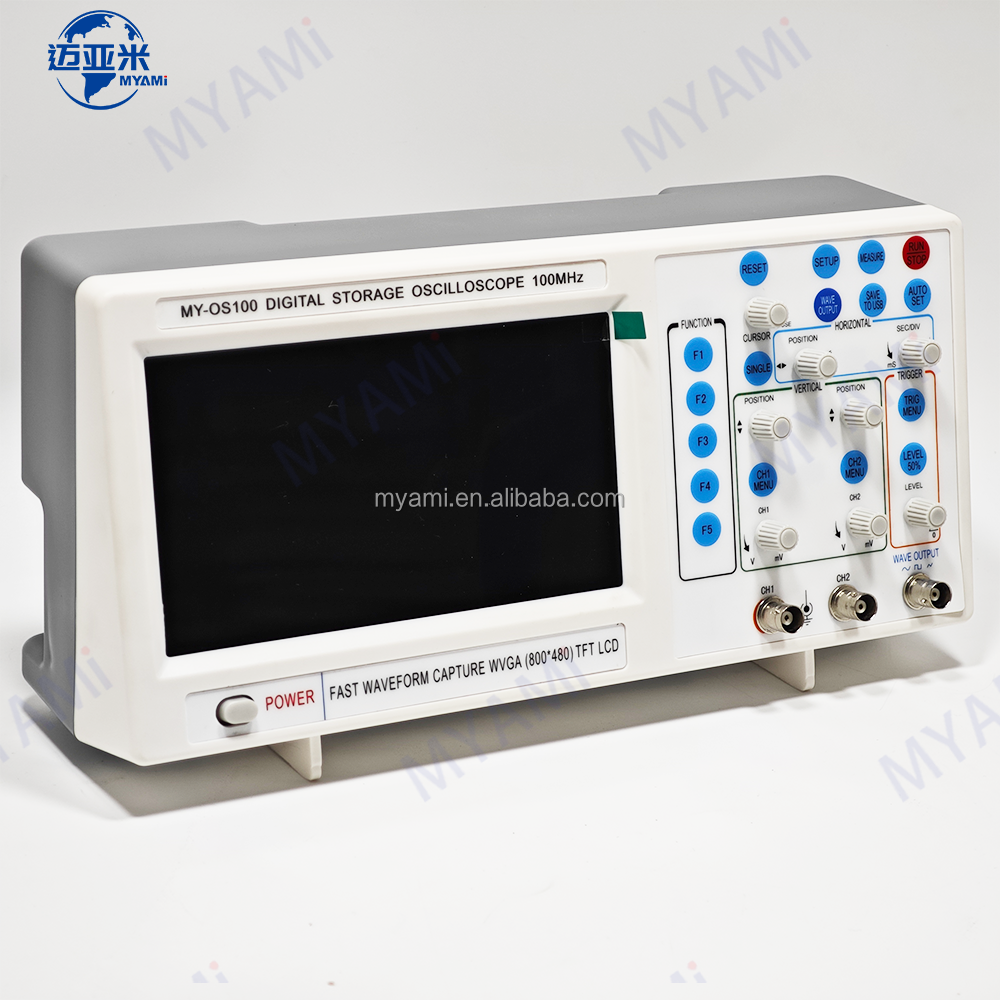

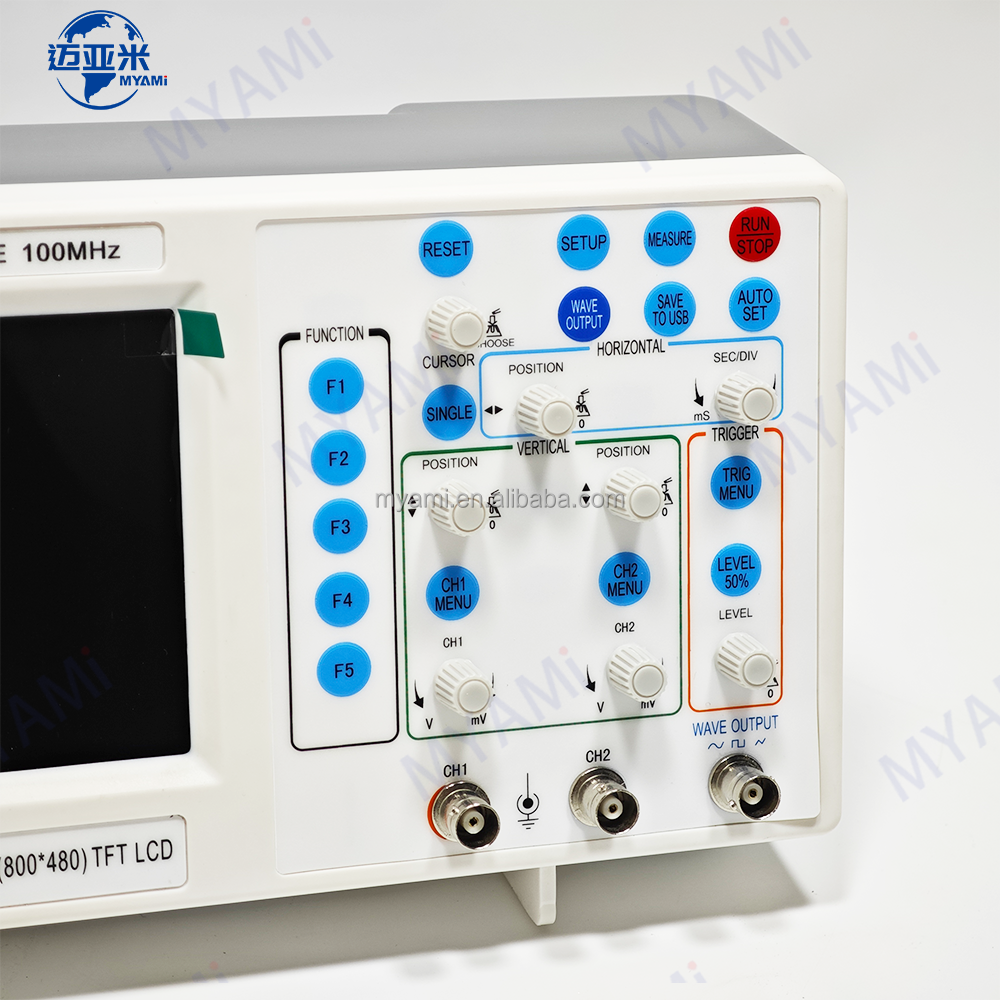

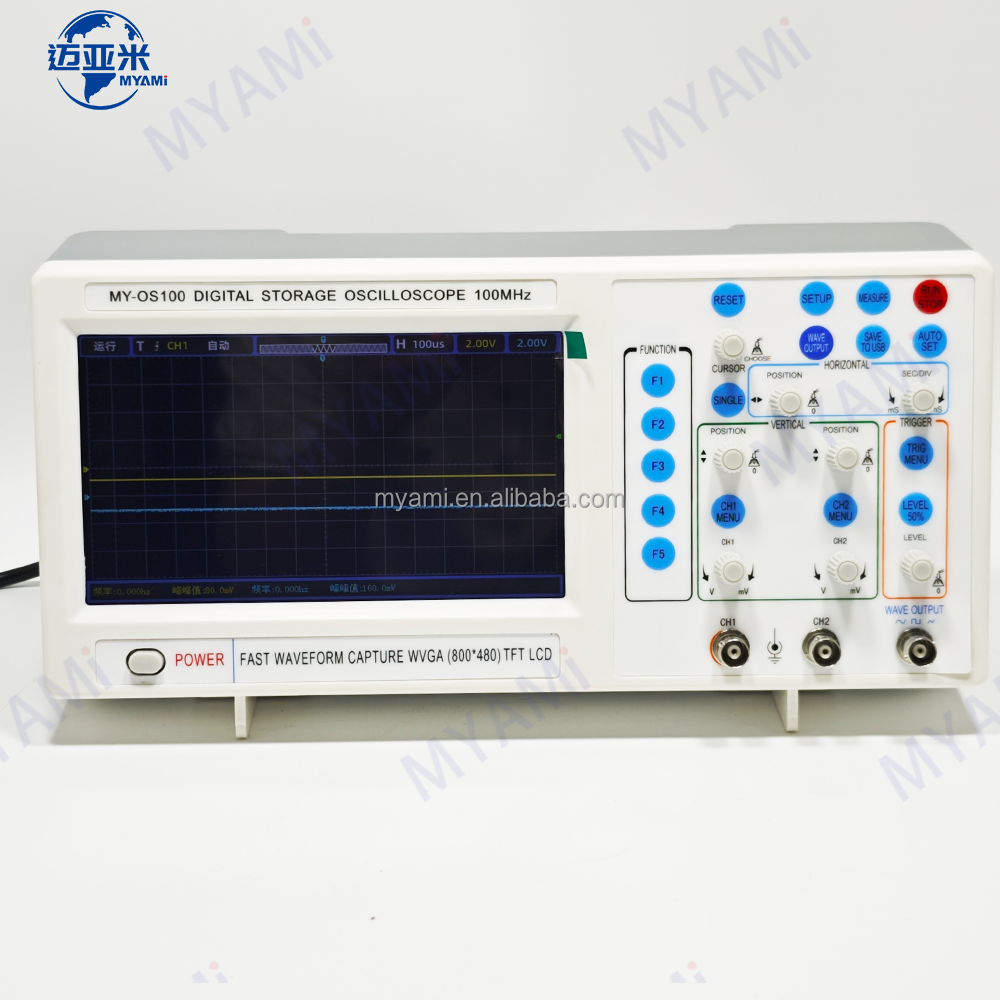

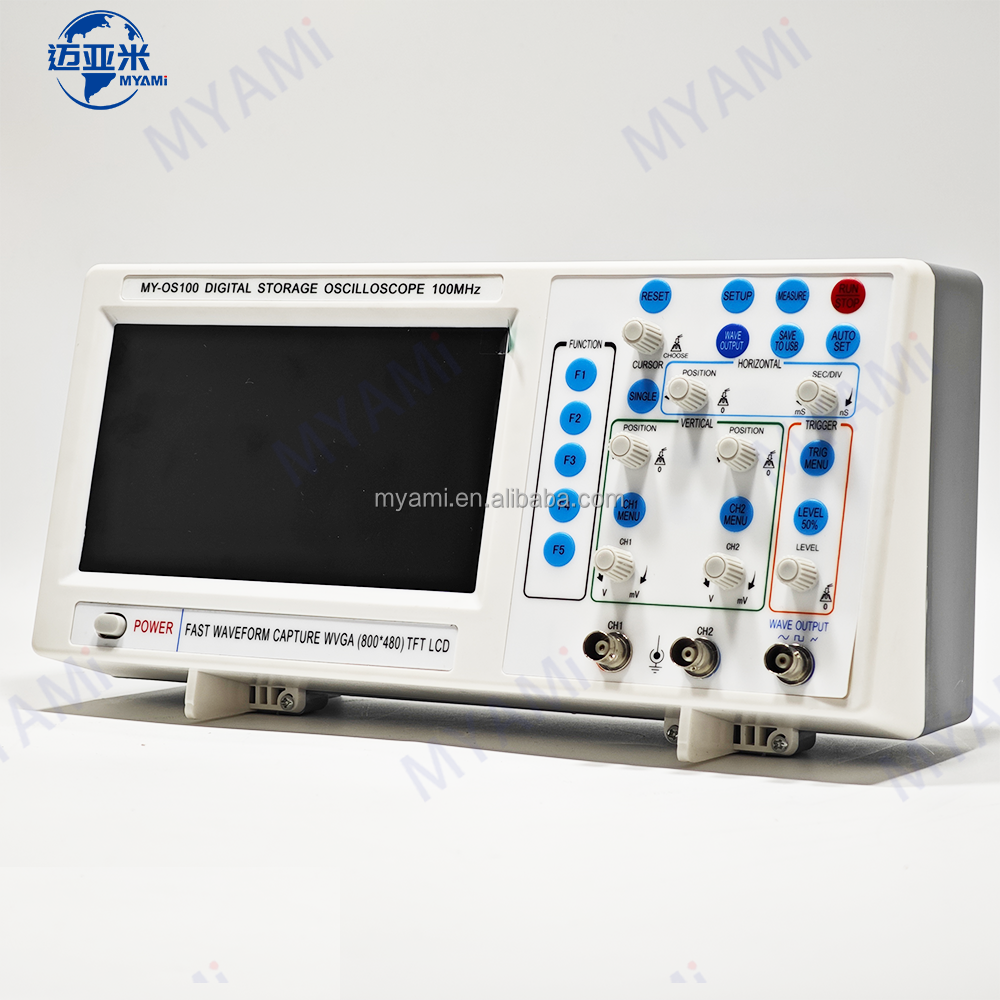

The oscilloscopes use digital chips and display on LCD. Compared with analog oscilloscopes, they have the characteristics of small size, light weight, full functions, simple operation, low power consumption, small measurement error, clear display and durability. It is an ideal new oscilloscope for experiments in physics teaching, technical teaching and staff teaching in middle schools.
| Trait | Indicator |
|---|---|
| Bandwidth | 100 MHz |
| Waveform Output | Sine wave, square wave and triangular wave |
| Time Base Range | 10 ns/div ~ 50 ms/div Step by step in 1 ~ 2 ~ 5 system. |
| Show | 7-inch LCD screen with 65536 colors and 800×480 pixels. |
| Passage | 2 channels |
| Maximum storage depth | 10K |
| Time Base accuracy | ±100 ppm |
| Input Coupling | DC, AC and grounding |
| Input Impedance | 1 mω 2%, in parallel with 20 pF±5 pF. |
| Maximum input voltage | 400 V(DC+AC peak) |
| DC gain accuracy | ±3% |
| Vertical sensitivity | 20mV/div ~ 10V/div |
| Trigger Type | Edge trigger |
| Trigger Mode | Automatic, normal, alternating |
| Automatic Measurement | Frequency, peak-to-peak value, maximum value and minimum value. |
| Communication Interface | USB 2.0, supporting u disk storage. |
| Power Supply | 100 - 240 VACRMS, 50/60 Hz, CATâ…¡ |
| Mechanical Specification | |
| measure | 305 mm (length) × 155 mm (height) × 100 mm (width) |
| weight | 1.5 kg (main engine) |
