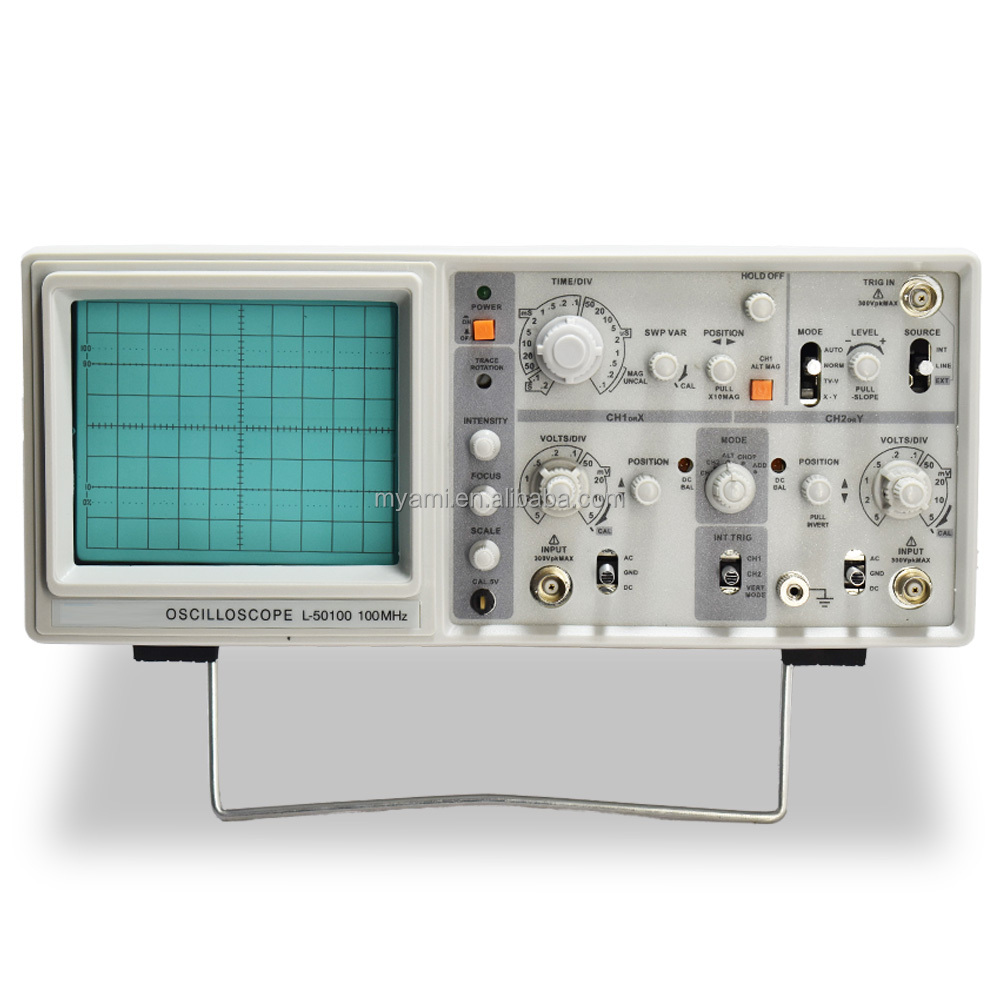

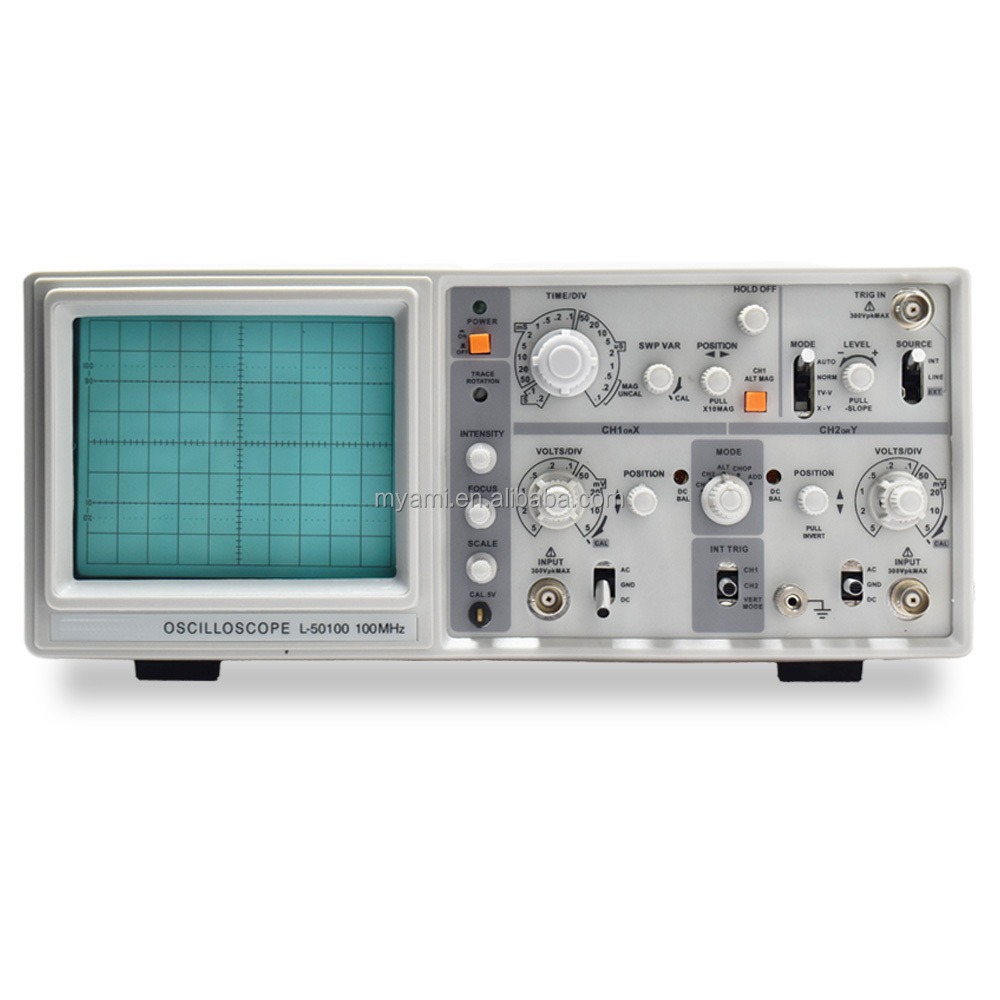

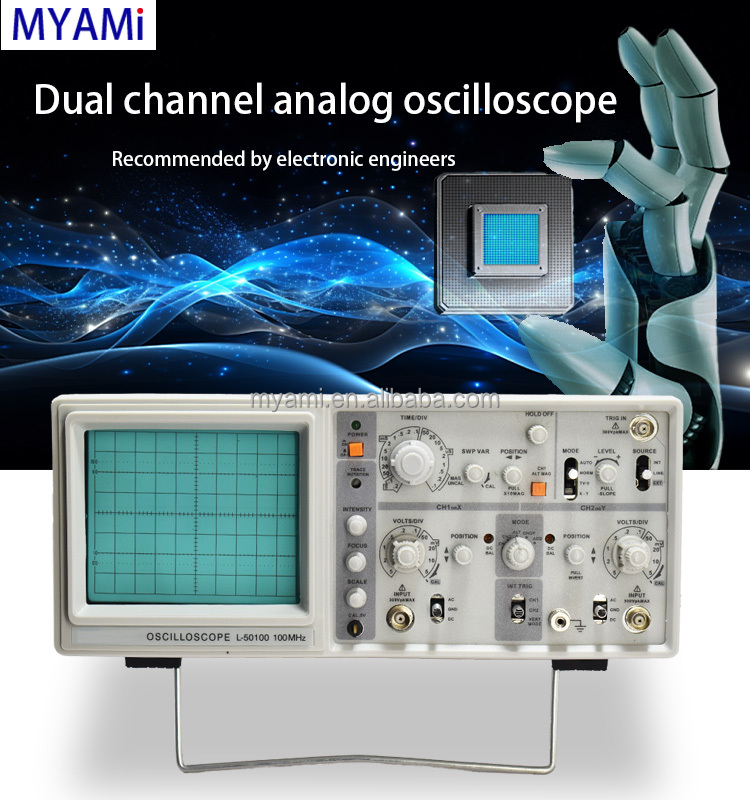

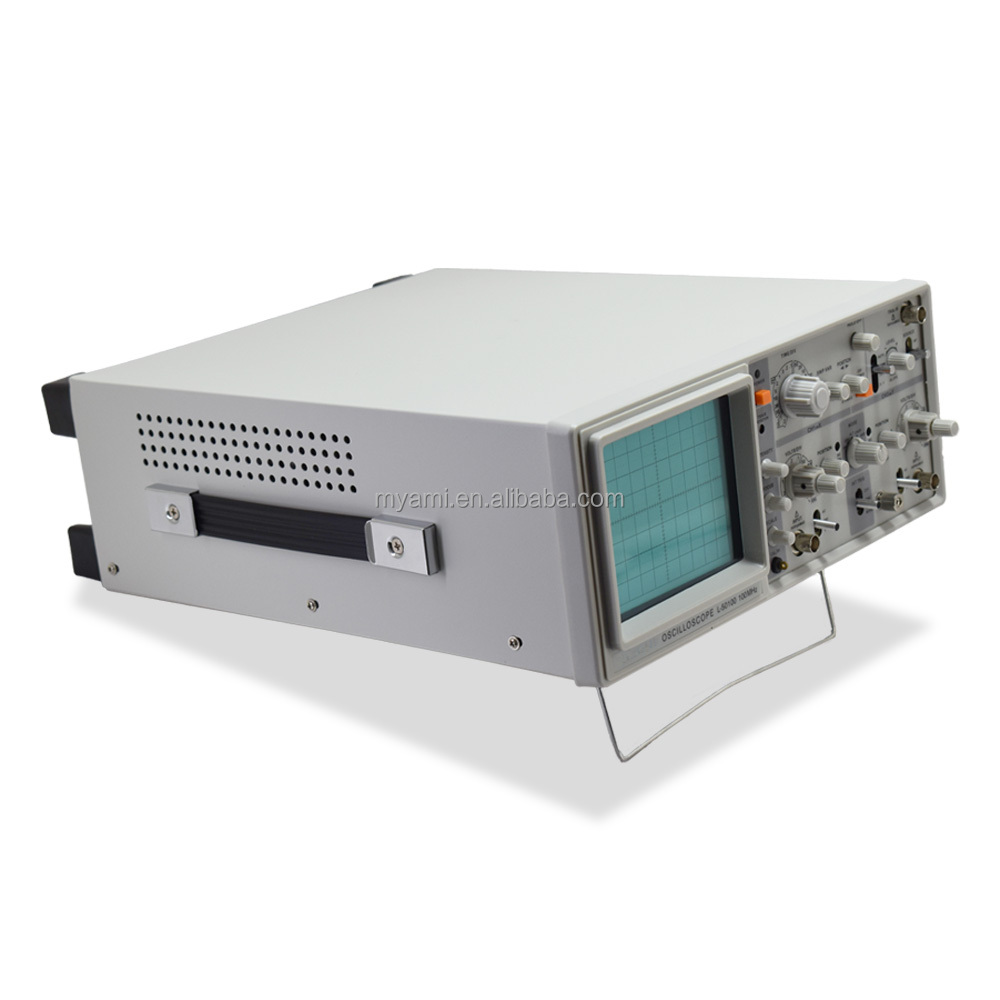

MYAMi 2 Channel Analog Oscilloscope Dual 20MHz to 100MHz Range for Laboratory Testing

Send Inquiry

Product Description

Product Details

20MHz 40MHz 60MHz 100Mhz 2 Channel Dual Channel Analog Oscilloscope for Laboratory test

Bandwidth: DC20MHz-100MHz

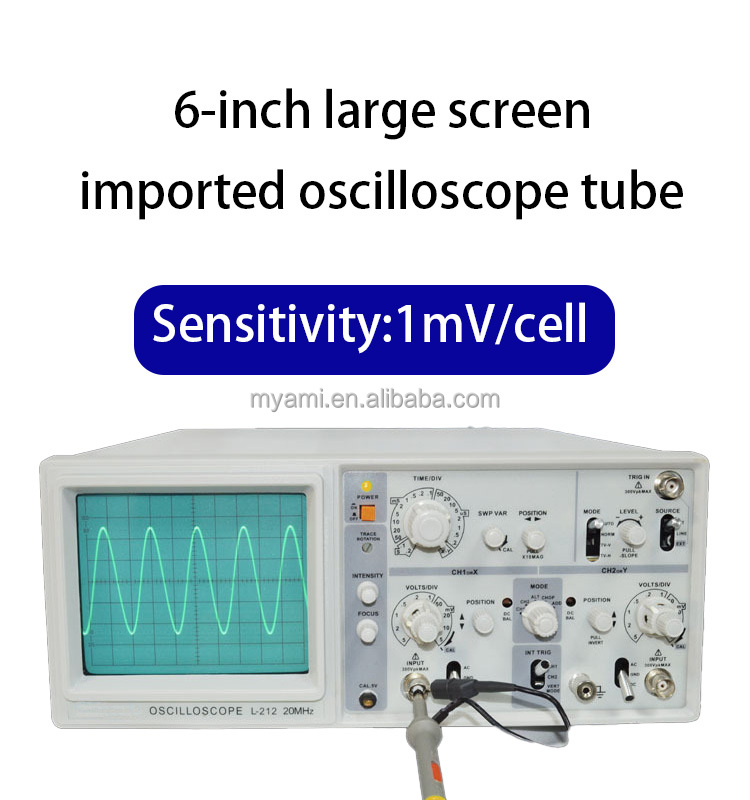

Highly sensitive: Sensitivity is 1mV/cell
CRT: The 6-inch large screen is convenient for observing and measuring waveforms, with red scale planning lines in the screen.
DC compensation: (LW5040, LW-5060, LW-50100 have) Monitors large amplitude input waveforms.
ALTMAG: (LW5040, LW-5060, and LW-50100 have) Synchronously observe the scanning waveform of X1 or X10.

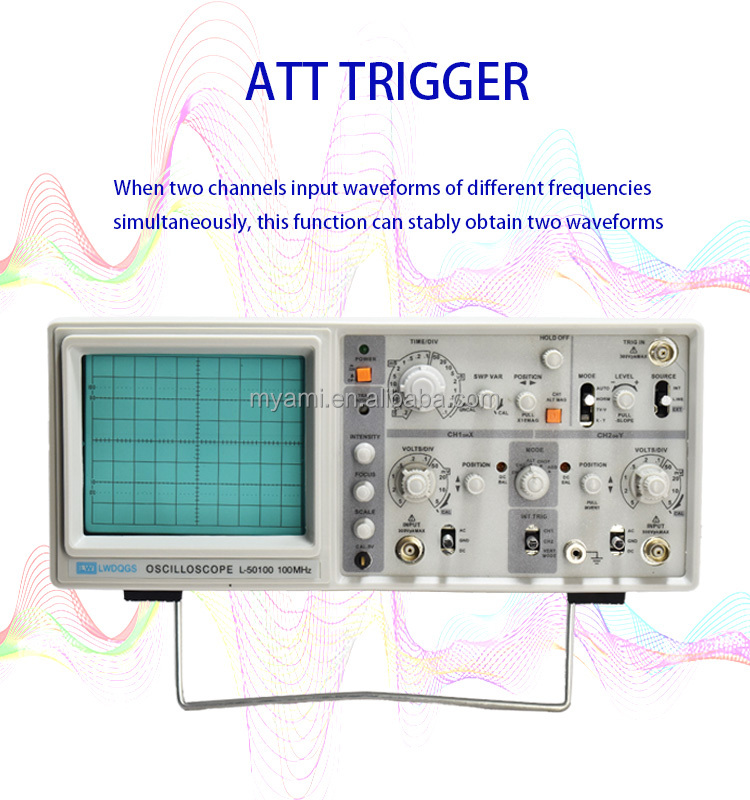

ALT trigger: Obtains stable waveforms when two channels input waveforms of different frequencies simultaneously.

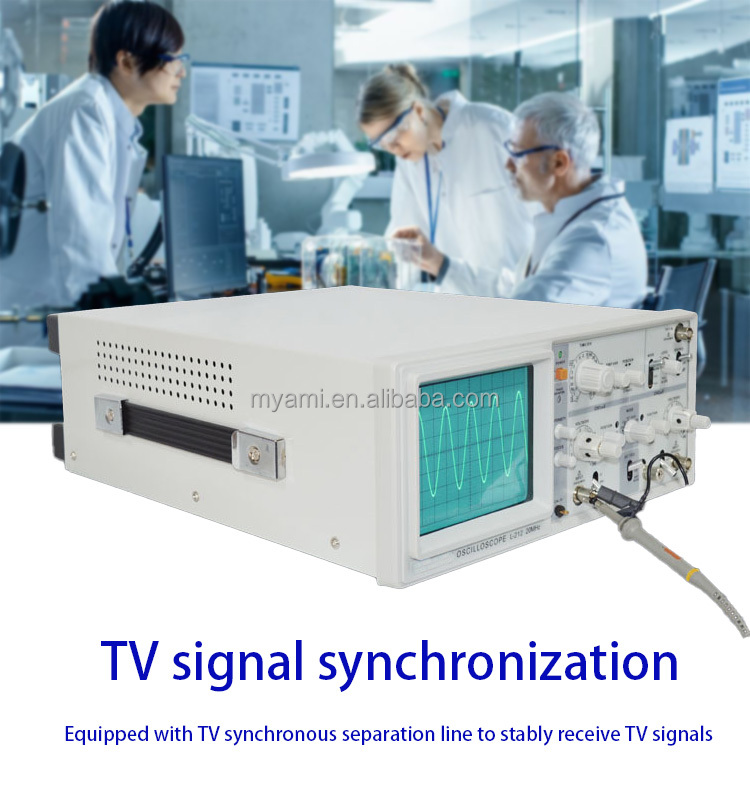

TV signal synchronization: Set with TV synchronization separation line to receive TV signals stably.

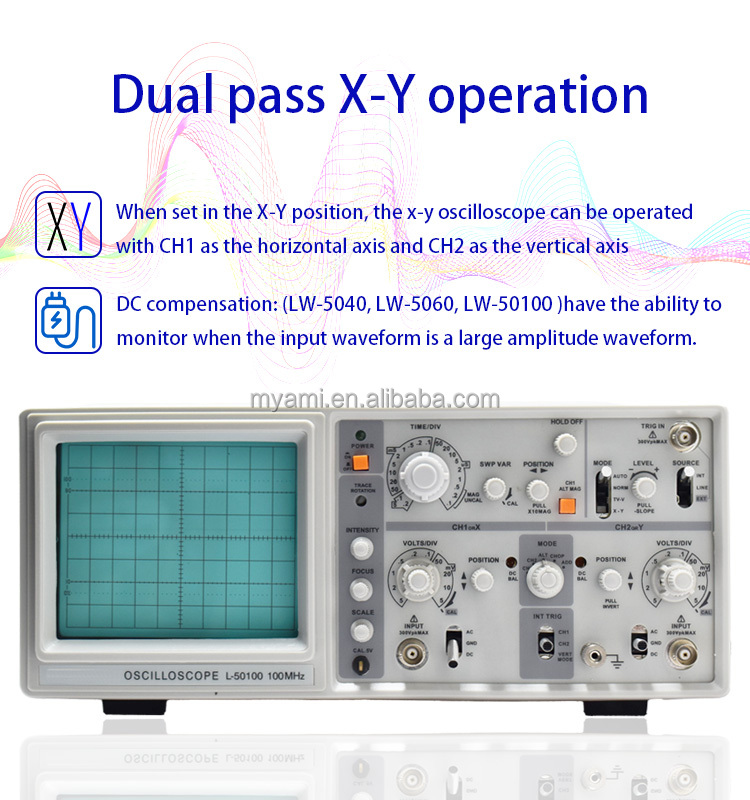

Dual pass/dual trace X-Y operation: Can be used as an X-Y oscilloscope when set at the X-Y position (CH1 is the horizontal axis, CH2 is the vertical axis).
Trigger mode: Automatic, normal, TV field, TV line.
Vertical mode: Alternating, intermittent, adding.
Input AC voltage: 220V (110V optional).

Specification

Model		L-212	L-5040	L-5060	L-50100
Frequency range		DC-20MHz	DC-40MHz	DC-60MHz	DC-100MHz
On screen grid		8*10div (1div=1cm)	8*10div	8*10div	8*10div
Vertical deflection	Display mode	CH1 CH2 CH3 ADD ALT CHOP
	Deflection factor	5mV/div to 5V/div ±3% (1mV/div ±5%)
	Rise time	≤17.2ns	≤17.2ns	≤17.2ns	≤17.2ns
	Polarity selection	±CH2
	Max input voltage	250V (≤1KHz)
Horizontal bias	Display mode	1, 10, X-Y
	Time base	0.2us/div ~ 0.2s/div
	Sweep width	×10	×10	×10	×10
	Accuracy	3%	3%	3%	3%
Correction waveform		Frequency 1KHz 20% Voltage: 0.5V 1%
Input impedance		1MΩ	1MΩ	1MΩ	1MΩ

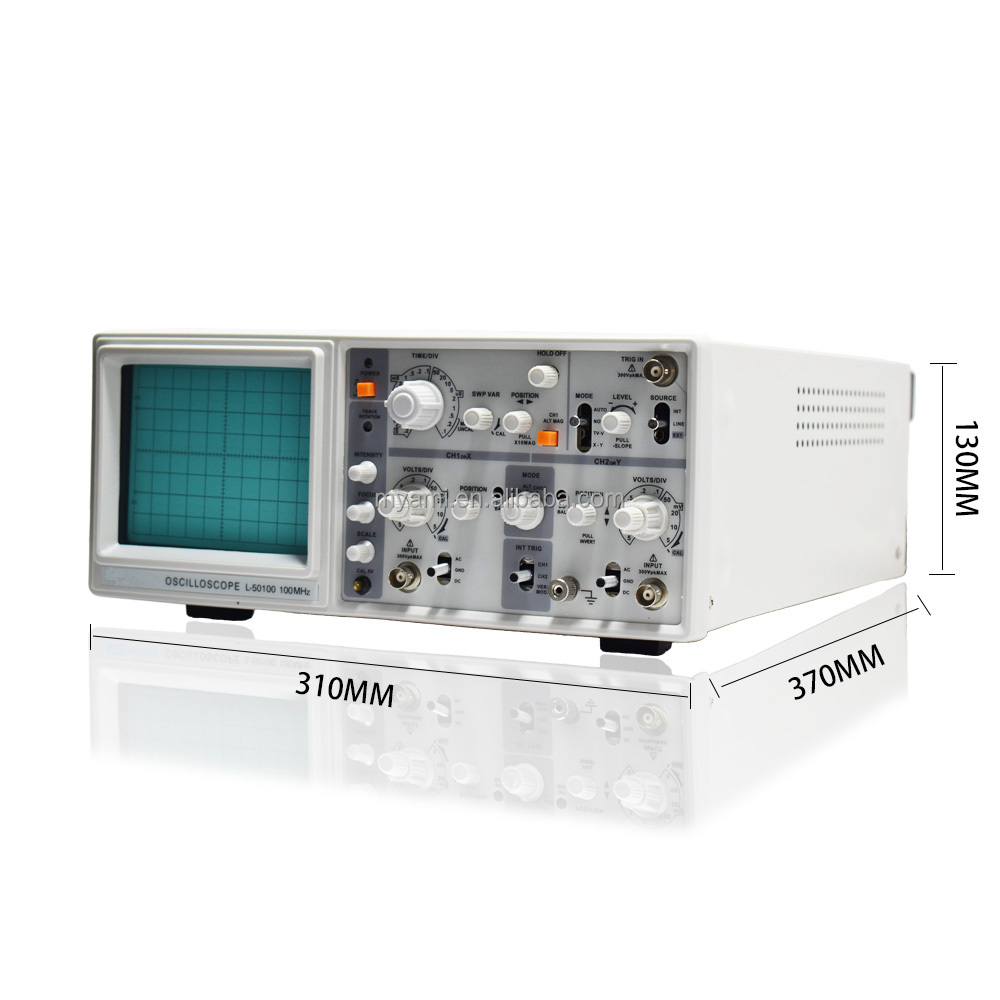

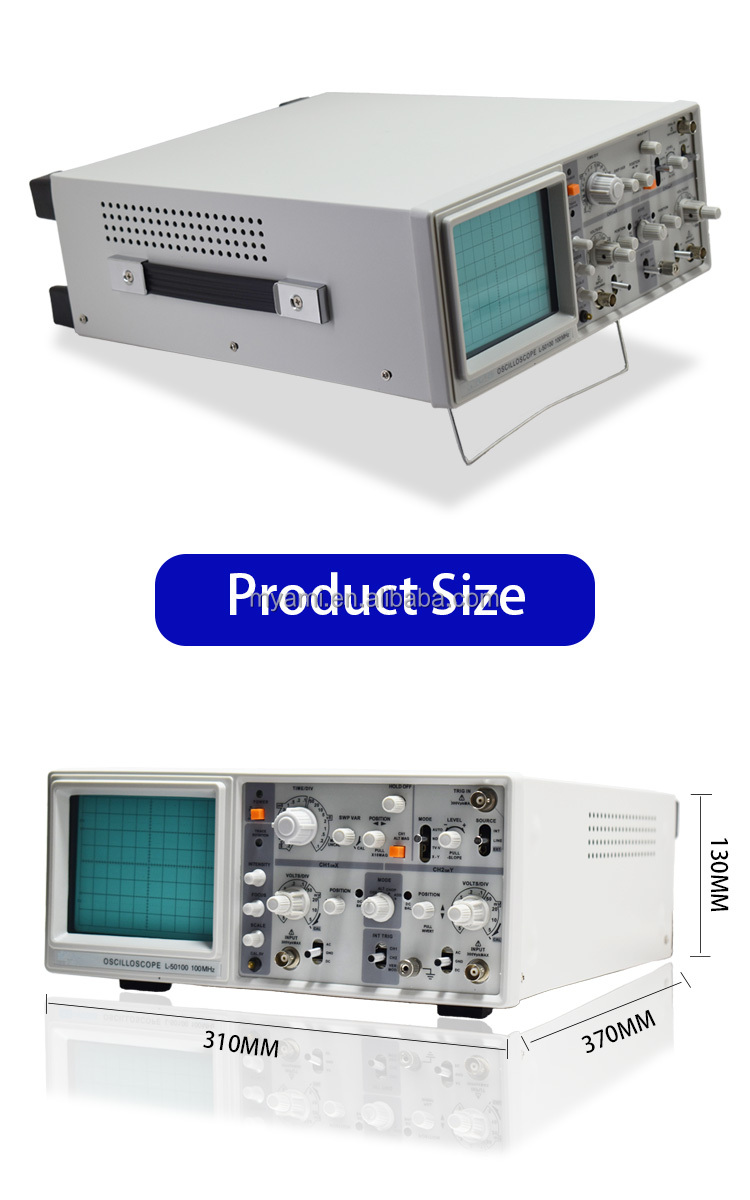

Size		370 × 310 × 130mm
Weight		11Kg
