Product Description

20MHz Dual Channel Laboratory Teaching Oscilloscope Dual Trace Analog Oscilloscope Portable Oscilloscope
Key Features & Technical Specifications
✓ Bandwidth: 20MHz
✓ Rise Time: ≤17.5ns
✓ Deflection Factor: 5mv/DIV ~ 20V/DIV (12 steps in 1-2-5 sequence, Extended x5 to 1mv)
✓ Vertical Mode: CH1, CH2, ALT, CHOP, ADD
✓ Sweep Time: 0.2uS/DIV - 0.5s/DIV (20 steps in 1-2-5 sequence)
✓ Trigger Mode: INT, EXT, ALT, LINE, TV-V, TV-H, LOCK
✓ Sweep Mode: AUTO, NORM, MAG x10

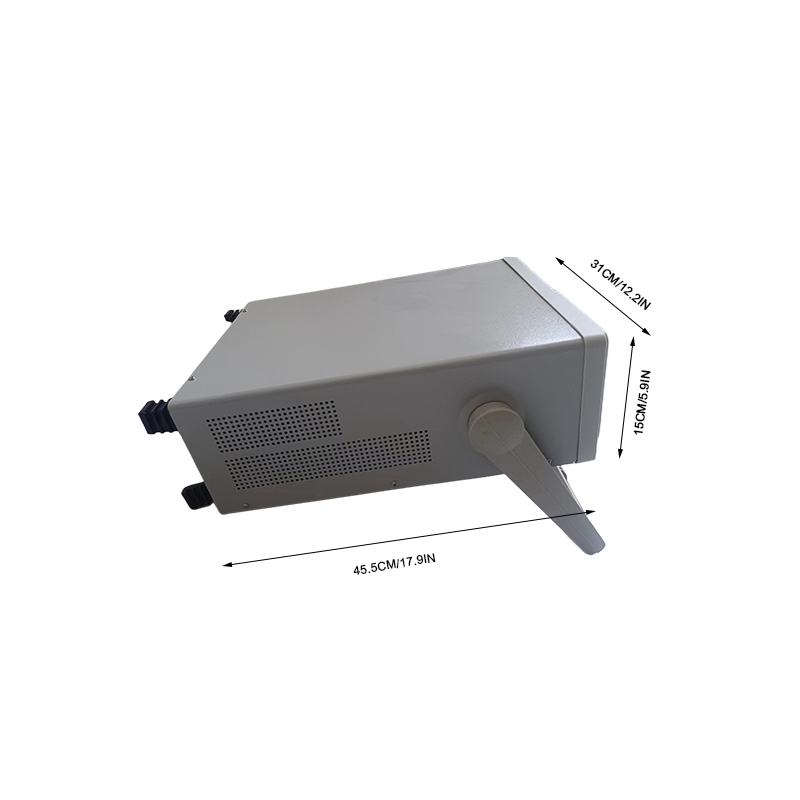

✓ Dimension: 310mm(W) * 150mm(H) * 455mm(D)
✓ Weight: 8kg
✓ Useful Screen Area: 8x10 DIV (1DIV = 10mm)
Specification Details
Parameters Configuration Details
Frequency Range DC-20MHz
On-Screen Grid 8 * 10 div (1 div = 1 cm)
Vertical Deflection
Display Mode CH1, CH2, CH3, ADD, ALT, CHOP
Deflection Factor 5mV/div to 5V/div ±3% (1mV/div ±5%)
Rise Time ≤17.5ns (≤17.2ns for alternative configurations)
Polarity Selection ±CH2
Max Input Voltage 250V (≤1KHz)
Horizontal Bias
Display Mode 1, 10, X-Y
Time Base 0.2us/div ~ 0.2s/div
Sweep Width ×10
Accuracy 3%
General Characteristics
Correction Waveform Frequency: 1KHz 20%, Voltage: 0.5V 1%
Input Impedance 1MΩ
Dimensions 450 × 310 × 150 mm
Weight 8 Kg
Product Gallery

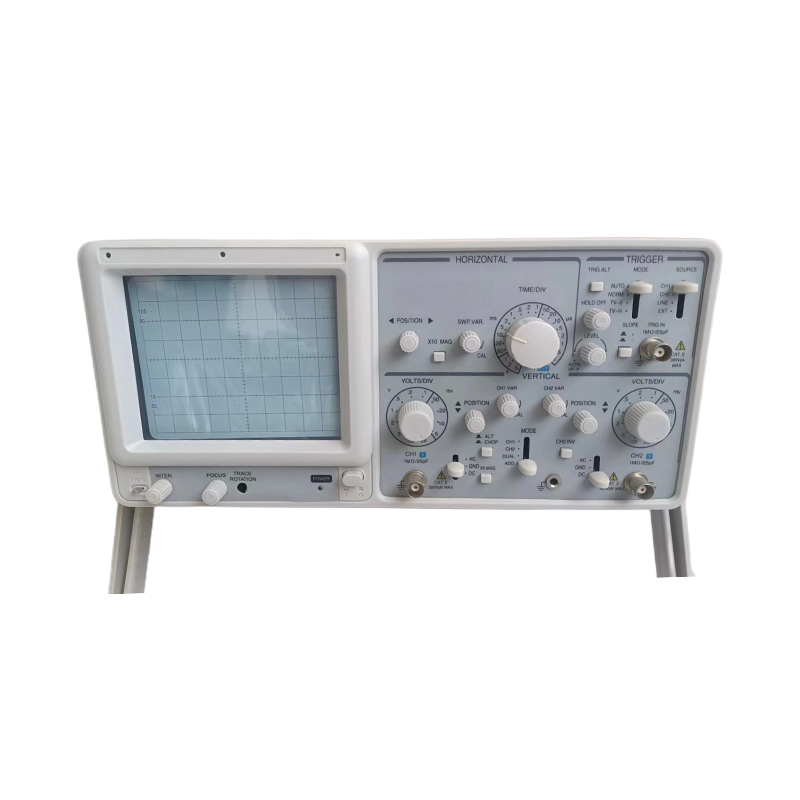

Laboratory Teaching Oscilloscope Main View

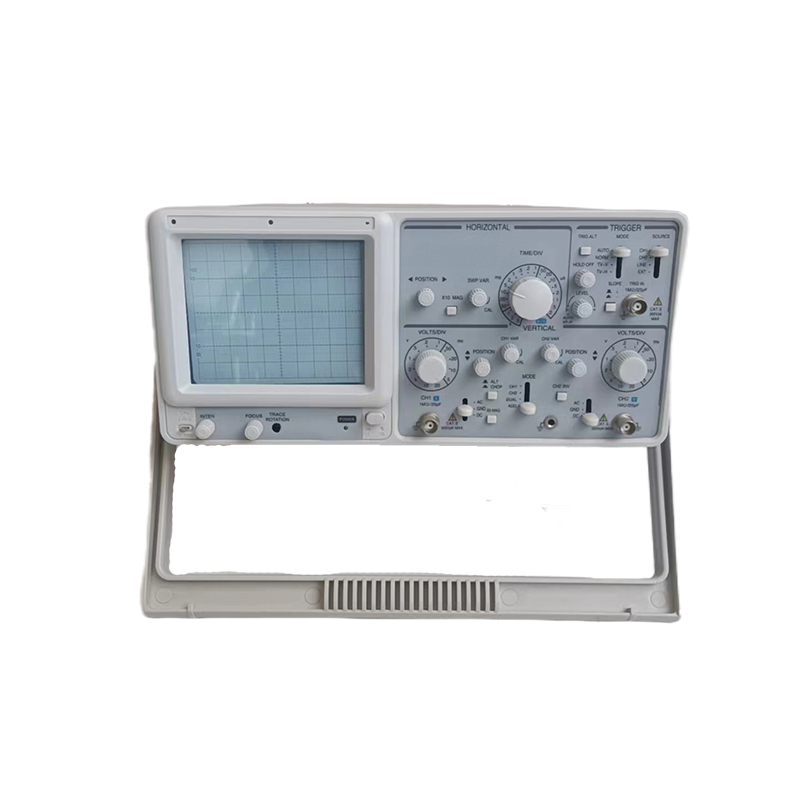

Oscilloscope Angle View 1
Oscilloscope Front Panel Detail

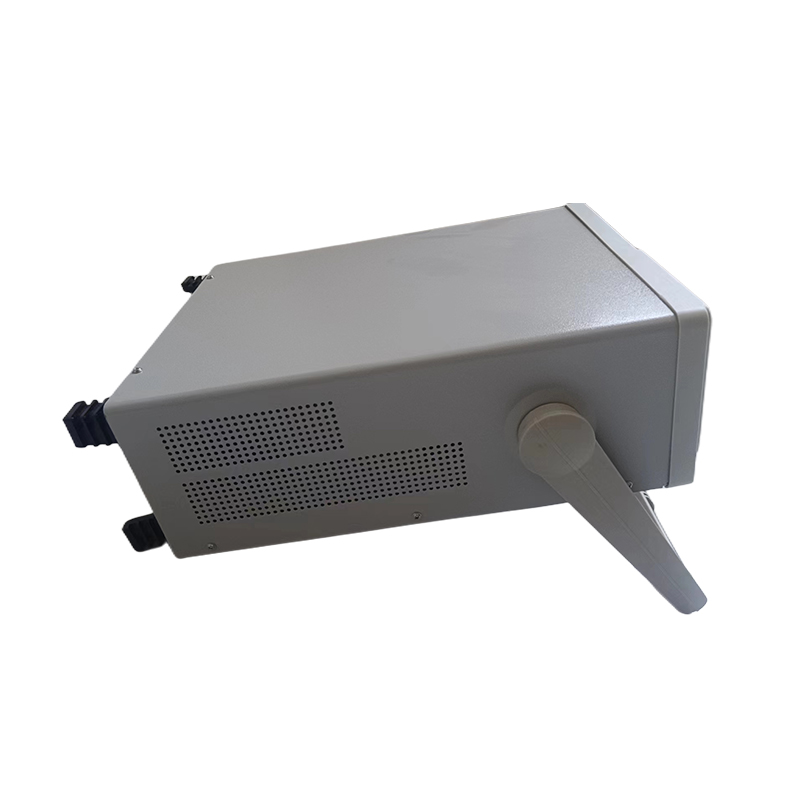

Oscilloscope Side Interface View
Oscilloscope Control Knobs Close Up
Product Classification
Product Categories Overview
Factory Tour & Certificates
Factory Operations View
Product Compliance Certificates
Exhibitions & Packaging
Exhibition Hall Display
Packaging & Transit Process
Related Products Recommendations
Recommended Device Catalog
Frequently Asked Questions (FAQ)
❓ What is the Minimum Order Quantity (MOQ)?
The MOQ of the machinery is 1 set.
❓ What is the standard delivery lead time?
The general delivery time is 3 to 5 days after order confirmation, depending on the requested order quantity.
❓ Do you have video demonstrations for product operations?
Yes, we have demonstration videos for every model. Please request video information directly to obtain them.
❓ What are your accepted payment terms?
We require 100% payment prior to shipment.
❓ What payment methods do you support?
We accept standard payments via Telegraphic Transfer (T/T) and Letter of Credit (L/C).
❓ Does this analog oscilloscope include calibration features?
Yes, it features a built-in correction waveform generator at a frequency of 1KHz (20% accuracy) and a voltage of 0.5V (1% accuracy) for fast self-calibration.
