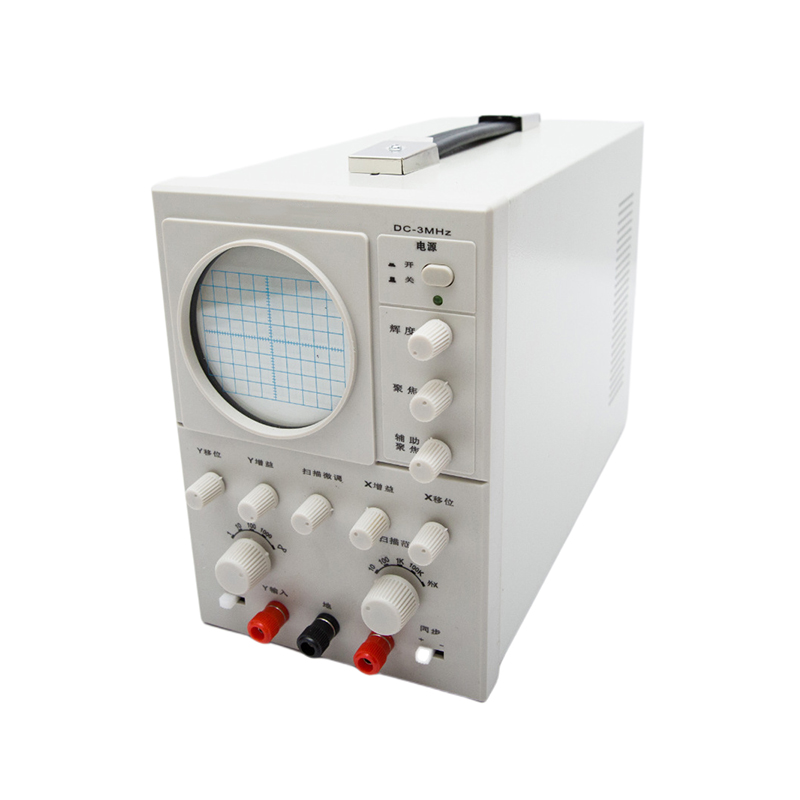

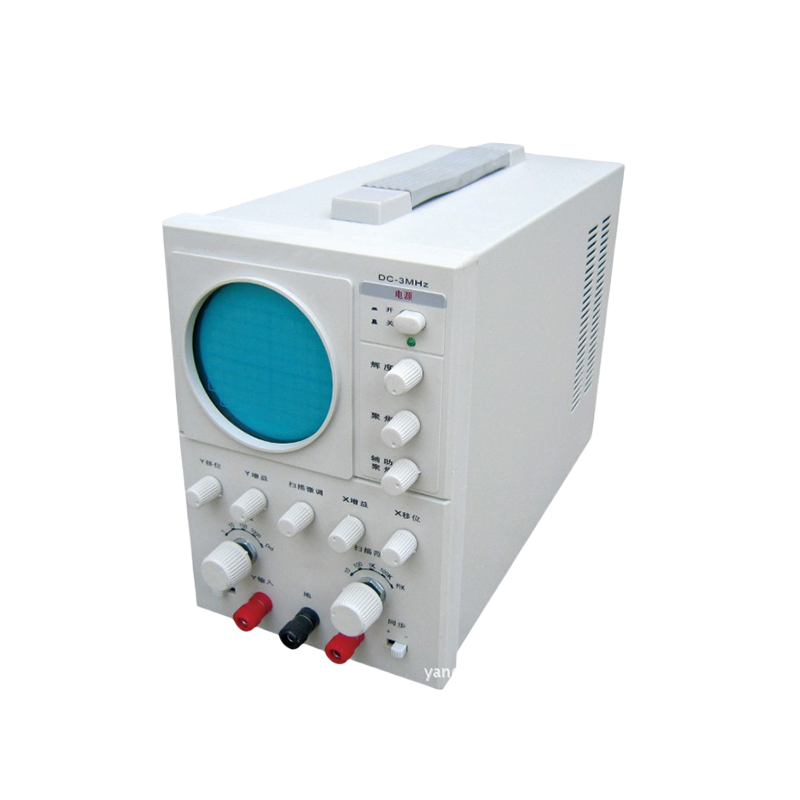

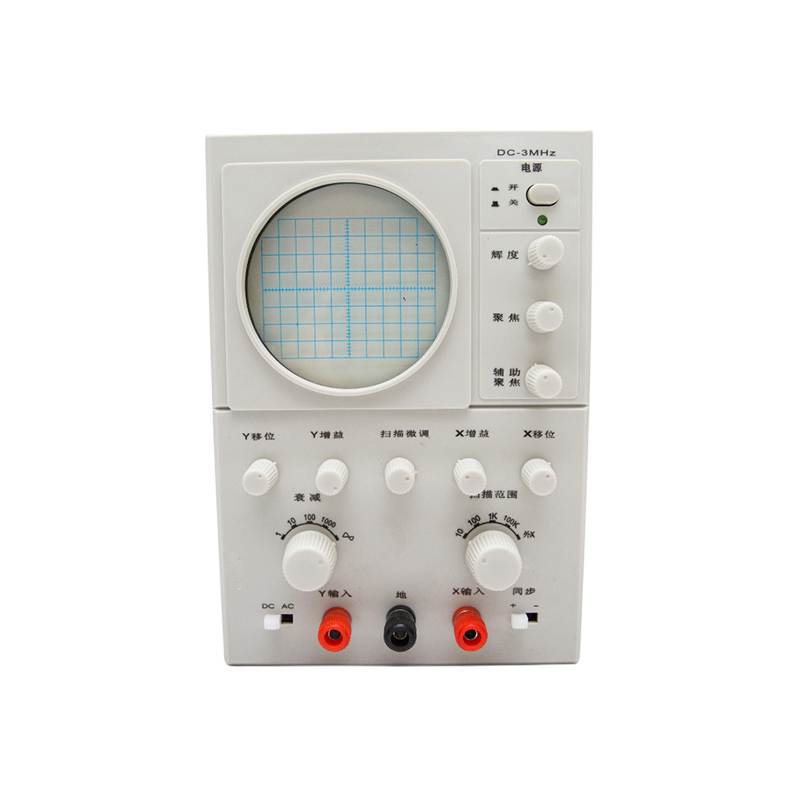

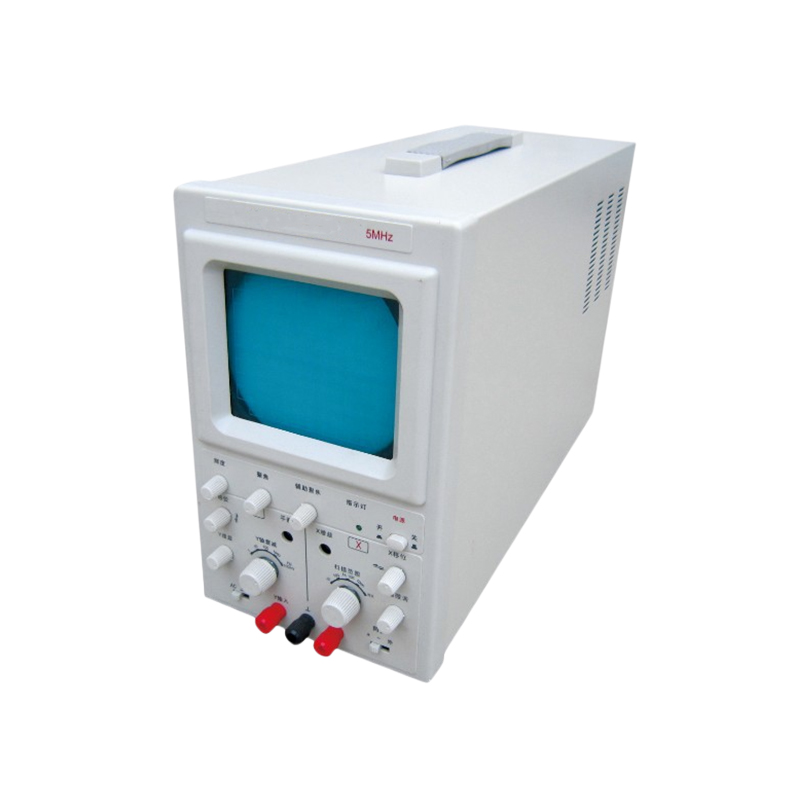

MYAMI 5MHz 10MHz Low Price Teaching Instrument Science Educational Physics Laboratory Equipment Student Analog Oscilloscope

Send Inquiry

Product Description

Frequency & Vertical Deflection: Frequency response of DC~5MHz, vertical deflection factor of 50mVp-p/gram, capable of quantitative testing of waveform amplitude with an error of not more than 10%.
Compact & Efficient Design: The instrument features a small size, light weight, simple operation, easy portability, power-saving capabilities, and affordability.
Educational Utility: An ideal oscilloscope choice for student group experiments in secondary school physics teaching, labor and technology instruction, and staff training courses.

Vertical system frequency response	DC ~ 5MHz ≤ 3dB, AC 10Hz ~ 5MHz ≤ 3dB
Deflection factor	20mVp-p/gram, error ±10%
Input capacitance	1MΩ/40PF
Attenuation multiplier	1, 10, 100, 1000, error ±10%
Input withstand voltage	400V (DC + ACpk)
Scanning system scanning frequency	10Hz ~ 100kHz, divided into four blocks
Synchronization	Internal positive, internal negative, external synchronization
Level system frequency response	10Hz ~ 500kHz ≤ 3dB
Deflection factor (Level)	100mVp-p/gram
Input capacitance (Level)	1MΩ/60PF
Waveform	Sine wave 50Hz
Amplitude	250mVp-p±10%
Afterglow	Medium
Working environment	Temperature 0℃ ~ +40℃
Relative humidity	≤90% (40℃)
